Self Adhesive BOPP surface protective film

Product Overview

Description

The world's best and only one Self-Adhesive OPP surface protective film "FSA"





FSA is the only self-adhesive OPP film in its industry made by using OPP manufacturing method,providing various properties which other materials are unable to offer.



 |||| Product Features ||||

> FSA feature 1. Heat resistance



FSA is made from PP with high resistance properties.

Through biaxially oriented process,it has acquired heat resistance of 160C° and it does its stuff in the processes such as annealing,printing,pressing,etc.to which heat is applied.

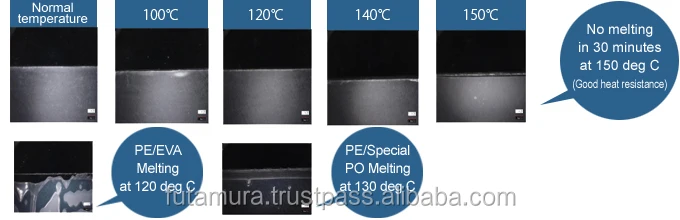

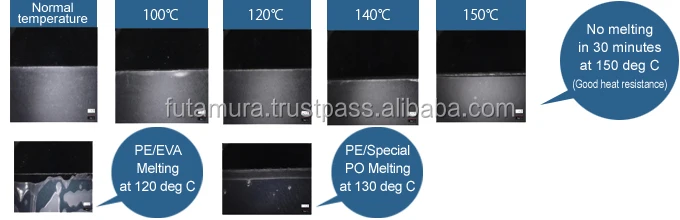

•FSA surface status after 30-minute heating

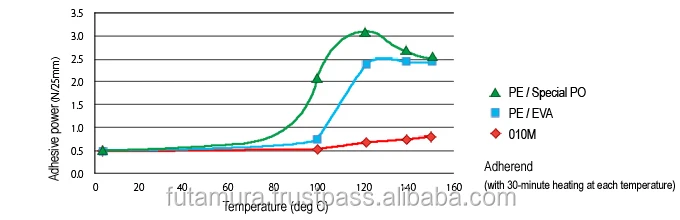

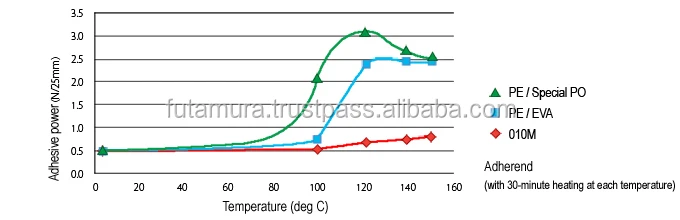

•FSA adhesive strength rise data

 The heat resistance is high.So,adhesive strength rise caused by temperature can be suppressed low.



◊FSA heat resistance is able to use effectively for the appliction of IML(In Mold Lamination)and ITO(Indium Tin Oxide)dielectric film.





> FSA feature 2.  Stiffness,easy-to-cut



Since it is an OPP film,FSA is firm,resilient,and hard to be elongnated.

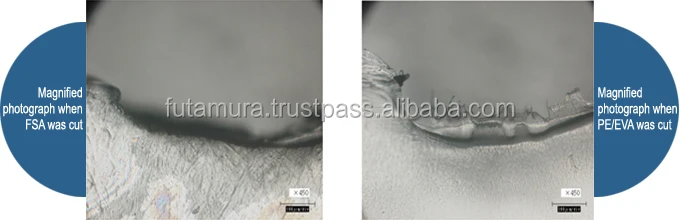

"Filamentous resin residues",a phenomenon specific to resin is hard to occur and easy-to-cut property is provided in punching process using Thomson blade.

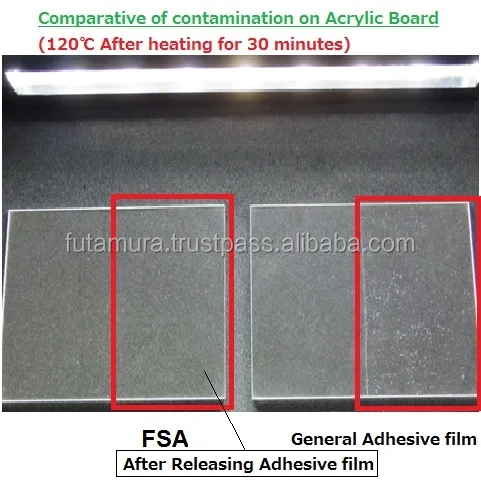

> FSA feature 3.  Low contamination



Being given self-adhesiveness by elastomer,FSA has no glue residues caused by an adhesive that would happen in adhesive coated films.



> FSA feature 4.  Applicable to products in broad with

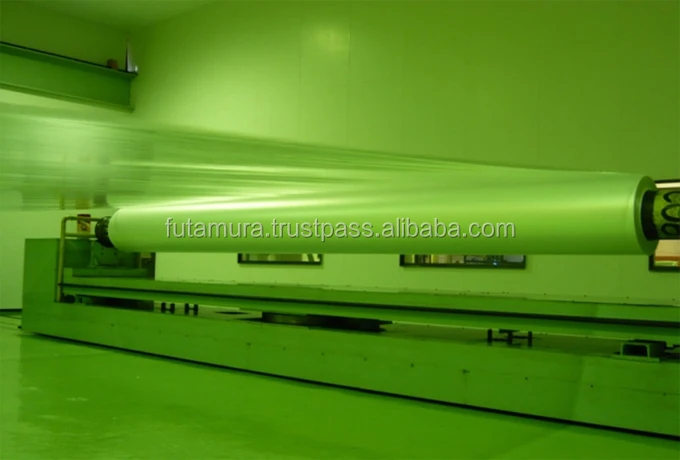

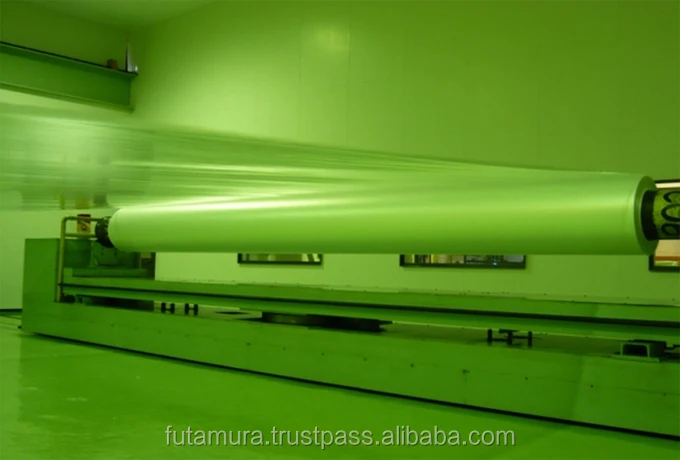

FSA is manufactured 5,000 mm in width in mother roll and available for products up to 2,400 mm wide.

(∗Excluding certain products)

F

> FSA feature 5.  Wide variety of adhesive strengths



The adhesive strength of FSA is available from 0.1N(low adhesion) to 3.0N(strong adhesion) and it is used as protective film for a wide variety of materials such as hard coat film,resin boards,and metal plates,prisms and diffusion boards,etc.



 |||| Product Lineup ||||



Surface	Grade	Thickness (μ)	Adhesive strength (against acryl)	Maximum width\u009D (mm)
Matt	010M	30	0.1N/25mm	2,400
	020M		0.2N/25mm
	050M		0.5.0N/25 mm
	100M		1.0N/25 mm
	150M		1.5.0N/25 mm
	300M		3.0.0N/25 mm	1,500
Clear	010C	30	0.1N/25mm	please ask us
Colored (blue)	010B	30	0.1N/25mm	2,400
	020B		0.2N/25mm



Examples of Adherend



Optical film	ITO film,  Anti-reflection film, etc.
Plastic plate	PMMA,Polycarbonate, polyester,  etc.
Metal plate	Stainless, Aluminum, etc.
Other	Glass plate, Hard coated surface,     Print circuit board, etc.





|||| About Futamura Chemical ||||
We are a global chemical material manufacturer for our better life and the environmental

protection founded in 1947 and our annual turnover is approximately US$ 611million

(JPY64.7 billion) in 2016.

We are mainly based on domestic business in Japan,but due to the acquisition of Innovia Films'

cellulose business in July 2016, Futamura has production sites in Japan,UK and USA,

employing some 1500 people across six divisions.



Our product lines and applications:

>For Packaging materials

>>Plastic Films

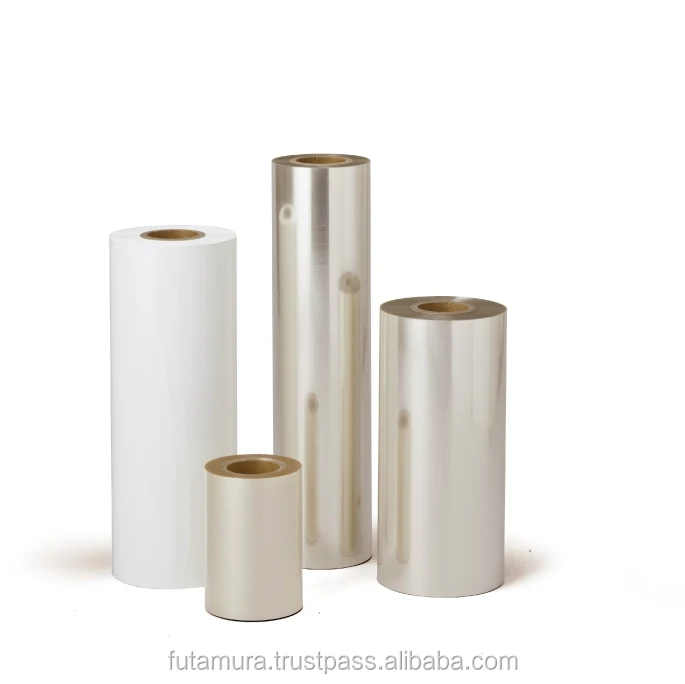

>>Cellulose Films

>>Fibrous Casings



>For Water/Air treatment materials

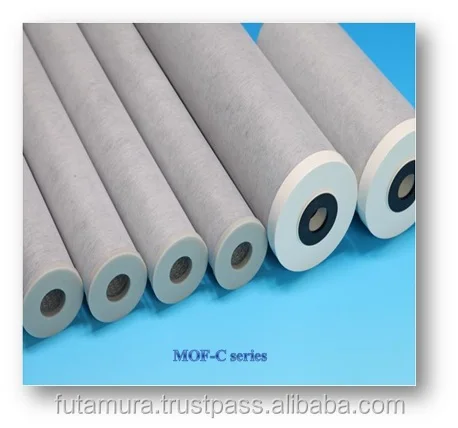

>>Activated Carbon
