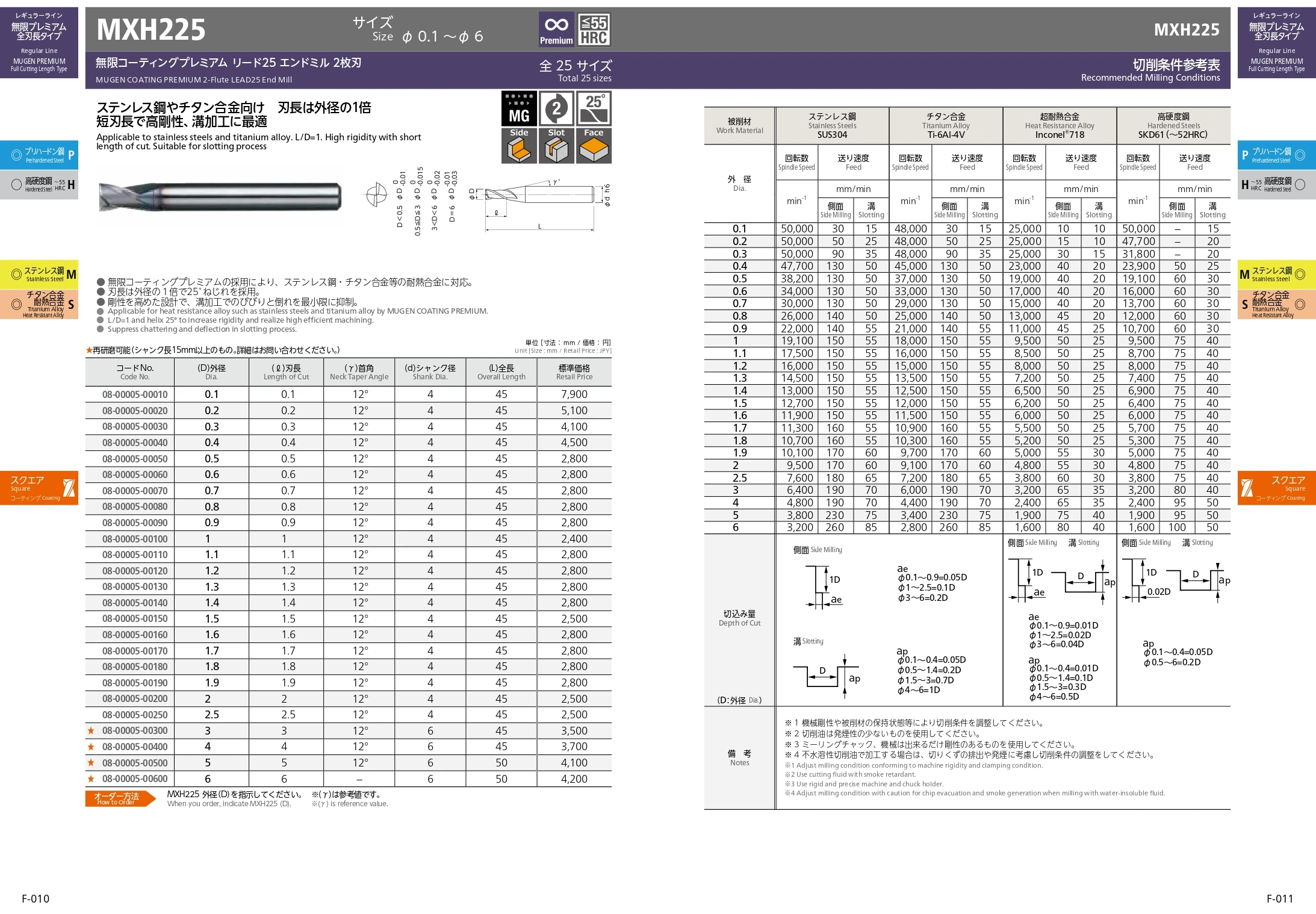

NS TOOL MXH225 2 Flutes Carbide square endmill with Mugen Coating Premium for hard material

Product Overview

Description

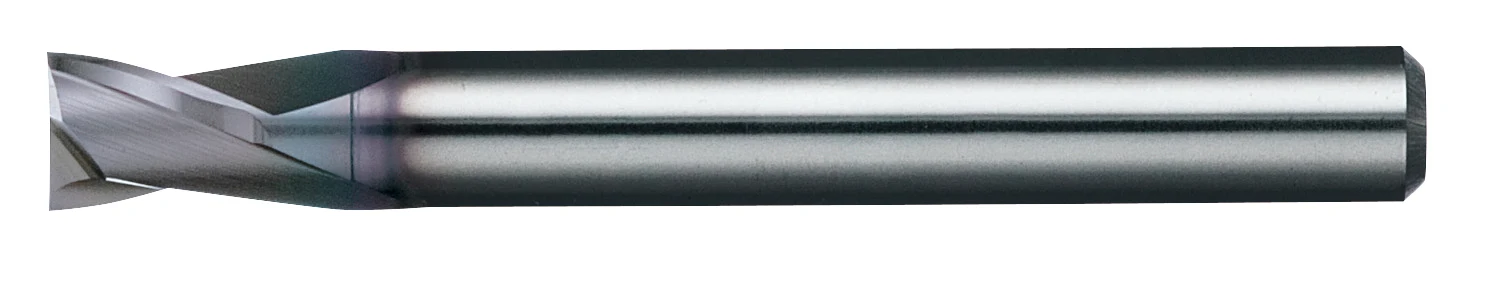

NS TOOL MXH225

MUGEN-COATING PREMIUM

2-Flute LEAD25 End Mill



Applicable for heat resistance alloy such as stainless steels and titaniym alloy by MUGEN COATING PREMIUM.

L/D = 1 and helix 25° to increase rigidity and realize high efficien machining.

Suppress chattering and deflection in slotting process.



Suitable material



Carbonsteels	Alloy Steels, Tool Steels	Prehardened Steels	Hardened Steels		Stainless Steels	Titanium alloy	Aluminum	Copper	Plastic
suitable	suitable	suitable	~55HRC	55HRC~	more suitable	more suitable	suitable	suitable	suitable
			more suitable	suitable





Product Detail





























MXH225 Line up

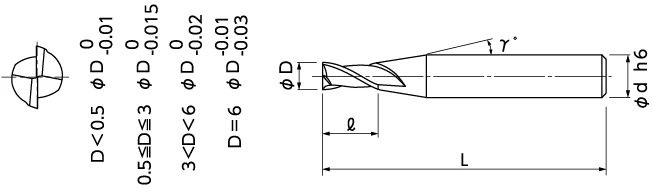

Code No.	(D)Dia.	(l)Length of Cut	(y)Neck Taper Angle	(d)Shank Dia.	(L)Overall Length
08-00005-00010	0.1	0.1	12°	4	45
08-00005-00020	0.2	0.2	12°	4	45
08-00005-00030	0.3	0.3	12°	4	45
08-00005-00040	0.4	0.4	12°	4	45
08-00005-00050	0.5	0.5	12°	4	45
08-00005-00060	0.6	0.6	12°	4	45
08-00005-00070	0.7	0.7	12°	4	45
08-00005-00080	0.8	0.8	12°	4	45
08-00005-00090	0.9	0.9	12°	4	45
08-00005-000100	1	1	12°	4	45
08-00005-000110	1.1	1.1	12°	4	45
08-00005-000120	1.2	1.2	12°	4	45
08-00005-000130	1.3	1.3	12°	4	45
08-00005-000140	1.4	1.4	12°	4	45
08-00005-000150	1.5	1.5	12°	4	45
08-00005-000160	1.6	1.6	12°	4	45
08-00005-000170	1.7	1.7	12°	4	45
08-00005-000180	1.8	1.8	12°	4	45
08-00005-000190	1.9	1.9	12°	4	45
08-00005-000200	2	2	12°	4	45
08-00005-000250	2.5	2.5	12°	4	45
08-00005-000300	3	3	12°	4	45
08-00005-000400	4	4	12°	4	45
08-00005-000500	5	5	12°	6	50
08-00005-000600	6	6	12°	6	50





Recommended Milling Conditions

Work Material	Stainless Steels SUS304			Titanium Alloy Ti-6Al-4V			Heat Resistance Alloy inconel®718			Hardened Steels SKD61(~52HRC)
Dia.	Spindle Speed	Feed		Spindle Speed	Feed		Spindle Speed	Feed		Spindle Speed	Feed
	min-1	mm/min		min-1	mm/min		min-1	mm/min		min-1	mm/min
		Side Milling	Slotting		Side Milling	Slotting		Side Milling	Slotting		Side Milling	Slotting
0.1	50,000	30	15	48,000	30	15	25,000	10	10	50,000	−	15
0.5	38,200	130	50	37,000	130	50	19,000	40	20	19,100	60	30
1	19,100	150	55	18,000	150	55	9,500	50	25	9,500	75	40
1.5	12,700	150	55	12,000	150	55	6,200	50	25	6,400	75	40
2	9,500	170	60	9,100	170	60	4,800	55	30	4,800	75	40
2.5	7,600	180	65	7,200	180	65	3,800	60	30	3,800	75	40
3	6,400	190	70	6,000	190	70	3,200	65	35	3,200	80	40
4	4,800	190	70	4,400	190	70	2,400	65	35	2,400	95	50
5	3,800	230	75	3,400	230	75	1,900	75	40	1,900	95	50
6	3,200	260	85	2,800	260	85	1,600	80	40	1,600	100	50
