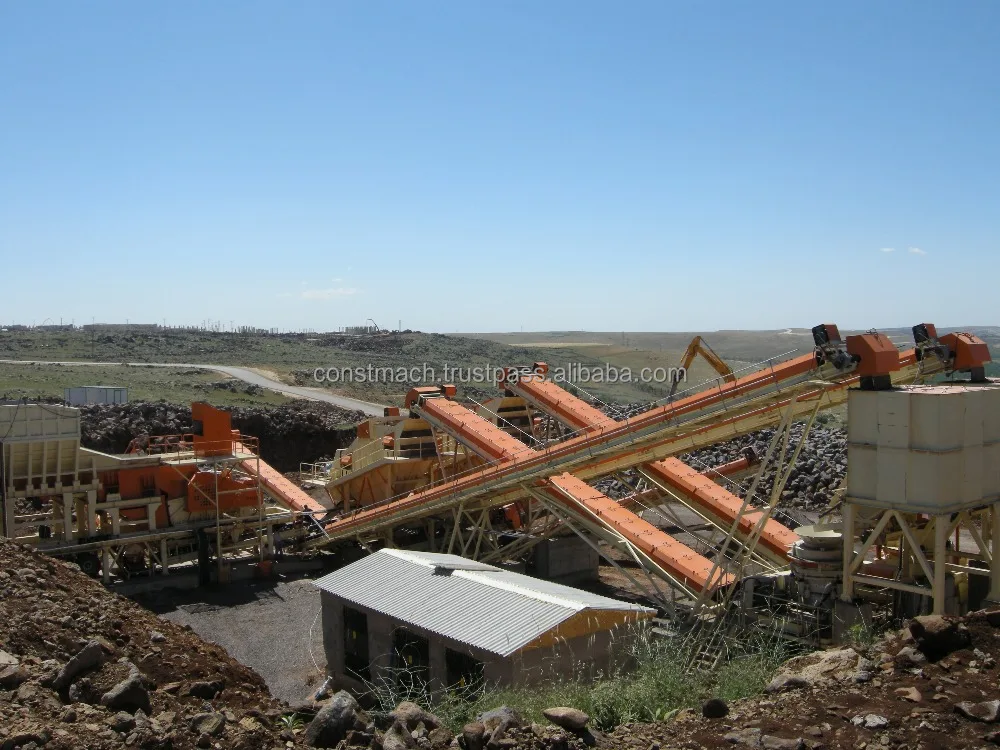

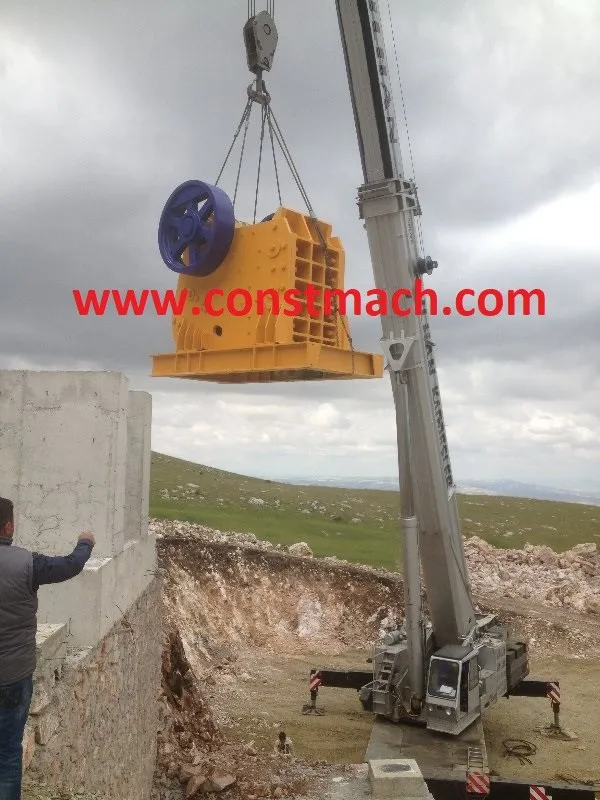

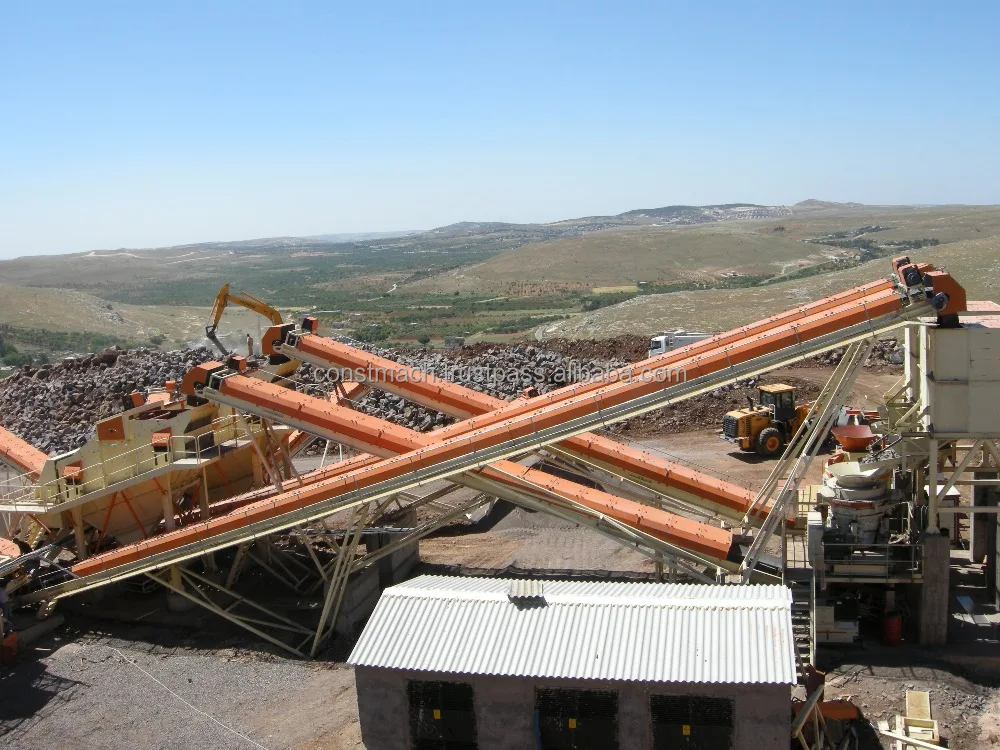

150 tph Capacity GRANITE, BASALT CRUSHING SCREENING PLANT, 2 YEARS WARRANTY

• Feed Opening size : 900 x 650 mm.
• Capacity: 130-150 tph
• Maximum feding size: 850 x 600 mm
• Power : Heavy duty AC motor, 75 kW.1450 rpm – EMTAŞ Brand
• Jaws & abrasion parts: Special treated abrasion steel
• Abrasion steel treatment: Austenitic
• Abrasion – austenitic steel content:
• %16-18 Mn + % 2,2 Cr
• Abrasion – austenitic steel hardness > 450 HB
• Pitman : GS 45 casting steel
• Rotating (eccentric) mile/shaft : Cr - Ni - Mo forging steel
• Bearings : Heavy duty,
• Jaw adjustment mechanism : Hydraulic
• Coating : Double lay epoxy coated after
• sand blasting and lining
• Walking – maintenance platformsa re included.

CONE CRUSHER

• Brand : METSO
• Model : HP 200
• Motor Power : 110 kW
• Chassis, legs, walking platforms are included.

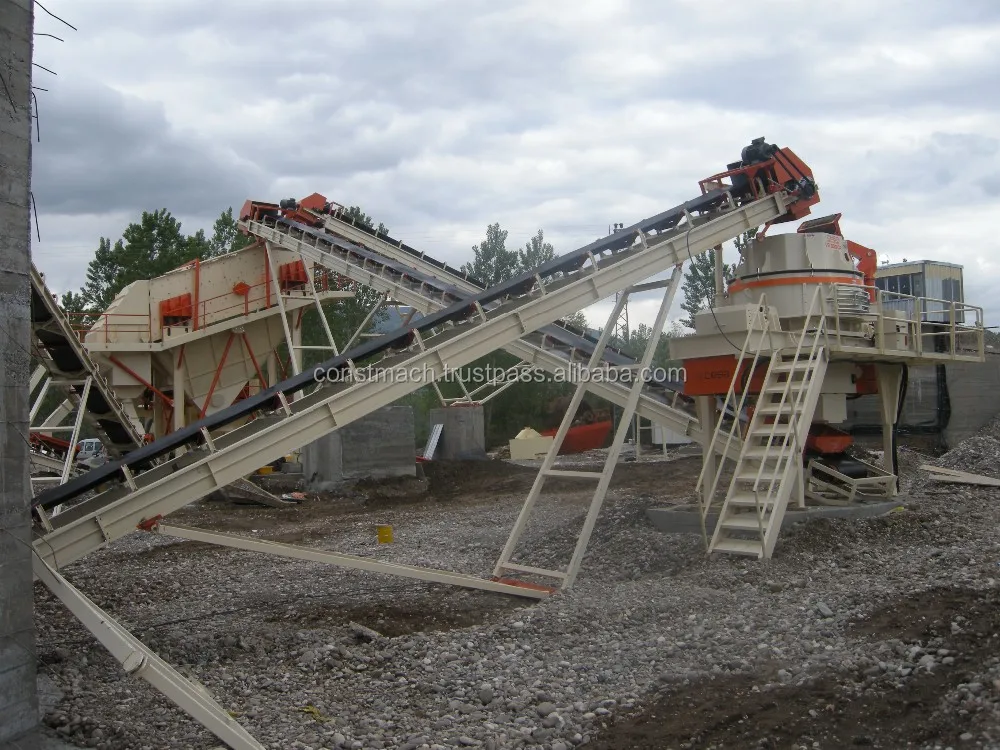

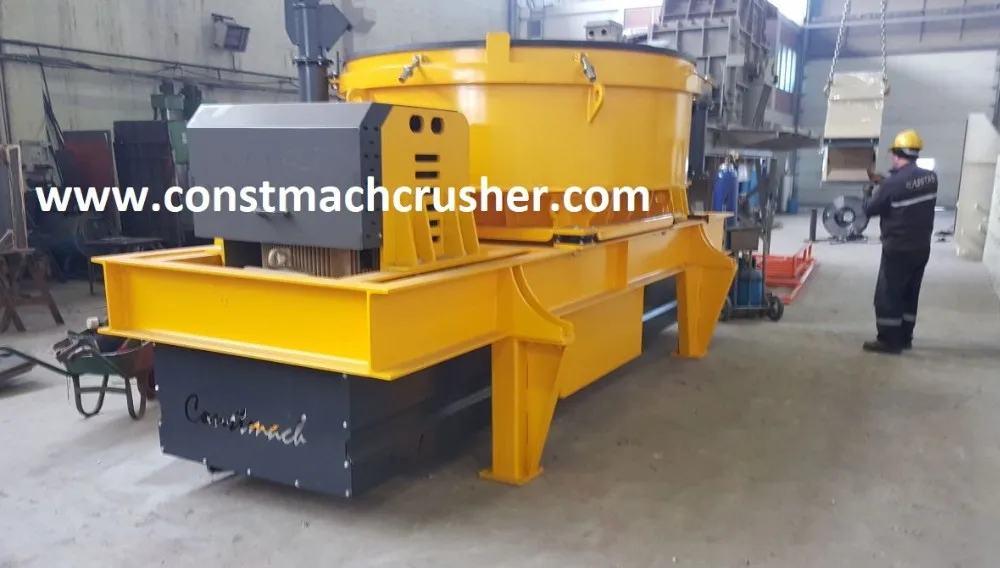

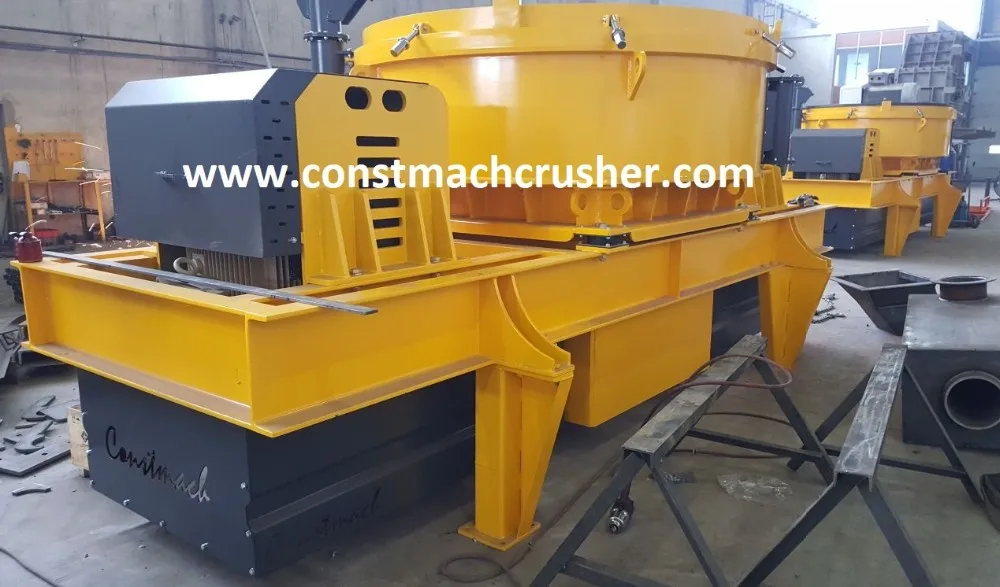

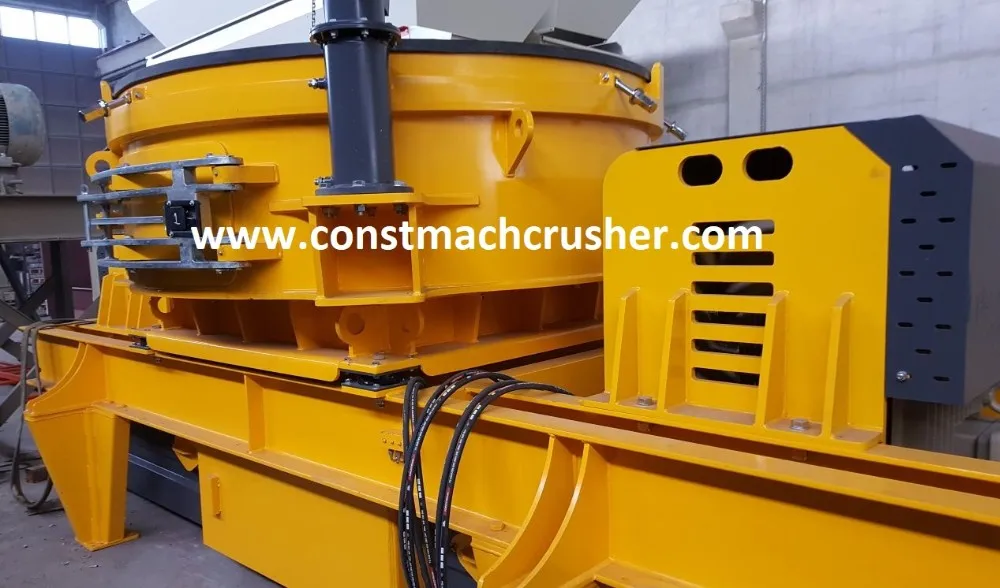

VSI CRUSHER

Model : VSI-800-CR
Max. Feeding Size : 45 mm.
Rotor Size : Ø800 mm.
Rotor Speed : 50 - 70 c/sec.
Capacity : 150-200tph, 80 tph for 0-5 mm
Motor Power : 2 * 160 kW
Weight : 15 tonnes
Chassis, Walking platforms and maintenance Crane is included.

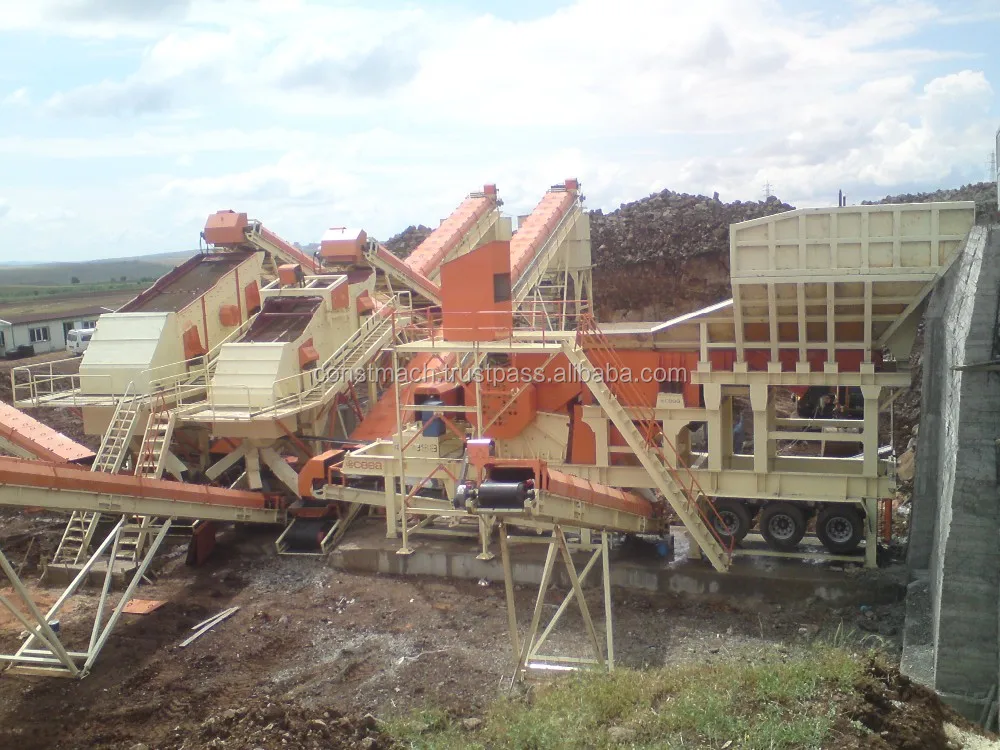

VIBRATING SCREEN - 2 PCS

Model : CVS-2050/4
Dimension : 5000 x 2.000 mm
Screen Layer : 4
Screening Surface : 10 m²
Driving Power : 22 kW
Screen Pitch : 18º
Strok : 6 - 8 mm
Flow Speed : 0.45 m/s
Main Body Thickness : 12 mm
Bearings: Heavy duty type, SKF or FAG brand, Made in Germany
Discharging shoots are coated with HARDOX 450 – 10 mm sheets
Weight of the screen: 21 Tonnes

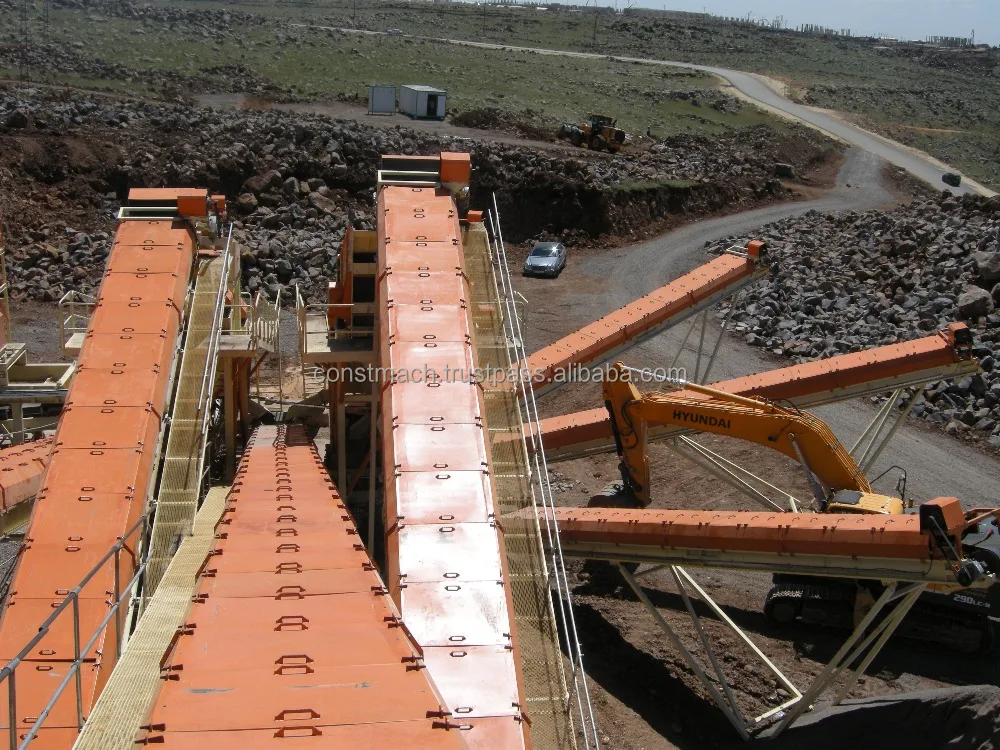

BELT CONVEYORS:

• Belt : EP125 : 10 mm
• Driving Drum : Ø420x12
• Tail Drum : Ø373x10
• Bearings : FAG or SKF Brand
• Bushing : SNH-513
• Walking platform is included
• Covering is OPTIONAL

CONTROL CABINET AND AUTOMATION SYSTEM

• Dimensions : 2200x4000x2200 mm
• Electronic equipments : Siemens or Schneider Brand
• Air conditioner 12000 BTU
• Heat and noise isolated
• PVC door and windows
• Wiring between plant equipment and control panel is included.

OUR SERVICE

Assembly & Training

- Assembly
- Commissioning of the plant
- 7 days free training & test production.

After-Sales Service

* 2 YEARS WARRANTY
* Engineers available to service machinery overseas.
* 10 YEARS SPARE PARTS WARRANTY

PACKING & DELIVERY

Packaging
Size	SPECIFIC SIZE
Weight	188 TONNES
Packaging Details	All equipment are packaged to avoid any damage during the transport. All critical components are located in wooden boxes. 9 pcs 40' OT container is required for the transport.

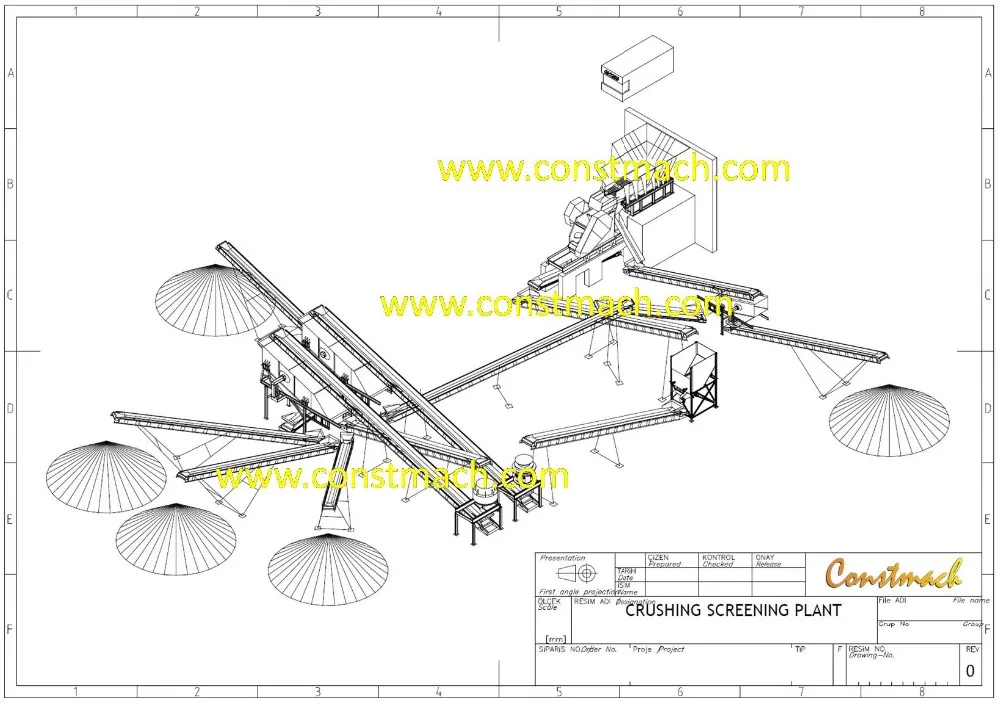

PLANT LAYOUT
