Easily set torque pocket screw driver

Product Overview

Description



  <<<<< PLEASE TRY IT!!!  MAIDE IN JAPAN QUALITY  >>>>



TOHNICHI' s screw driver  is easy use and high quality products.

Raising product quality and improving safety levels.

They help ensure bolts and screws are tightened properly, raising product quality and improving safety levels!









|||| Product Description ||||



[Torque Screwdriver]



Tohnichi’s lineup of click type torque screwdrivers includes adjustable torque screwdrivers with scale, preset torque screwdrivers made for repeated preset torque tightening, non-rotary torque screwdrivers, insulated torque screwdrivers and torque screwdrivers for tasks that demand very small torque.









[AMRD-BMRD series]

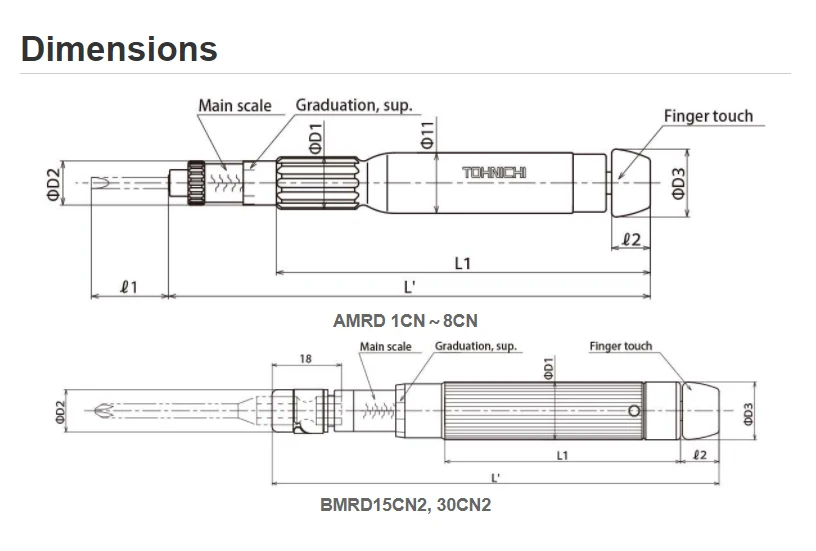

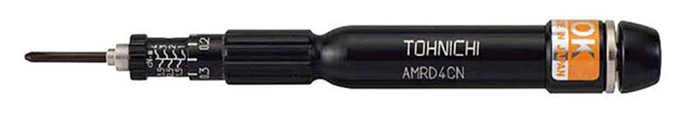

AMRD4CN [Overall length 93 mm] *AMRD bits are included as a standard accessory.

BMRD30CN2 [Overall length 116 mm] *BMRD bits are sold separately.



Over-torque-free torque screwdriver used in various fields.

Used for various kinds of tightening operation from mass production to maintenance work.

• Adjustable Torque Screwdriver for precision tightening of small screws (M1-M2).
• Easily set torque by twisting body to select torque value
• Rotary slip mechanism prevents over-torque.
  • User will sense and hear "click" at set torque and should stop turning. If user continues, the rotary slip mechanism will ratchet the driver without applying more torque.
• Tohnichi's toggle clutch torque mechanism creates enhanced durability and reliability
• Index finger holding feature allows the operator to tighten with precise movements.
• Tohnichi bit set included for AMRD models. BMRD accepts standard 1/4" hex root bits (sold separately)
• Included Certificate of Calibration
• Counterclockwise tightening model available upon request.
• Applicable for international use including the EU region. Compliant with calibration procedures of ISO 6789 Type II Class D.

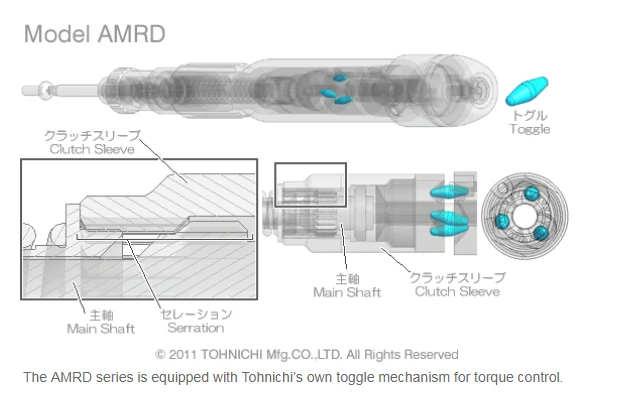

The AMRD series is equipped with Tohnichi’s own toggle mechanism for torque control.





Adjustable



Features an external scale that can be easily changed by moving knob or twisting body to set a particular torque value.

• The torque setting can be easily viewed and changed by turning end knob to move the scales.
• Because of its easy torque setting style, it can be susceptible to unauthorized or inadvertent changes to the torque setting.
• Ideal for applications that require a variety of torque settings using one tool.

 [   What is TOHNICHI?? ]



Tohnichi specialty is torque devices. They help ensure bolts and screws are tightened properly, raising product quality and improving safety levels.


Tohnichi torque wrenches are used in all types of industry all over the globe. As the world's premier manufacturer of torque equipment, Tohnichi continues to innovate.
It has preserved it craftsmanship in quality in manufacturing while seeking to provide technical services and support to promote increased product safety.
