Product Overview

Description

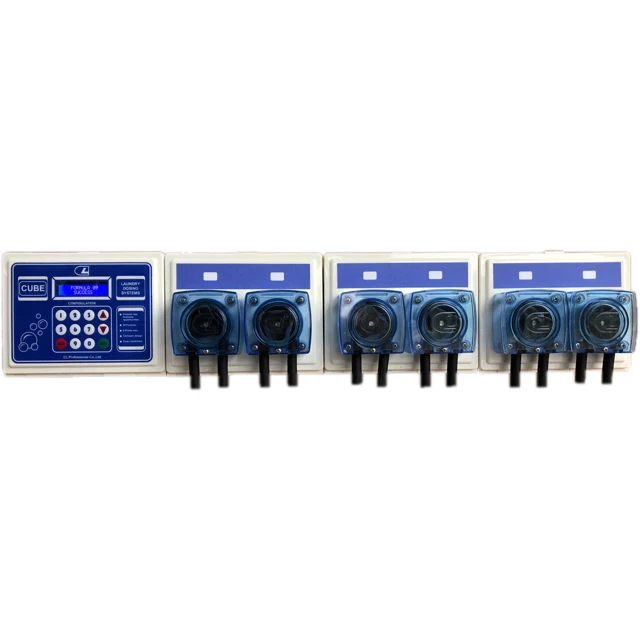

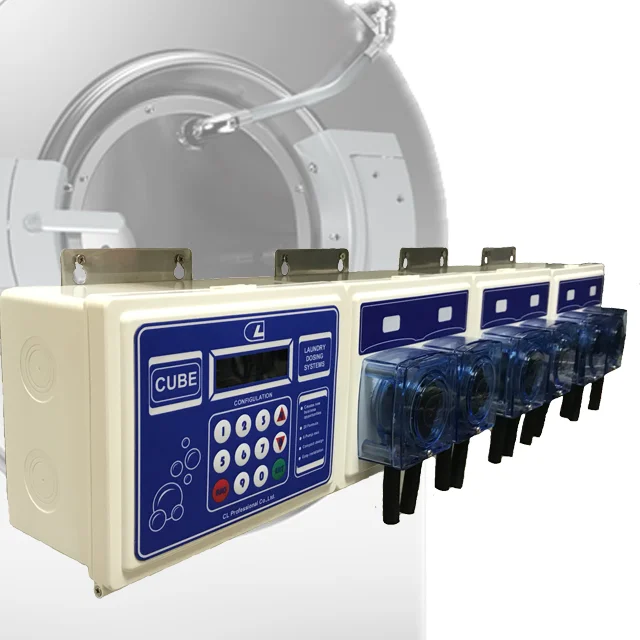

CUBE

Laundry Chemical Dispenser

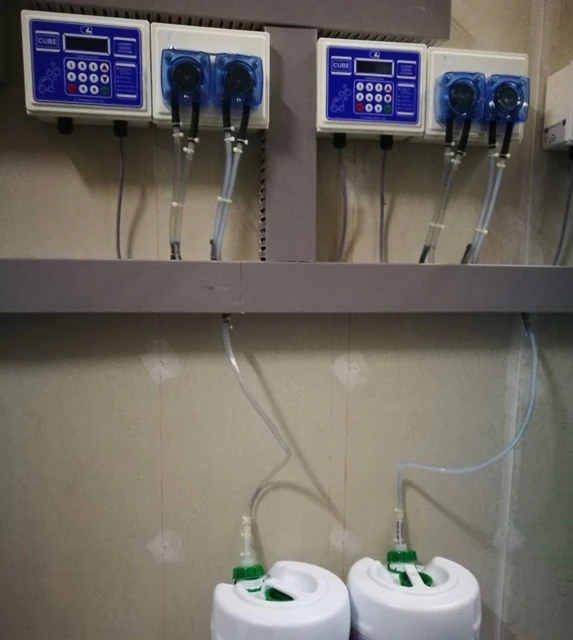

           CUBE is designed for laundry machines typically found in an On Premise Laundry (OPL) type of account. Products are pumped by the dispenser from their shipping containers to the laundry machine.



            The CUBE dispenser built in the "Power/Interface PCB” and “Master control" on pump stand This communicates a “supply signal,” derived from the laundry machine “supply signals.” It automatically adjusts for supply signal voltages ranging from 24 to 240 VAC Programmer at predetermined times in the wash formula. Once a signal is received, the CUBE will inject specific programmed product(s) at that time. Typically there should be at least two “supply signals” from the laundry machine for complete automatic control of each product. The Master control indicates which formula is currently selected. The laundry operator can change formulas to match the load, review the load counter for each of the eight formulas,

Parameter	Default Value	Range
Pass code	0000	0-9
Pump flow rates	0	250 ml./min
Formula #	0	1-20
Load Count Pump	1	1-6
Unit of measure	Metric	-
Pump delay units	Sec	-
Washer signal qualify time	2 Sec	-
Calibrate volume	250 ml.	250 ml.
Flush flow sensor qualify time	2 Sec	0-30 sec
Formula run volumes	0	0-2000 ml.
Success delay time	0	0-700 Sec.
