Product Overview

Description

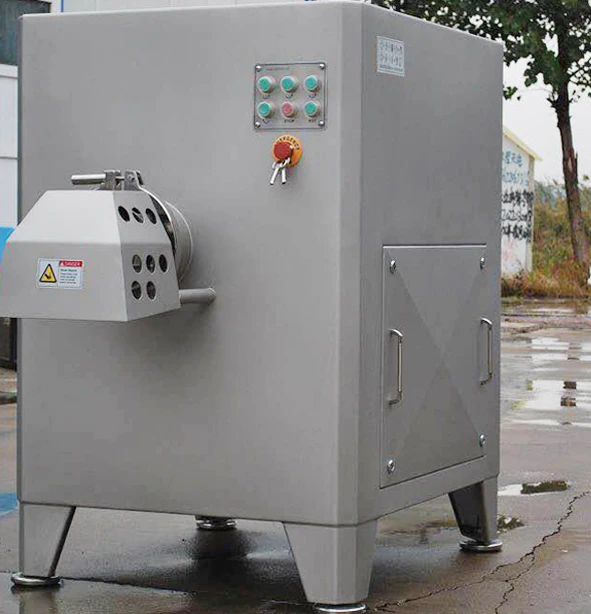

C160 Meat Grinder











1. Feature:

Model	JR160
Motor Power	18.5Kws
VSD	18.5Kws VSD
V/Hz	380V 50Hz
Weight	560Kgs
Auger Speed	Variable Speed Control
Available Frozen Meat Dimension	Max. 50*50*150 mm
Capacity	1 - 5T/Hour (Up to different hole size of hole plate and temperature of raw meat)
Dimension	1450*1000*1400 mm



2. Material Feature:

• Main Body: Body shell, hopper and rear door is 3mm SUS304

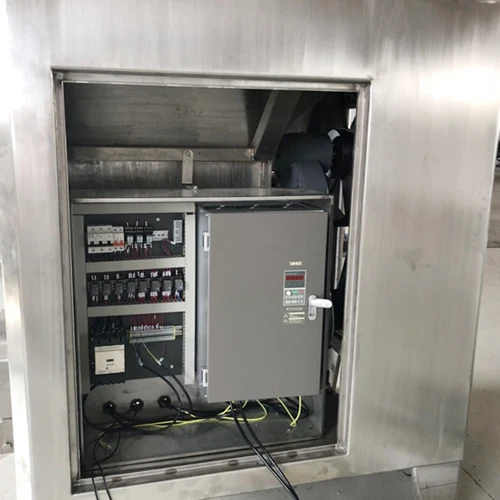

• Electrical Box:2mm SUS304,Outlet safety cover is 3mm SUS304.

• Bottom U shape hopper is 4mm SUS304, front and rear support is 10mm SUS304(Whole welding).



• Frozen meat auger; frozen meat auger housing; fresh meat auger; fresh meat auger housing; knife housing; clamp; locker cap; spacer ring; guiding shaft housing;





• Flange of rear gear box is SUS304.

• Internal support parts including 60*30*4 cube tube SUS304.

• Scored pulley is globe standard B type 4 channel casting iron.

• C160 meat grinder can mincer for -12-degree meat and fresh meat.

• C160 can setting by single cut (need spacer ring) or dual cut.

• All contactor is Siemens or Schneider, all relay is Omron, all button is Schneider.

• Safety device: standard outlet safety cover, upper hopper safety fence, rear door safety device.



3. Detail







Grinding effect
