DUPLEX GREY BACK BOARD (LWC)
- Category: >>>
- Supplier: DIYAN PAPERS LLP [India]DIYAN
Share on (50039647463):
Product Overview
Description
Product Description
| TECHNICAL SPECIFICATIONS | |||||
| SUBSTANCE (GSM) TAPPI T 410 OM - 02 |
CALIPER (MICRONS) TAPPI T411 OM - 97 |
BULK ( CC/GM ) |
Stifness (Taber) gm.cm Tappi T 489 om 99 | ||
| MD | CD | GM | |||
| 200 | 250 | 1.25 | 45 | 20 | 30 |
| 210 | 263 | 1.25 | 50 | 22 | 33 |
| 230 | 288 | 1.25 | 60 | 26 | 39 |
| 250 | 315 | 1.26 | 70 | 30 | 46 |
| 260 | 328 | 1.26 | 75 | 32 | 49 |
| 270 | 345 | 1.26 | 87 | 38 | 57 |
| 285 | 359 | 1.26 | 105 | 45 | 69 |
| 300 | 373 | 1.26 | 115 | 50 | 76 |
| 310 | 397 | 1.28 | 125 | 55 | 83 |
| 320 | 410 | 1.28 | 145 | 65 | 97 |
| 330 | 422 | 1.28 | 153 | 66 | 100 |
| 340 | 435 | 1.28 | 161 | 70 | 106 |
| 350 | 448 | 1.28 | 170 | 75 | 113 |
| 360 | 468 | 1.30 | 185 | 80 | 122 |
| 370 | 481 | 1.30 | 202 | 88 | 133 |
| 380 | 494 | 1.30 | 22 | 95 | 145 |
| 400 | 528 | 1.32 | 255 | 110 | 167 |
| 410 | 541 | 1.32 | 265 | 115 | 175 |
| 420 | 555 | 1.32 | 285 | 124 | 188 |
| 430 | 568 | 1.32 | 291 | 127 | 192 |
| 440 | 581 | 1.32 | 298 | 130 | 197 |
| 450 | 594 | 1.32 | 312 | 136 | 206 |
| Tol ± 3% | ± 5% | ± 5% | ± 10% | ||
| Parameters | Unit | Test Procedure | Values | ||
| Plybond | FT. LB/1000 ln² | 80 (Min) | |||
| Smoothness | ml/min | 160 (Max) | |||
| IGT Dry Pick (MV) | m/sec | Tappi T 514 | 1.0 | ||
| Brightness (Top) | % | Tappi T 452 om 98 | 75 (Min) | ||
| Gloss at 75° | % | Tappi T 480 om 92 | 35 (Min) | ||
| Cobb Top | g/m² | Tappi T 441 om 98 | 50 (Max) | ||
| Cobb Back | g/m² | 60 (Max) | |||
| Moisture 200 - 260 GSM | % | Tappi T 412 om 02 | 6.5 ± 0.5 | ||
| 261 - 350 GSM | Tappi T 412 om 02 | 7.0 ± 0.5 | |||
| 351 - 450 GSM | Tappi T 412 om 02 | 7.5 ± 0.5 | |||
| Burst Factor | Tappi T 807 | 15 (Min) For ≤ 300 GSM | |||
| 12 (Min) For > 300 GSM | |||||
Packaging & Shipping

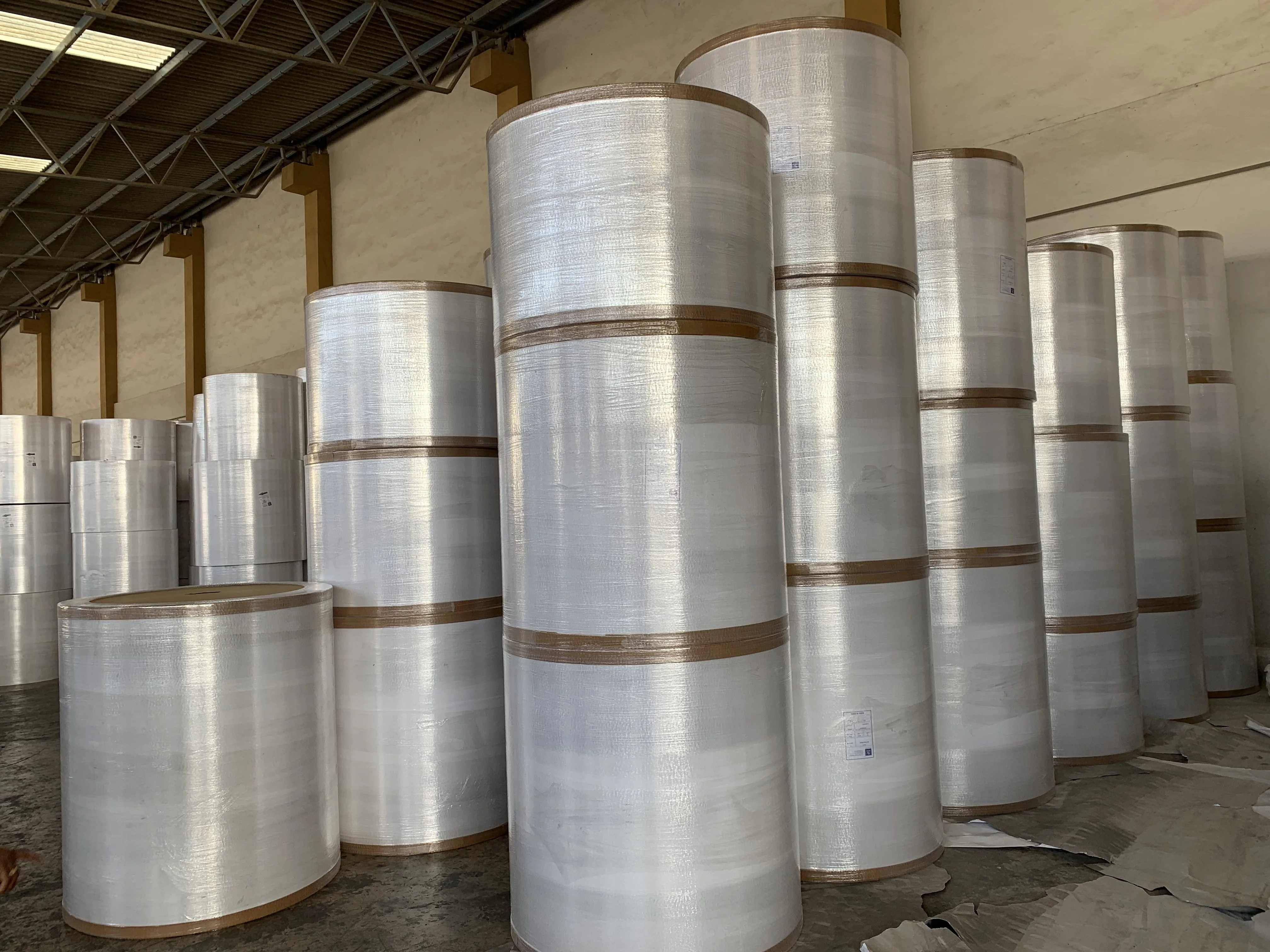

1. STANDARD SEAWORHY EXPORTS REEL PACKING
WITH SHRINK WRAPPING, SIDE DESK, EDGE PROTECTORE & CORE PLUG(PLASTIC & WOODEN)
REEL CORE AVAILABLE IN 3, 6 & 12 INCHES

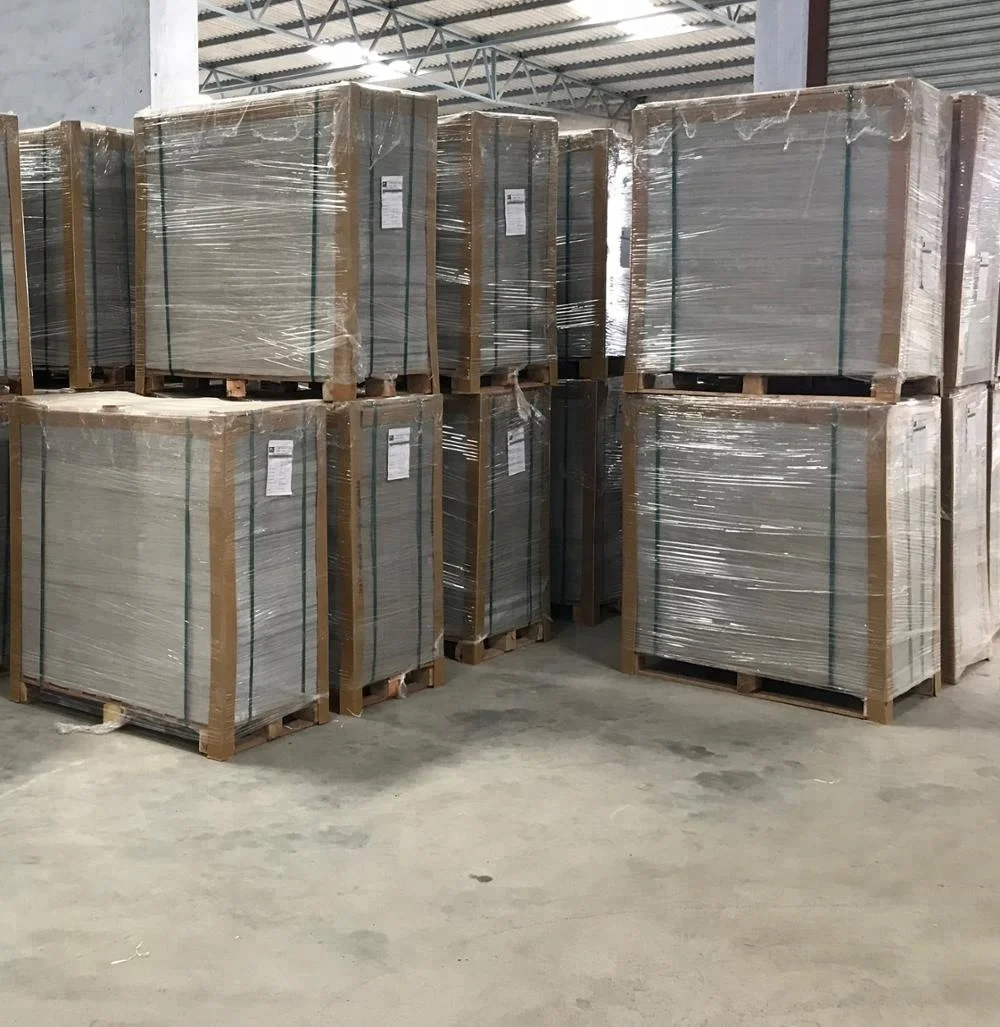

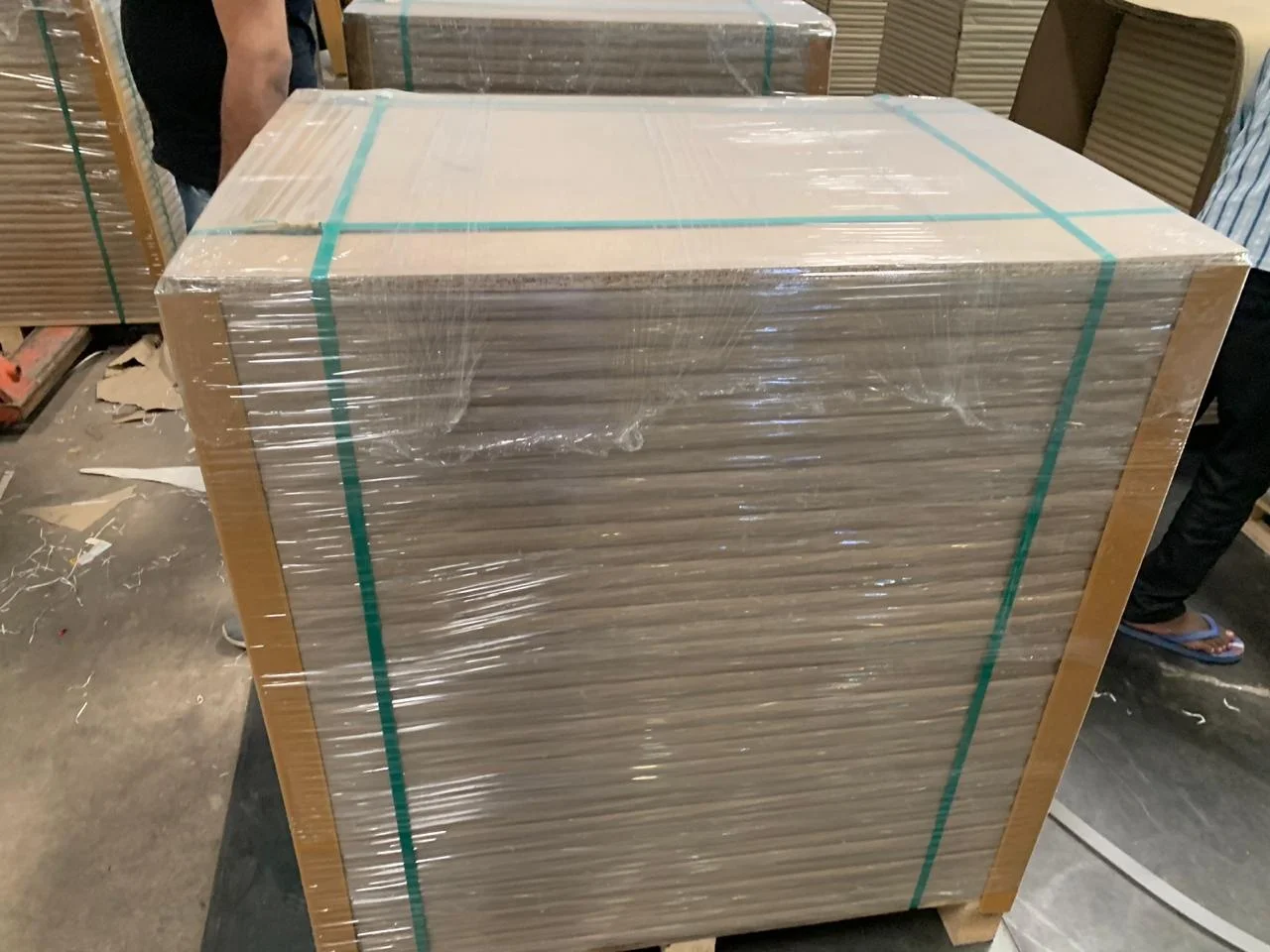

2. STANDARD SEAWORTHY EXPORTS BULK SHEETS ON PALLET PACKING
WITH SHRINK WRAPPING, EDGE PROTECTOR & THICK WOODEN SHEET ON TOP
WE USE ALL HEAT TREATED PALLETS
3. STANDARD SEAWOTHY EXPORTS REAM ON PALLET PACKING
WITH SHRINK WRAPPING, EDGE PROTECTOR & THICK WOODEN SHEET ON TOP
EACH REAM CONTAINS 100 SHEETS & SHEETS ARE WRAPPED BY KRAFT PAPER
WE USE ALL HEAT TREATED PALLETS
4. STANDARD SEAWOTHY EXPORTS BUNDLE PACKING
SHRINK WRAPPED REAMS
EACH REAM CONTAINS 100 SHEETS & SHEETS WRAPPED BY KRAFT PAPER
Company Information
WE ARE DIYAN PAPER LLP.
- A prominent duplex boards manufacturer from Morbi, Gujarat
The paper plant is located 22.6 km from morbi. The current capacity is about 1,00,000 Ton/anu.
The manufacturing process is based on the recycling of scrap paper both imported and domestic. Some purchased pulp is also used. Paper is manufactured on latest technology in paper industrie 4 wire plan with 3 blade coater and morden pulping line with disperser and clothing from Voith. we are manufacturing high stifness high bulk board with maximum precision and performance in demanding applications
The plant is well connected to the major industrial areas in the gujrat by NH 8-A (4 laned shortly)
