Wedge type lathe machine 4 jaw chuck with large through hole

Product Overview

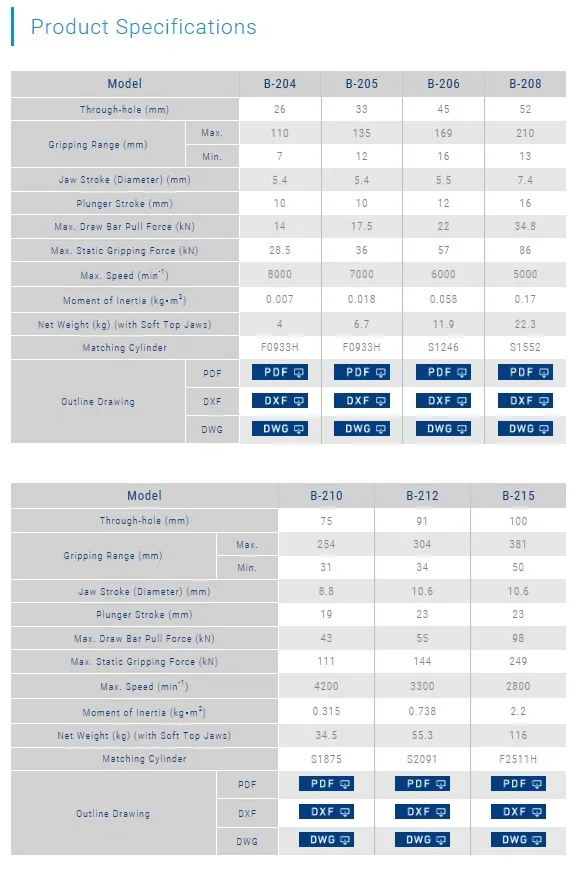

Description

Product Brand	Kitagawa Corporation
Model Number	b-200
Material	Carbide
Place of Origin	Japan
Thru Hole mm	26-100
Gripping range mm	7-381
Jaw Stroke(diameter)mm	5.4-106
Plunger Stroke	10-23
Max. Draw Bar Pull Force	14kn-98kn
Max. Gripping Force	28.5kn-249kn
Max. Speed min-1	2800-800
Net Weight with Soft top jaws	4.0kg-116.0kg
Moment of inertia kg⋅m2	0.007-2.20

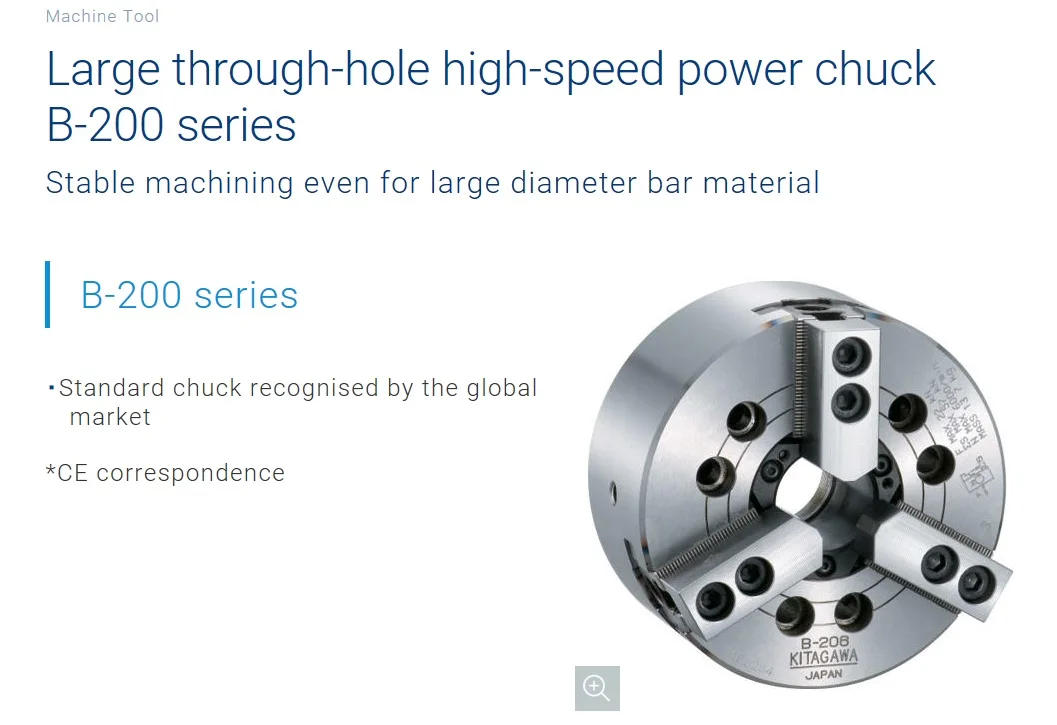

This product is Large Thru-Hole High Speed Power Chuck produced by Kitagawa Corporation.

This product is World Renowned Standard chuck.

Product feature

⋅Made in japan
⋅Long tool life
⋅Wedge type with large through hole
⋅Powerful grasp power
⋅Also supports high speed rotation
