F1103 2g GPRS wireless modem RS232 IO port support SMS CSD MODBUS
Product overview:

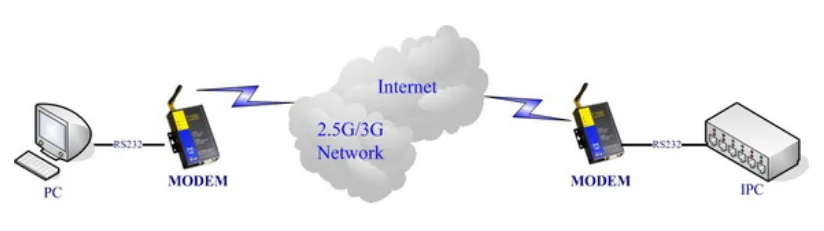

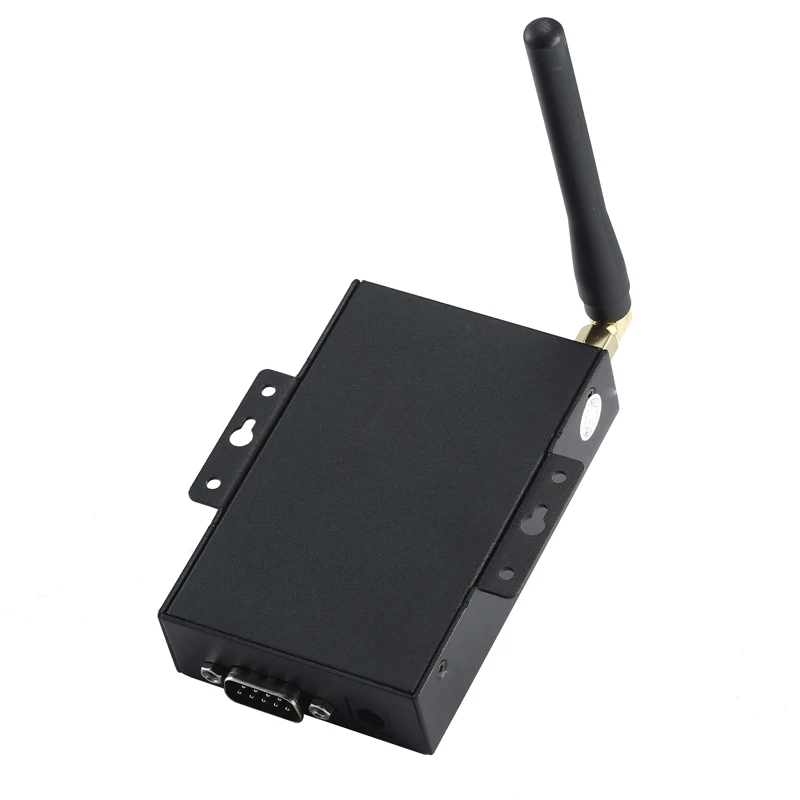

| F1103 GPRS MODEM is a kind of cellular terminal device that provides SMS, dial-up and CSD function by public GPRS network. It adopts high-powered industrial cellular module and supports RS232 port that can conveniently connect one device to a cellular network, allowing you to connect to your existing serial device. It has been widely used on M2M fields, such as intelligent transportation, smart grid, industrial automation, telemetry, finance, POS,water supply, environment protection, post, weather, and so on. |
Product Description
Features and Benefits
Design for Industrial Application
1. High-powered industrial cellular module
2. Housing: iron, providing IP30 protection.
3. Power range: DC 5~35V
Stability and Reliability
1. RS232 port:15KV ESD protection
2. SIM/UIM port: 15KV ESD protection
3. Power port: reverse-voltage and overvoltage protection
4. Antenna port: lightning protection(optional)
Standard and Convenience

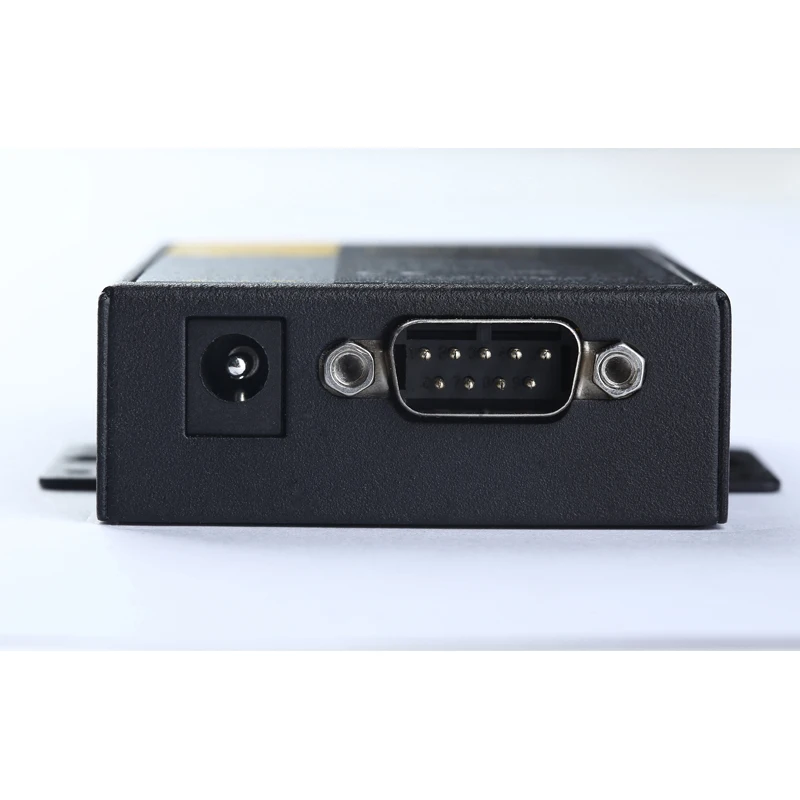

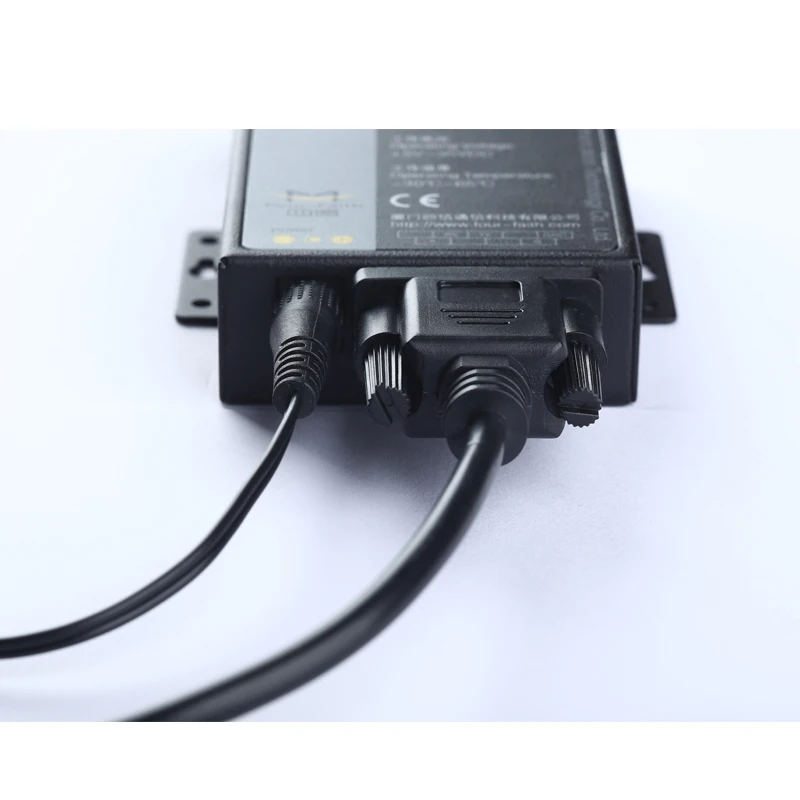

1. Support standard RS232 port that can connect to a serial device directly
2. Provide dial-up software that can make it always online
3. Provide SMS tool software
4. Support standard AT command
High-performance
1. Support SMS, dial-up and CSD function
2. Support APN/VPDN
Specification
Cellular Specification
| Item | Content |
| Cellular Module | Industrial cellular module |
| Standard and Band | EGSM900/GSM1800MHz, GSM850/900/1800/1900MHz(optional) Compliant to GSM phase 2/2+ GPRS class 10, class 12(optional) |
| Bandwidth | 85.6Kbps |
| TX power | GSM850/900: <33dBm GSM1800/1900: <30dBm |
| RX sensitivity | <-107dBm |
Interface type
| Item | Content |
| Serial | 1 RS232 port, 15KV ESD protection Data bits: 5, 6 ,7, 8 Stop bits: 1, 1.5, 2 Parity: none, even, odd, space, mark Baud rate: 110~230400 bps |
| Indicator | “Power”, “ACT”, "Online” |
| Antenna | Standard SMA female interface, 50 ohm, lighting protection(optional) |

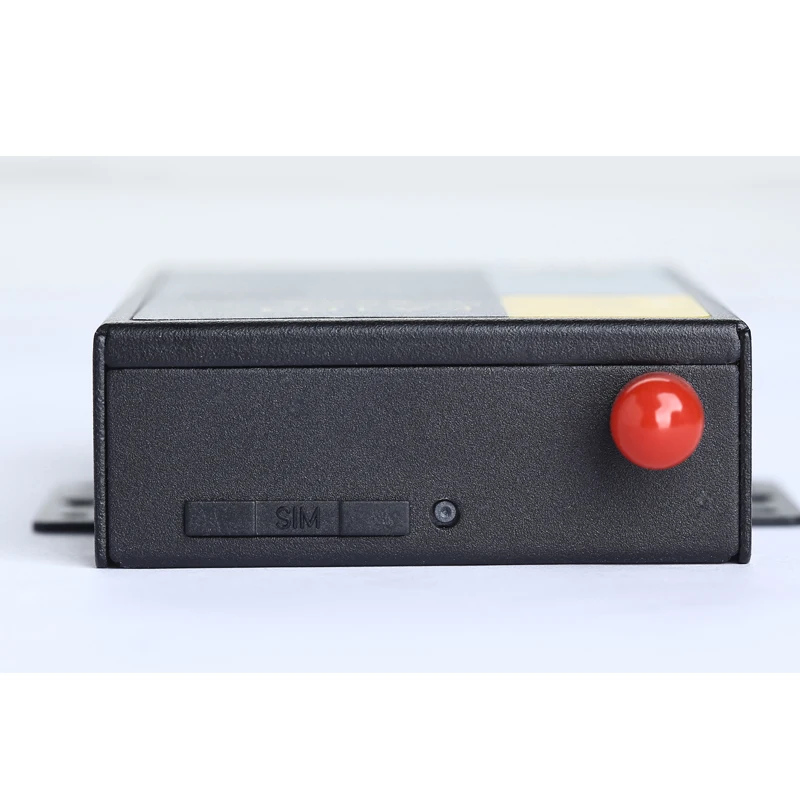

| SIM/UIM | Standard 3V/1.8V user card interface, 15KV ESD protection |
| Power | Standard 3-PIN power jack, reverse-voltage and over voltage protection |
Power supply
| Item | Content |
| Standard Power | DC 12V/0.5A |
| Power range | DC 5~35V |
| Consumption | <200mA (12V) |
Physical Characteristics
| Item | Content |
| Housing | Iron, providing IP30 protection |
| Dimensions | 91x58.5x22 mm |
| Weight | 205g |
Certifications
Company Profile
Ordering infomation
Available Models:
F2103: GPRS IP Modem
F2403: WCDMA/HSDPA IP Modem
Note: frequency band need to be confirmed before placing an order.
Package Checklist:
1. IP modem
2. SMA male antenna
3. Power adapter
4. RS232 or RS485 cable
5. Document and Software CD
6. Warranty Card
Shipping:
For your sample or volume order, we will arrange the shipment by DHL, TNT, UPS, Fedex, etc, to deliver
to evey corner of the world.
Generally, it takes 3~5 days for delivery. If you have special request for shipping, we will endeaver to meet
your requests.
