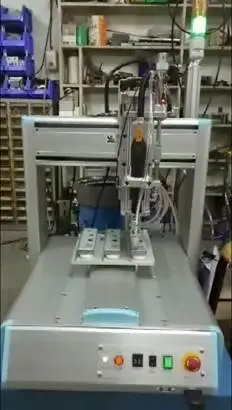

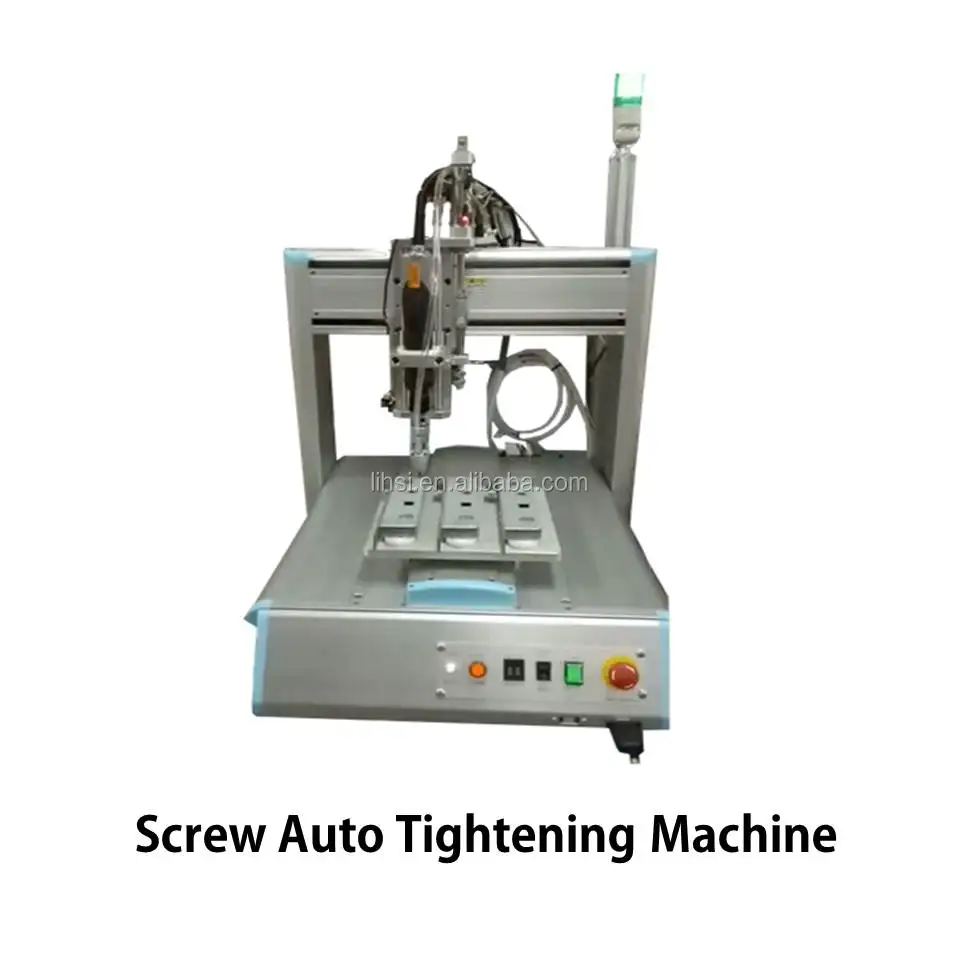

2021 LIHSI Desktop Automatic Screwdriver Machine
- Category: >>>
- Supplier: LI HSI TECH CO. LTD
Share on (50040192373):
Product Overview
Description
Product Description
(Models) | LH-300T |
Working Range X/Y/Z(mm) | 480 / 280 / 80 |
Load Y-AXIS / Z-AXIS | 15 kg / 10 kg |
X&Y / Z (mm/sec)\\ | 0.1~800 / 500 |
Resolutionautomatic screw machine | 0.01 mm/Axis |
Repetitive Positioning Accuracy | +/- 0.02 mm/ Axis |
Tighten efficiency | 40-60pcs/min (according to the screw type) |
Data Storage Type | USB Disk |
Program Display | Teach Pendant LCD |
Motor Systemautomatic screw machine | Precision Stepper Motor |
Control Method | PTP & CP |
Air pressure | 0.4~0.6Mpa |
Interpolation Function | 3 axis ( 3D ) |
Programming Method | Teach Pendant / PC |
/O Signals Port | 10 Inputs / 10 Outputs |
Transmissoion mode | Timimg Belt + Screw Rod + Guide Rail |
External Control Interface | Ethernet |
Power Supplyautomatic screw machine | AC220V/50HZ |
Working Temperature | 5 – 40 °C |
Working Relative Humidity | 20 – 90% no condensation |
Dimensions (WxDxH mm) | 730/630/850 |
Robot Weight (kg) | 70 kg |
Order Process
Our Services
Packaging & Shipping
Company Information
No.1 market share in Taiwan, your trusted brand LIHSI
Different from other factories which only sell dealers without providing service.
We sell end customers directly and have a professional service team in Taiwan,
We understand more about various applications and provide more suitable solutions for you.
You can choose to sell our well-known Taiwan brand LIHSI
Or you could choose blank brand or ordering 10+ sets at a time to have customized brand and color.
We are flexible and experienced for ODM/OEM case.
FAQ
Q: Are you trading company or manufacturer?
A: We have our own Equipment and Glue factories.
Q: Do you provide production testing?
A: We provide samples for your own testing, tests done by us are also available. Please contact us for more information.
Q: Why choose us?
A: We have done many OEMs, enable us to suggest you the best solution.
Q: What is the curing time?
A: The cured time of the gel depends on different situation, ex: the depth of the mold, the color of the gel or the light source.
Q: How to keep the UV resin?
A: The shelf life of the product is 2 years; keep away from direct sunlight exposure and always keep the cap sealed.
Q: Is the UV Resin safe to use?
A: Yes, our UV Resin has certification in SDS, MSDS, TDS, Heavy Metal, Plasticizer and Skin Irritation Tests.
