Product Overview

Description

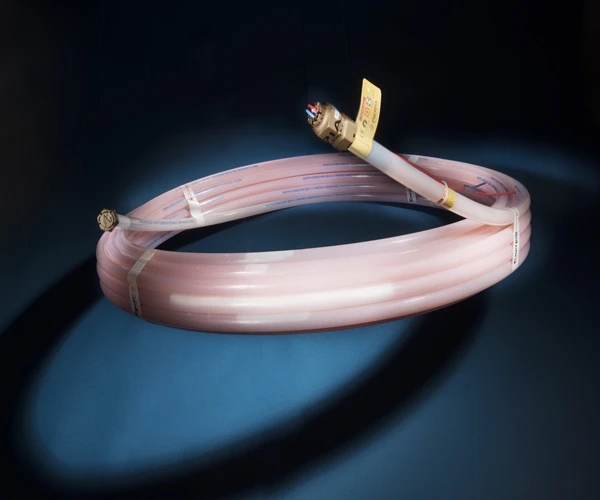

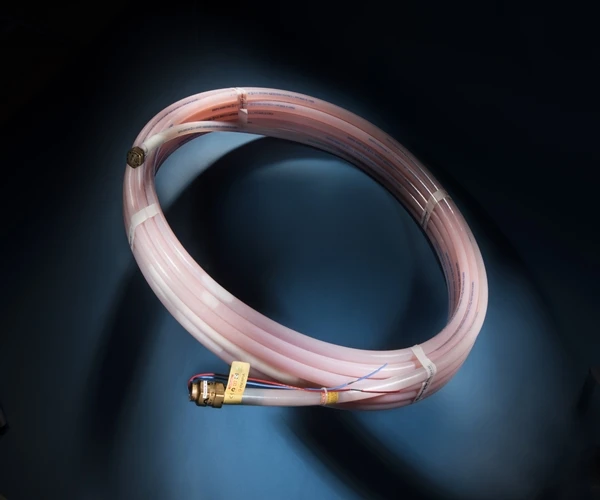

What is X-L PIPE HEATING SYSTEM?



It is an innovative heating system that uses heat and increased pressure generated by Heat Transfer Medium by heating the sealed X-L PIPE without boiler, in which water or other fluid is heated and water circulation motor which pumps water circulated in the PIPE.

It is the innovative high energy efficient floor heating system that has no heat loss and achieves 30°C rise effect in temperature. Our patented pressure absorbing device absorbs too much internal pressure and also the heat transfer medium and carbon tissue absorbs the electromagnetic waves for a healthy life.

Nucleate Boiling phenomenon: The process of forming steam bubbles within liquid in micro cavities adjacent to the wall if the wall temperature at the heat transfer surface rises above the saturation temperature while the bulk of the liquid is sub cooled. The bubbles grow until they reach some critical size, at which point they separate from the wall and are carried into the main fluid stream.



Heating Pipe system doesn’t need boiler or circulation motor which are heating elements of existing Ondol heating system. Nucleate Boiling occurs generating gas if heating the wire with new heating material after filling with special heat medium after inserting Ni-Cr heating wire double coated by silicone and Teflon into X-L pipe.

There is no rust, corrosion by acid or alkali as well as scale, the big problem of buried Ondol and hot water pipes. It has semi-permanent life. It has good water circulation owing to smooth inner surface of the pipe. Heat efficiency is maintained even with long time use so it keeps pleasant room temperature. Excellent heat and cold resistance : As heat resistance pipe with cross linking treatment by peroxide method, it can be used at the temperature range between high (120°C) and low (-40°C) safely. Price is reasonable. It is the most practical and economical because it can be used semi-permanently without repair



Benefits of Heating X-L Pipe System

• Economic
  -No heat loss
  -Accumulates of heat
  -HIgh efficiency (Low electric power consumption)
  -Low installation expenses


• Safety
  -Water leakage prevention
  -Non electromagnetic waves
  -Clean energy


• Functional
  -Traditional floor heat
  -Sectional heat / Whole floor heat
  -Well-being


• Durable
  -Cold lead installation and safety value for over pressure
  -Long lasting
  -Low temperature resistant


• Easy & Convenient
  -No space for boiler
  -Good customer service(Warranty)
  -Easy to use
  -Easy heating system change(Electric X-L PIPE)


• Various way
  -Accommodations, Schools, Vavation facilities
  -Hospital, Post-delivery Care Center, Church
  -Restaurant, Green house, Swimming pool, Factory

CONDITIONS OF ELECTRIC X-L PIPE





Pressure absorbing device:It absorbs the internal pressure caused the Nucleate Boiling. Double Coated Electric Wires:Since the conductor and the electric wire processing affect on product life and its function, make sure to read the followings.

• Conductor : 7 Strained Nickel - Chrome Coil


• The First Coating : Silicon Rubber coating that can stand very high temperature (150ºC) and has excellent insulating quality.


• The Second Coating : Heat resistant Teflon rubber coating that is water resistant and chemical resistant.
  (Temperature resistance : 200°C)

Heat Conducing Medium: They should not freeze at twenty degrees below zero.

Hearmless to Human Body: Electromagnetic waves are absorbed by itself.

Cable: Cable should not exceed 20W/m.(According to Clause 5, Article 225 of Electric Installation Regulations. "The temperature of Electric wires should not exceed 80°C" and/or "Internal Temperature of X-L should not exceed 80°C")


Specifications of Heating X-L PIPE



Model No.	EP-010	EP-015	EP-020	EP-025	EP-030	EP-040	EP-050	EP-060
Dimension	14mx15Ø	21mx15Ø	28mx15Ø	35mx15Ø	42mx15Ø	56mx15Ø	70mx15Ø	84mx15Ø
Power input	40W/m
Electric Power Consumption (W/h)	560	840	1120	1400	1680	2240	2800	3360
Caloric Value (kcal/h)	481.6	722.4	963.2	1204	1444.8	1926.4	2408	2889.6
Heating Capacity (m2)	3.3	4.95	6.6	8.25	9.9	13.2	16.5	19.8
Avr. Power Consumption	76wh/m2

Construction cross-section

Information on subsidiary materials

Wire mesh	Insulation	Check box





Installation Process



1. Design blueprint	2. Install insulating	3. Install wire mesh
4. Wiring heating x-l pipe	5. Performance test	6. Cement mortar
7. Install finishing materials	8. Install thermostat
