Product Overview
Description
Service Description
Electromagnetic Field Measurement Service
Nowadays, the awareness of a better and healthier life is increasing. And this awareness starts to change our life style. For example, while you are choosing your new home, your paremeters are not just the location and the volume of this house, and also the environmental electromagnetic effects are started to consider. Our company, which specializes in electromagnetic radiation, is in need of evaluation of the level of electromagnetic radiation in human habitat areas and services related to the measures to be taken.
GENERAL INFORMATION ABOUT ELECTROMAGNETİC RADIATION
Electromagnetic radiation is formed by the combination of electric waves and magnetic energy moving in the space at the speed of
light.

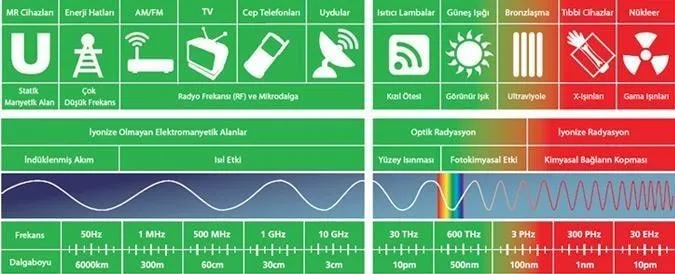

The Electromagnetic Spectrum consists of a spectrum starting with very low frequency (ELF), continuing with Radio Frequency (RF)
and extending to ultraviolet (UV) and X-rays.
light.
The Electromagnetic Spectrum consists of a spectrum starting with very low frequency (ELF), continuing with Radio Frequency (RF)
and extending to ultraviolet (UV) and X-rays.
PRODUCT SPECIFICATIONS
No | Item | Data | ||||
1 | Field probe range | from 0 Hz to 60 GHz | ||||
2 | Spectrum analysis [FFT] | (1 Hz - 400 kHz) | ||||
3 | Broadband measurements | (0 Hz - 60 GHz) | ||||
4 | Field values: | X, Y, Z and Total | ||||
5 | Graphical display | in real time | ||||
6 | > 1 million registers | SQL data base | ||||
7 | Report Time | Within 1 day | ||||
8 | Measurement Time | App. 1-2 hour | ||||
MEASUREMENT PARAMETERS

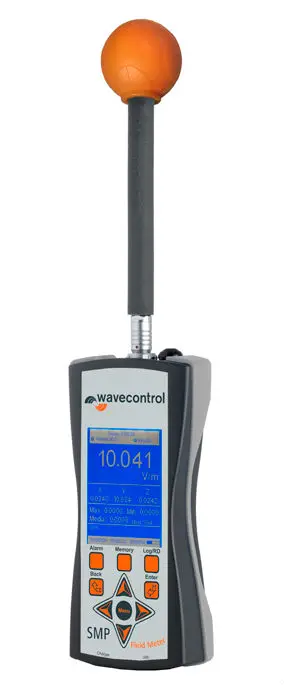

Measurement of Electromagnetic Radiation is done due to the regulations of The Ministry of Labour and Social Security (ÇSGB) and The Department of Health and Safety (ISGÜM). Wavecontrol SMP2 device is used and this device meets the requirements for measurement of exposure to electric, magnetic and electromagnetic fields (0Hz - 300GHz) according to TS EN 50413 standard.
SMP2 Device Serial Number: 14SN0005

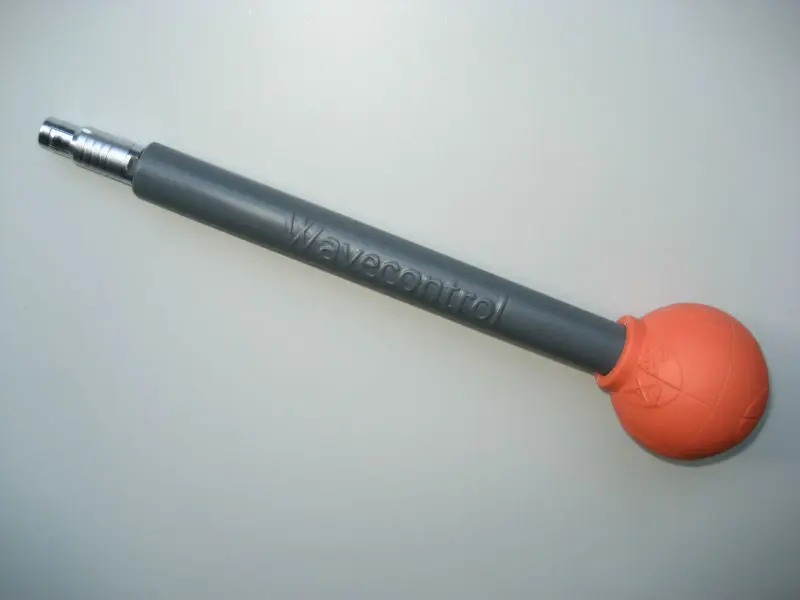

Probe Serial Number: 14WP040417
Probe Serial Number: 14WP100008
Measurement Frequency Range: 100 kHz – 8 GHz
Measurement Frequency Range: 1Hz – 400 kHz
Log. Interval = 0,5 sn.
Av. Interval = 720
Units = V/m
Units = A/m, µT
SMP2 Device Serial Number: 14SN0005
Probe Serial Number: 14WP040417
Probe Serial Number: 14WP100008
Measurement Frequency Range: 100 kHz – 8 GHz
Measurement Frequency Range: 1Hz – 400 kHz
Log. Interval = 0,5 sn.
Av. Interval = 720
Units = V/m
Units = A/m, µT
THE SHORT AND LONG TERM EFFECTS OF THE MAGNETIC FIELD
Short-term effects | Long-term effects |
Stress | Deterioration of genetic structure |
Narrowing of the view | Death and brain tumors in brain cells |
Warming in the ear area | White blood cell (lymphoma) cancer |
Risk of pace maker failure | Blood brain barrier damage |
Ringing in the ears | Heart condition |
Feeling tired | Dysmnesia |
Loss of concentration | Permanent hearing disorders |
Headache | Damage of embryo development |
Temporary disruption to hearing | Increase in miscarriage risk |
Dizziness | Blood cell deterioration |
