SOKKIA SURVEYING EQUIPMENT FOR SALE CHEAP PJK PTS121A TOTAL STATION PRICE

Product Overview

Description

SOKKIA SX-103 T ROBOTIC SURVEYING EQUIPMENT FOR SALE CHEAP PJK PTS121A TOTAL STATION PRICE

Features & Benefits:

Rich Features--- Our series total station carries abundant surveying applications , at the same time has the functions of data storage, parameter settings and etc .It’s suitable for all kinds of professional measurements.



Absolute code disc
Equipped with absolute code disc , the instrument can measure after switched on .Even if reset the battery halfway, the azimuth information will not be lost.

A high-capacity RAM Management
It serves an easy management for file system, including the increase, deletion and transmission of data.

Non- prism distance measuring
With non-prism distance measuring, this series total station can be directly to all kinds of material, different colors of objects (such as the structure of the walls, poles, wires, cliff wall, mountain, clay, wood, etc.) for long, fast, high precision measurement .This function is especially for the measurements of targets that cannot be accessed.

Special measurement program
Except for the basic functions, it also has some special measurement program to meet the needs of professional measuring, such as Remote Height (REM) Measurement, Offset Measurement, MLM (MLM Measurement), Resection, Area measurement calculation, Roadway design and staking-out.

Changeable eyepiece
As the eyepiece is changeable, it is convenient to be equipped with diagonal eyepiece, which makes it easy to you to observe the zenith direction high-rise buildings

Laser plumb
Easy to direct the station point and free station



Model	PTS-121A CHEAP TOTAL STATION
Angle measurement(H V)
Detecting system	Absolute encoder
Minimum display	1″/5″/10″(selectable)
Accuracy	2″
Telescope
Magnification	30X
Field of view	1°30′
Minimum focus distance	1.3m
Image	Erect
Compensator
System	Dual-axis
Range	±3′
Resolving power	1″
Distance measurement(IR)
Single prism(good condition)	4000m
Reflective sheet	1000m
Accuracy	2mm+2ppm
Measuring time(repeat/tracking)	0.8s/0.3s
Reflectorless distance measurement (RL)
Range(White board reflectivity 90%)	400m/600m(Optional)
Accuracy	3mm+2ppm
Measuring time	1s
Communication
Internal memory	20000 points(Extended memory up to 32GB)
Interface	RS232, USB, SC card, Bluetooth
Data format	ASCII
Operation
Operation system	Real-time operation system
Display	320*240 true color TFT LCD screen, brightness adjustable in 3 levels
Keyboard	2 sides alphanumeric backlit crystal keyboard
Laser plummet
Type	Laser point,4 brightness level adjustable
Accuracy	1mm(1mm at 1.5m instrument height)
Environmental
Battery type	High Energy Li-ion battery
Voltage/Capacity	7.4V 3400mAh
Operating time	18 hours(continuous angle measurement every 30 seconds)
Measuring times	Approx. 12000 times

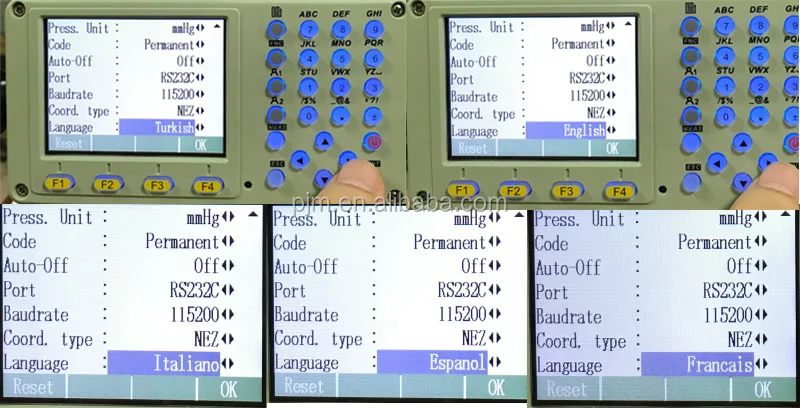

Language :	english/french/spanish/italian



1-The measured data and fix data are saved in the jobs which are shown as child directories. The job contains different types of data, such as fix points, measured points, station points, codes, etc. The data in the job can be read, edited and deleted.

1. 2-Setting the Station Every target coordinate's calculation is related to the position of the station. The station coordinate can be input manually or selected from the instrument memory.

1. 3-Setting the Orientation The orientation can be input manually or determined from points that are either measured or selected from the memory The preset applications covers a wide range of measurement tasks. That makes  the daily field measurement easier and faster. The all applications can be selected to use are as follows:




1. ** Surveying


2. ** Stakeout


3. ** Free Station


4. ** Tie Distance


5. ** Area


6. ** Remote Height


7. ** COGO


8. ** Road

1. 4-Surveying

1. Compared with the Q-Surveying, Surveying has different guides in setting station and set orientation

1. 5-Stakeout

1. The Stakeout Application can calculate lofting elements base on lofting point’s oordinate or manually input angle or horizontal distance. The application can continuously display differences, between current position and desired stake out position

1. 6-Resection

1. Resection measurement is an application used to determine the coordinate of he instrument station by measuring multiple known points. A minimum of 2 and a maximum of 5 known points can be used to determine the station. It should be used at least 2 known points by distance measurement or at least 3 known points by angle measurement.

1. 7-Tie Distance

1. Tie Distance is an application used to compute slope distance, horizontal distance, height difference and azimuth of two target points which are either measured, selected from the memory, or input using the keypad.

1. 8-Area & Volume

1. Area is an application used to calculate the polygon areas to a maximum of 20 points which connected by straights. The target points coordinate can be measured, selected from memory or entered via keypad in same direction. And the following three methods can be alternately performed. The calculate area is projected onto the horizontal plane (2D)

1. 9-Remote Height

1. Remote Height is an application used to measure the height to the target (such as electric cable, bridge, etc.) where can’t be set prism.

1. 10-COGO

1. COGO(Coordinate Geometry)is an application used to perform coordinate geometry calculations by the preset conditions such as , coordinates of points, bearings between points and distance between points.

1. 11-The COGO calculation methods include:

1. -- Inverse and Traverse


2. -- Intersections


3. -- Offset


4. -- Extension

1. 12-Stakeout Reference Element

Stakeout Reference Element is used for making Reference Element stakeout and check easier, such as building, road cross section, or simple excavation. User can define a Reference Line/ARC, according to measuring result, to calculate out the deviated difference& elevation difference between measuring point and reference line/arc.

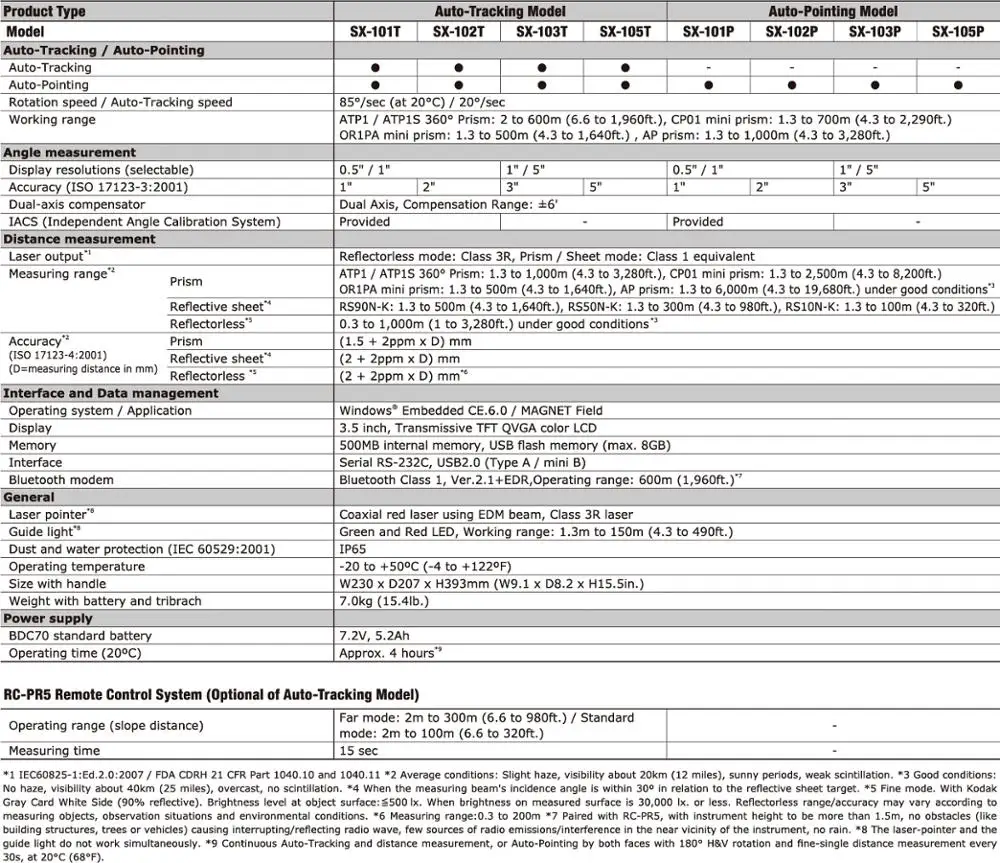

Superior Auto-Pointing Technology
Incorporating cutting-edge laser and image processing technologies, the SX provides extremely reliable auto-pointing capability. Even in dense woods or in dim conditions, the SX rapidly finds a prism and accurately measures its position, ensuring maximum work efficiency under all job site environments. The SX provides a wide auto-pointing range from 1.3m to 1,000m with a standard prism.

Simple and Easy
Point the SX in the general direction of the prism, press the trigger key, and the SX automatically points to the prism center. This enables even a beginner to rapidly take accurate measurements.

Faster, Less Effort
By eliminating the need for the focusing telescope and adjusting fine motion screws, the SRX dramatically increases survey speed.

Auto-Tracking Model feature

LongRange Data Communication
• The SX series of total stations features Bluetooth® Class1 wireless technology for reliable data communications.
• All SX data is instantly available at the Bluetooth-equipped controller.
* Wireless communication range may vary depending on obstruction and other environmental conditions.

RC-PR5 Remote Control System
The RC-PR5 On-Demand Remote allows for rapid prism search regardless of your position. A built-in directional sensor constantly monitors the prism movement so the SX can turn left or right whichever direction is closer.

Precision 360° Prisms
Advanced 6-prism configuration provides unsurpassed measurement precision due to a minimum offset of each prism center. ATP1 fits a range pole; ATP1S sliding prism is designed for a pin pole.
