DC12V Solar Sliding Gate Opener kit include 50W solar panel and 2PCS DC12V 7AH batteries

Product Overview

Description





Model	SL500
Power supply	110V or 230VAC
Motor power supply	12VDC
Absorbed rated current	1.7A
Absorbed power	300W
Running speed	14m/min or 20m/min
Limit switch	hall sensor
Max thrust	5000N
Max gate weight	500KG
Operating speed	-20℃~+50℃
Backup battery	DC12V 7AH 2PCS
Package weight	22KG



 Selling points and main features :

1) Suitable for Residential or Commercial  Sliding Gate.

2) Full open or pedestrain open by remote or push button.

3) Built in solar regulator and Auto close function is avaiable.

4) Auto stop and re-open when the gate runs into obstacles.

5) Manual release clutch for emergency purposes or power failure.

6) Terminals for  Battery,Photocell,Flash lamp,Solar panel,Push button etc

7)  DIY simple installation .Soft start and slow down gently stop.

8)  1 year  warranty

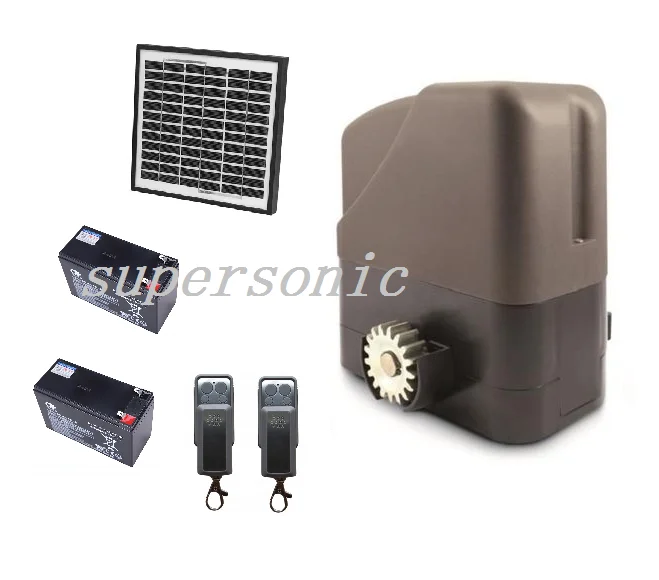

Standard Kit Includes: SL500 500KG Motor+Control Board+2 Remote Control+Manual Rlease Key+base plate+50W solar panel +2PCS DC12V 7AH batteries
