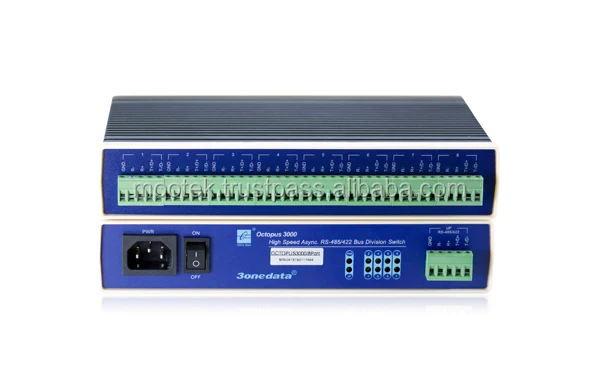

Octopus3000(RS 232/485/422 to 8 port RS 485/422 HUB)
- Category: >>>
- Supplier: MOOTEK TECHNOLOGIES [India]MOOTEK
Share on (50040321697):
Product Overview
Description
Features
1. 8 ports cards insert optical isolation RS-485/422 HUB
2. Star structure, bi-directional Converter RS232 to RS485/422 or RS485/422 repeater
3. Reach up to 3000m at the rate of 9600bps
4. 600W surge protection,15KV ESD protection, built-in short circuit protection
5. Each port 3000V optical isolation separately
6. Support stage connection, each port support 256 nodes loopback
7. Data direction auto-turnaround, no flow control is necessary
2. Star structure, bi-directional Converter RS232 to RS485/422 or RS485/422 repeater
3. Reach up to 3000m at the rate of 9600bps
4. 600W surge protection,15KV ESD protection, built-in short circuit protection
5. Each port 3000V optical isolation separately
6. Support stage connection, each port support 256 nodes loopback
7. Data direction auto-turnaround, no flow control is necessary
Specification
Standards: EIA RS-232C, RS-485, RS422 standard
RS-232 signal: TX, RX, GND
RS-422 signal: T+, T-, R+, R-, GND
RS-485 signal: D+, D-, GND
Working mode: Asynchronism, point to point, 2 wire half-duplex,4 wire full duplex
Baud rate: 300~115200bps, auto test serial signal rate detect signal speed automatically, zero delay time
Flow control: Data direction auto-turnaround, no flow control is required
Transfer distance: RS-485/422 side:1.8Km(9600bps)
RS-232 side: no less than 15m
Loading: Support 256 nodes loopback
Optical isolation: 3000V
Port protection: 600W surge protection,15KV ESD protection
Connector: 5 bit terminal block
Power
Power input: 220VAC
Consumption: 5W
Environment
Operating temperature: -10°C to 60°C
Storage temperature: -40°C to 85°C
Humidity: 5% to 95%(no condensation)
Appearance
Dimensions: 227.0mm×146.0mm×43.0mm
Material: Plastic
Color: Black
Weight: 1000g
Warranty: 3 years
Approvals: FCC, CE, RoHS approvals
