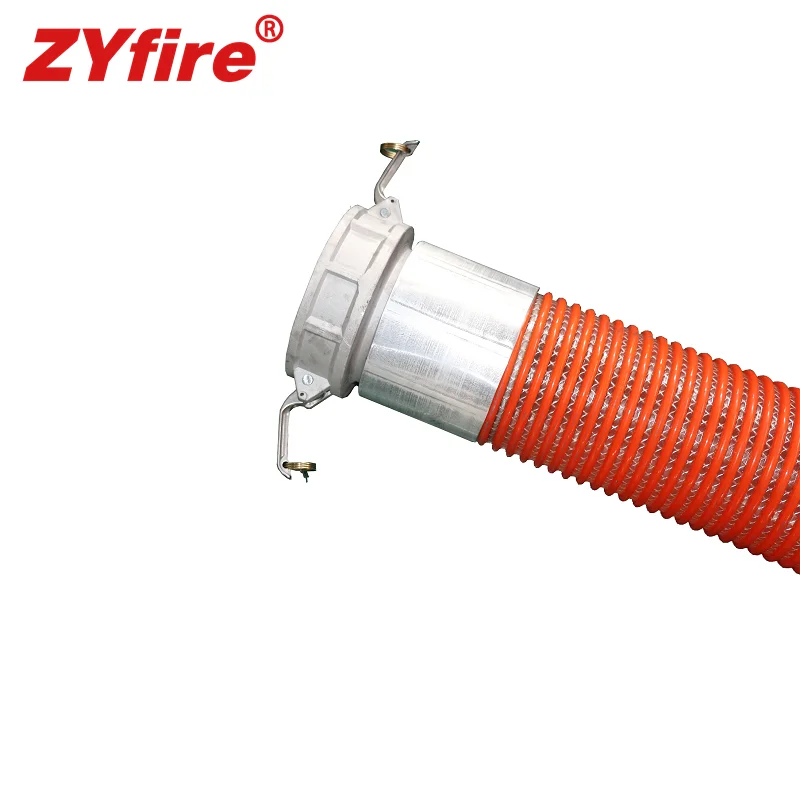

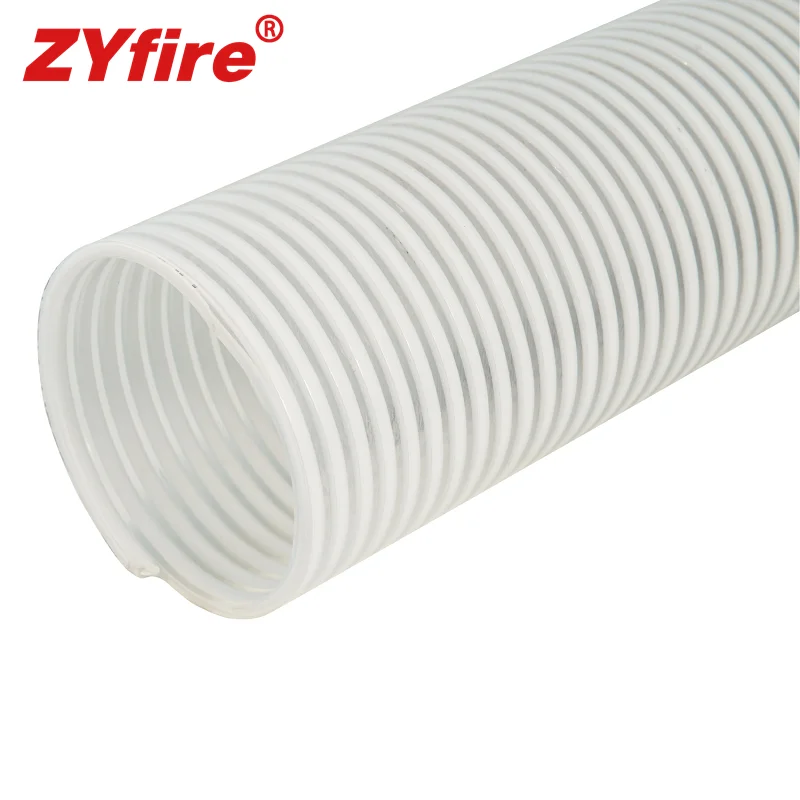

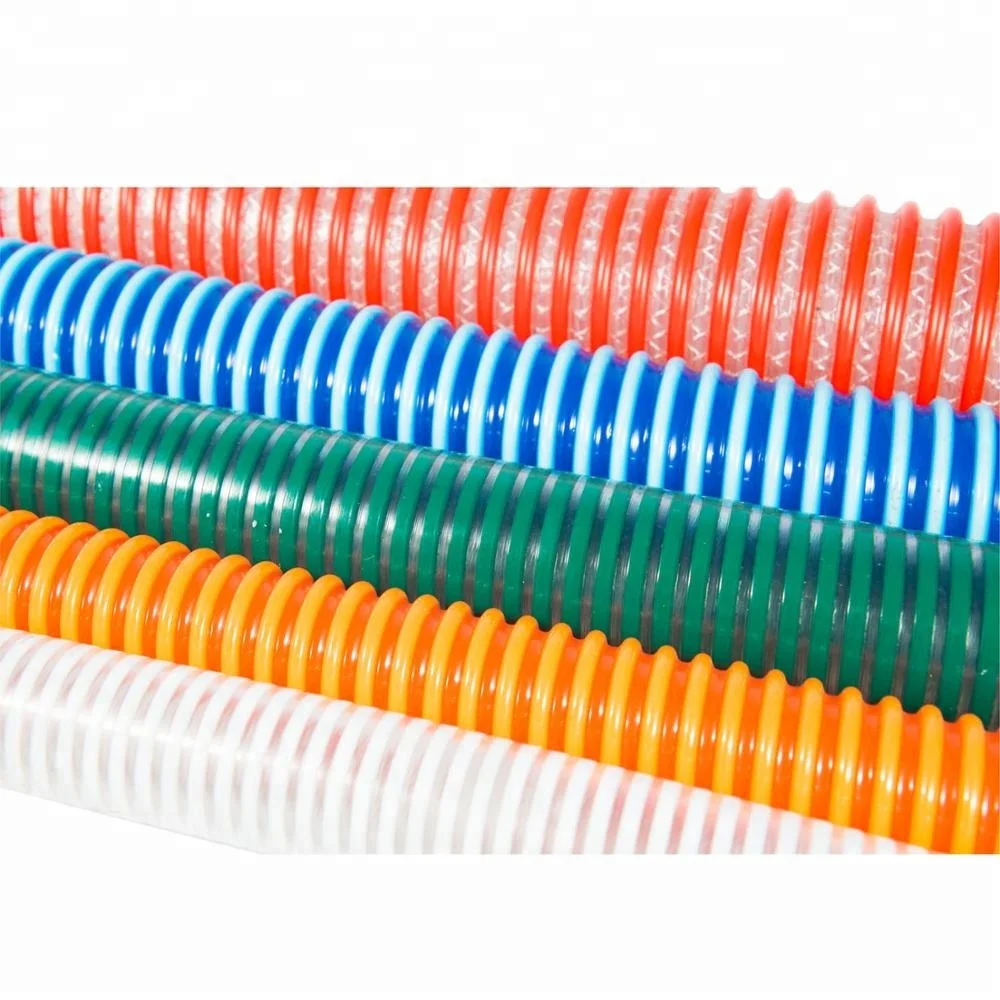

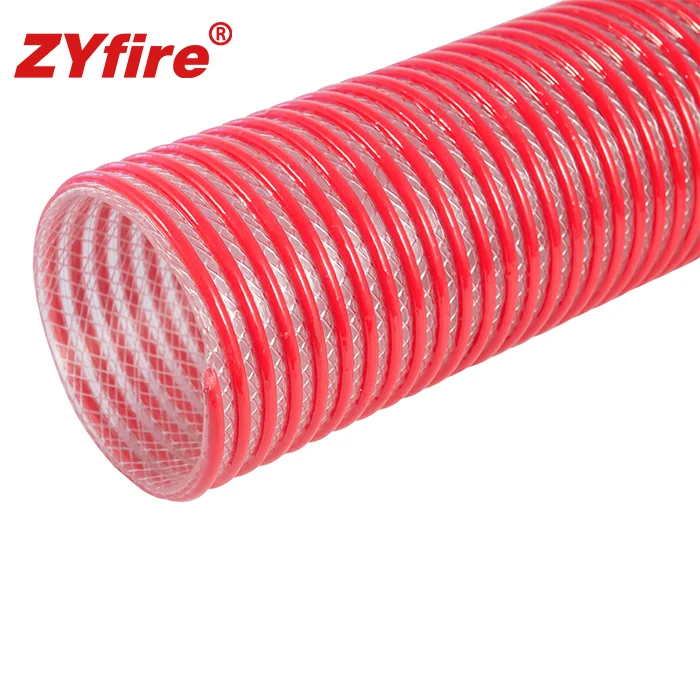

ZYfire TPR Covered Heavy Duty Suction Discharge Hose
- Category: >>>
- Supplier: Zyfire Hose Corporation
Share on (50040410243):
Product Overview
Description
About Us
Heavy Duty Suction Discharge Hose
Product Description
Richflex 10
TPR Covered hose
Construction: TPR tube and sturdy clockwise TPR helix with high tensile strength polyester yarn reinforcement.
Temputerature: -15℃ to +60℃ (+5℉ to +140℉)
Application: HD fish suction and transfer, HD water suction and transfer, construction and trash pumps.
I.D. | O.D. | Weight | Max w.p.@68℉ | Vacuum@68℉ | MBR* | Std.lgth | ||||
inch | mm | inch | mm | Kg/m | Lbs/ft | Psi/bar | kpa | inch | mm | ft |
1 1/2” | 38.10 | 2.03 | 51.56 | 0.68 | 0.46 | 72.5/5.0 | 94.0 | 2.5 | 63.5 | 50 |
2” | 50.50 | 2.56 | 65.00 | 1.28 | 0.86 | 72.5/5.0 | 94.0 | 5.0 | 127.0 | 50 |
2 1/2” | 63.50 | 3.01 | 76.45 | 1.52 | 1.02 | 72.5/5.0 | 94.0 | 5.0 | 127.0 | 50 |
3” | 76.20 | 3.70 | 93.98 | 1.85 | 1.24 | 58.0/4.0 | 94.0 | 6.0 | 152.4 | 50 |
4” | 102.00 | 4.74 | 120.50 | 3.2 | 2.15 | 43.5/3.0 | 94.0 | 7.5 | 190.5 | 50 |
5” | 127.00 | 5.77 | 146.50 | 4.00 | 2.69 | 43.5/3.0 | 94.0 | 9.0 | 228.6 | 50 |
6” | 152.00 | 6.95 | 176.50 | 5.00 | 3.36 | 43.5/3.0 | 94.0 | 10.0 | 254.0 | 50 |
8” | 203.00 | 9.13 | 232.00 | 8.50 | 5.71 | 43.5/3.0 | 94.0 | 16.5 | 419.1 | 50 |
10” | 251.00 | 11.18 | 284.00 | 11.29 | 7.59 | 36.3/2.5 | 94.0 | 25.5 | 647.7 | 50 |
