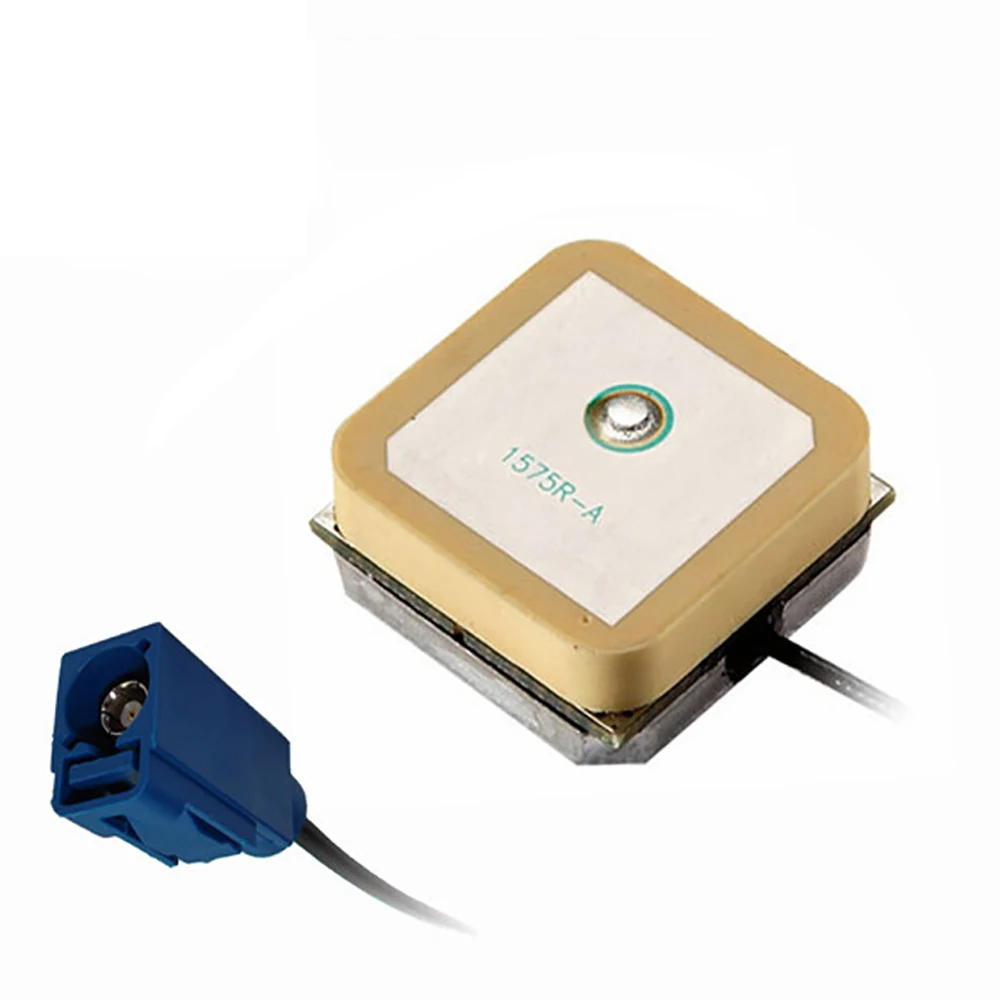

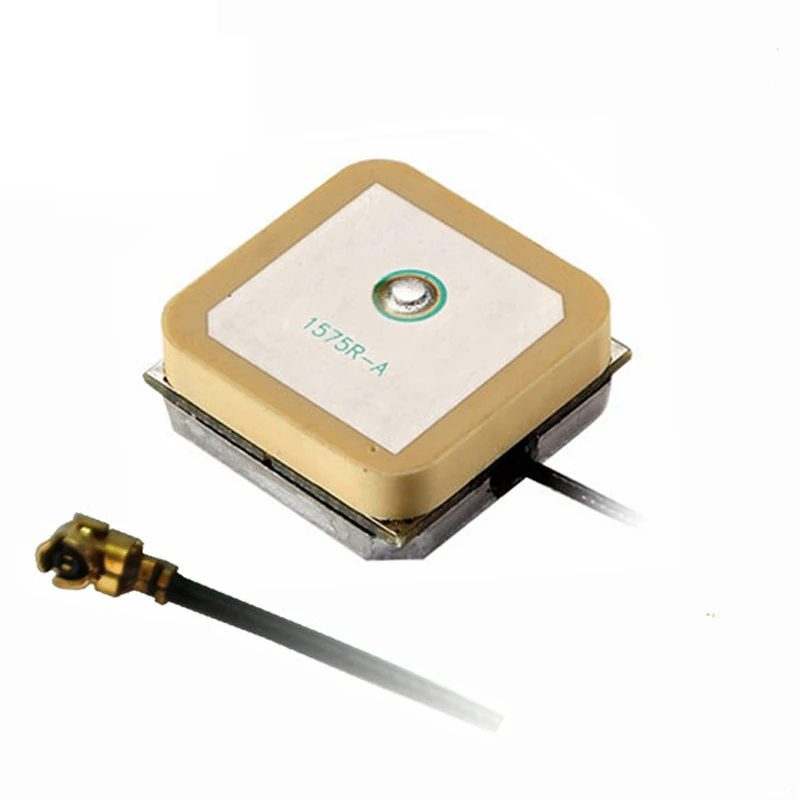

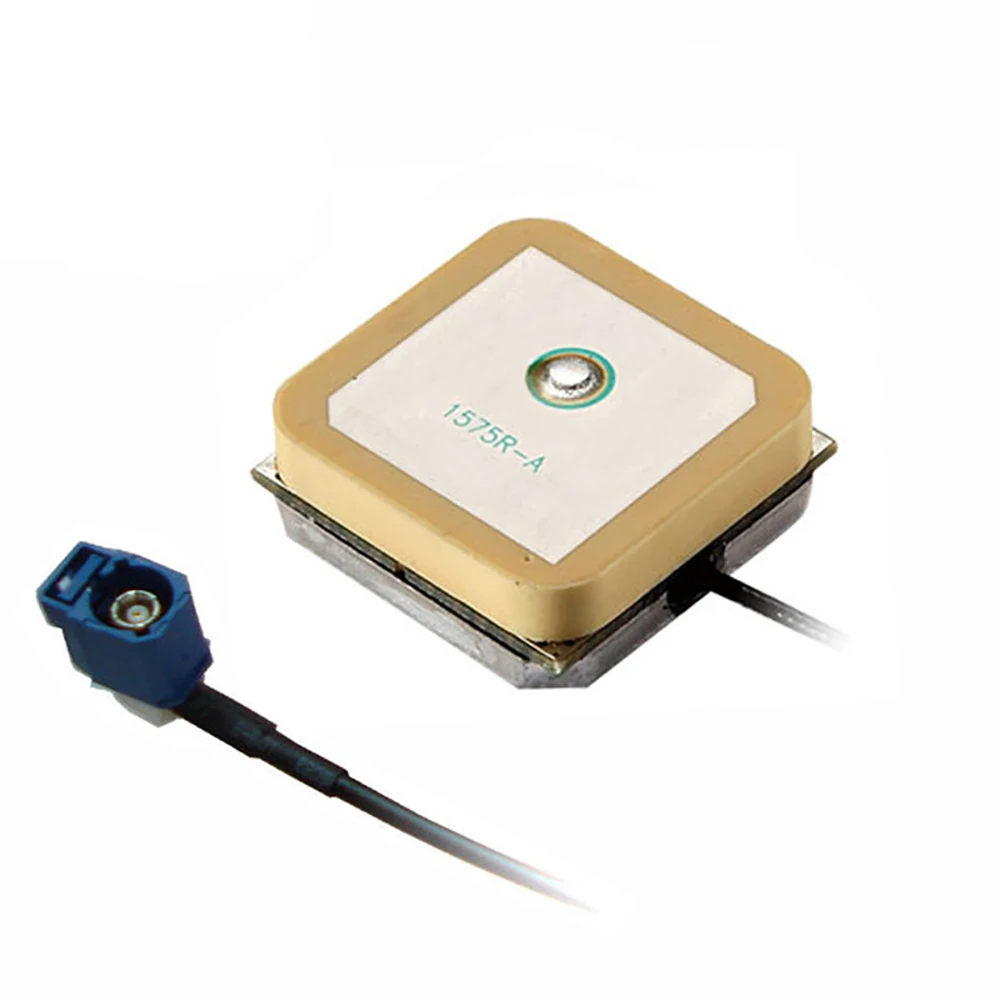

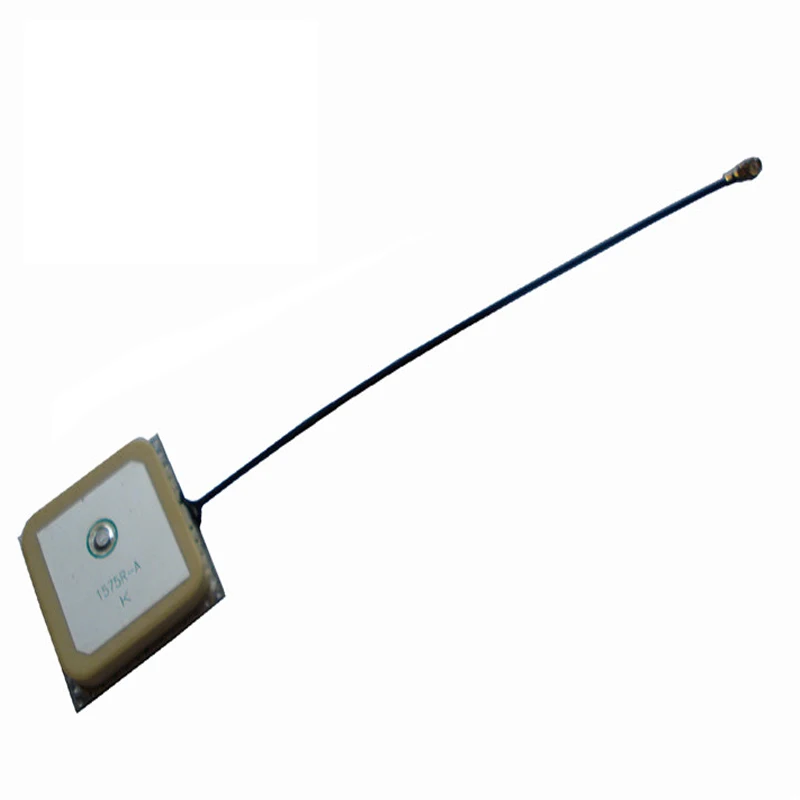

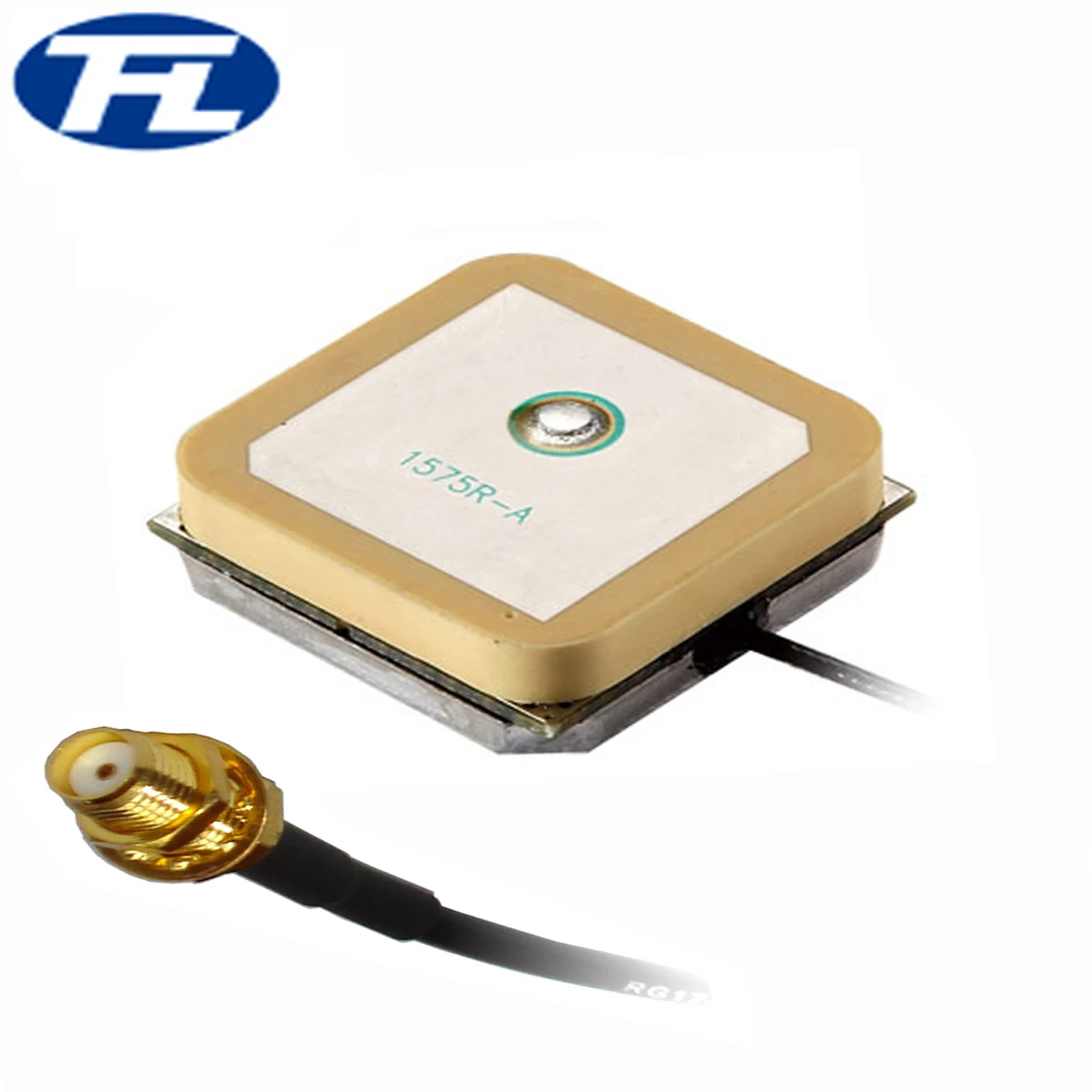

internal mini ceramic gps antenna with sma female connector for Real Time Car GPS Tracker
- Category: GNSS & GPS Antenna >>>
- Supplier: Taigu Fulong Electronic Technology Co. Ltd.
Share on (50040580357):
Product Overview
Description
| Specification | |
| 1) Dielectric Antenna | |
| Center Frequency | 1575.42 MHz±3 MHz |
| V.S.W.R | 1.5:1 |
| Band Width | ±5 MHz |
| Impedance | 50 ohm |
| Polarization Type | R.H.C.P |
| 2) LNA/Filter | |
| LNA Gain(w/o cable) | 28±2 dB Typical |
| Noise Figure | 1.5 dB |
| DC Voltage | 2.2~5 V |
| DC Current | 5~15 mA |
| 3) Mechanical | |

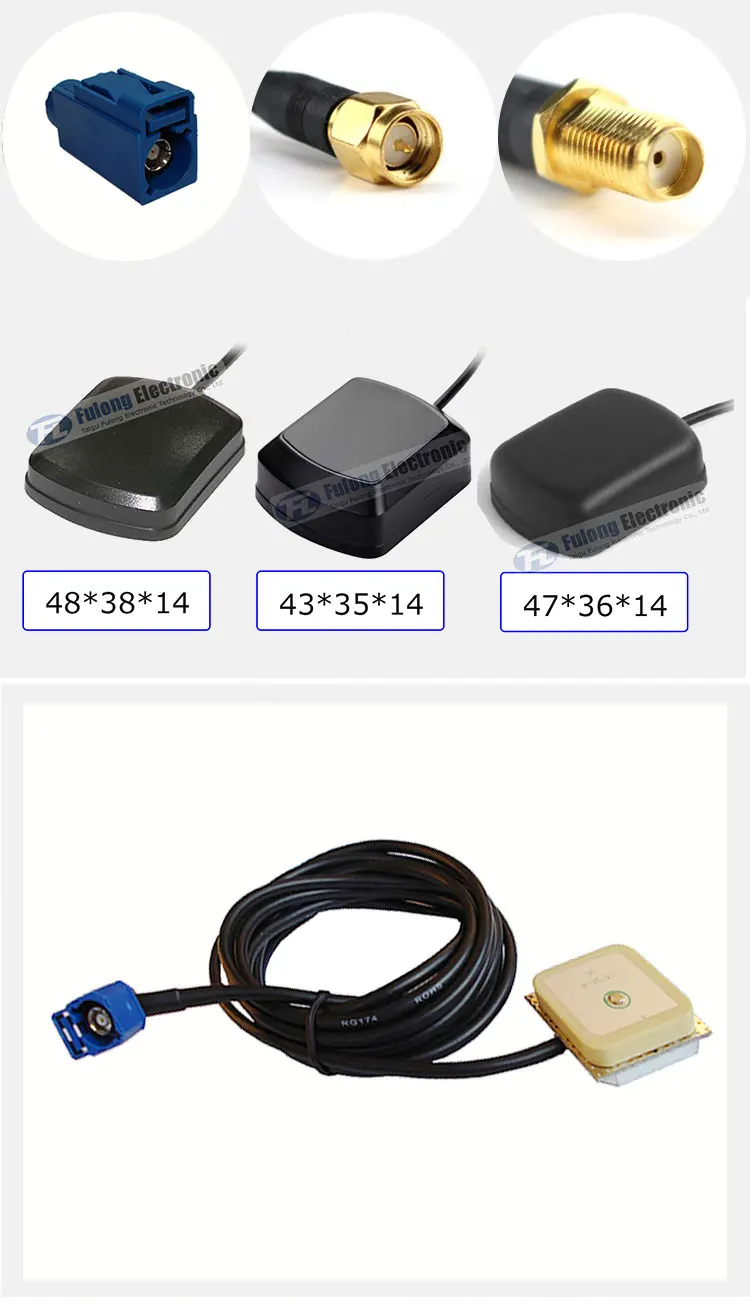

| Size | 48*38*14mm |
| Mounting | Magnetic/adhesive |
| Housing | Black |
| Package | 120*95*20mm |
| Cable | RG174, 3m or others |
| Connector | SMA/MCX/Fakra or others |
| 4) Environmental | |
| Working Temp. | -40℃~+85℃ |
| Humidity | 55%~75%RH |
| Waterproof | IP67 |
Q: Can I get one sample?
A: Yes, sample is for free.
Q:Payment term:
A:T/T(50% deposit as place order, 50% before shipment), Western Union, MoneyGram, Paypal
Q: What's the delivery time?
A: 1-2 working days for the sample, 7-10 working days for quantity below 5K, 15-30 working days for the quantity below 20K.
Q: Have antenna 100% assembles well in stock?
A: No, all antenna will be newly assembled according to your orders including the samples.
Q: Could I use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q:How can you guarantee the product quality?
A: All of our items are manufactured unter RoHS directive and CE certified. Before shipment, we'll 100% inspect the commodity.
Q: What should customers do when you get the bad quality products?
A: If there are any damaged items, please kindly contact us for after-sale service. Generally, we'll pay for it in customer's next orders.
