Cold shrink connector sealing kit for 1/2 jumper to device connector, weatherproofing solution for cell site, similar 3M 98 KC11

Description.

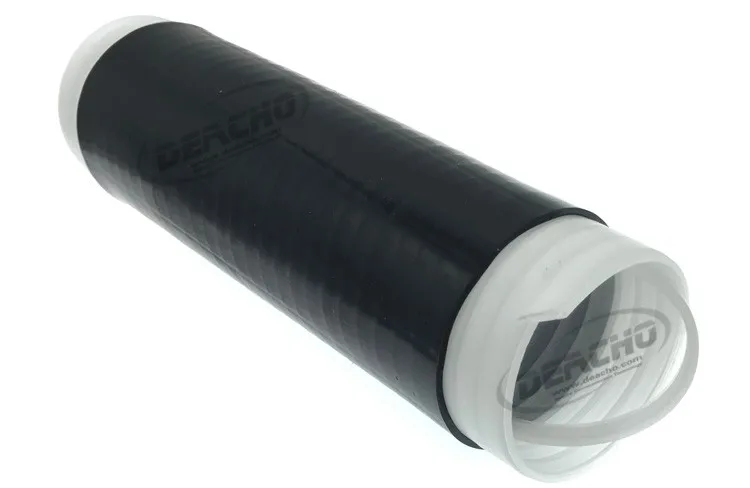

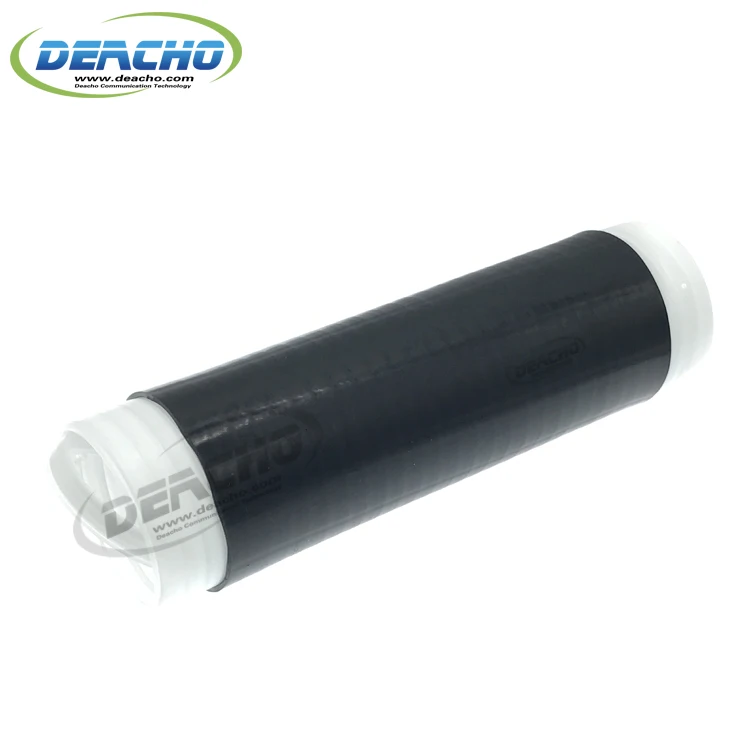

SCS series is silicone cold shrink tubes, provide a quick and easy method for protecting and sealing for an inline connection, terminal lug, etc., cold shrink tubing is an open-ended tubular rubber sleeve , pre-expanded on a removable core for easy installation.Silicone cold shrink tube are made from silicone rubber which does not contain chlorides or sulfur.

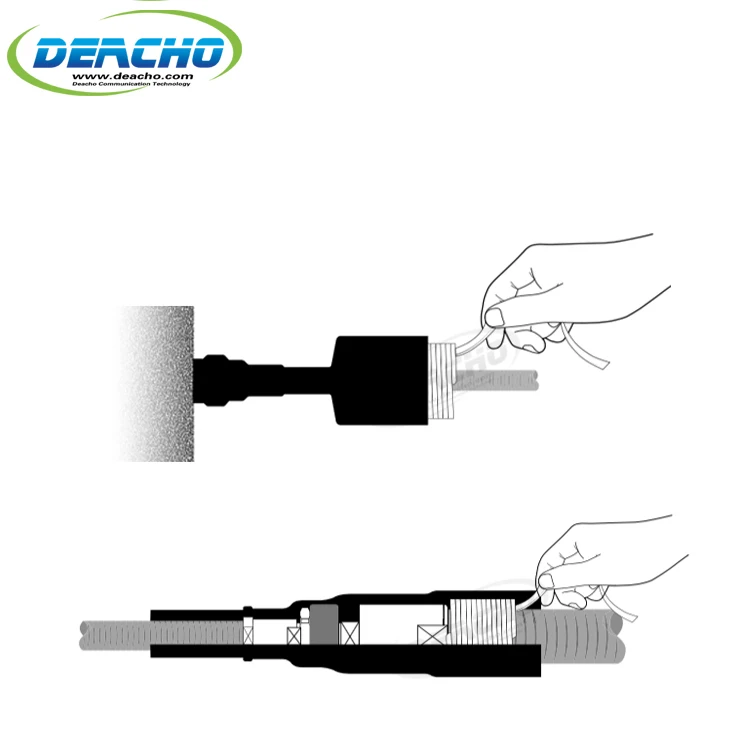

The core is removed after the tube has been positioned for installation, allowing the tube to shrink and form a water-resistant seal. In applications where the different cable diameter cannot be covered with the tube range, a

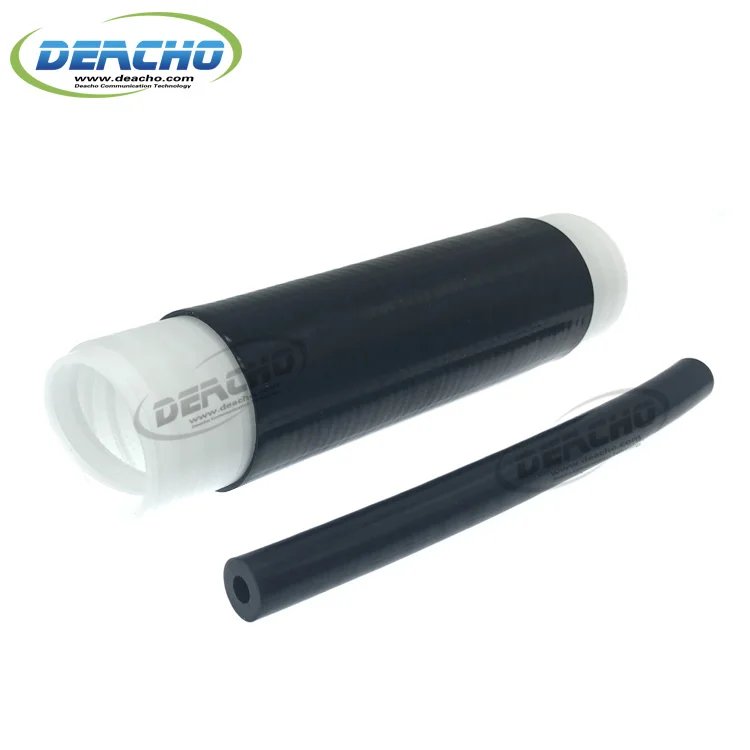

foam tape is included in the package. The foam tape is used to increase the smallest cable diameter and assure the sealing of the clod shrink tube.

Feature & Advantages.

• Simple installation; requires no tools, no torches or heat required.

• Accommodates a wide range of cable sizes
• Good thermal stability
• Seals tight; retains its resiliency and pressure even after prolonged  years of aging and exposure
• Excellent wet electrical properties
• No mastic or tape required to seal
• Resists acids and alkalis; resists ozone

• UV resistant, Ozone-resistant, RoHS compliant

Structure.

Inner diameter of plastic core as supplied: 45 mm

Length after full shrink (nothing inside)-L: 203 mm

Length as supplied-L1: 165±10 mm

Application range: 13.5-39 mm

Application.

Item No.: SCS45X203

Material: Solid silicone rubber

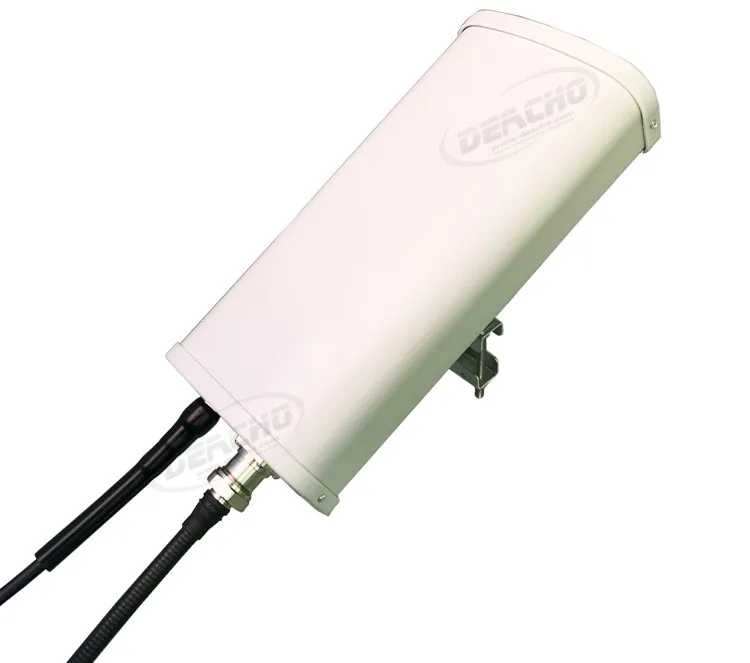

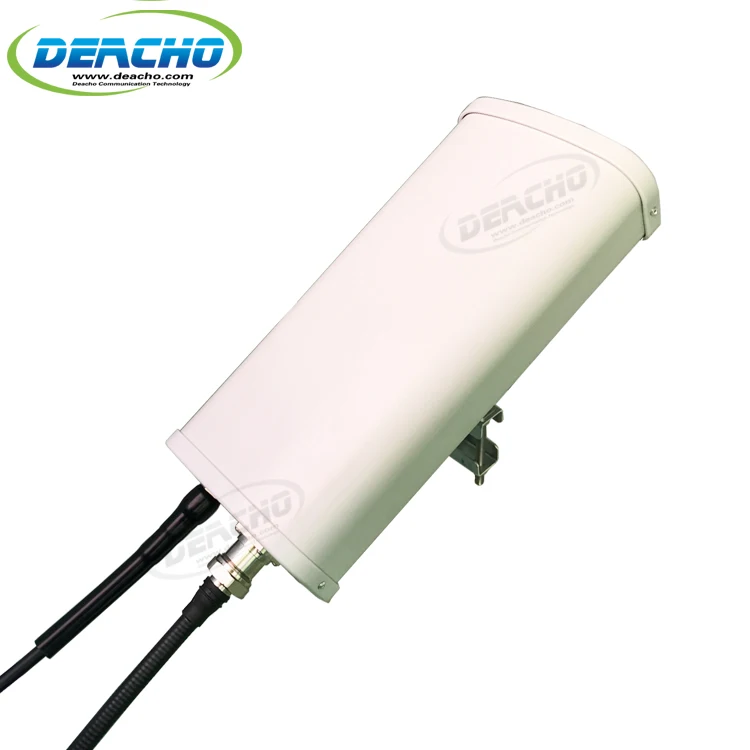

Application: weatherproofing for cell sites

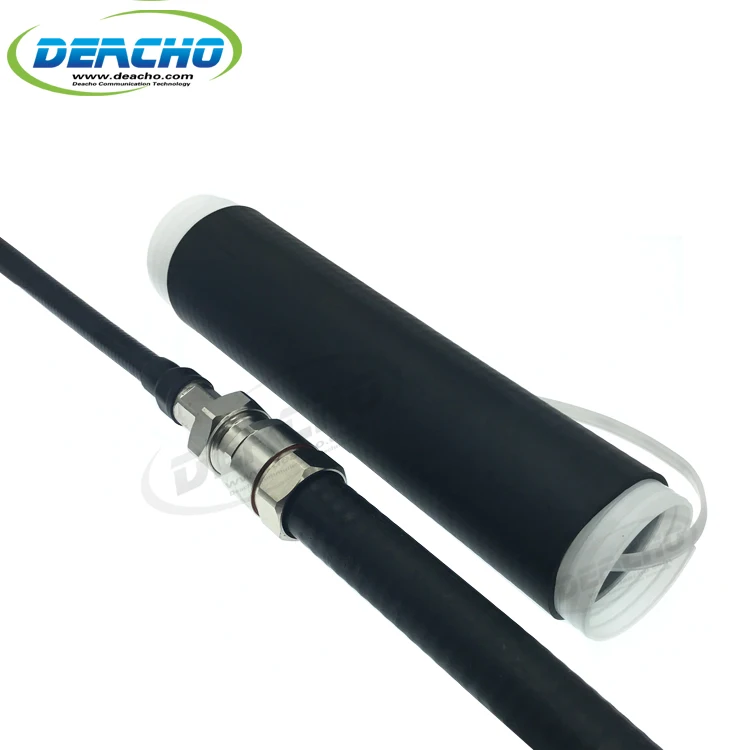

It is used to seal 1/2" jumper cable to device, through DIN, N, 4.3-10 connector.

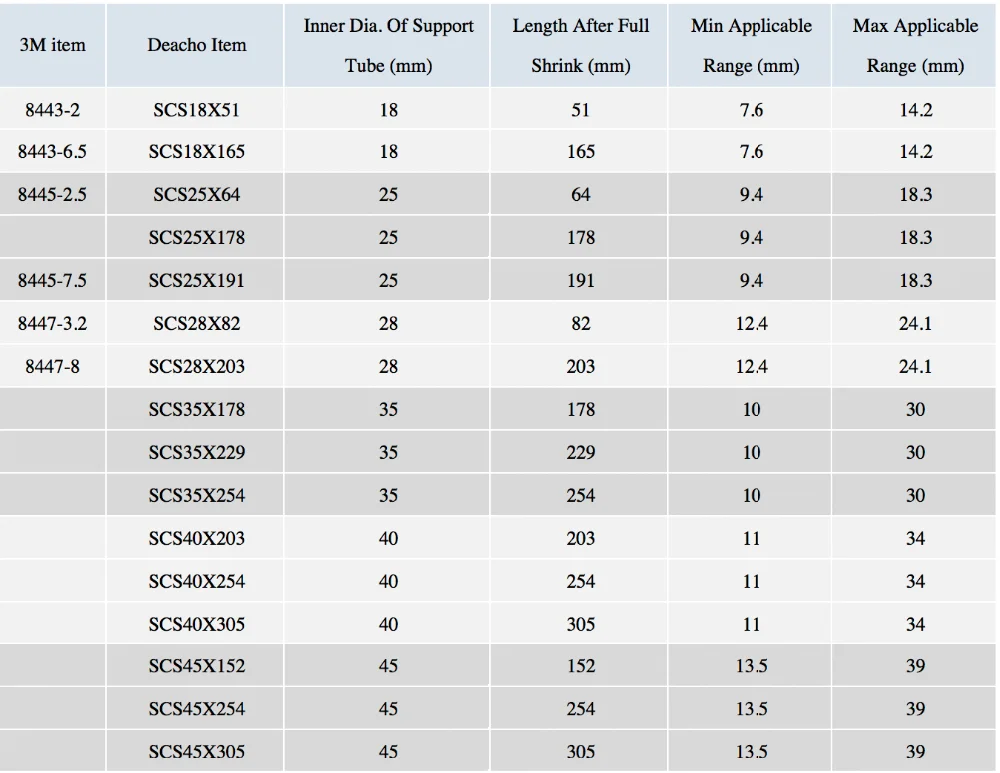

Technical Datas.
