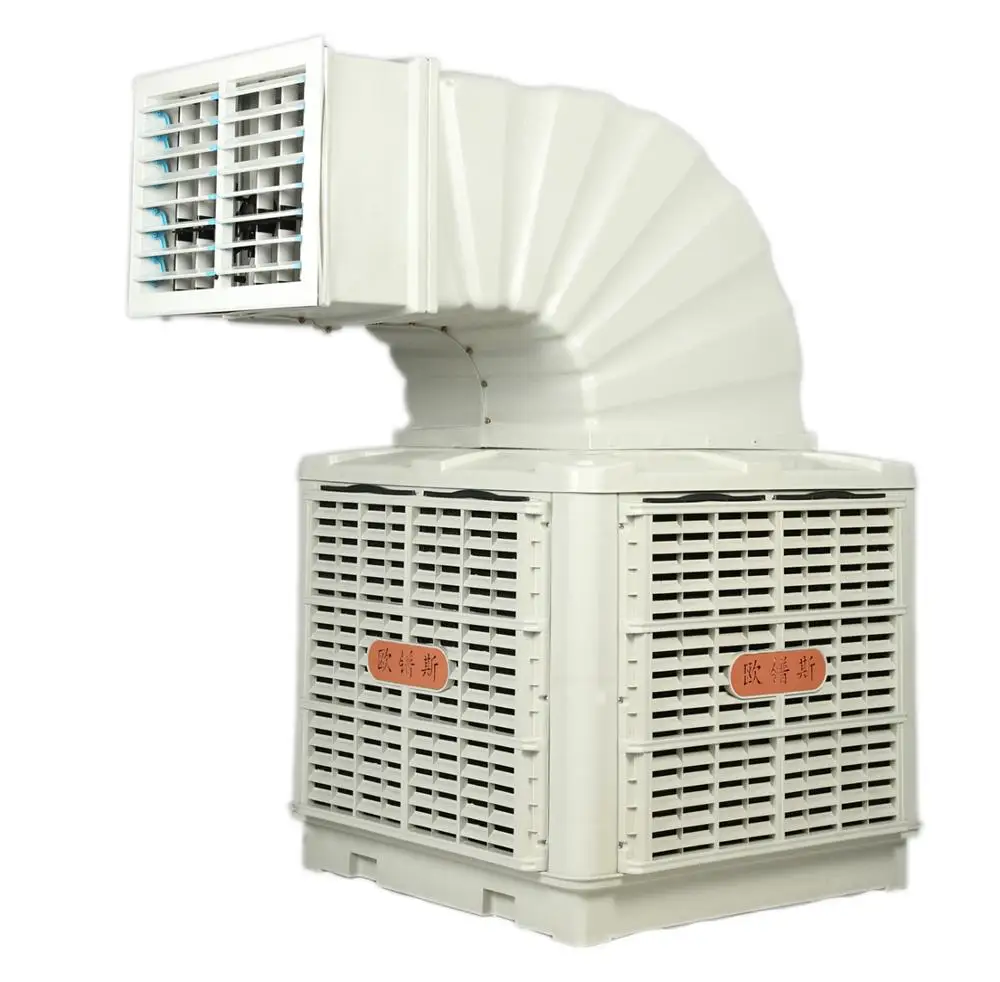

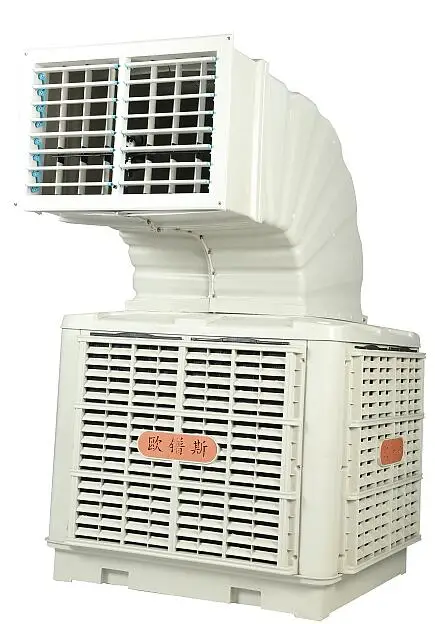

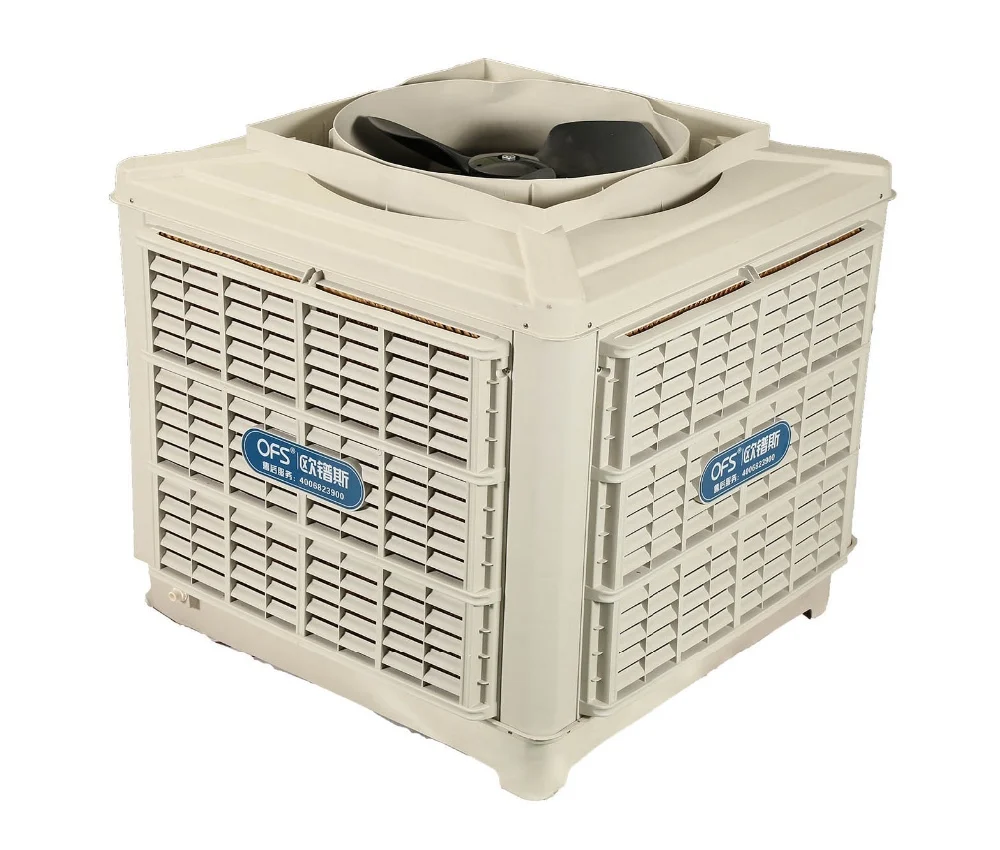

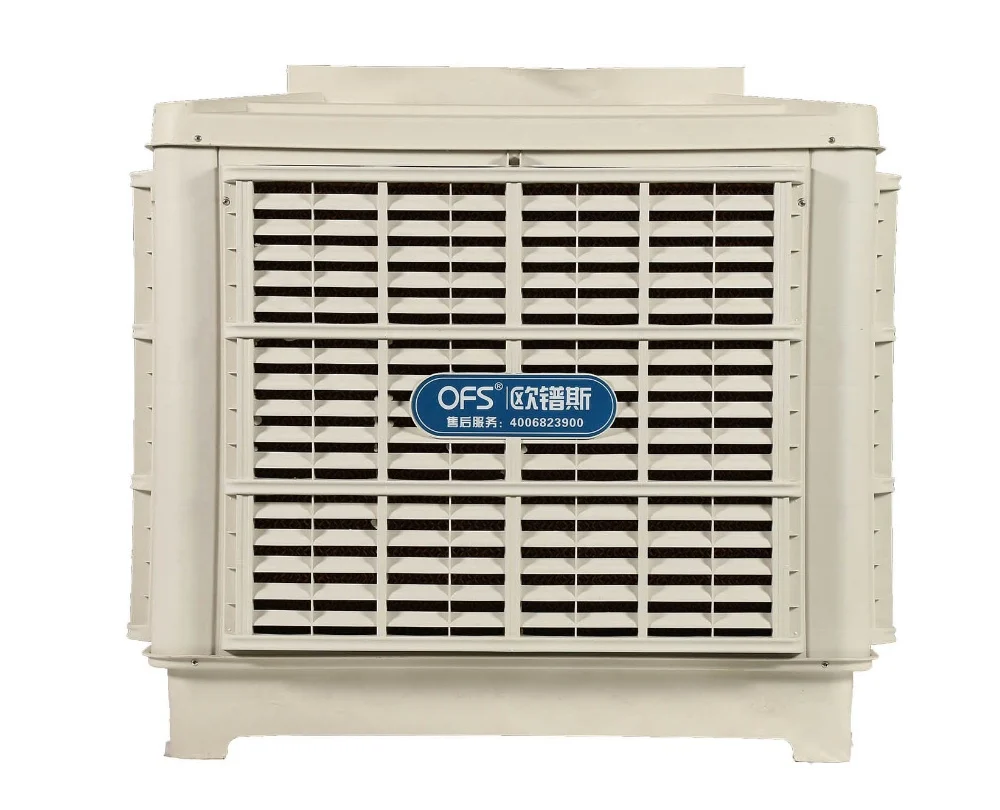

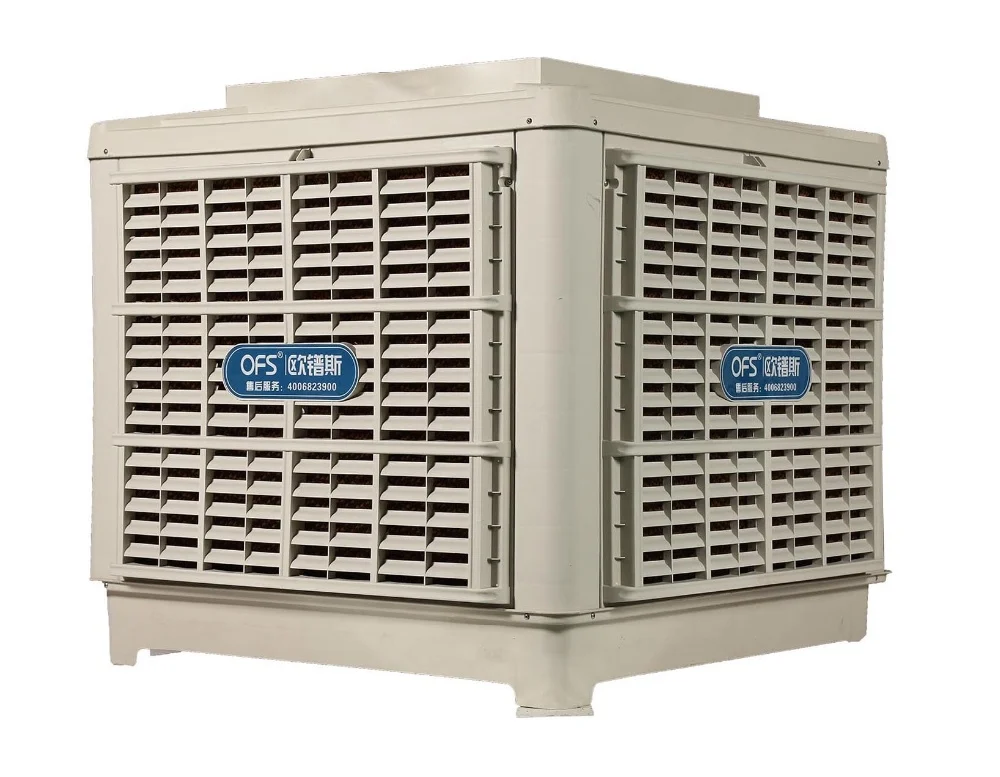

Air Cooler/ Evaporative air cooler/ Evaporative cooling unit industrial

Product Overview

Description

OFS New Evaporative air cooler/ Evaporarive air conditioning/ Desert cooler/Air cooler   Advatage: *Combined motor fan. *Ultra quiet centrifugal fan (Axial type Optional). *Responsive to duct sizing and back pressure. *Designed to deliver optimum output.

Tornado Pump * Exceptional reliability in extreme conditions * Italy design

Hushpower Direct Drive Motor *Super efficient over operating range *Quietness beyond belief *Exclusive to Breezair *Reduced energy use *Variable speed *Electronically controlled for maximum efficiency

Clean And Dry Function * Automatic water draining when cooler not in use * Prevents growth of algae * Maintains clean cooler

Long life chillcel cooling pads  * Honeycomb design optimises cooling effect• Long lasting

Cabinet * Non discolouring * Uv resistant * Non rusting



Features :

1.      Low installation ,running and maintenance cost

2.      Remote control for uncomplicated setting and possibility to run units in parallel

3.      Light performance axial fan for ducting options

4.      Suitable for a wide range of applications

5.      Simple and flexible installation

6.       Encironmentally friendly



Theoretical principle and how it works :

The evaporative coolers use OFS evaporative cooling pads as media. A system of water distribution and a pump keep the pad continuously wet ,Inside the machine is a large axial fan which sucks the air from the outside through the pad. When the air goes

through the pad which is saturated the air gets cooler.





Specification	The voltage and herz would be ordered.
Item No.	OFS-180	OFS-210	OFS-250	OFS-300
Airflow	18000CMH	21000CMH	OFS-25000CMH	30000CMH
Effective Area	80-100 sq.meter	100-120 sq.meter	120-150sq.meter	150-250sq.meter
Max Air Pressure	180 Pa	200 Pa	220 Pa	280 Pa
Fan Type	Axial	Axial	Axial	Axial
Noise	≤68db	≤ 70db	≤ 75db	≤78db
Power Supply	220~450v	220~450v	220~450v	220~450v
Power Consumption	1.1kw	1.5kw	2.2kw	3.0kw
Water Consumption	12~20L	15~25L	18~28L	19~32L
Speed	Variable	Variable	Variable	Variable
Dimension	1080x1080x980mm	1080x1080x980mm	1200x1200x1060mm	1350x1350x1060mm
Net Weight	80  kgs	85 kgs	90  kgs	118 kgs
