2 Uplink Fast Ethernet PoE Switch 10 Port Support Vlan 250M Extend QoS AI PoE
Product Description
The device supports IEEE 802.3 af/at standard, which can automatically detect and identify the PDs that comply with the IEEE 802.3af/at standard and provide power for them, so there is no need to worry about PoE or non-PoE devices that can damage private standards.
Key Features

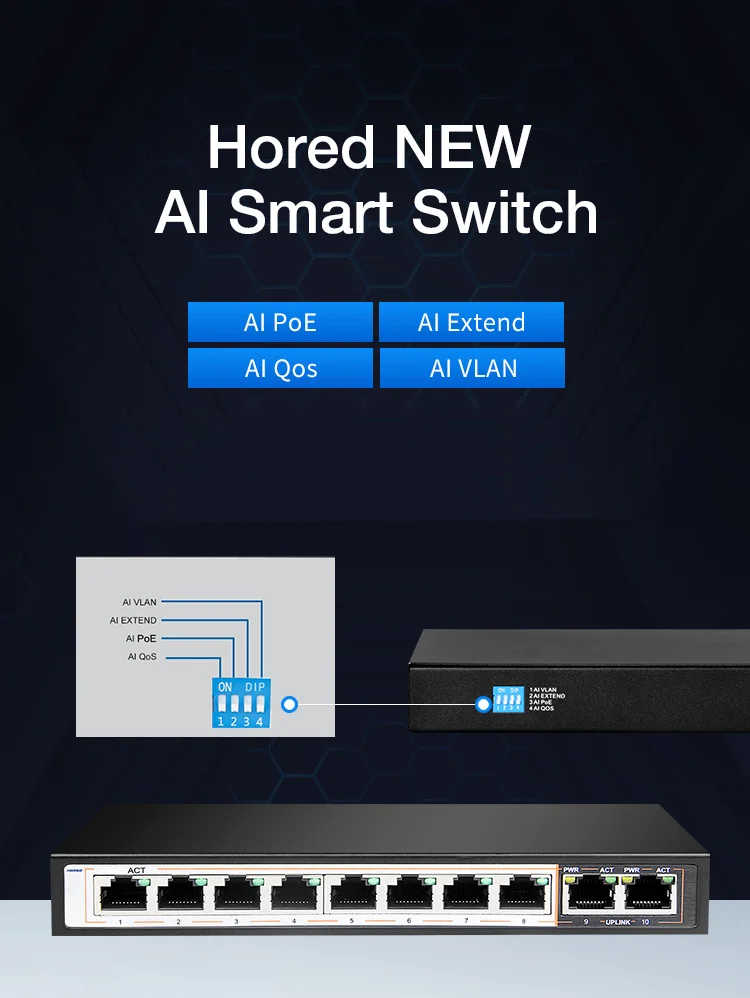

AI Extend: 1-8 port supports 250M meters long distance power supply (recommended cat 5 or above)
AI VLAN: Isolating ports 1-8 from each other, restrain network storms effectively and improve network performance
AI QOS: Customize application prioritization and increase network sensitivity. For example, video priority, monitoring transmission more smoothly
AI PoE Automatic detection power of port, power off and restart the device if find dead machine
Supports IEEE 802.3af/at standard, automatically detects and identifies devices that comply with the IEEE 802.3af/at standard and supply power to it
Support Auto MDI/MDIX;
Adopt store-and-forward exchange method
Intelligent power supply, the lowest power consumption, ensure PD power needs
With power circuit protection, protect the safety of PD
No configuration characteristics of the power supply is automatically supplied to the adaptive equipment;
Fanless design, energy saving and environmental protection; no noise, reduce the impact on the environment
·Network delay(100 to100Mbps): maximum 20 μs (using 64 byte packet)
·Frame filtering and transmission rate:
10M port maximum 14,800pps
100M port maximum 148,800pps
LED indicator
·Power
·LINK/ACT
POE Pin
1/2(+), 3/6(-);
Power
·Max. output power single port: 36W
·Max Power supply: 96W

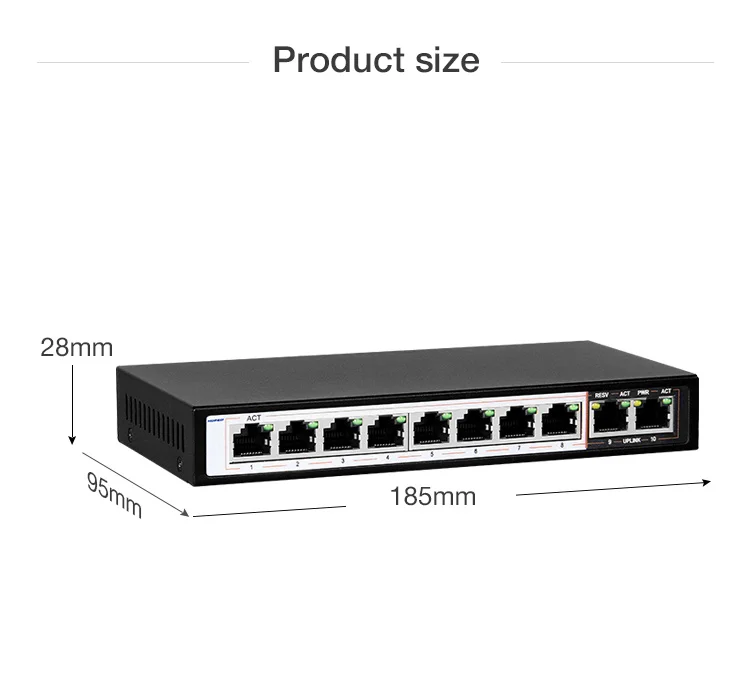

Dimensions
·Size (LxWxH): 184mm*94mm*27mm
·Weight: 0.5kg
Environment
·Operating Temperature: 0°~40°C
·Operating Humidity:: 10%~90%, Non-condensing
EMC
·CEClassB
·FCCPart15, ClassB
·VCCIClassB
·C-Tick
safety regulations
·CE/ROHS/FCC/CCC

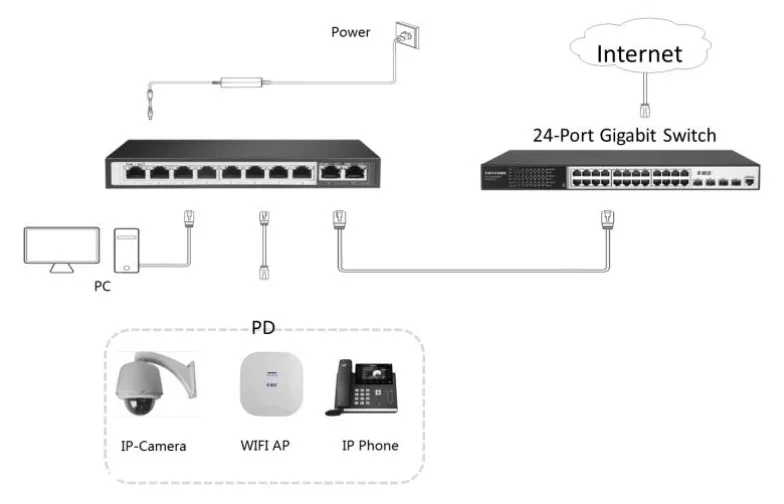

Application Diagram
Related Products:
Certifications
Company Information
Shenzhen Fengrunda Technology Co., Ltd (HORED)is a global leader in PoE devices supply. Established in 2011, we has been committing to R&D on PoE devices and solutions, we have obtained many national patents. We offer full line products and high quality and cost-effective solutions. Besides PoE switches, produces also covers ethernet switches, power line communication, wireless access points.
We are devoted to research & design, production & processing, sales & marketing, integrating global resources to keep us a leading position. HORED is a worldwide leading brand in network and communication field.
At present, we use chipset solution is Broadcom, RTK, TI(Texas Instruments) etc.
Our factory size about 3,000 square meters, No. of production lines above 10. Production capacity is 2000pcs every week, total employees 201-300 people.
QC department seriously control all products quality from material to finished products. Our product can be inspected by the third inspection part, all the products passed certificate, FCC, RoHS, CE...
Honesty is the business basis.
FAQ
1). OEM/ODM Service: Customized package/front panel/label(your logo and model). 2). Quality&RMA: Good quality control system, 100% test before shipment, RMA less than 1% 3). After service: One year warranty, will replace new parts for RMA if it is within warranty 4). Fast delivery: Sample within 2 day; Mass order depends on order quantity. 5). MOQ: 1pcs also welcome
