contour cutter plotter with laser optical eye
- Category: Office Equipment >>>
- Supplier: Shenzhen MOMO Digital Technology Co. Ltd.
Share on (50041230815):
Product Overview
Description
Product Description

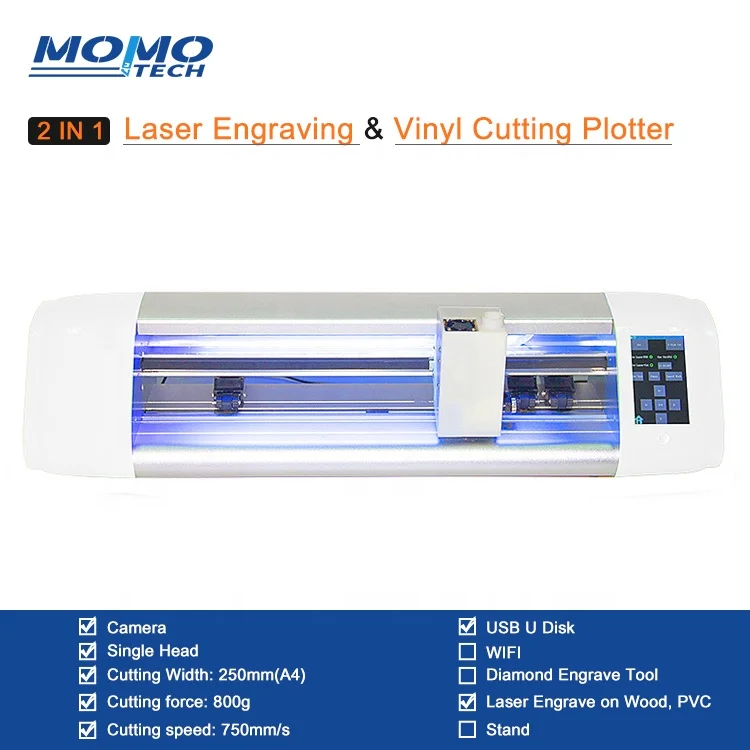

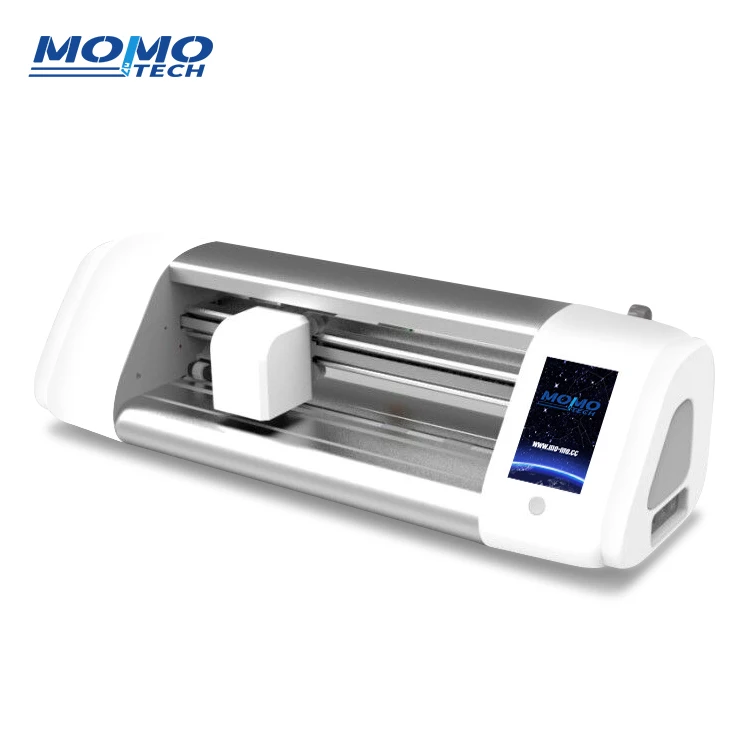

8inch/10inch Mini laser plotter
Main Features:

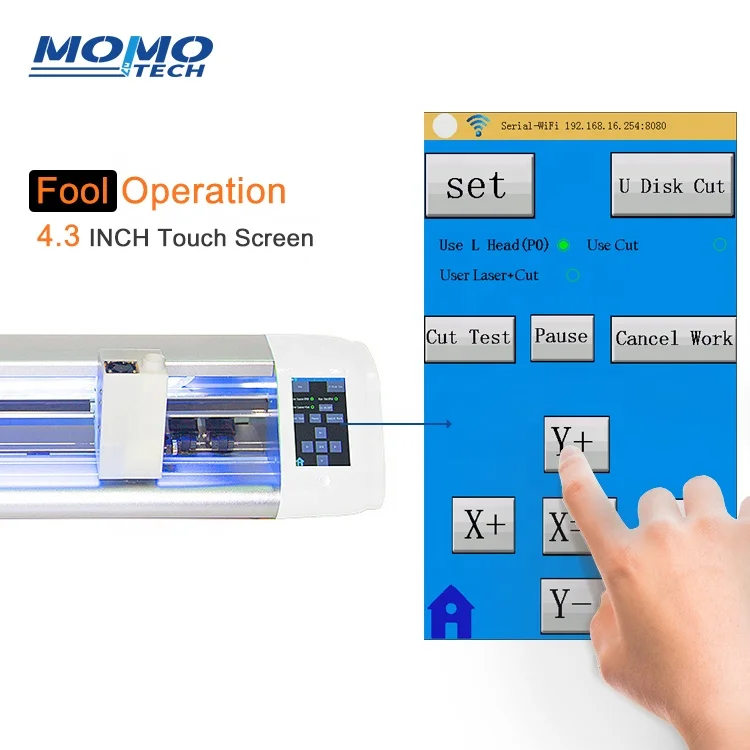

- 4.3" HD LCD Touch screen, Resolution:800*480.high brightness, high sensitive touch.
- Built-in Camera (Patent technology) ,Capable for any mark (any color mark,Multi-mark) & support colorful,reflective,transparent material
- Automatically contour cut (Patent technology) ,which can Auto-snapshot and deal with mark point, efficiency and accurate.
- Automatically calibrate (Patent technology).Can calibrate by camera and blade by one step
- Feed material way: steel roller+pinchwheel
- Multi-connection available : USB, U disk,WIFI
- One key Remote upgrading software
- Friendly use Interface
- Low noise as about 50db
- High-speed 32bit M4 arithmetic microprocessor.128M merroy. Stable and high precision,cut smooth and quiet.
- Adopt high precision steel axes and independent control system.High precision and mechanical design.
- Ultra pressure: 160 grade adjustable.Cutting force up to 2000g,Capable for thick mateial

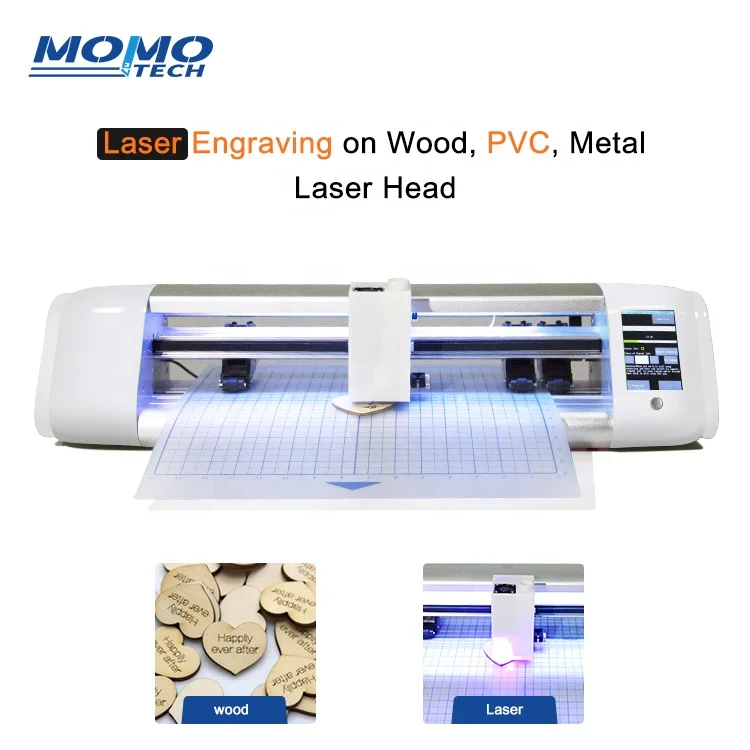

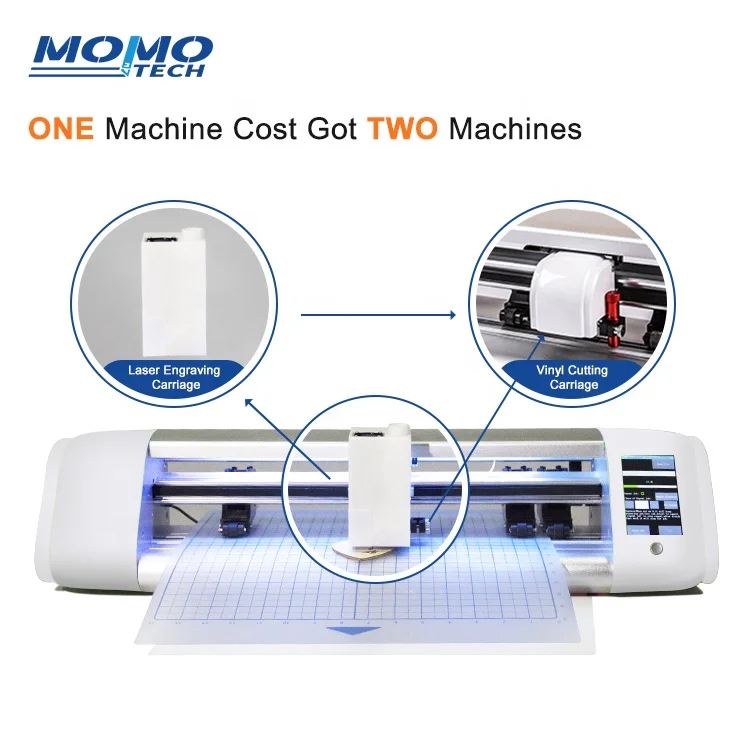

- Laser option for engraving on PVC,Wood, etc
- Simple and decent outlook design.Alumimum alloy boday with many colors option
- LED light bar
- Multi language(English,Spanish,Chinese)
- Speed and force can be changed during cutting
- Three Colors for option : Red, Green, White
- Laser engraving optional
Optional model:
| Model No. | Length | Main Feature | Max cutting width | Gross Weight | Packing Dimension |
| MM-CAH10 | 10“ | 4.3"Touch screen Built-in Camera |
250mm (A4) | 7.5kg | 650*307*267mm |
| MM-CAH16 | 16" | 390mm | 9kg | 765*307*267mm | |
| MM-CAH24 | 24" | 630mm | 12.6kg | 1000*375*370mm | |
| Optional Function & Accessory | |||||
| WIFI | Built-in WIFI module | ||||
| Software | SignMaster Cut + ARMS | ||||
| SignMaster Pro (Professional version) (Fill feature,vector JPG,BMP,etc) | |||||
| Easy Cut Studio (support Windowns & MAC) | |||||
| Easy Cut Studio Pro (support Windowns & MAC, support PLT ) | |||||
| Diamond Blade | Diamond blade for Engraving on metal,acrylic | ||||
| Laser | 2.5W Laser module for engraving on Wood, Coated Metal,etc | ||||
Tech Data
| Model | MM-CAH8(8 inch laser plotter cutter) |
| Acceptable media width | 300mm |
| Max cutting width | 250mm |
| 8 inch | |
| Camera | Support |
| Contour cutting function | Fast ,automatically and high precision contour cut by using camera. |
| Operation | 4.3" TFT LCD Large touch screen |
| Interface | HD large screen full-color APP information function display |
| Connector | Real USB, U Disk, WIFI |
| Contour cutting &calibration | Easy use and high precision calibrate |
| Mainboard |
32bit ARM cortex M4 MCU,128M memory. Support remote and one key update. |
| Location mode | Bound system. set origin freely |
| Driver | Digital DC stepper motor,microstep driving |
| Command | HP-GL, DMPL |
| Max moving speed | 750mm/s |
| Max cutting speed | 600mm/s |
| Max cutting thickness | 1mm |
| Force | Single head: 50g~800g ( 160 setting adjustable ) |
| Cutting precision | < ±0.1mm |
| Repeat precision | 0.082 mm |
| Power supply | DC24V 3A(AC100~240V/50Hz~60Hz 24V 3A) |
| Working environment | +5℃~ +45℃,relative humidity 30%~70% |
| Support Type | Desktop |
| Color | Silver-green/silver-white/black-red(optional) |
| Bracket | Optional |
| Size | 720*165*10mm |
| Packing G/N weight | 9.0 / 6.9kg |
| Software | SignMaster / Flexi / Signcut / CorelDRAW driver Optional |
| Operation system | Windows2000 / XP / 2003 / win7 / 2003 / win7 /win10 |
| MAC OSX10.2.8 or above |

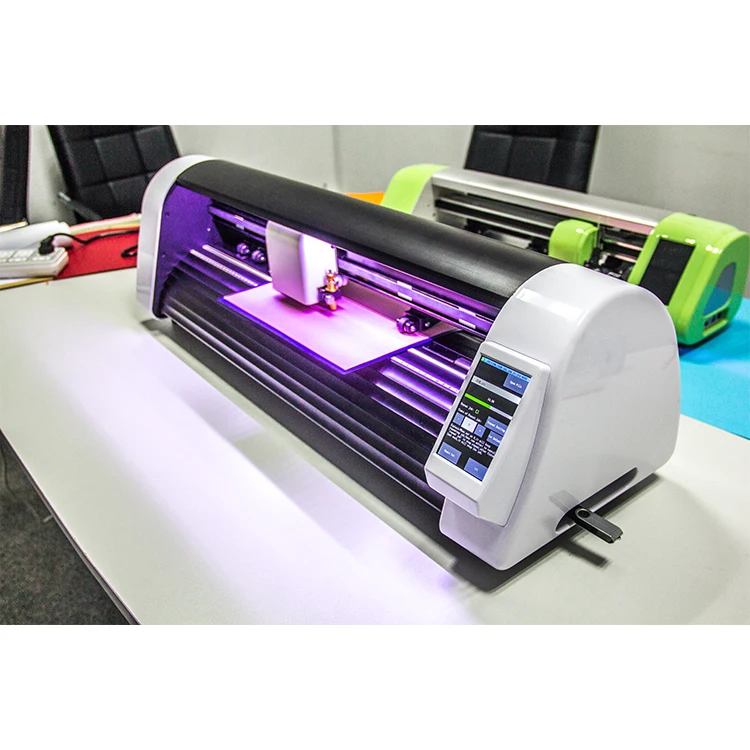

Product Show
Come with software

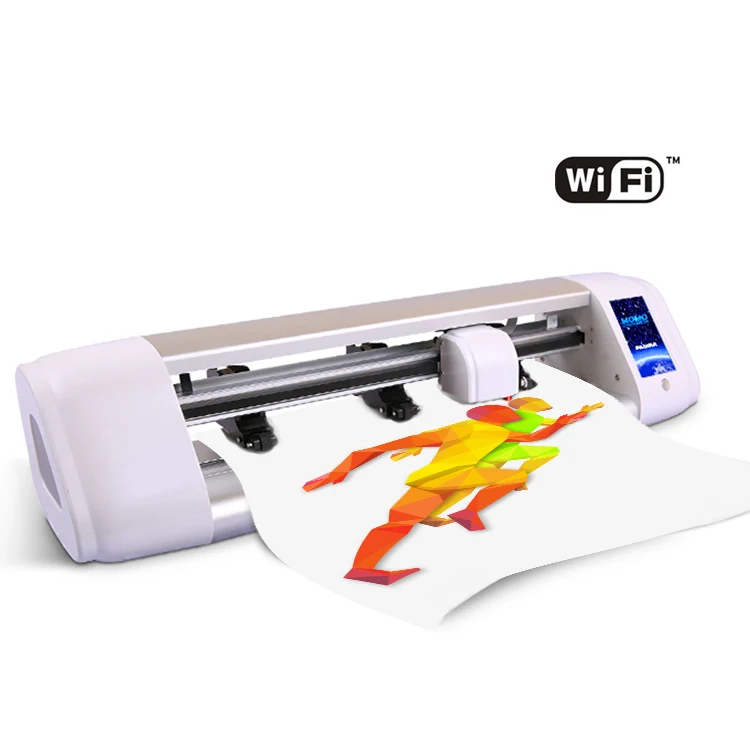

Support WIFI

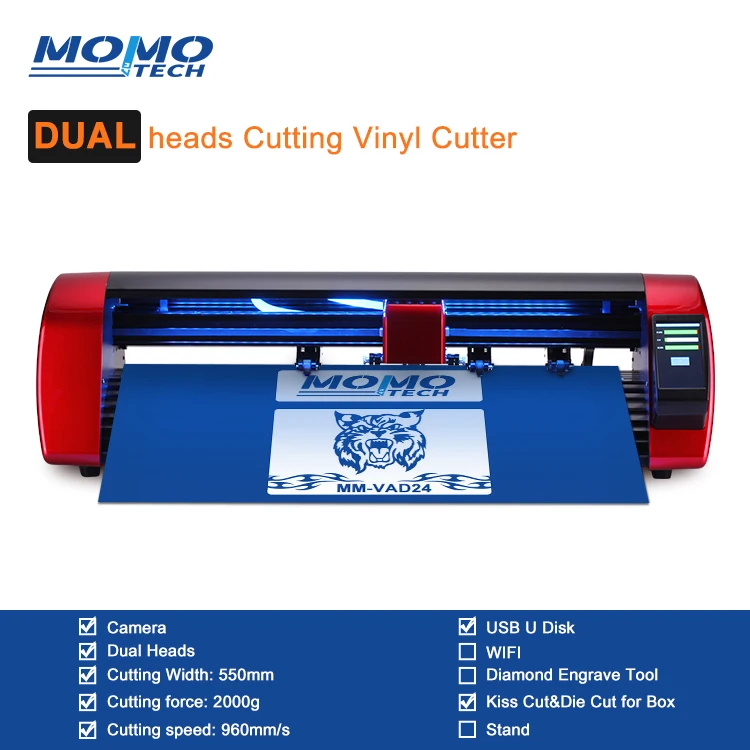

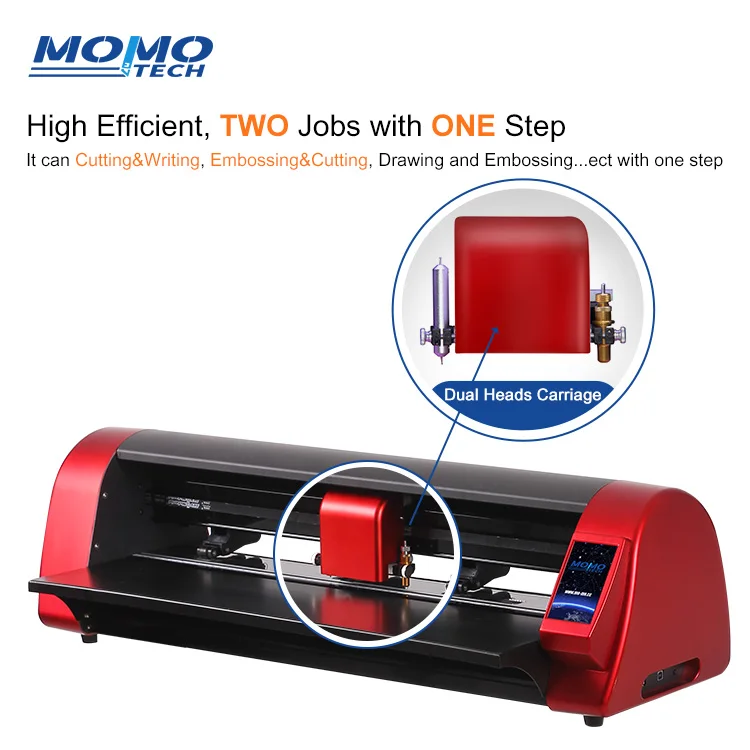

Other models for option
Company Information
FAQ
1. Warranty?
1 year warranty is offered. But after this warranty, if customer has met technogy problems, Momo is very willing to offer help.
2.How to check the operation or plotter cutter's effect?
Related video is attached above, but to learn more details, pls visit our website //www.mo-mo.cc.
3.How to place an order?
Kindly send us the inquiry,and we talk for an agreement in payment term,after-sales,product operation,quality, then we will make a proforma invoice to you, you arrange the payment via the invoice. After that, shipping is arranged.
Packaging & Shipping
No matter 8inch, 16inch,or 24inch, all adopts standard export case, which guarantees the satey during the transportation. There are generally three ways for shipping, by sea, air and car. It depends on customer's specific situation & the negotiation.
Our Services
1. OEM & ODM for bulk order goods
2. Agent distribution
Agent or sole agent is open to those guys who are interested in our plotter cutters.
3. Operation guide
When the plotter cutter comes to customer's hand, we are willing to teach customer how to operate via remote,record video and user manual.
Buying Guides
There are many different models of plotter cutters. Don't just check the price or make purchase decision without deep learning. Because suppliers' quality,service,professionl knowledge are also different, it costs more time to learn the machine's operation, compare different suppliers' level.
