Introduction

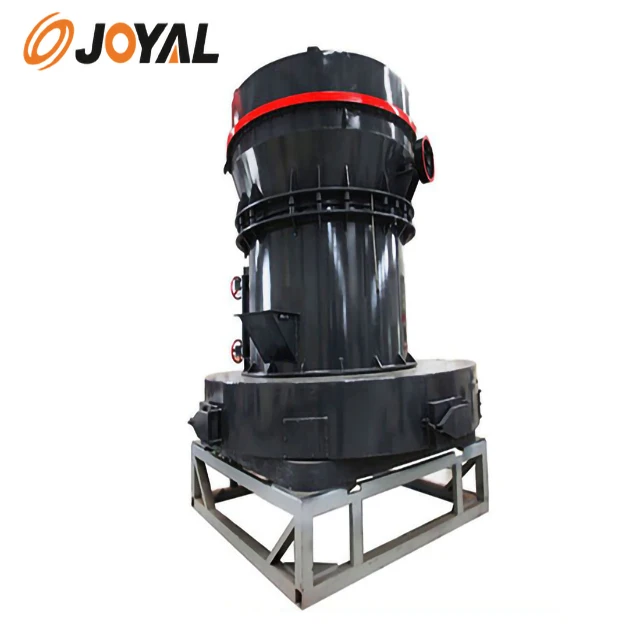

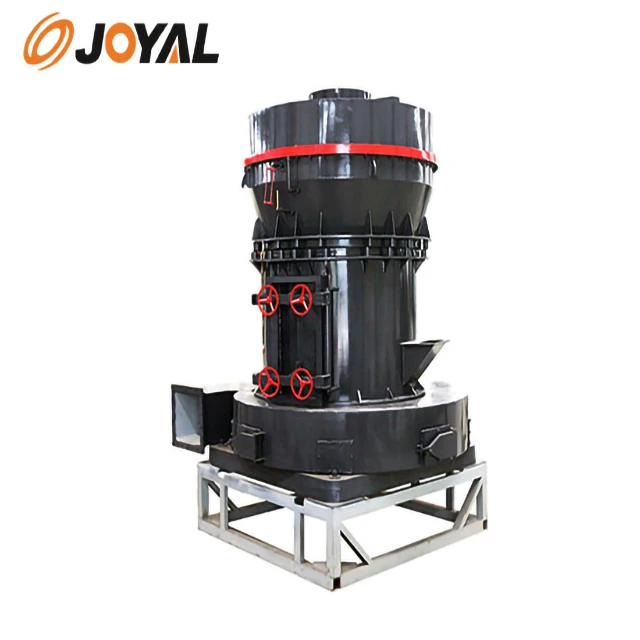

YGM Grinder Mill  is an improved type of Raymond mill. The purpose of the this kind mill is to grind non-flammable and non-explosive materials in the fields of building materials, mining, metallurgies and chemical industry with hardness less than 9.3 in Moh’s scale and humidity less than 6 percent. Examples of the materials are: quartz, feldspar, barite, fluorite, dolomite, garnet, bauxite, zircon, marble, calcite, iron ore, rock phosphate, coal, slag and so on(400 kinds of material). The granularity of the final products can be changed from 30 to 425 meshes.

Features

1. Higher output. Its output increases by 10%-20% comparing with Raymond mill under the same power condition.
2. Larger range of final fineness. Size of final product can be 0.613mm (30mesh) –0.033mm (425mesh). Some can reach the fineness of 0.013mm (1000 mesh).
3.Good dust control. High Pressure Suspension Mill meets the requirement of national dust-dump standard.
4.Easy to operate. The whole system is combined by some independent systems, and the cohesion between the systems is good.
5. Excellent sealing. The multi-class seals are adopted to keep the grinding equipment tight closed.

Working Principle

General:Crushing -- Grinding -- Selecting -- Collecting

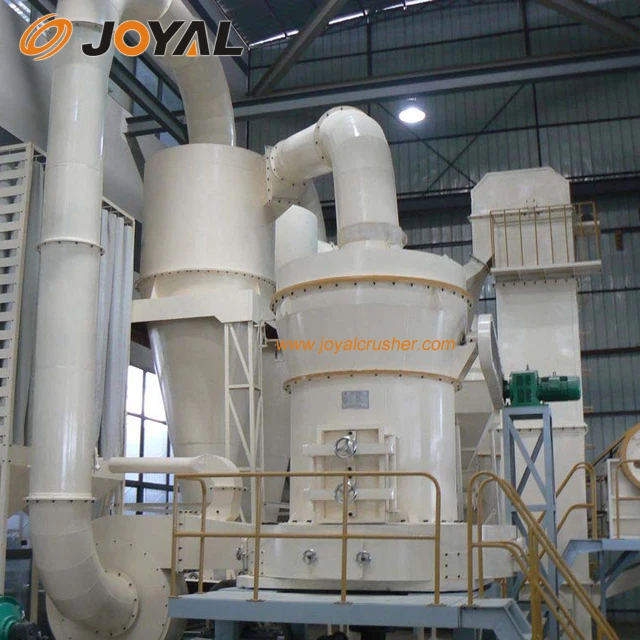

Detailed:Materials first enter jaw crusher to be crushed to smaller size. Then they are lift to storage room by elevator. Vibrating feeder will feed materials into grinding room evenly.
When the materials are put into the grinding room of the main equipment, the grinding roll swings outward and presses closely upon the grinding ring due to the centrifugal force in rotation of the main shaft. The shovel carries materials to the space between the grinding roll and grinding ring, and materials are ground as the grinding roll rolling.
After being ground,the qualified powder is selected by Separator via the cycle wind of the blower and the rough powder will be back to the grinding room for regrinding. The qualified powder is brought into the powder collector by airflow. The powder comes out as end products.

Technical data

Pre-sale services,we do

Act as a good adviser and assistant of clients; enable them to get rich and generous returns on their investments;

1. Select equipment model;
2.Sdeign and manufacture products according to clients' special requirement;

3. Train technical personnel for clients.

Services during the sale,we do

Respect clients; devote ourselves to improving the total value of clients.

1. Pre-check and accept products ahead of delivery;
2. help clients to draft solution.

After-sales service,we do

Provide considerate services to minimize clients' worries.

1. Assist clients to prepare for the first construction scheme;
2. Install and debug the equipment;
3. Train the first-line operators on site;
4. Examine the equipment regularly;
5. Take initiative to eliminate the troubles rapidly at site;
6. Distribute the guarantee fittings door-to-door;
7.provide perfect service;
8. Provide technical exchanging;
9. Provide maintenance for big items.
