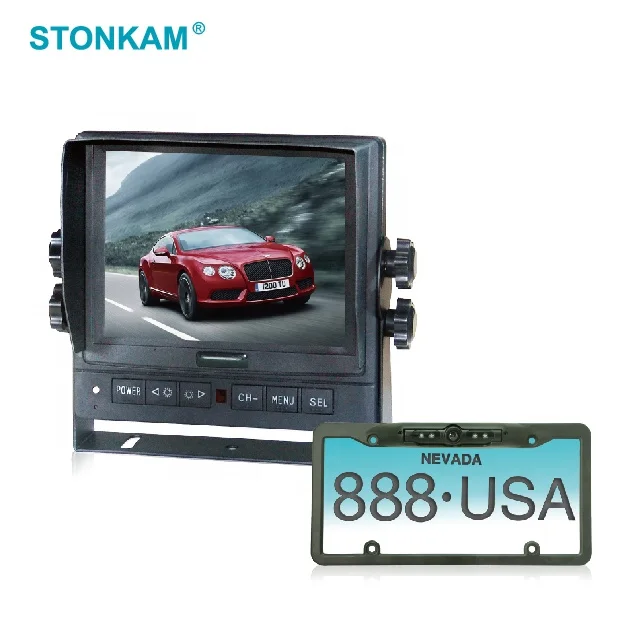

HD 5.6 inch TFT LCD color monitor for car with 4 cameras input
- Category: Car Video >>>
- Supplier: Stonkam Co. Ltd.
Share on (50041366909):
Product Overview
Description
HD 5.6 inch TFT LCD color monitor for car with 4 cameras input

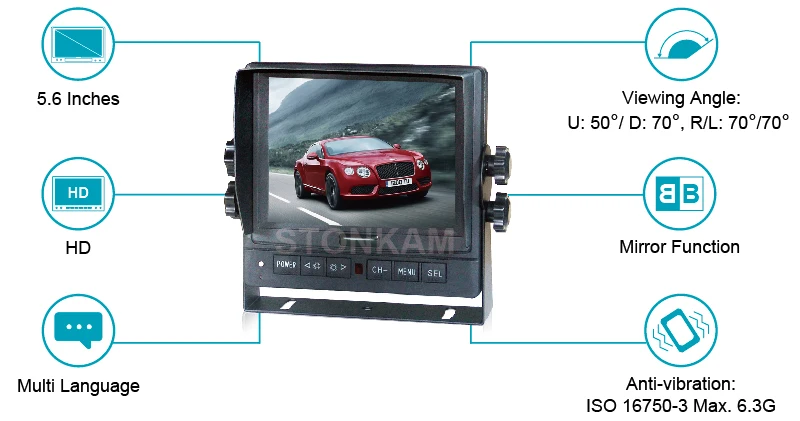

Features of HD 5.6 inch TFT LCD color monitor for car with 4 cameras input:
- 4:3 TFT LCD monitor with digital screen
- Picture image adjustable for vertical, mirror and normal viewing
- 8 languages selectable for user operation:English, French, Portuguese, Spanish, Russian, Dutch, German, Italian
- Multiple video formats available:1080P30/1080P25/720P30/720P25/PAL/NTSC
- Automatic backlighting for screen, automatic adjust to the brightness of environment
- Full-function remote control
- Support mechanical buttons with backlighting
- Speaker available and users can control the sound level from control panel
- 4 cameras input, 4 reversing trigger wire
- Operates from 10 - 32V. Supports 12V or 24V automobile battery
Specification of HD 5.6 inch TFT LCD color monitor for car with 4 cameras input:
| Power supply | Automobile storage battery (10-32V) | ||
| Power consumption | about 10W | ||
| Active area | 112.896mm (W) × 84.672mm (H) | ||
| Module size | 126.5mm (W) × 100mm (H) × 5.7mm (D) | ||
| Dot pitch | 0.0588(W) × 0.1764(H)mm | ||
| Resolution | 640 x 3(RGB) x 480 | ||
| Contrast | 500:1 | ||
| Brightness | 200cd/m2 | ||
| Viewing angle | U: 50°,D: 70°, R/L: 70°/70° | ||
| Operating temperature | -20ºC~+70ºC,RH90% | ||
| Storage temperature | -30ºC~+80ºC,RH90% |
