Meat Massager/ Marinating Vacuum Tumbler/ Vibration Tumbling Machine

Product Overview

Description



Meat Massager/ Marinating Vacuum Tumbler/ Vibration Tumbling Machine



Uses of the beef  vibration tumbling machine

The rolling machine is suitable for curing and processing of western sausages, ham, bacon, roast meat, poultry, Chinese sauce halogen and leisure meat.Especially for the traditional Chinese product processing, adding the rolling and kneading process can shorten the pickling time, improve the effect and improve the meat quality.



Features of the vibration tumbling machine

1. The kneading machine can make the meat evenly absorbed and salted;

2. Improve the binding force of the meat and the elasticity of the product;

3. Improve the taste and cross-section effect of the product;

4. Improve water retention and increase yield;

5. The internal structure of the product can be improved to save energy and efficiency.

6. The machine can be equipped with computer control inverter technology makes the machine use safer, more convenient, more energy-efficient, rolled meat products even effect, low noise, reliable performance, easy operation, efficiency is higher.



Working principle of the vibration tumbling machine



Vacuum roller kneading machine is in the vacuum state, using the physical impact principle, let the meat piece or meat filling up and down in the drum, so as to achieve massage, pickling effect.



The marinade is fully absorbed by the meat to enhance the binding force and water retention of the meat.



The whole machine is made of 304 stainless steel with round head, reasonable structure, large roll and kneading space, stable operation, low noise, reliable performance, simple operation and high efficiency.



Technical data of the vibration tumbling machine

Model	Drum volume(L)	Charge amount (kg)	RPM	Power(kw)	Dimension
DVGR-100	100	35	7.5r/min	1.5	860*550*930mm
DVGR-200	200	76	7.5r/min	1.5	1100*620*1100mm
DVGR-400	400	150	7.5r/min	2.25	1200*810*1290mm
DVGR-600	600	225	7.5r/min	2.25	1560*1020*1460mm
DVGR-1000	1000	375	7.5r/min	2.25	1560*1020*1460mm
DVGR-1200	1200	450	7.5r/min	2.25	1820*1220*1460mm
DVGR-1600	1600	600	7.5r/min	3.7	1820*1220*1770mm
DVGR -2000	2000	750	7.5r/min	4.5	2280*1220*1800mm
DVGR-2400	2400	900	7.5r/min	5.5	2280*1320*1800mm
DVGR-2800	2800	1050	7.5r/min	5.5	2320*1320**1950mm
DVGR-3600	3600	1500	7.5r/min	5.5	2700*1540*2090mm

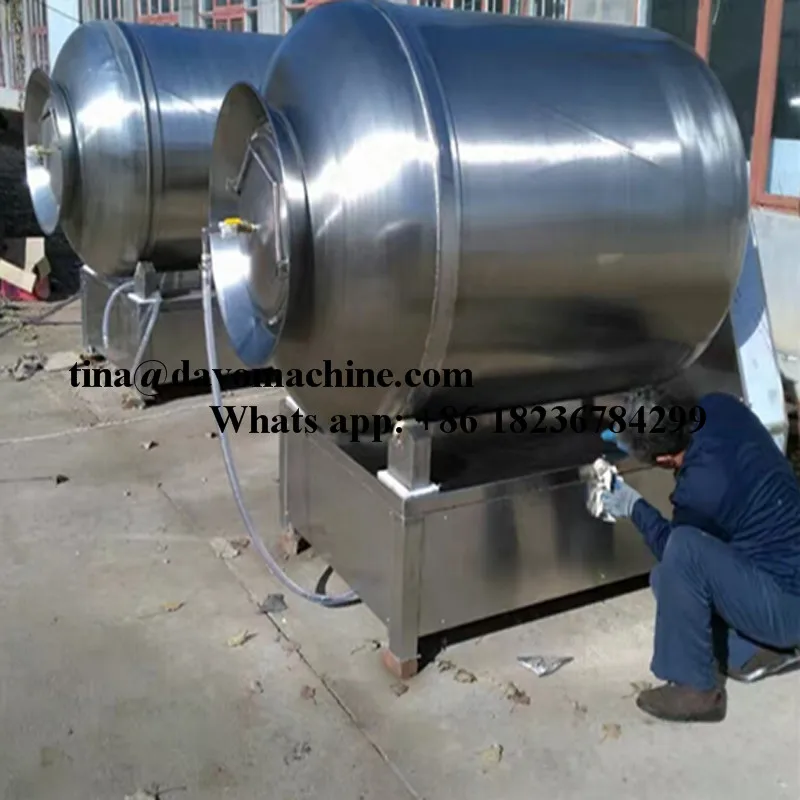

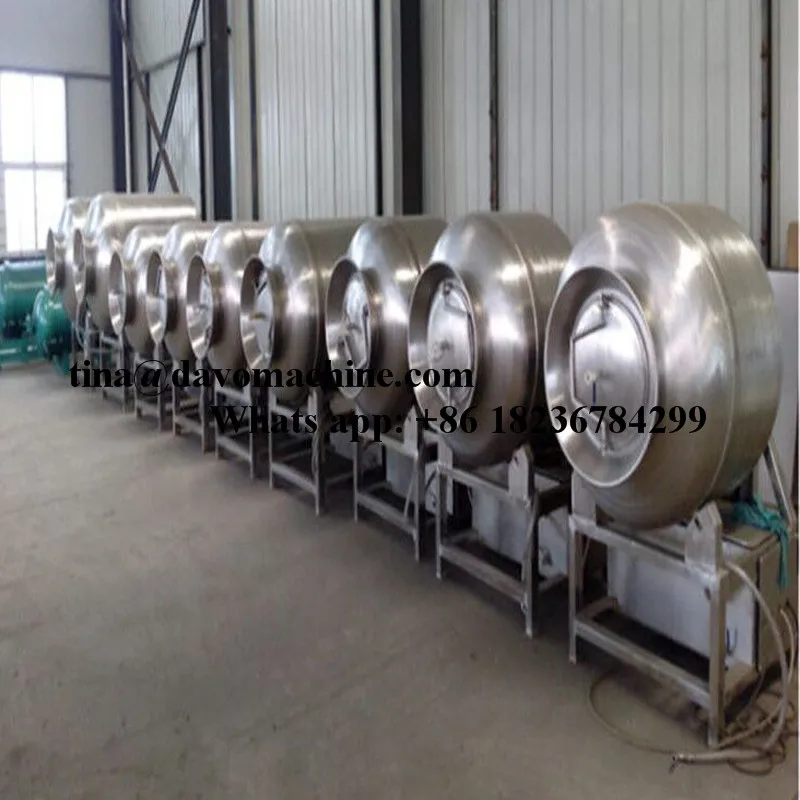

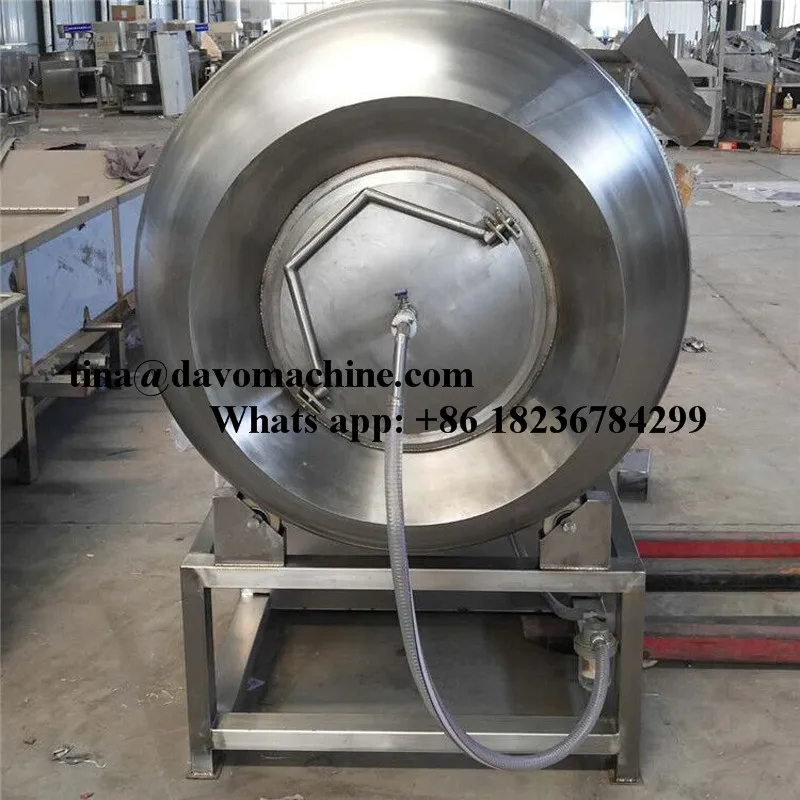

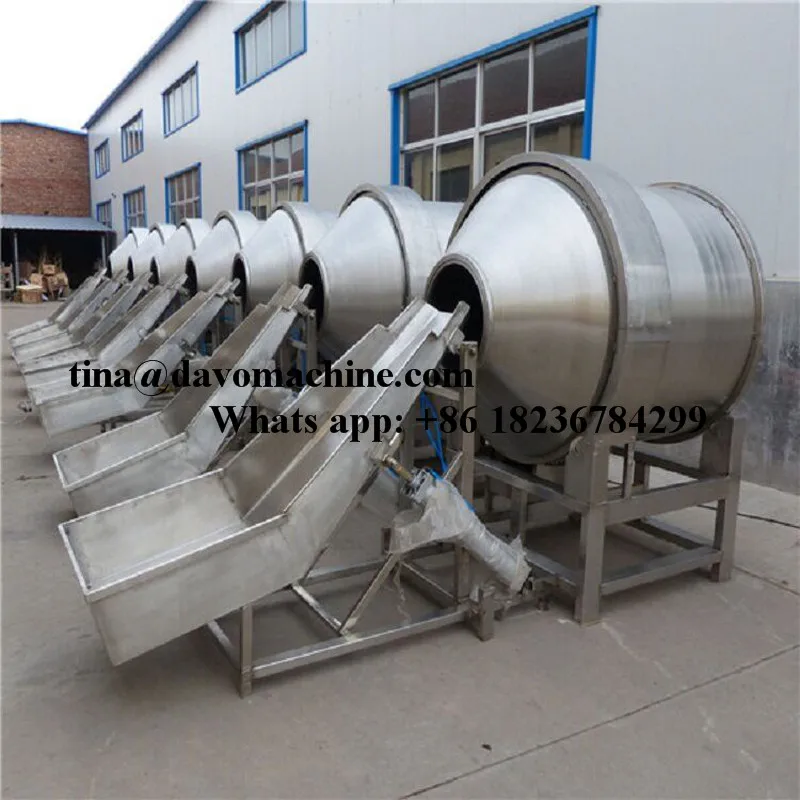

Photos of the vibration tumbling machine



End products photos
