Pilot Operated Pressure Reducing Valve DP27 DN20
- Category: >>>
- Supplier: Yongjia Welldone Machine Co. Ltd.
Share on (50041660397):
Product Overview
Description

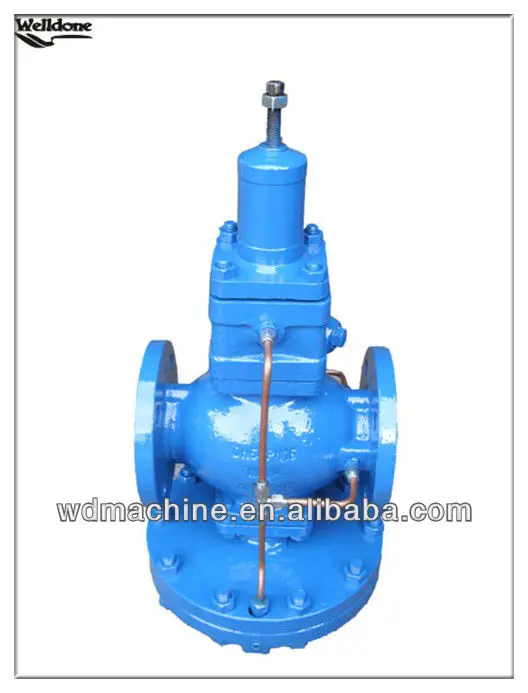

Pilot Operated Pressure Reducing Valve DP27
Structural characteristic & Purpose
This reducing valve is the new type pilot extra-huge membrane pressure reducing valve developed by our company. It is greatly improved on basis of normal pressure reducing valve. The membrane use new material, enlarging the working area, so the slight change of upper pressure or lower pressure can be fed back to membrane of main valve, and adjust the opening of main valve to ensure the constant pressure of lower stream pressure.
This reducing valve is the new type pilot extra-huge membrane pressure reducing valve developed by our company. It is greatly improved on basis of normal pressure reducing valve. The membrane use new material, enlarging the working area, so the slight change of upper pressure or lower pressure can be fed back to membrane of main valve, and adjust the opening of main valve to ensure the constant pressure of lower stream pressure.
Note: A variable rate conical pressure adjustment spring is fitted providing a down stream pressure range of 0.2-17bar g.
Main Technical Parameters And Indexes Of Performance
Nominal pressure | PN25 |
Maximum design pressure(PMA) | 25bar g @ 120°C |
Maximum design temperature(TMA) | 232°C @ 21bar g |
Minimum design temperature(TMI) | -10°C |
Maximum upstream pressure for saturated steam service(PMO) | 17barg |
Maximum operating temperature(TMO) | 232°C @ 21bar g |
Minimum operating temperature(TMIO) | 0°C |
Maximum differential pressure( Δ PMX ) | 17bar |
Down stream pressure range | 0.2-1.7bar g |
Maximum cold hydraulic test pressure | 38bar g |
Material Of Main Component
Name Of Component | Material Of Component |
Valve body, valve cover | WCB |
Valve seat | 2Cr13 |
valve flap | 2Cr13 |
Valve rod | 2Cr13 |
Membrane | Brass |
Adjusting spring | 60Si2Mn |
