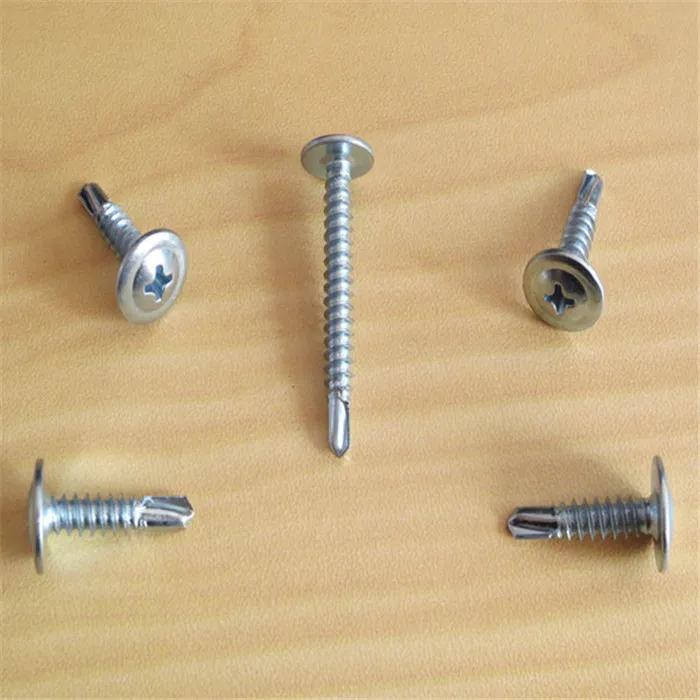

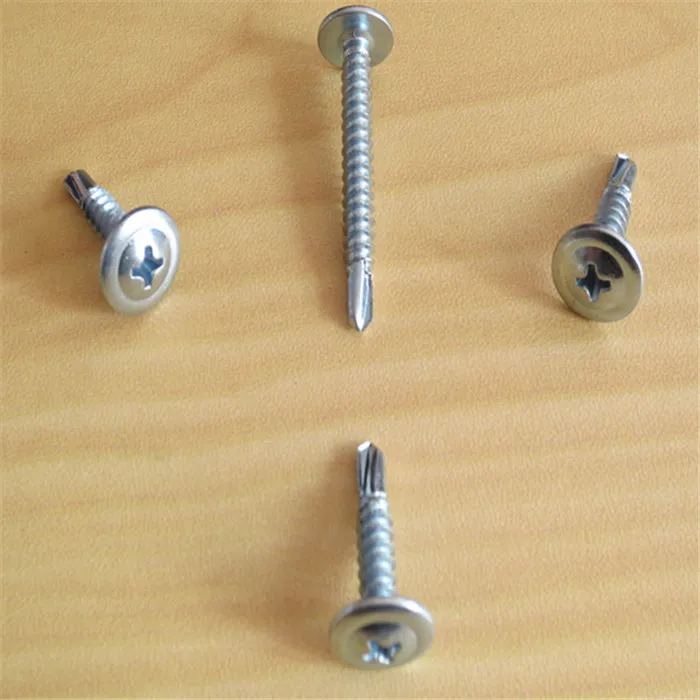

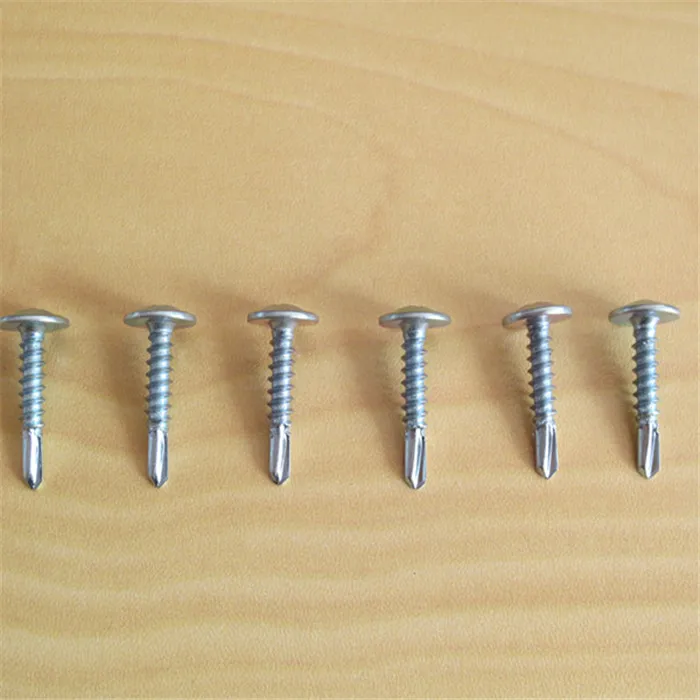

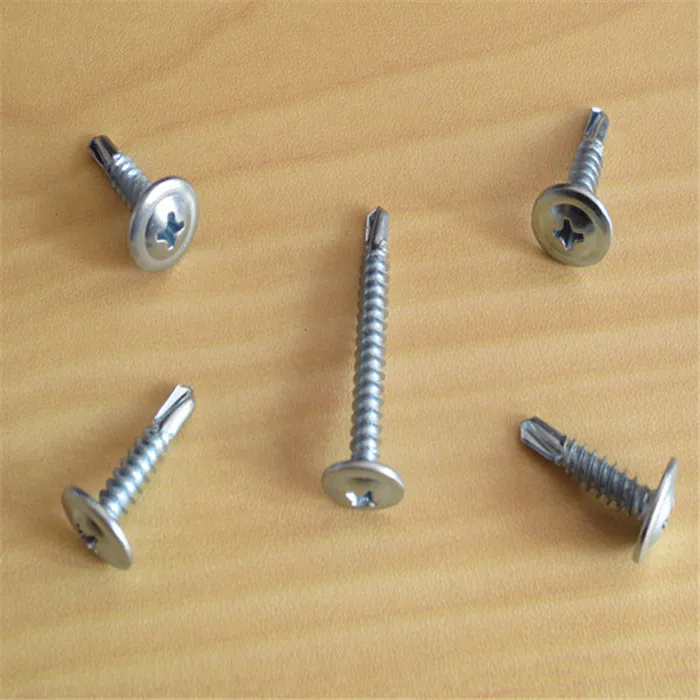

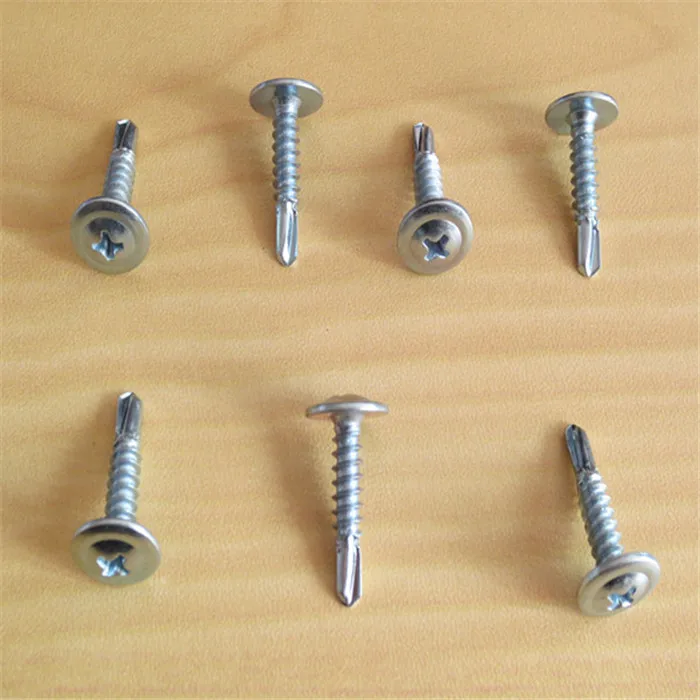

big sell Wafer head self drilling screw low price

Product Overview

Description

We're a leading factory of Self drilling and self tapping screws in Tianjin China.

Our factory located in Wangwenzhuang Town,which is a quite famous area for producing screw in China.



1.The main Specifications of our Truss head self-drilling screw:



Material	carbon steel C1022
Feature	Truss head, drilling point, phillip drive
Finished	galvanized (blue/white/color) or Phosphated
Diameter	M-3.5-M12
Length	10-150mm
Package	1000pcs/box,12-20boxes/carton or as required
Usage	Widely used in soft steel, construction, industry, daily life or other metals to fasten metal or other hard materials
Other Head	Pan / Hex head/ Bugle / Pan Framing



2.The other steel screws we can supply:

Drywall screw,Chipboard Screw,Other Self-drilling and Self-tapping Screw with different head type.



 3.Normal Size:

size (inch)	size(m/m)	head type	Drill point
#8*1/2''	4.2*13	Truss	#2
#8*5/8''	4.2*16	Truss	#2
#8*3/4''	4.2*19	Truss	#2
#8*1''	4.2*25	Truss	#2
#8*1-1/4''	4.2*32	Truss	#2
#8*1-5/8''	4.2*41	Truss	#2
#10*1/2''	4.8*13	Truss	#2
#10*5/8''	4.8*16	Truss	#2
#10*3/4''	4.8*19	Truss	#2
#10*1''	4.8*25	Truss	#2
#10*1-1/4''	4.8*32	Truss	#2
#10*1-5/8''	4.8*41	Truss	#2
