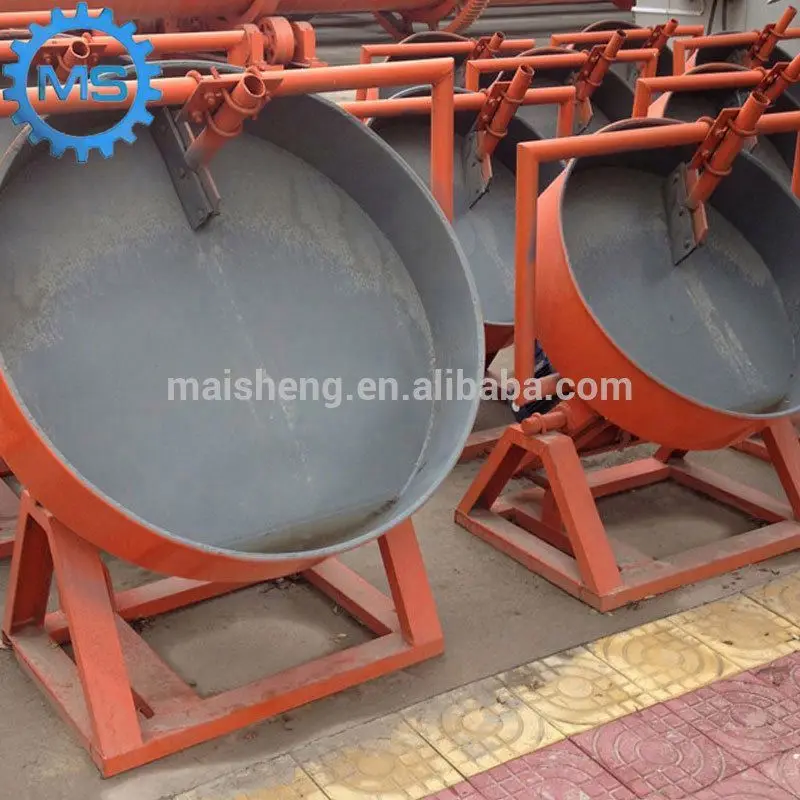

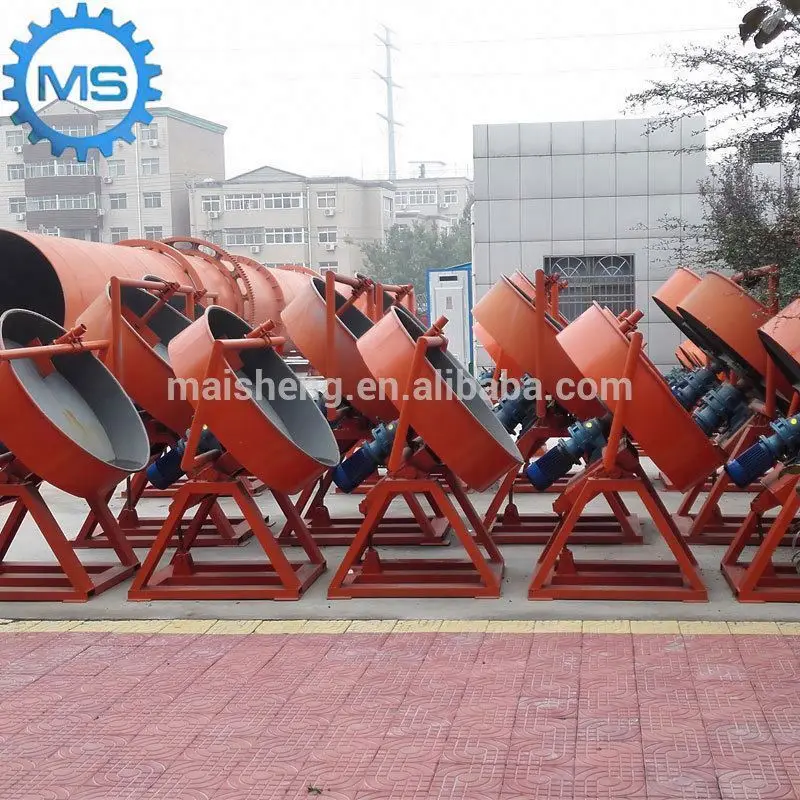

Небольшой удобрение мяч машина гранулаторя/дисковый гранулятор

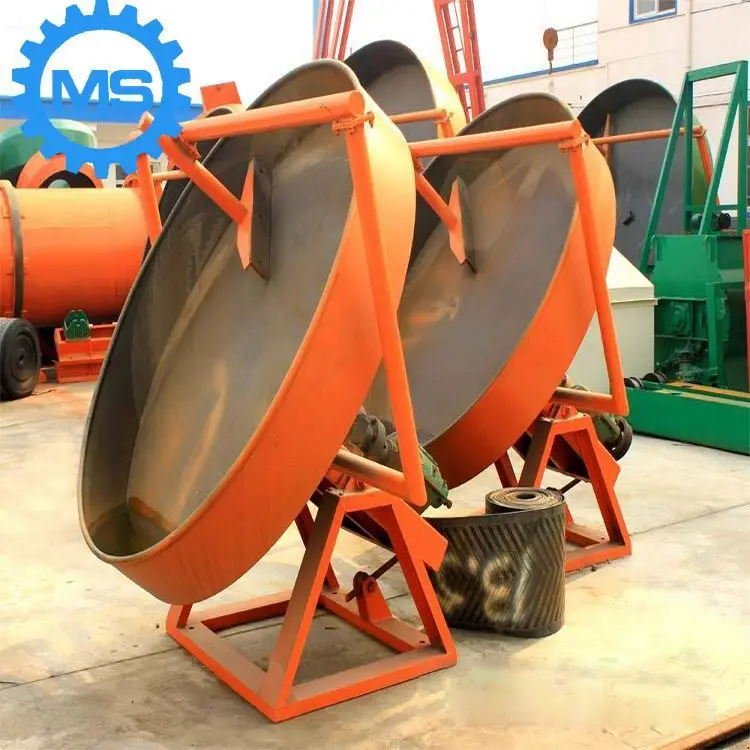

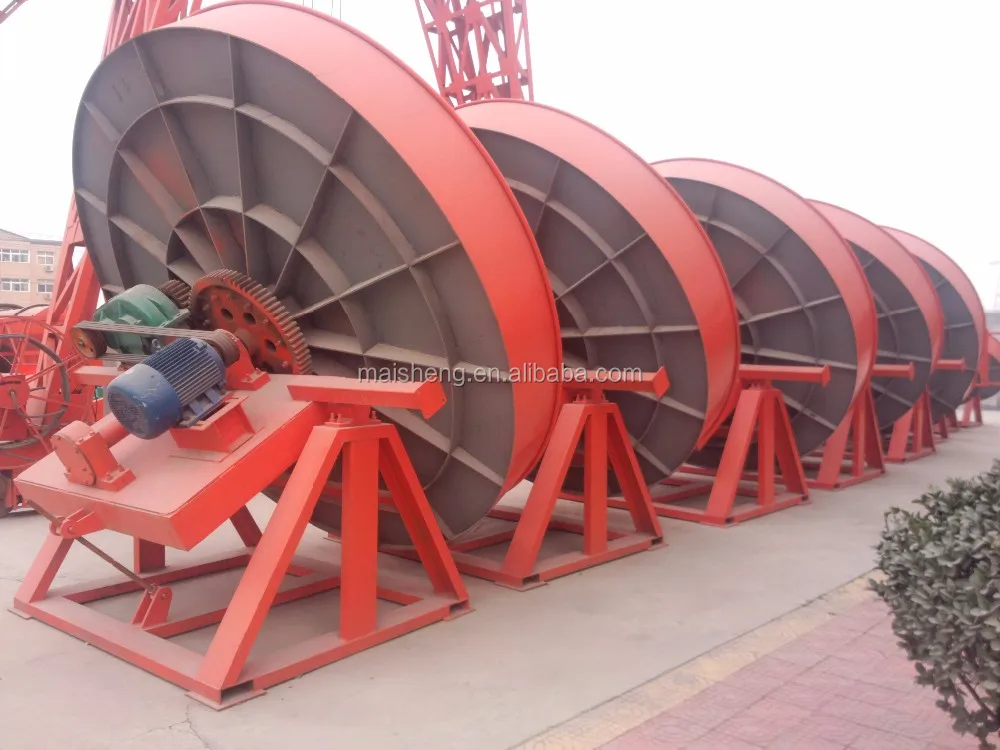

Small Fertilizer Ball Granulator Machine/Disc Granulator

Factory Price Disc type fertilizer granulation machine

Disc granulator (also known as Handicap) feeding equipment for the volumetric measurement, the material is continuously fed to the next process, and be able to withstand greater pressure positions. A variety of non-adhesive material as fine material feeding device for transporting powder, or small state like material, such as coal, cement, clinker, limestone, shale, coal gangue, clay powder, granular or small block material.

Technical parameter of disc type fertilizer granulation machine

Raw material powder through the pre-water stir within the input tray, with the rotation of the disc, the disc material through the rolling and gradually form a spherical body, after reaching a predetermined outer diameter of the discharge tray, and transported to the next process.

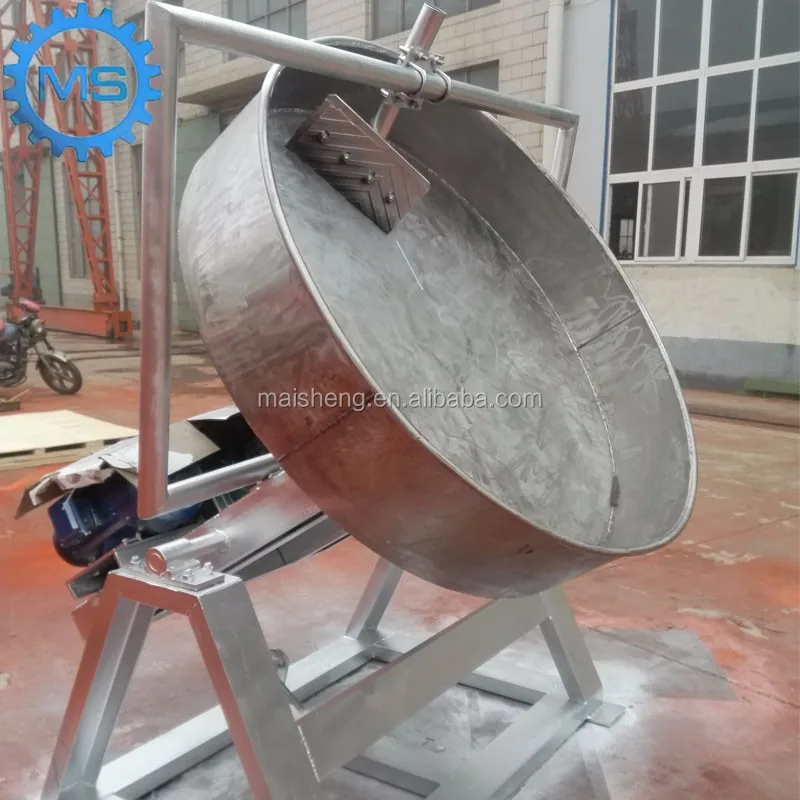

stainless steel 304

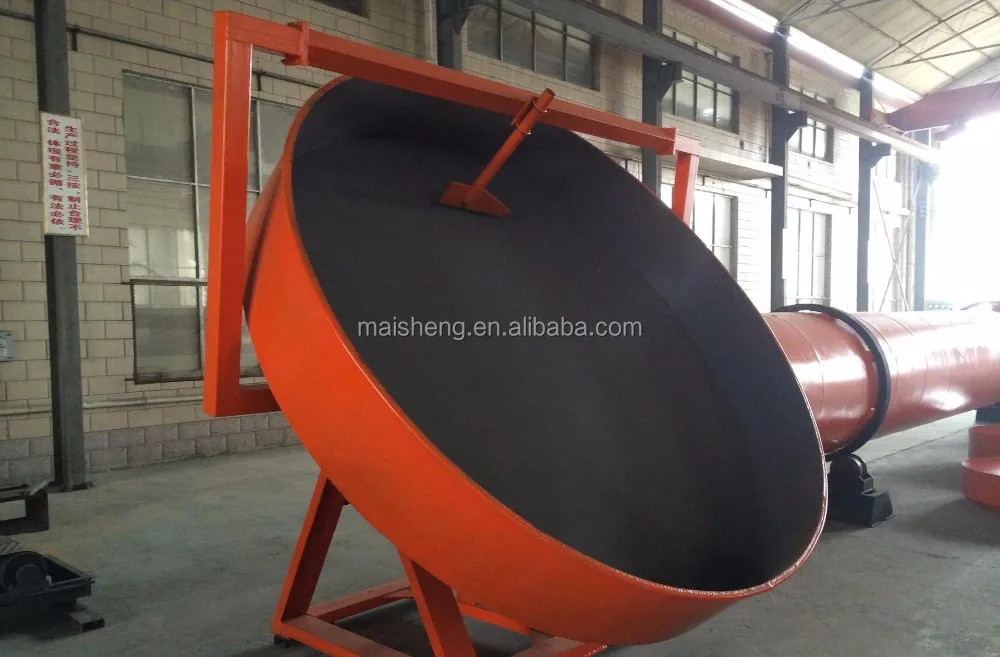

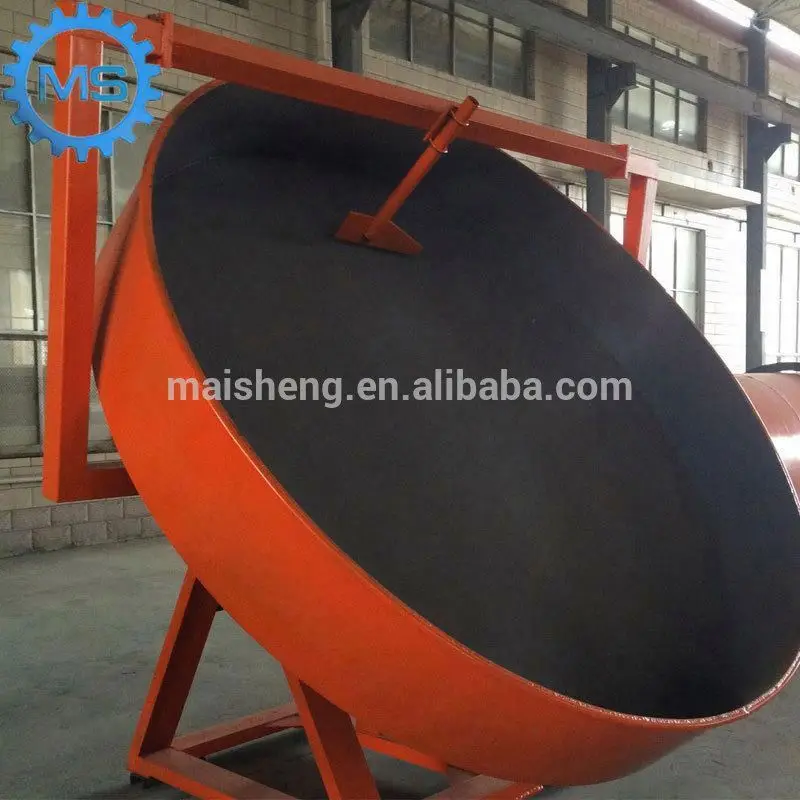

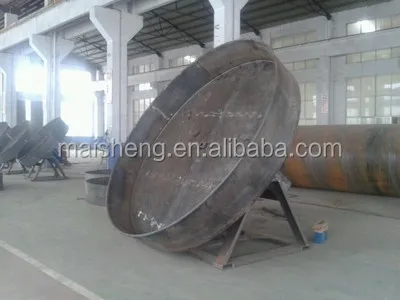

the raw material of pan / disc coule be Mild steel as carbon steel or stainless steel 304,

we also accept to add lining stainless steel plates to cover the surface  of the disc.

Perfect output shape

disc granulation of wide adaptability of raw materials, such as nitrogen sources are urea, ammonium chloride, ammonium sulfate, ammonium bicarbonate and so on.

Your Success Is Our Business!

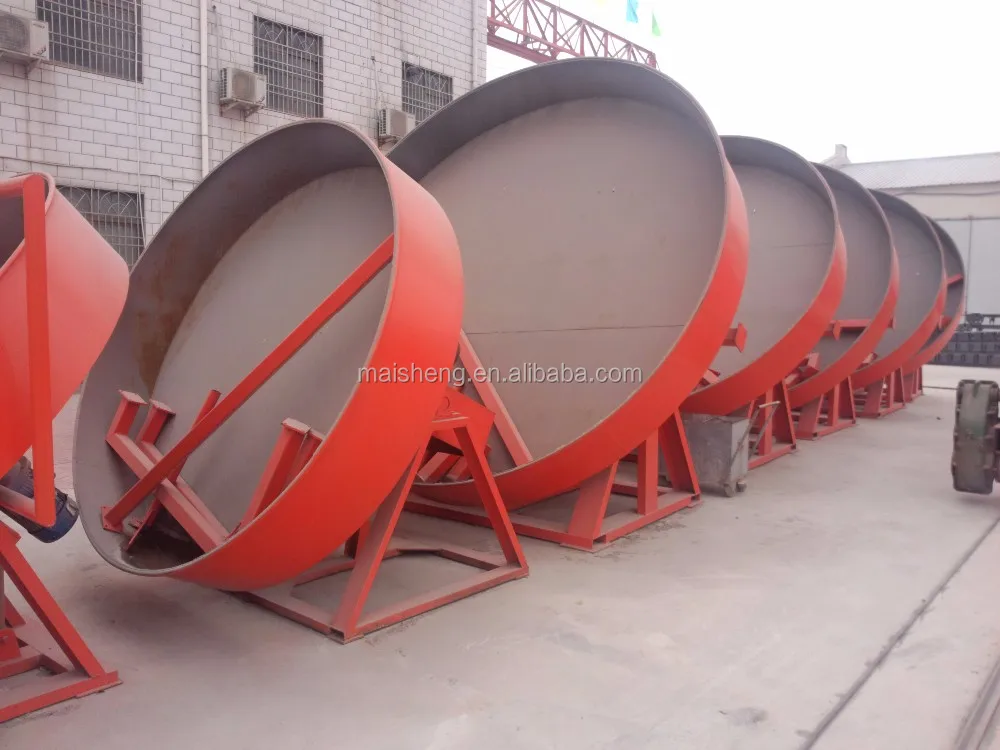

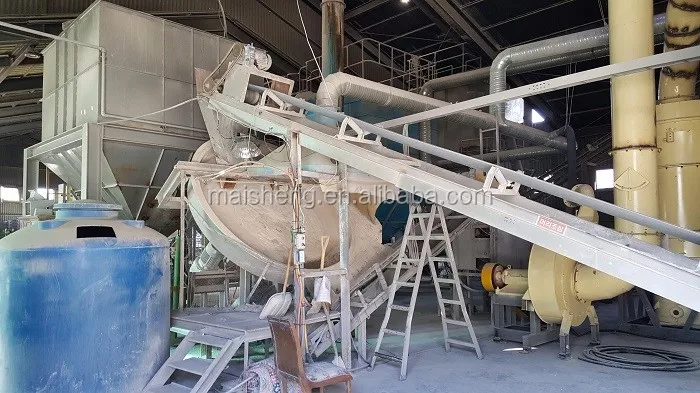

the disc type organic fertilizer granulation machine could be installed as single set or two sets or four sets .

we provide the best solutions for you!

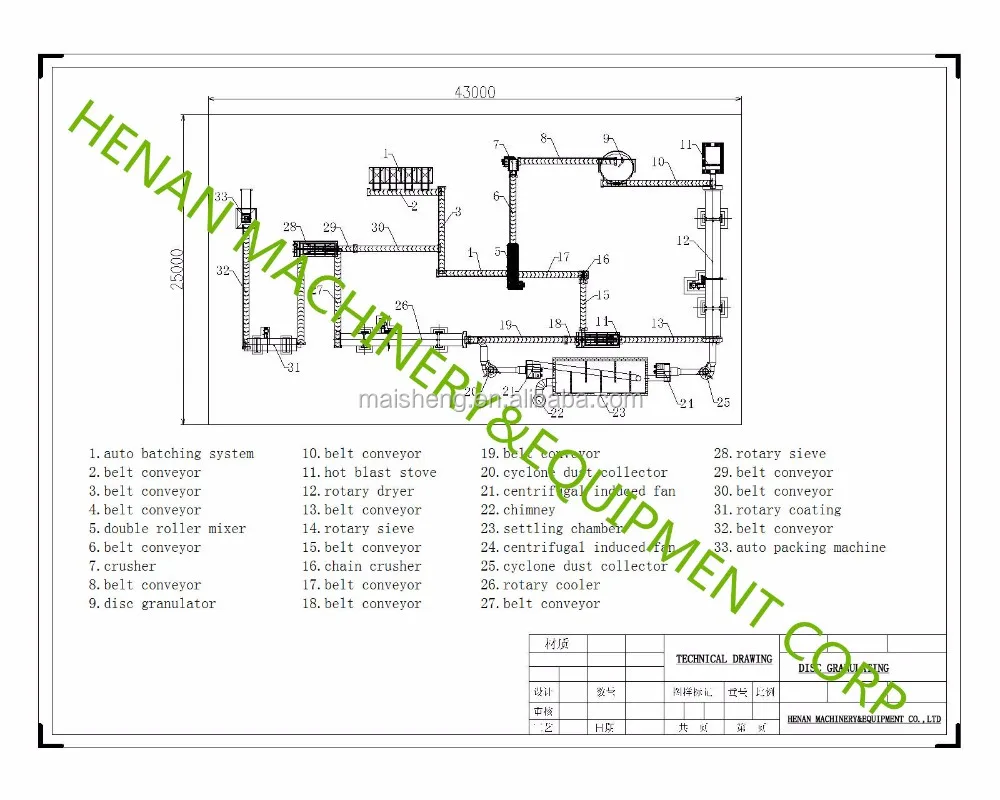

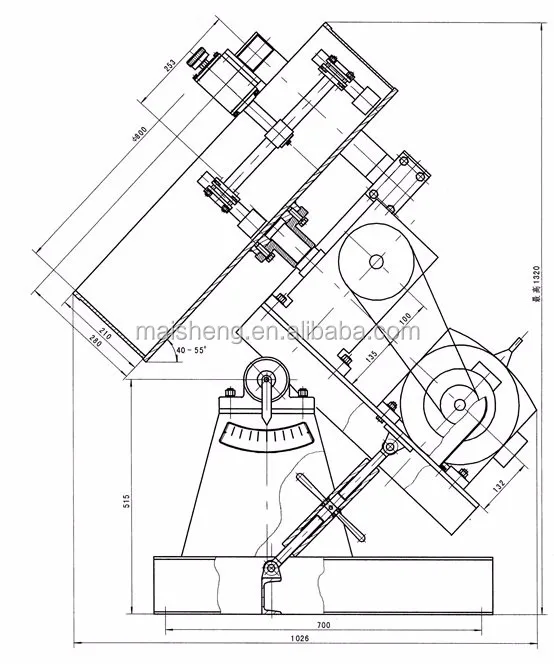

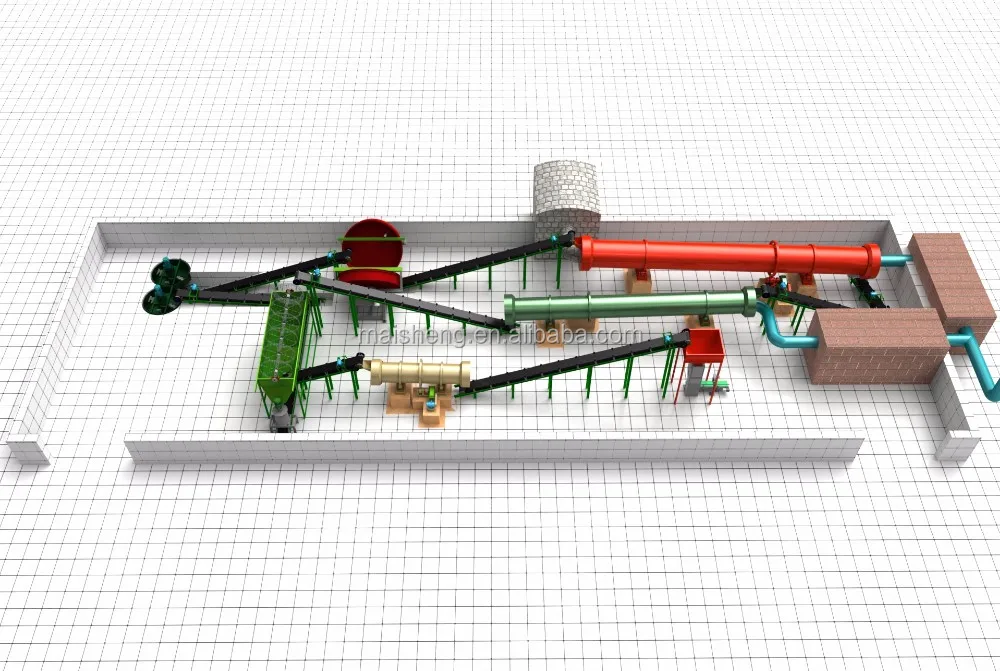

Drawing design and installation for disc granulator

1.disk pelletizer main body, including the main frame, regulating part and granulation disk and other structures;
2.a main reducer, the input shaft with pulley, the output shaft with a pinion;
3. the main point of a motive, with a pulley;
4.support granulation disc device includes a spindle, two sets of roller bearings, bearing two;
5.Accessories: V-belt, angle bolt.

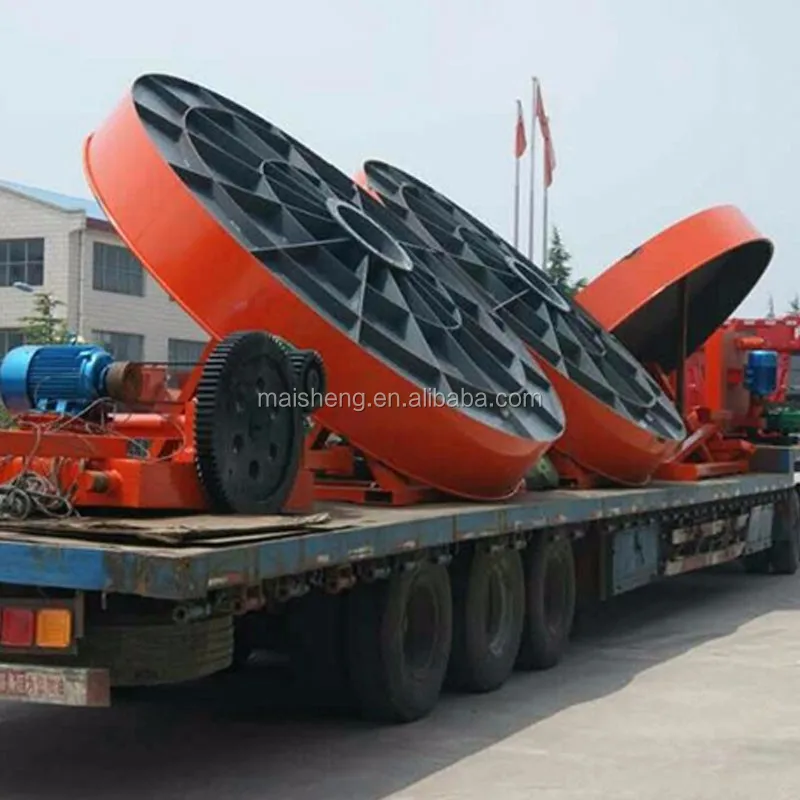

Buck & Nude packing

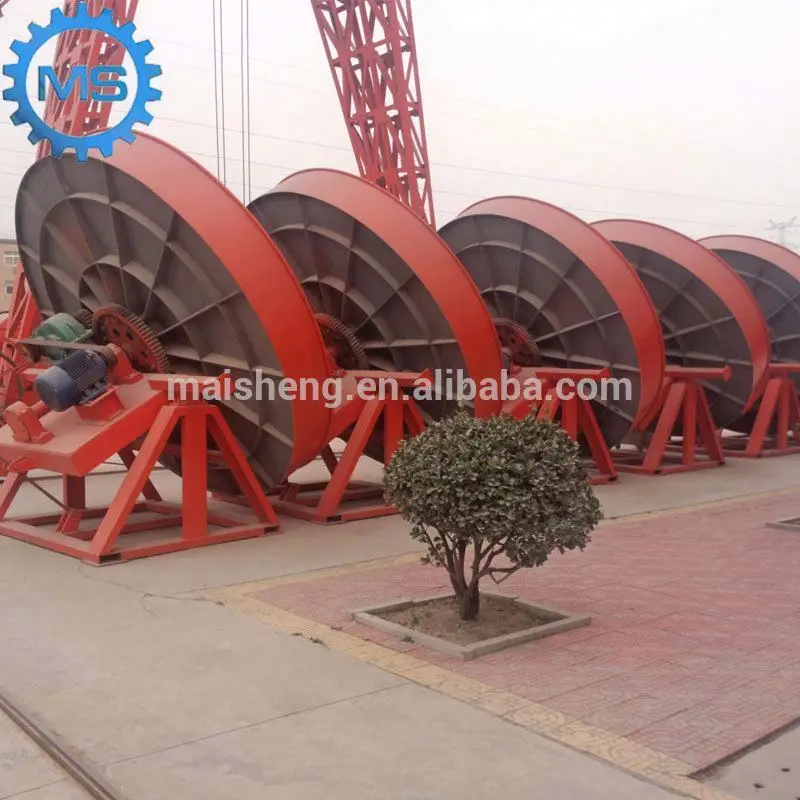

the disc granulator machine can be delivered to the sea port for loading without any packing.

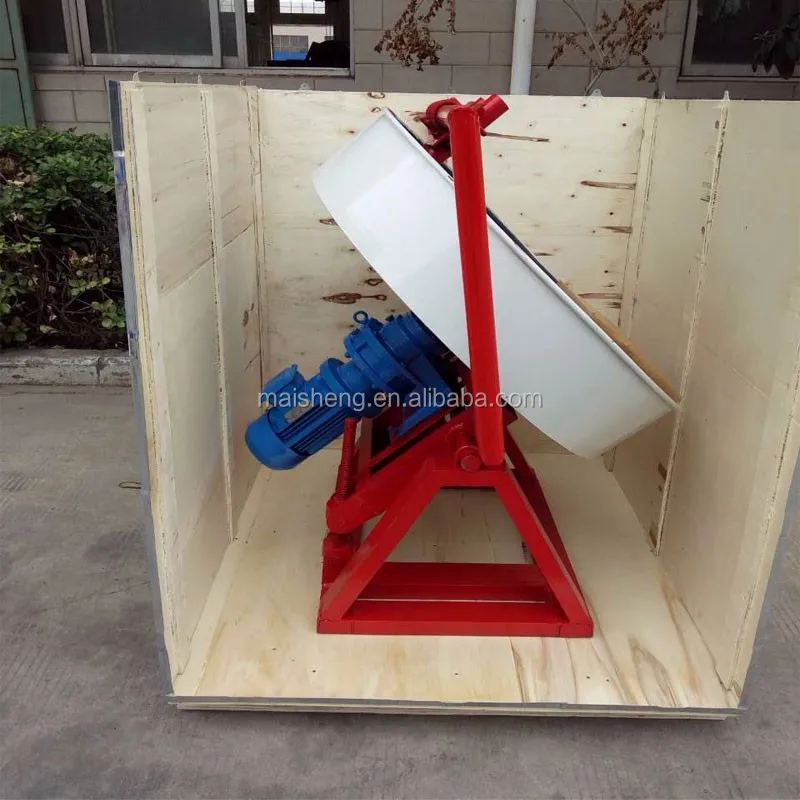

Wooden case packing

with exporting wooden case packing , suitable for smaller model.

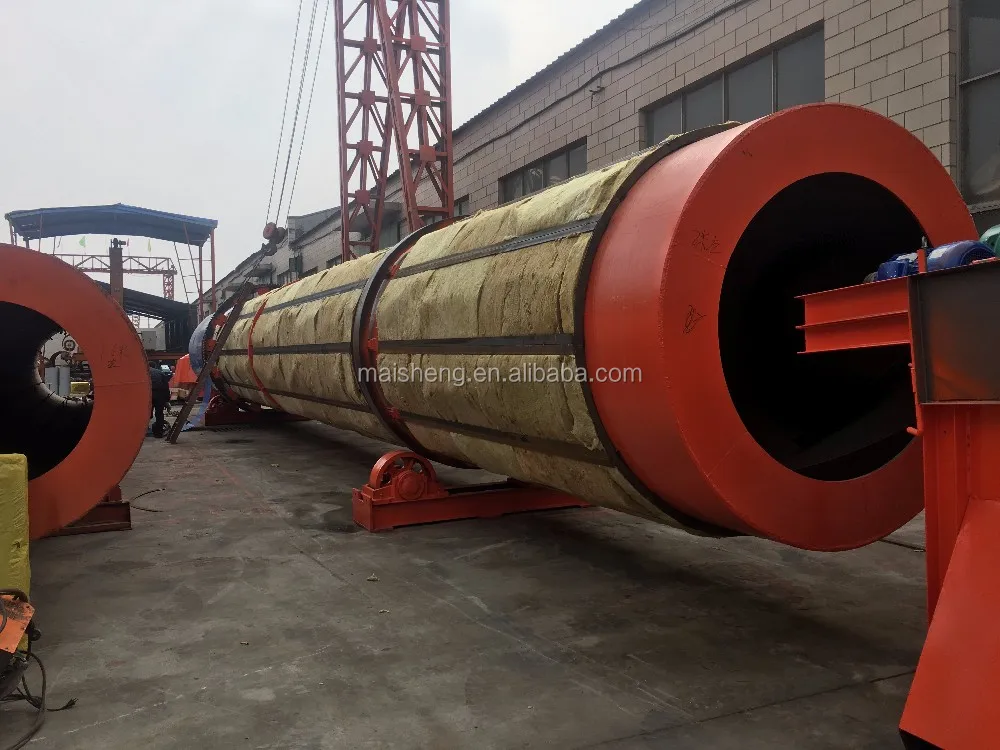

Rotary dryer&cooler: we also supply the drawing design , the best transporting solutions for customer!

What we need to know before making new darwing?

1.what is the required capacity in ton/hr?

2.are you goind to make granulars or powder?

3.what are the materials?

4.what is the exactly size of your material?

5.is there any request about the finished product size?

Pre-Sale service:

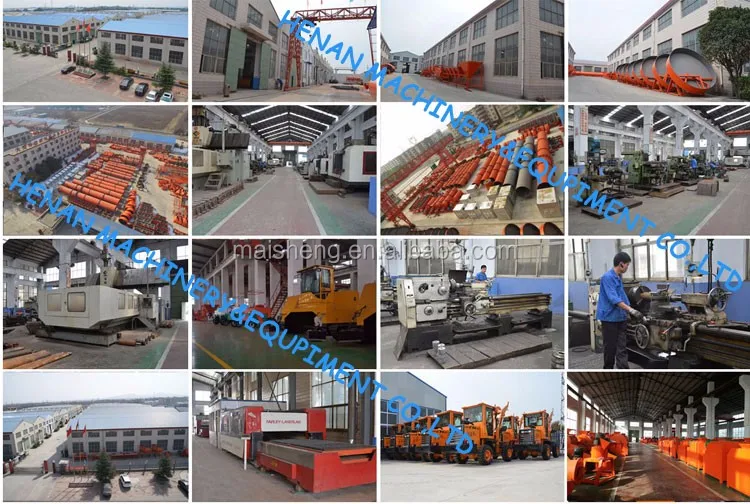

1. you are welcome to visit our factory for further discussion

2. it is available to make testing with your raw materials.

3.it is able to show you around about our local customer's workshop.

After Sales service

1. our engineer is able to go to your country for overseas service.

2.we will supply the drawing design for production line to you freely!

3.we have 24 hr hot line for after sales service ,our engineer can help you at the first time!
