3030 0.5W Flat Power LED
AT3030FX-05LEX
The LED qualifies as the JEDEC Level 1 MSL sensitivity level and
suitable for SMD process, Pb free reflow soldering capability,
and full compliance with EU Reduction of Hazardous Substances (RoHS) legislation.
Product Description
Features
•Good color uniformity
•Lead free reflow soldering•RoHS compliant
•Instant light (less than 100ns)
•No UV
Typical Applications
•Backlighting
•Signaling•Exterior Automotive Lighting
•Automotive Interior Lighting

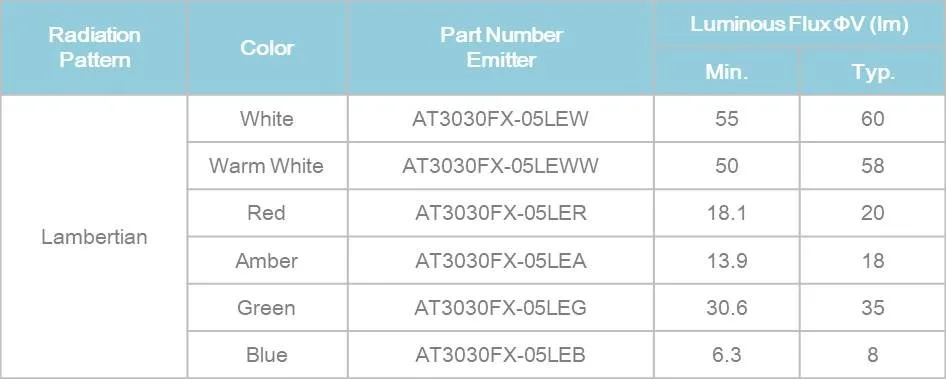

Flux Characteristics at 150mA, TJ= 25°C

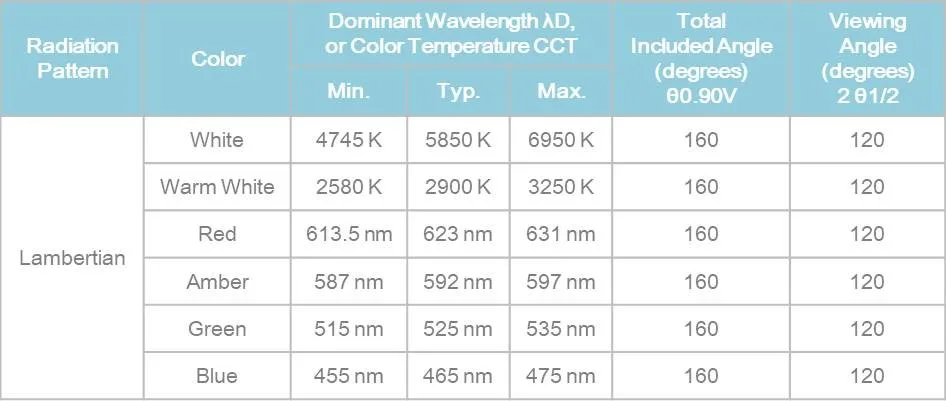

Optical Characteristics at 150mA, TJ= 25°C

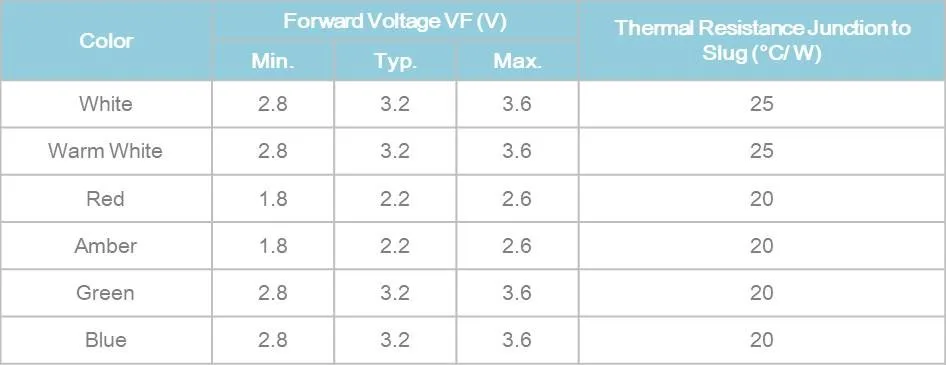

Electrical Characteristics at 150mA, TJ= 25°C

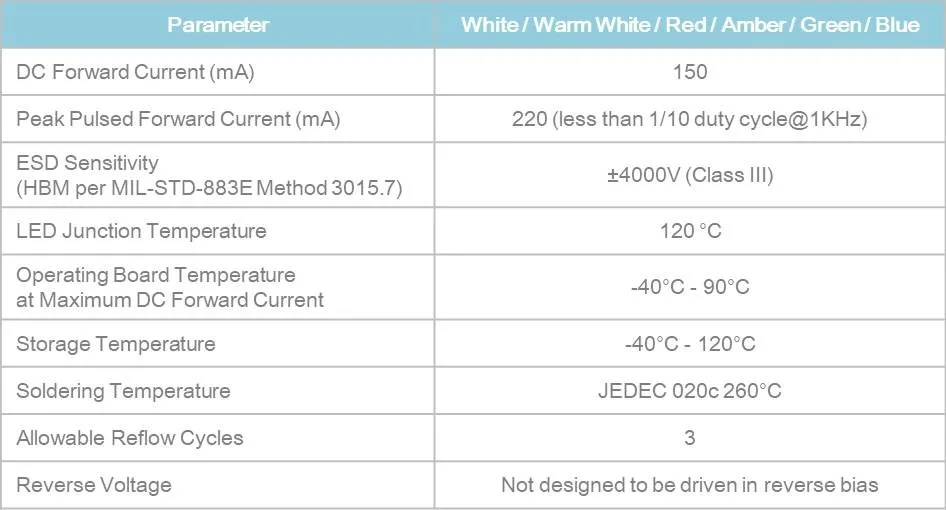

Absolute Maximum Ratings (Ta=25℃)

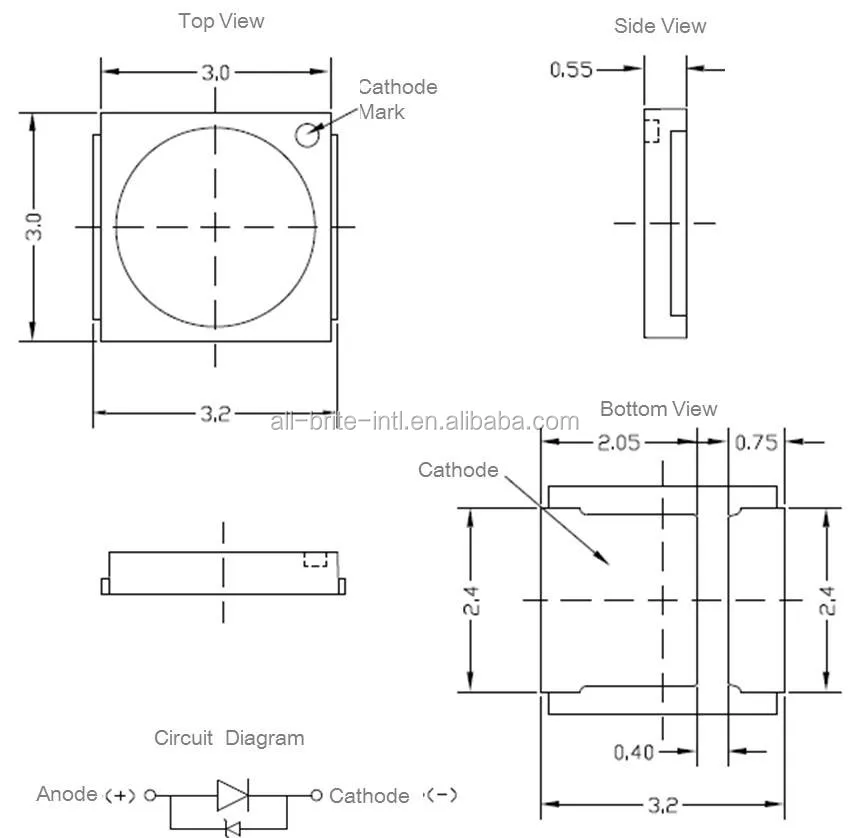

Mechanical Dimension

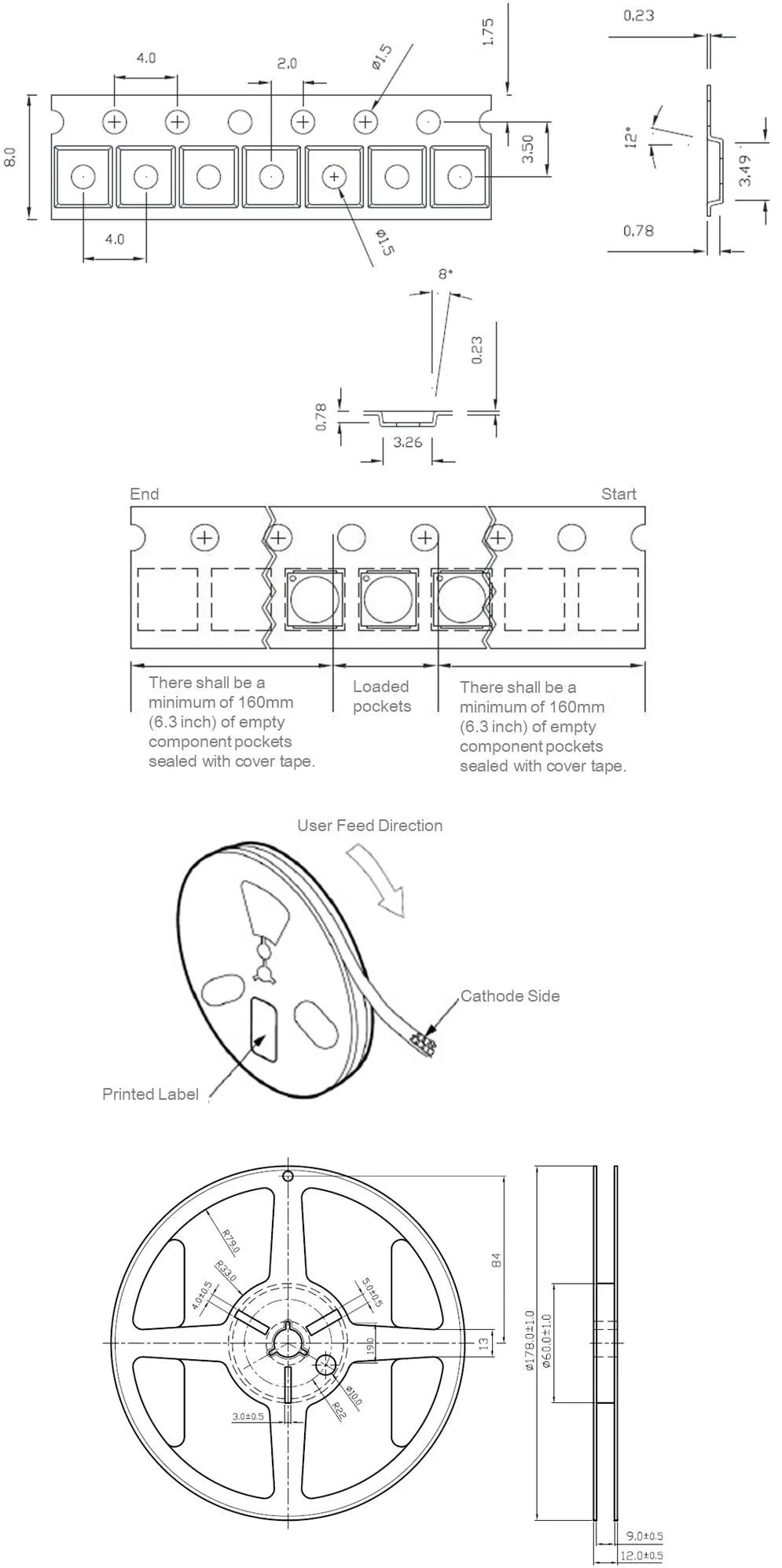

Emitter Reel Packaging
