Hot Cutting OPP BOPP DPP PE Bag Ultrasonic Welding plastic side sealing bag making machine

Product Overview

Description

Hot Cutting OPP BOPP DPP PE Bag Ultrasonic Welding plastic side sealing bag making machine

1. Application:

This machine is suitable for heat cutting and side sealing printed or without printed plastic film (OPP, PP, PE), it is a kind of ideal equpent for making garment bag, towel bag, bread bag and comestic bag, etc



2. Feature:

1) The whole machine adopts microcomputer control and step motor (option: Servo motor YASKAWA brand)

2) With the functions: length positioning, feeding material with photocell tracking, automatic stop when no material.

3) Put adhesive tape and punching autoamticly in same process.

4) Heat side sealing, automatic digital control temperature, making firm and smooth side sealing bag.

5) Tube film edge cutting, bag top flap folding, botton insert, heat pressing.

6) Ultrasonic device and pearlized film inserting function

7) Machine any size and more requirement could be customed.



Technical Parameters:

Type	RQL-500	RQL-600	RQL-800
Bag Making Width	100-400mm	100-500mm	100-700mm
Bag Making Length	200-400mm	200-500mm	200-700mm
Bag Making Speed	45-150 pcs/min	45-150 pcs/min	45-150 pcs/min
Total Power	3.2kw	4.2kw	6kw
Overall Dimensions(L×W×H)mm	3200×660×1650mm	3200×760×1650mm	3200×960×1650mm
Weight	450kg	500kg	700kg

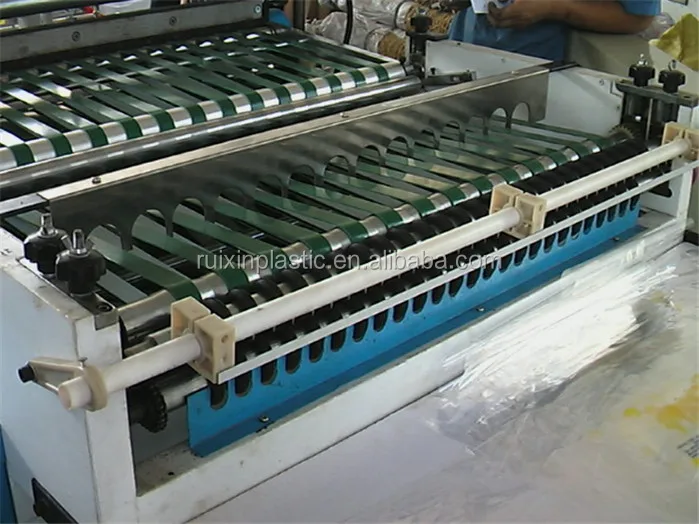

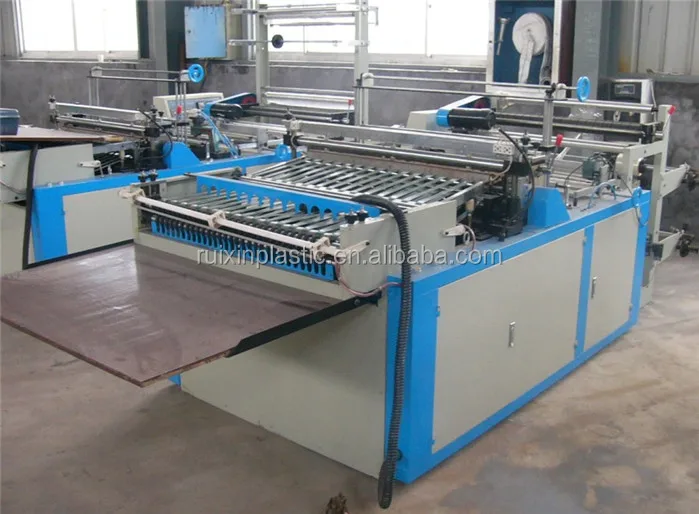

Side Sealing Bag Making Machine Detail Image:

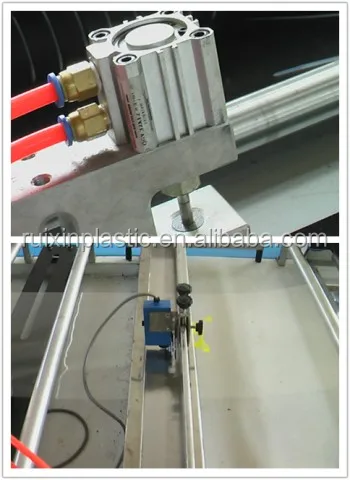

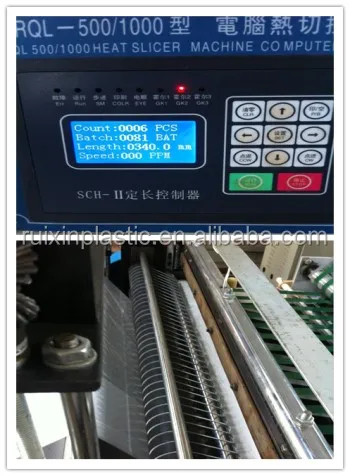

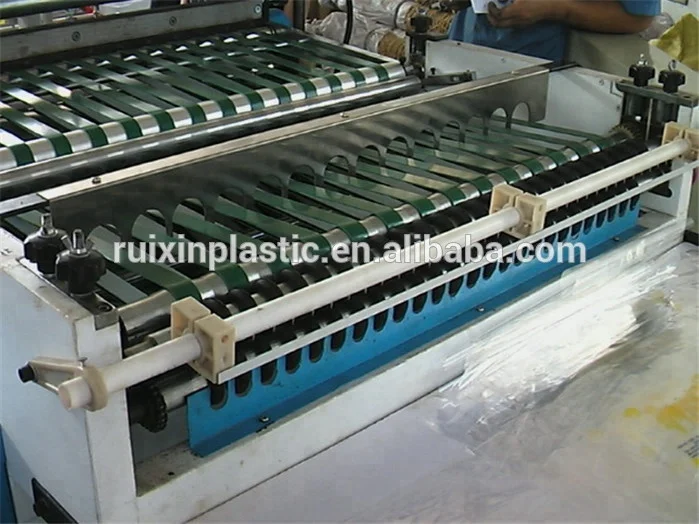

Hole Punching , Sealing Knife & Photocell

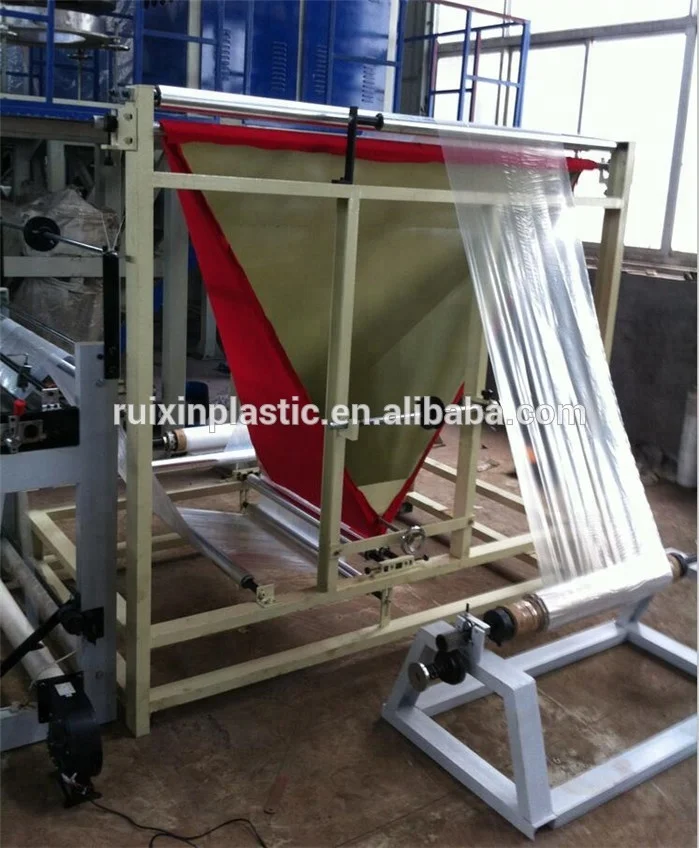

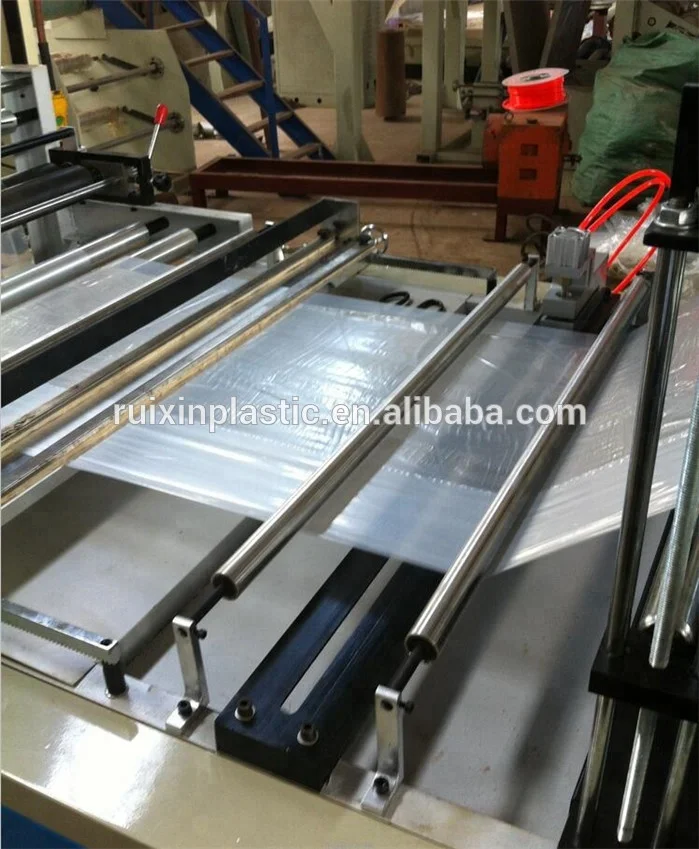

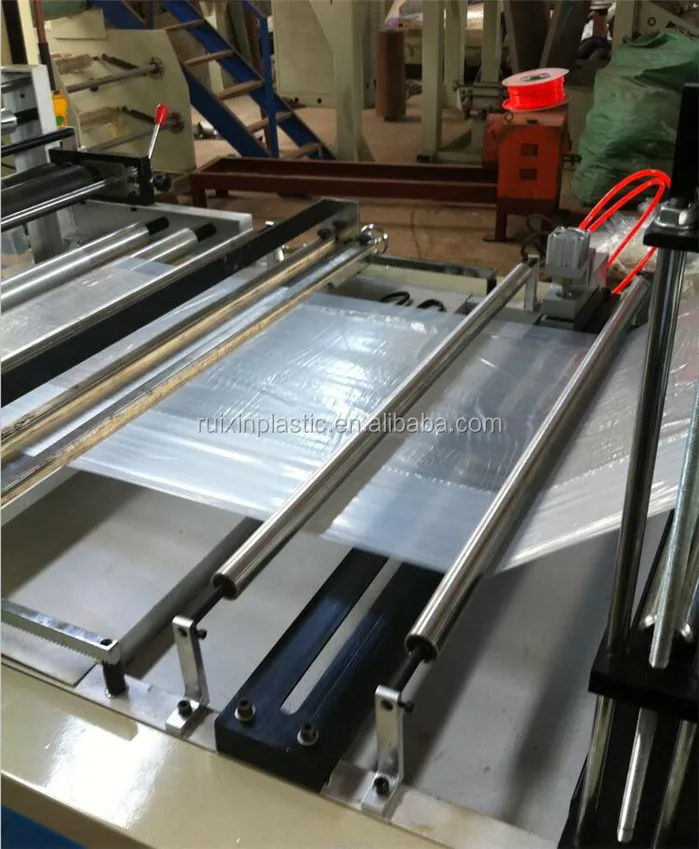

Plastic Film Folding Part :

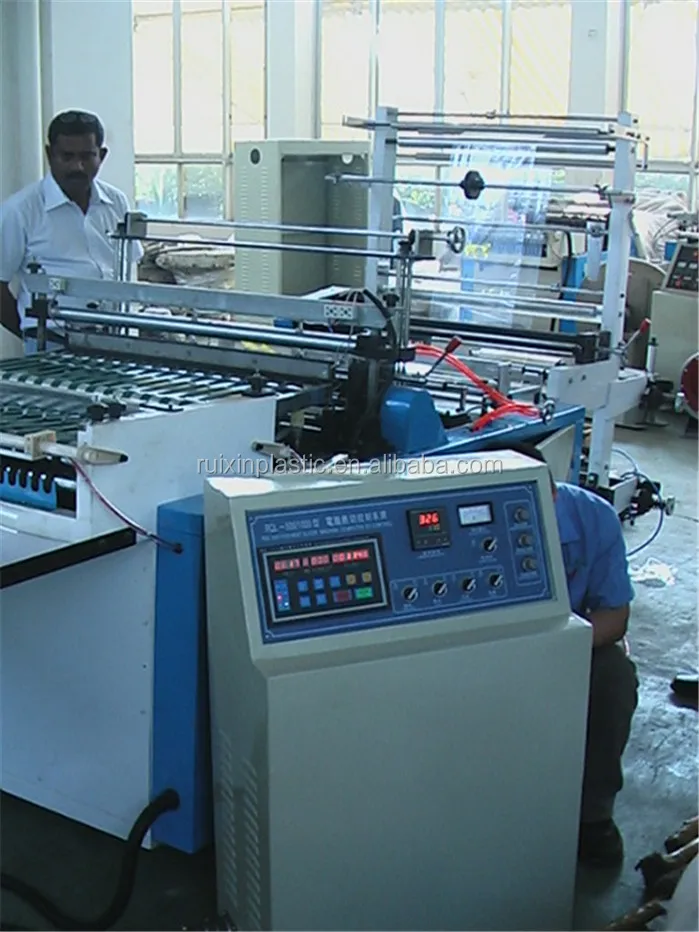

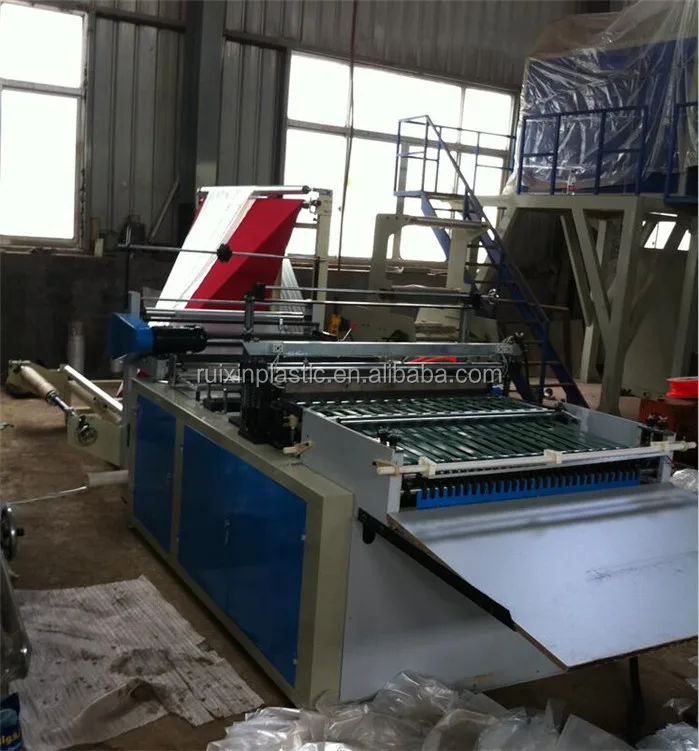

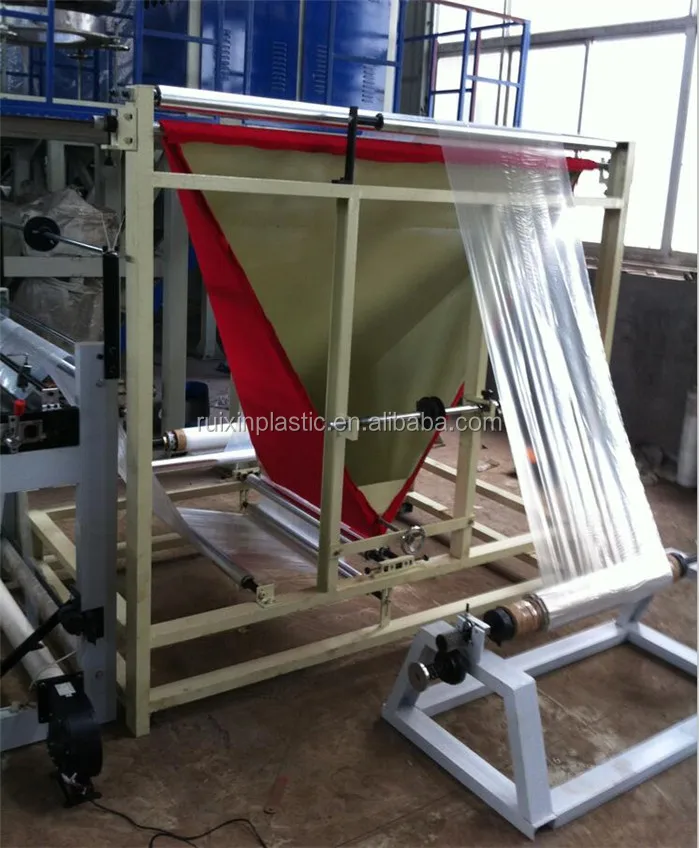

Complete Machine Line With Film Folding :

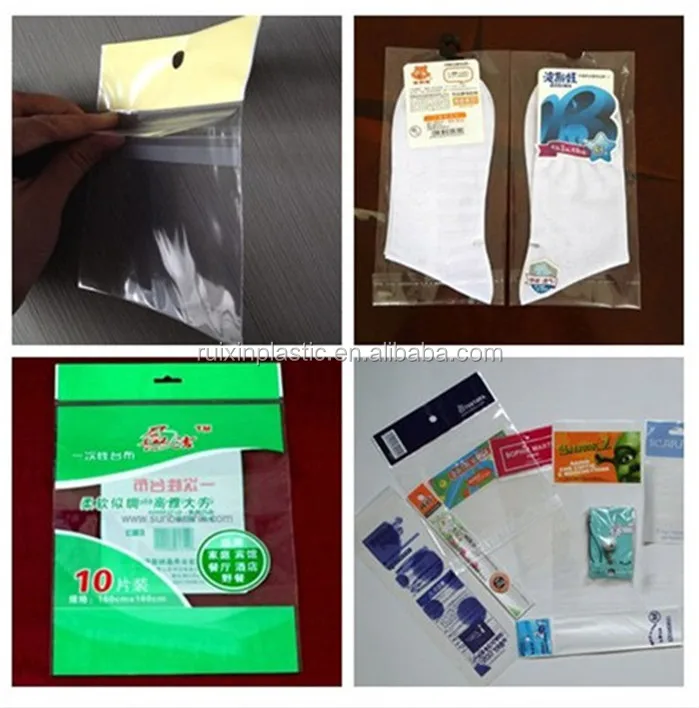

Finish Bag Samples:

Packing & Shipping :

.WE WILL PAY ATTENTION TO EVERY PARTS PACKING WITH BUBBLE FILM AND STRETCH FILM OR WOODEN CASE IF POSSIABLE.  BESIDES, WE WILL LAOD MACHINES ONE BY ONE CAREFULLY. AND OUR DELIVERY TEAM IS PROFESSIONAL ON ALL THE MACHINE INSPECTION AND CERTIFICATES FOR YOUR CLEARANCE CUSTOM

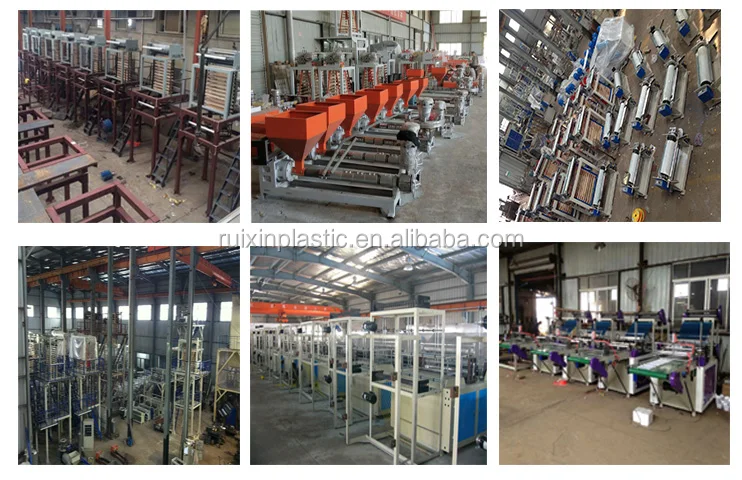

Work Shops :

1.WORKERS ARE 10YEARS AVERAGE WORKING EXPERIENCE.

2.MAIN PARTS LIKE DIE HEAD AND SCREW AND AIR RING, MACHINED IN CNC EQUIPMENT.

3. STRONG BODY WELDING FRAME AND CAREFULLY PAINT.

4.GOOD BRAND USED, LIKE SIEMENS, ABB, YASKAWA, DELTA, LS, OMRON, SCHNEIDER....





Welcome Your Inquire
