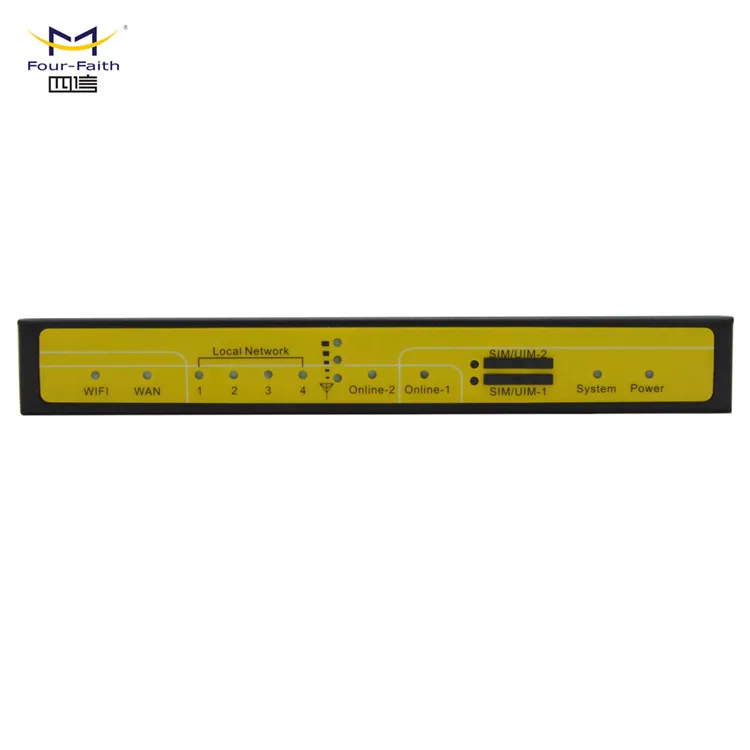

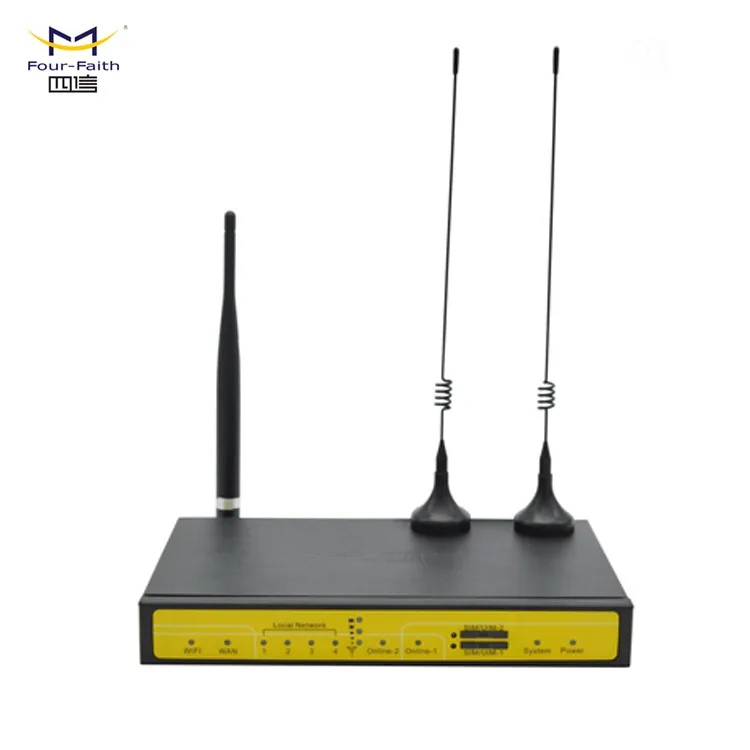

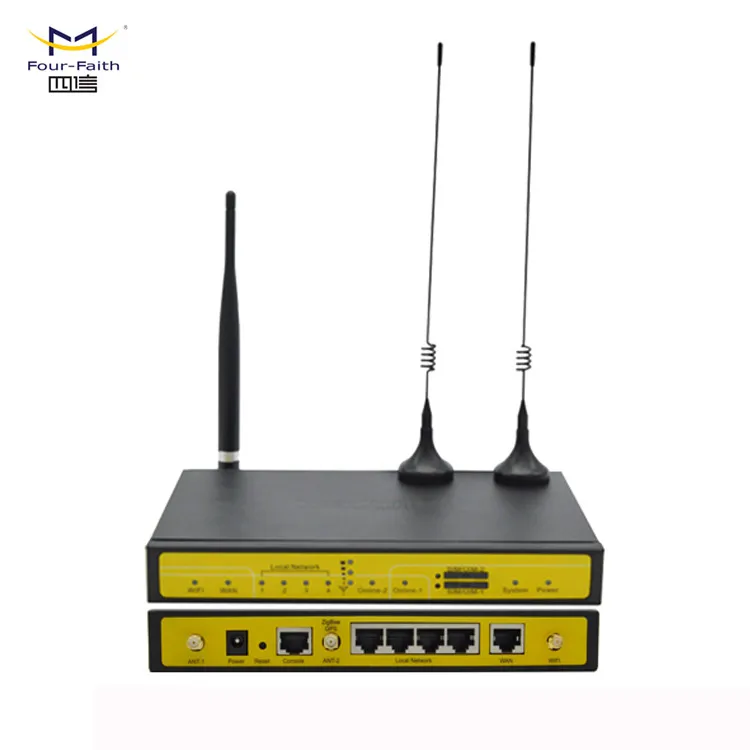

F3846 3G/4G LTE Dual SIM WIFI Router 4g lte ethernet modem vpn openwrt wifi wireless router with sim card slot
- Category: >>>
- Supplier: Xiamen Four-Faith Communication Technology Co. Ltd.
Share on (50042538947):

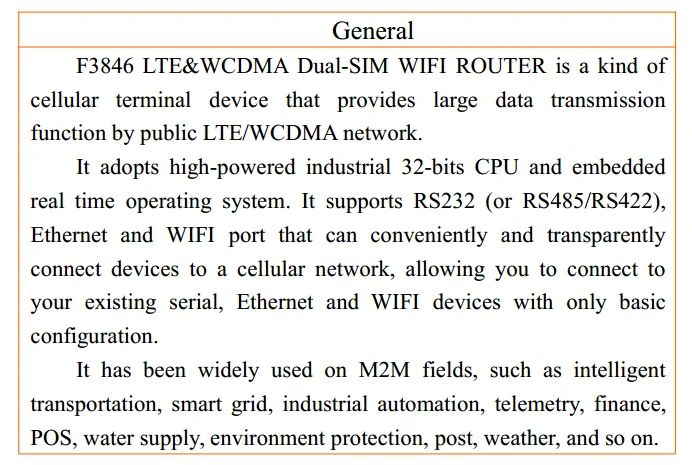

Product Overview
Description
F3846 3G/4G LTE Dual-SIM WIFI Router with ethernet port and 4 LAN
Product Description
Product Feature
LTE/WCDMA/TD-SCDMA/EVDO
Samart Link Switch Backup
Powerful WIFI
Provide More Security Deployment Scenarios
Reliable Networking And Communication
Support APN/VPDN
Convenient configuration and maintenance interface
Support Local and Remote Firmware Upgrade
Specification
Cellular Specification
| Cellular Module | Industrial cellular module |
| Standard and Band | Support:LTE FDD 2600/2100/1800/900/800MHz(Band 1/3/7/8/20) 700/850/1700/1900/2100MHz (Band 2/4/5/13/17/25)(optional) Support:DC-HSPA+/HSPA+/HSDPA/ HSUPA/WCDMA/UMTS 2100/1900/900/850/800MHz(Band 1/2/5/6/8) Support:EDGE/GPRS/GSM 850/900/1800/1900MHz |
| Bandwidth | LTE FDD(Download speed:100Mbps, upload speed:50Mbps) /HSUPA:5.76Mbps(upload speed)/ HSDPA:7.2Mbps(download speed:) UMTS:384Kbps (download speed/upload speed) HSPA+: 42Mbps(download speed) 5.76Mbps(upload speed) |
| TX power | <23dBm |
| RX sensitivity | <-93.3dBm |
WIFI Specification
| Item | Content |
| Standard | IEEE802.11b/g/n |
| Bandwidth | IEEE802.11b/g: 54Mbps (max) |
| IEEE802.11n: 150Mbps (max) | |
| Security | WEP, WPA, WPA2, etc. WPS (optional) |
| TX power | 20dBm(11n),24dBm(11g) , 26dBm(11b) |
| RX sensitivity | <-72dBm@54Mpbs |
Hardware System
| Item | Content |
| CPU | Industrial 32bits CPU |
| FLASH | 16MB(Extendable to 64MB) |
| SDRAM | 128MB |

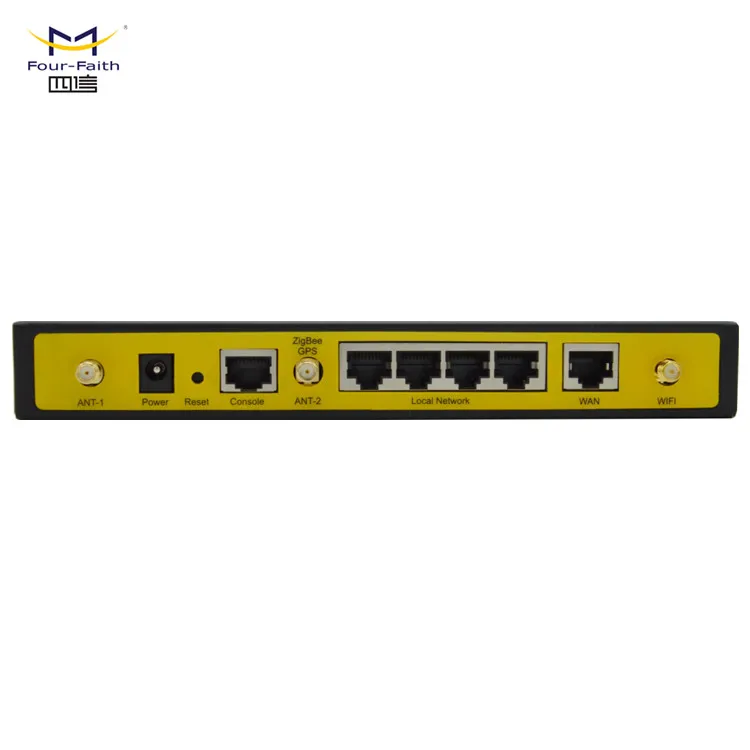

Interface type
| Item | Content |
| WAN | 1 10/100 Mbps WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
| LAN | 4 10/100 Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
| Serial | 1 RS232(or RS485/RS422) port, 15KV ESD protection Data bits: 5, 6 ,7, 8 Stop bits: 1, 1.5(optional), 2 Parity: none, even, odd, space(optional), mark(optional) Baud rate: 2400~115200 bps |
| Indicator | "Power", "System", "Online-1", "Online-2", " Local Network ", "WAN", "WIFI", "Signal Strength" |
| Antenna | Cellular: 2 Standard SMA female interface, 50 ohm, lighting protection(optional) WIFI: 1 Standard SMA male interface, 50 ohm, lighting protection(optional) |
| SIM/UIM | Standard 3V/1.8V user card interface, 15KV ESD protection |
| Power | Standard 3-PIN power jack, reverse-voltage and overvoltage protection |
| Reset | Restore the router to its original factory default settings |
Power supply
| Item | Content |
| Standard Power | DC 12V/1.5A |
| Power range | DC 5~36V |
Consumption
| Working condition | Consumption |
| Standby | 290~340mA@12VDC |
F3846 LTE&WCDMA Dual-SIM WIFI ROUTER SPECIFICATION
4
| Communication | 335~572mA@12VDC |
| Schedule Shutdown | 2.57~4.2mA@12DVC |
Physical Characteristics
| Item | Content |
| Housing | Iron, providing IP30 protection |
| Dimensions | 206x135x28 mm |
| Weight | 790g |
Environmental Limits
| Item | Content |
| Operating Temperature | -35~+75ºC(-31~+167℉) |
| Storage Temperature | -40~+85ºC (-40~+185℉) |
| Operating Humidity | 95% ( unfreezing) |

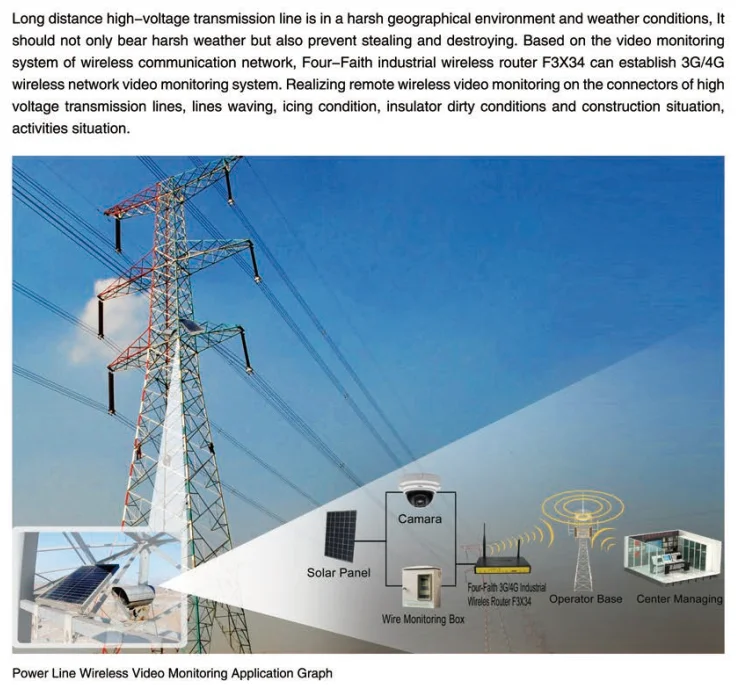

Product Application
