Product Overview

Description



Products Description

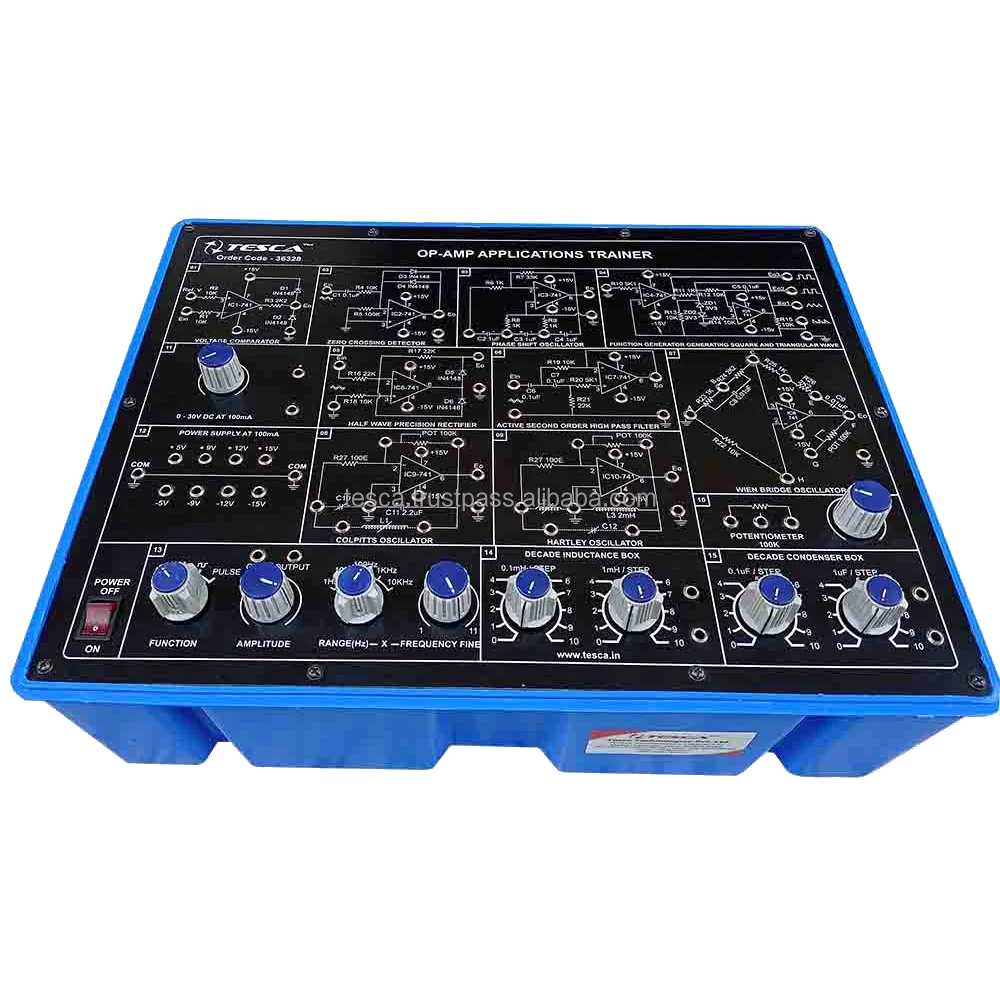

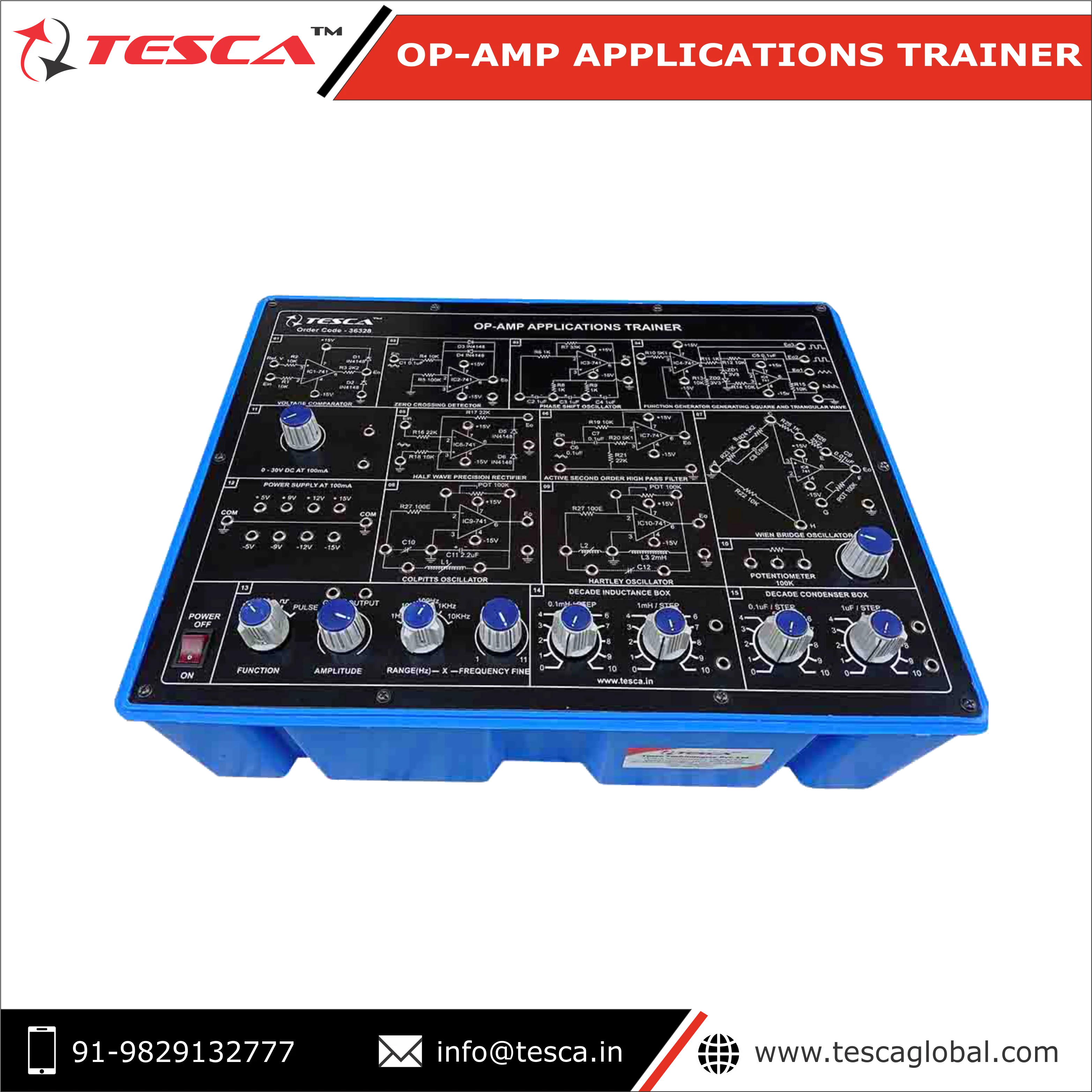

Op-Amp Applications Trainer




Specification


36328 An Operational Amplifier, usually referred to as an ‘Op-Amp.’ For brevity, Op-Amps are among the most widely used electronic devices today, being utilized in a vast array of consumer, industrial and scientific devices. In present days electronics system a basic building block is the operational amplifier. The Operational amplifier is a versatile device that can be used to amplify DC input signal as well as AC input signal and used for computing mathematical function such as addition, subtraction, multiplication, integration and differentiation, and due to the ability to program these operations the name operational Amplifier stems.

36328, Op-Amp. Application platform student can study the basic mathematical operations addition, Subtraction, Integration, Differentiation, Rectification, Oscillation, Filtering, peak detection, comparison, and so on. However, an ideal operational amplifier is an exteremely versatile circuit element, with a great many applications beyond mathematical operations and to understand and perform those application it is necessary to achieve better understanding of its basic application.

36328 has been divided into different independent blocks for the ease of user to understand the various application of operational amplifier. A function generator, generating Sine wave, Square wave and triangular wave, and variable DC supplies are provided on board.

Object
01 Study and observe Op-Amp as voltage Computer
02 Study and observe Op-Amp as Zero crossing Detector
03 Study and observe Op-Amp as a phase shift oscillator and its phase shift at every RC Combination
04 Study and observe Op-Amp as a function generator, generating square and triangle wave
05 Study and observe Op-Amp as a half wave precision rectifier
06 Study and observe Op-Amp as active second order high pass filter
07 Study and observe Op-Amp as a when bridge oscillator and its again factor for a smooth sine wave
08 Examine the operation of colpits oscillator
09 Examine the operation of hartley oscillator

Feature
1. Self contained easy to operate platform
2. On board function generator
3. Variable power supply
4. Functional blocks indicated on board mimic
5. Built in power supply
6. Operating manual provided
7. Compact size

Technical Specification
The board consists of the following built in parts function generator
1. Sine wave : 1Hz -110KHz (10VPP)
2. Square wave : 1Hz -110KHz (10VPP)
3. Triangle wave : 1Hz -110KHz (8VPP)
4. Pulse wav : 1Hz -110KHz (8VPP)
5. Power supplies : 0-30V (variable)
6. Power supplies : %uF0B15, 9, 12, 15V at 100mA
1. Decade
2. Capacitor box : 0.1uF and 1uF per step
7. Decade tota step 20
8. capacitor box : 0.1mH and 1mH per step total step 20
9. Experiment : Nine individual circuits
1. Having Op-Amp,
2. Resistance, capacitor,
3. Diodes, pot & ect...
10. Test points : 28
11. Power supply : 230V %uF0B110%, 50Hz
12. Power consumption : 4 VA approximately
13. Operating conditions : 0-40C, 85% RH
14. Learning material : Theory, procedure, Reference results, etc.
15. Dimensions (mm) : W415 x H165 x D315
16. Weight : 4 Kg approximately


Company Profile

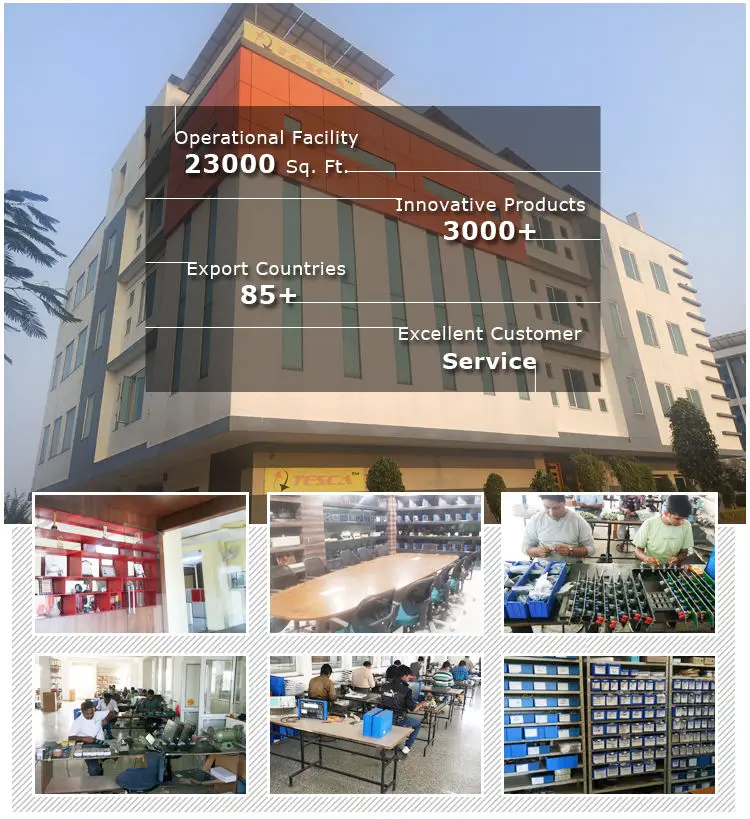

Tesca Technologies Pvt. Ltd. is World's Leading ISO & CE Certified Manufacturer & Exporter of Turnkey Projects, TVET, Skill Development, Educational Equipment, Electrical, Electronics, PLC, Hydraulic & Pneumatic, Physics Labs, Test & Measurement, Workshop Tools & Machines. Member for Electronics & Computer Software Export Promotion Council, New Delhi, India having sales in 85+ Countries Worldwide. Tesca's operations are spread out in 23000 Square Feet encompassing more than 3000 manufactured Innovative Products and Turnkey Project Capabilities for International Tenders. Tesca is an Export House established in December 2009 with our Registered & Corporate Office both set up at Jaipur. We are actively doing business in Middle East, CIS, South East Asia, Africa as well as South America Countries.
