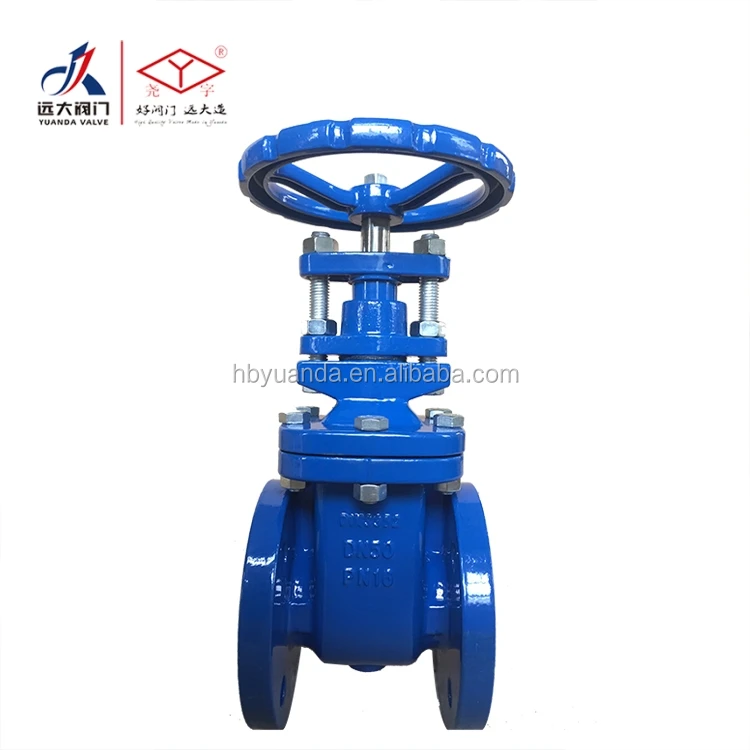

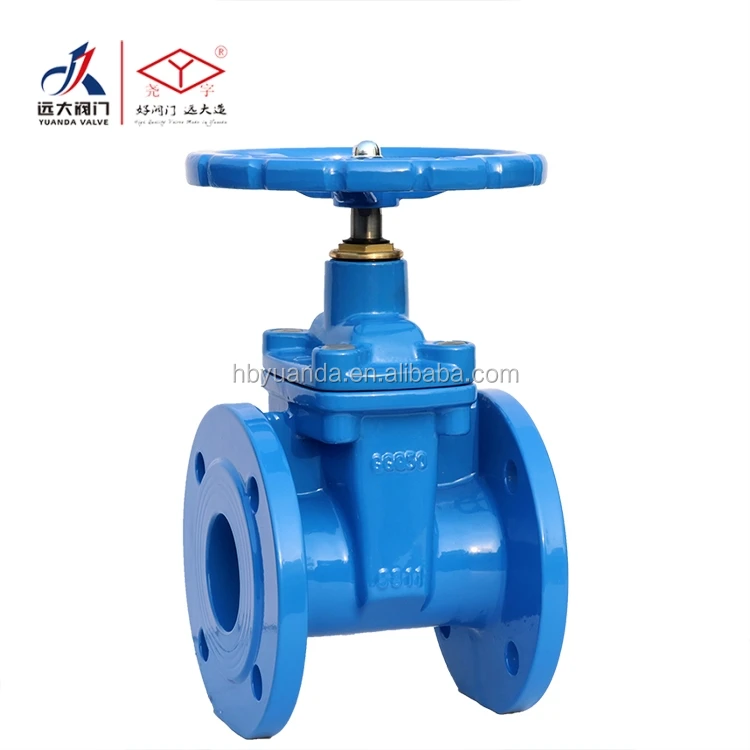

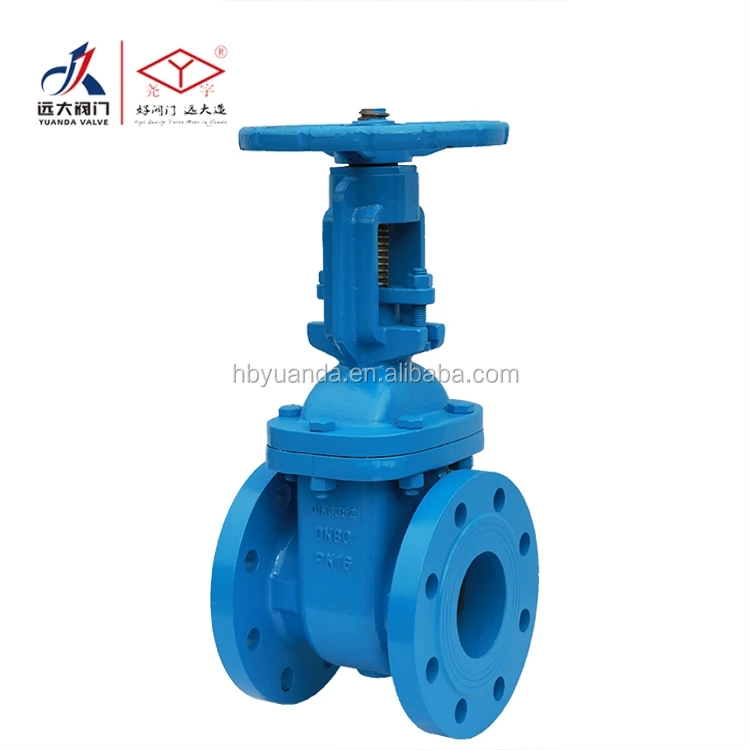

DIN CAST IRON METAL SEATED OS&Y GATE VALVE

Share on (50042683697):


Price:

Quantity:


Product Overview

Description



Product Description

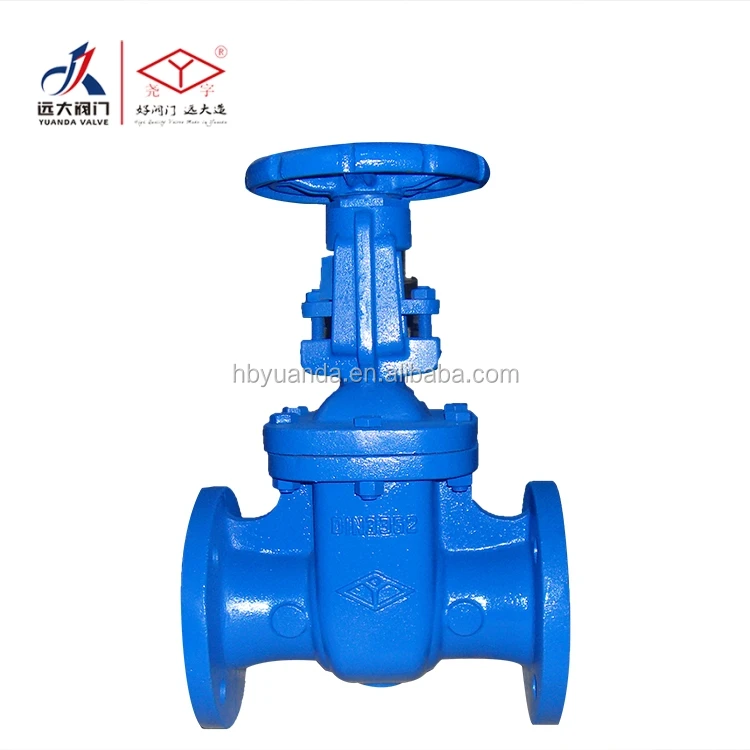

DIN CAST IRON METAL SEATED OS&Y GATE VALVE Z41H-16

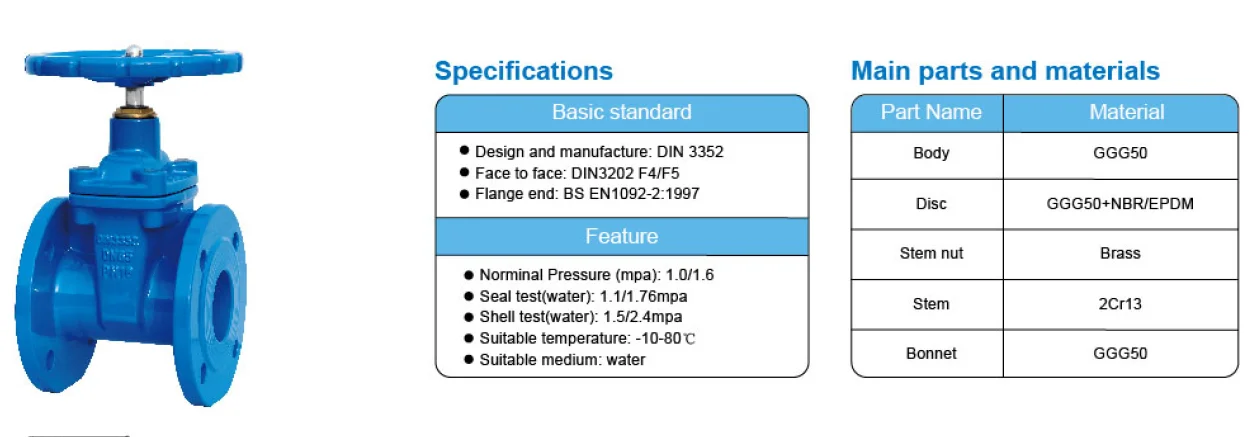

Specifications





















Design and manufactureDIN 3352
Face to faceDIN 3202 F4/F5
Flange endDIN 2532 PN10/PN16
Test

Feature





























Size
Norminal Pressure1.0/1.6MPA
Seal test1.1/1.76mpa
strength 1.5/2.4mpa
Suitable tempreature ≤100℃
Suitable mediumwater,steam

Main parts and materials





























BodyGG25/GGG50
Body Seal RingBrass/2Cr13/304
Disc Seal RingBrass/2Cr13/304
DiscGG20
Stem2Cr13
BonnetGG25/GGG50









Company Information

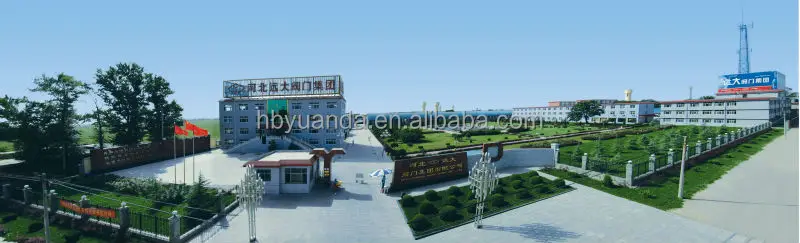

   China Yuanda Valve Group Co.,Ltd. located in the hinterland around the Beijing, Tianjin and Bohai economic center, it's founded in 1950s, restructuring on the basis of the former mechanical ministry longyao valve factory. it is the largest valve manufacturer in China engaged in researching and developing, manufacturing and selling middle pressure and low pressure valves. It located in Yincun Town, Longyao Vounty, Hebei Province, There are five branches under the group, the registered capital of 200 million yuan in RMB, and the headquarter covers an area of 400,000 square meters, more than 3,500 staffs.

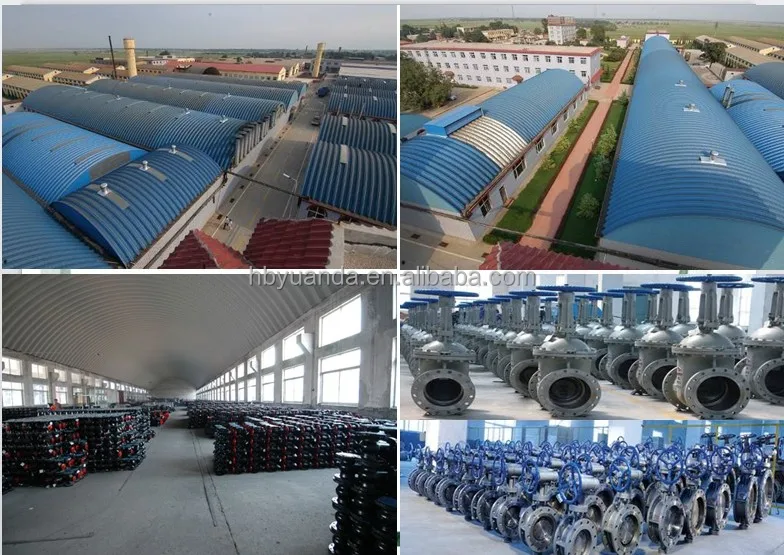

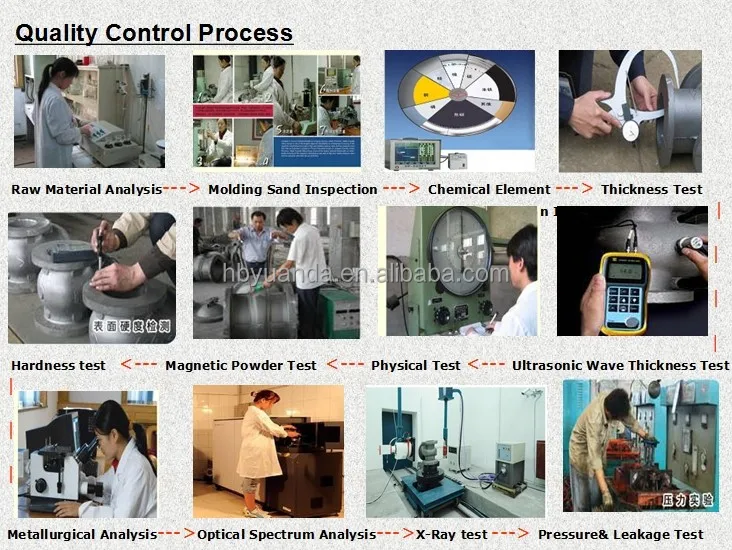

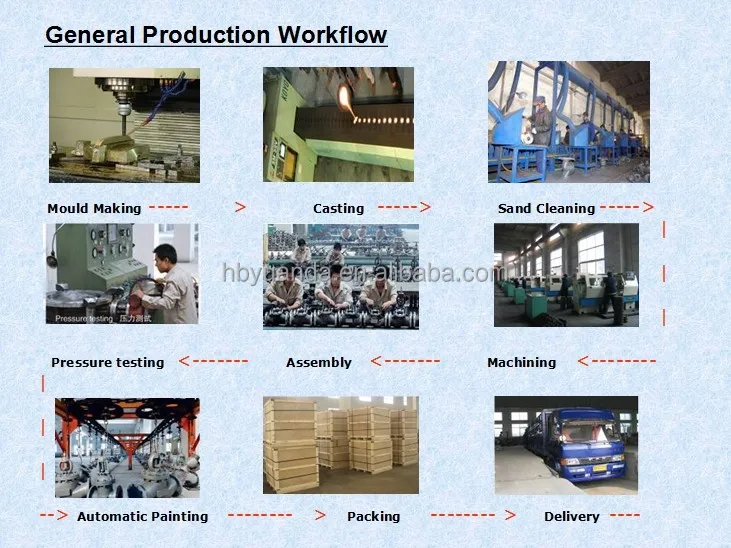

factoryworkflowdetection








Packaging & Shipping

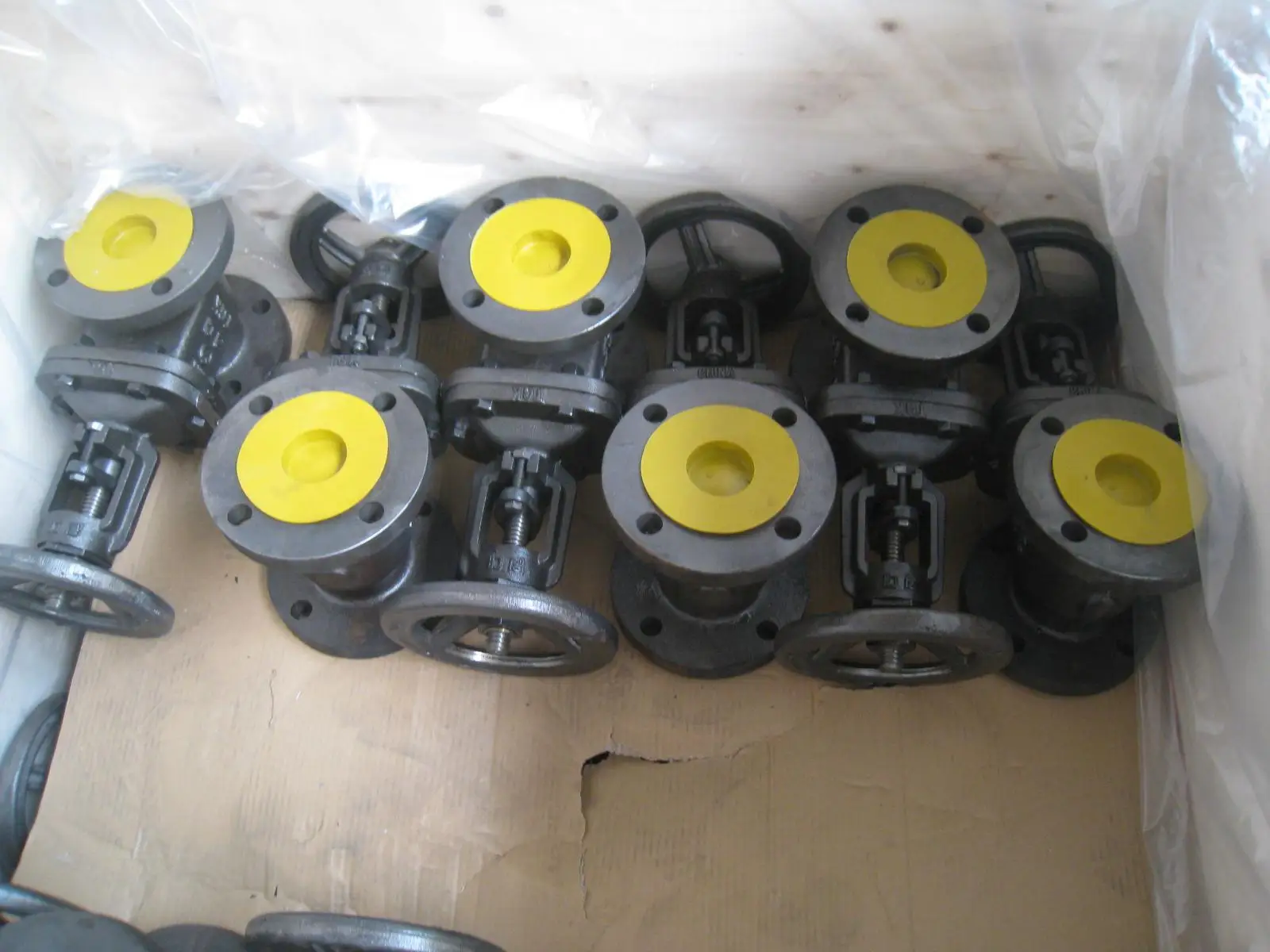

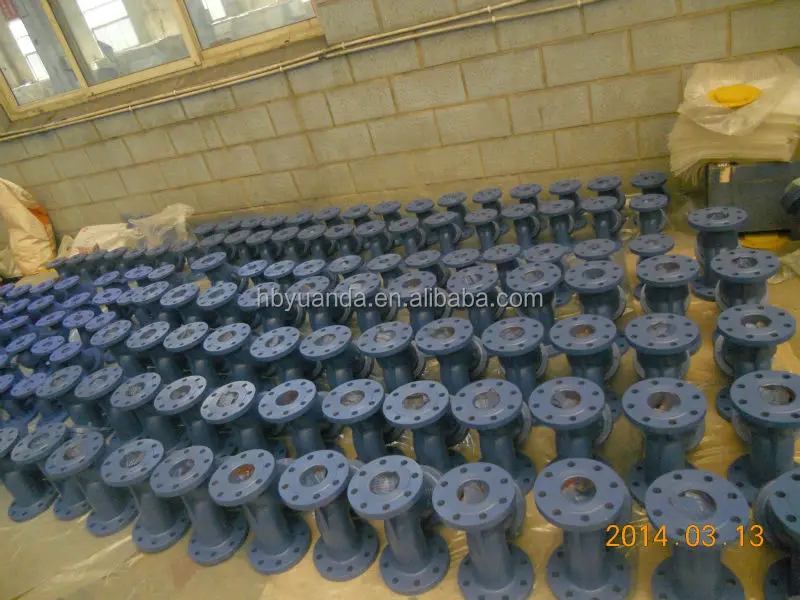

DSCN9559Z41T-10KIMG_0023IMG_0022





Certifications


certification





FAQ


Q1: Can I have my own customized product?


A: Yes, your customized requirements for color, size, package, mark, etc.


Q2: How long is your delivery time?


A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.


Q3: Do you provide samples ? is it free or extra ?


A: Yes, we could offer the sample for free charge but do not pay the cost of freight.


Q4: What is your terms of payment ?


A:T/T 30% advance,70% pay balance before delivery.


Q5:Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.
