Hot Selling 4 Channel 5A LED RGBW DMX512 Constant Decoder with Pull Code for Stage Lamps or Modules

Share on (50042699642):


Price:

Quantity:


Product Overview

Description


Specification
\t
Setting Information
\t
Input Power
\t
DC12~24V
\t
Maximum load current
\t
5A/CH*4
\t
Maximum power load
\t
240W(12V)~480W(24V)
\t
Output gray level
\t
256
\t
Input signal
\t
DMX512/1990
\t
Output signal
\t
4 channel constant PWM
\t
Output DMX
\t
4 channels
\t
Standard XLR-3 caron plug
\t
RJ45

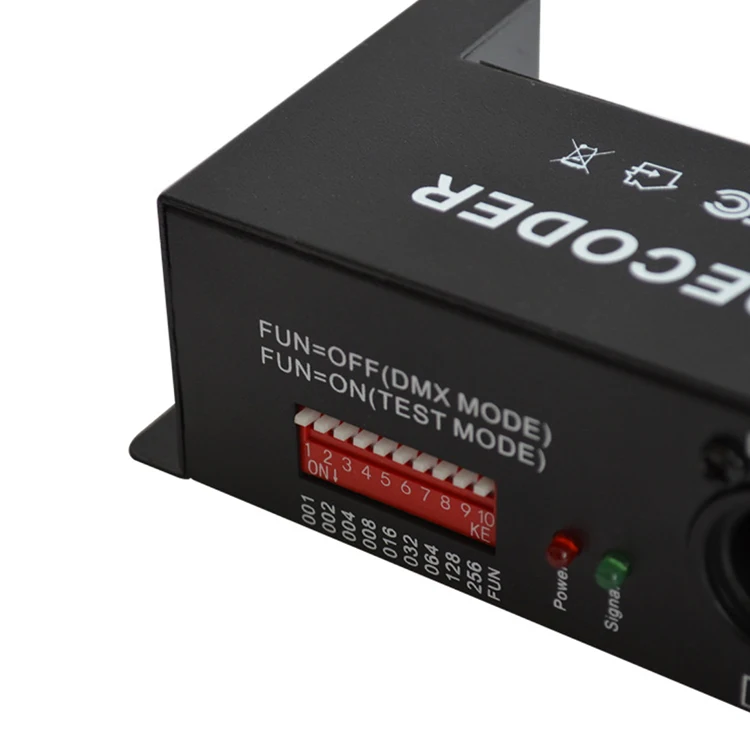

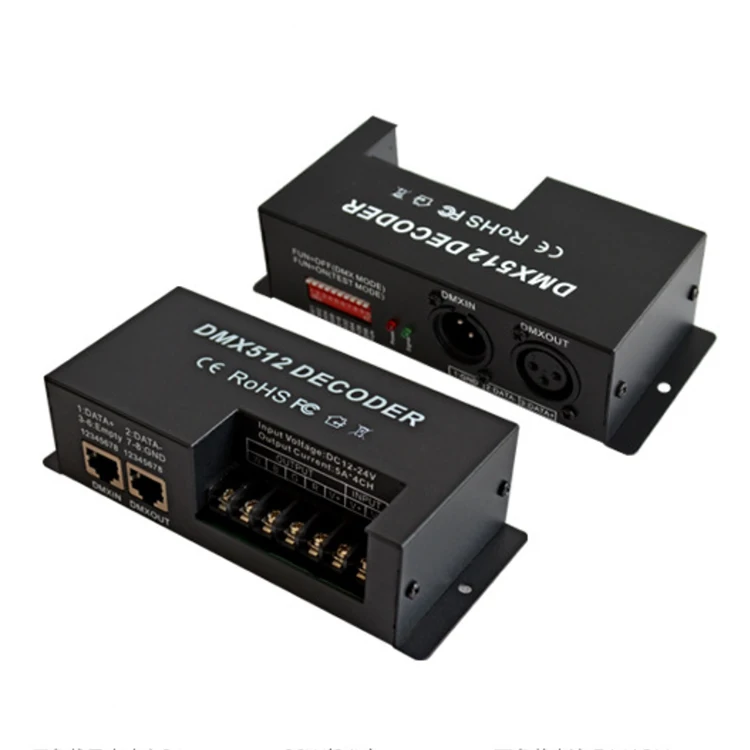

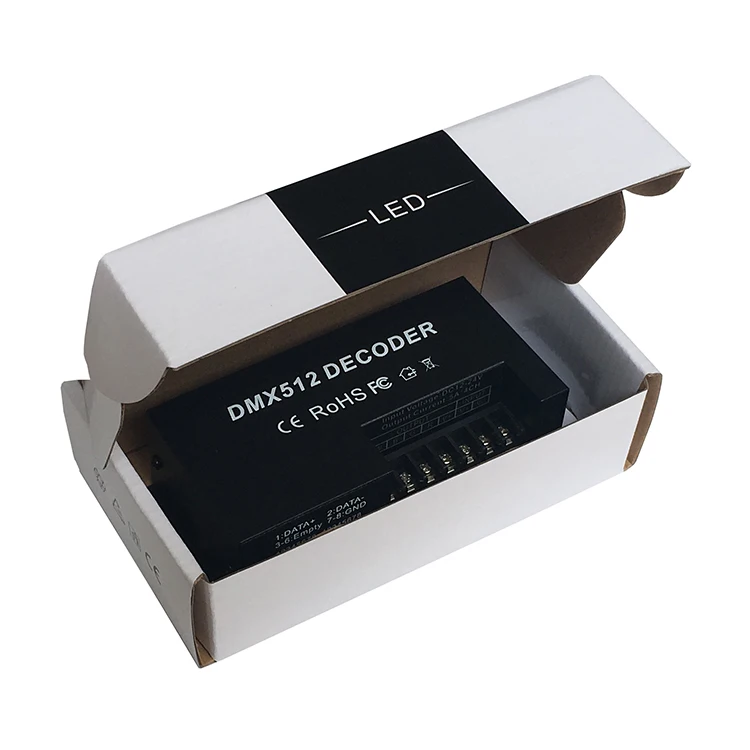

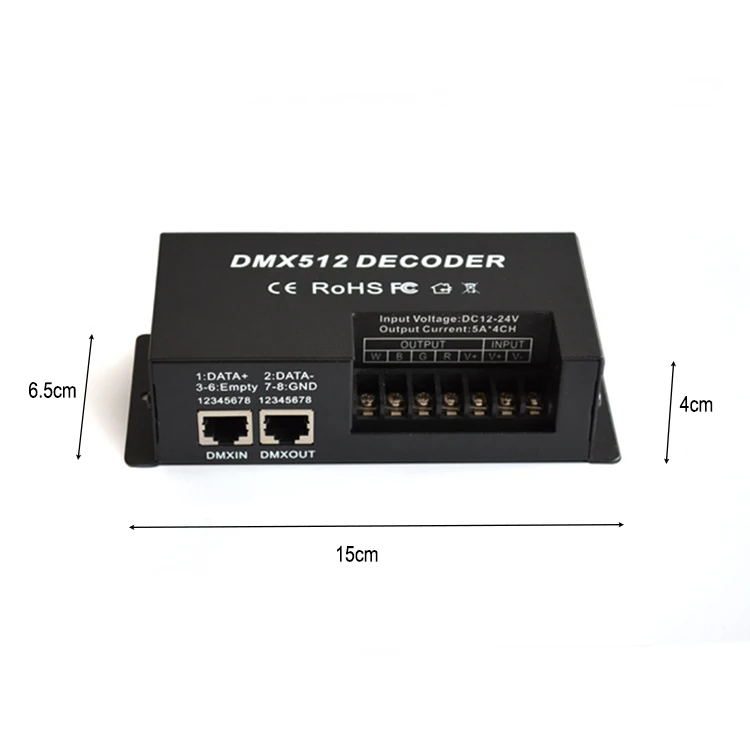

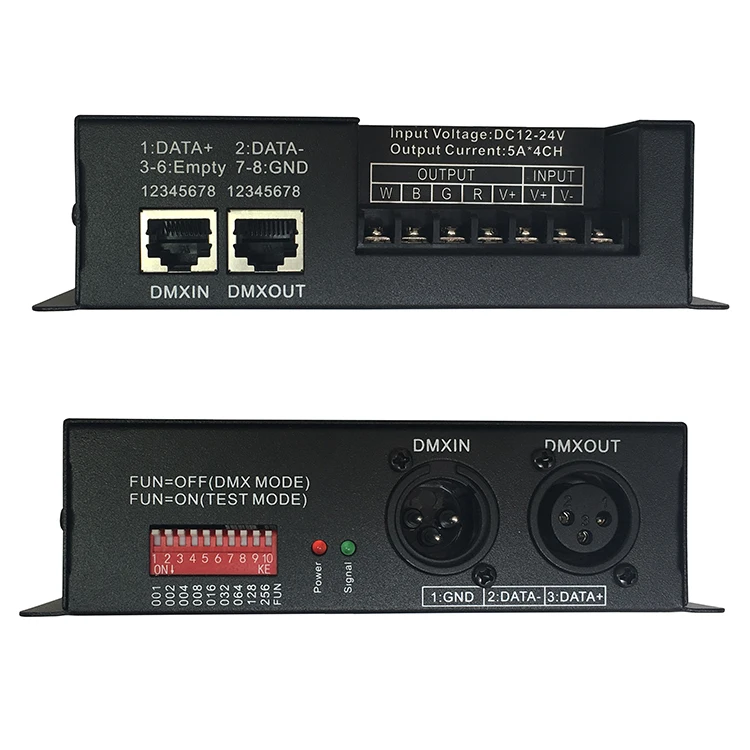

Detailed Image
Installation

Installation Notes

***DC12~24V, which is provided by the matched controllable main power, or else the controller will be damaged.

***The UTP wire is connected hand in hand to make the cable, when two or more controller connected.

***The power supply should be off when connecting the electric wires, and it can be turned on till making sure the wires are connected correctly and the indicator of main power in red is lighting.

***Controller should work under the environment of adequately ventilated, dry, not corroded, no flammable gas and rust.

***Please check the wires connection regularly so that the wires of aged, rust-eaten, and damaged insulation spacer can be replaced timely.

Related Products
\t
Model
\t
        QJ-4CHDMX
\t
         QJ-24CHDMX
\t
QJ-30CHDMXA
\t
QJ-30CHDMXB
\t
      Input Power
\t
        DC12~24V
\t
DC9~24V
\t
DC9~24V
\t
DC9~24V
\t
Max. load current
\t
        5A/CH*4
\t
2A/CH*24
\t
2A/CH*30
\t
2A/CH*30
\t
Max. power load
\t
240W(12V)~                                    480W(24V)
\t
576W(12V)~                                1152W(24V)
\t
720W(12V)~                               1440W(24V)
\t
720W(12V)~                          1440W(24V)
\t
Output gray level
\t
            256
\t
               256
\t
             256
\t
           256
\t
Input signal
\t
   DMX512/1990
\t
      DMX512/1990
\t
      DMX512/1990
\t
     DMX512/1990
\t
Output DMX
\t
       4 channels
\t
        24 channels
\t
     30 channels
\t
       30 channels
\t
Is there a shell
\t
         Yes
\t
             Yes
\t
          No
\t
         Yes
FAQ

Q1. Can i have a sample order for LED DMX decoder?

A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time according to the order quantity.

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-6 days to arrive.

Q5. How to proceed an order for product?

A: You can place an order directly by clicking "Start Order" on the product page.

or

Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
