Product Overview

Description


Product Description

Description:

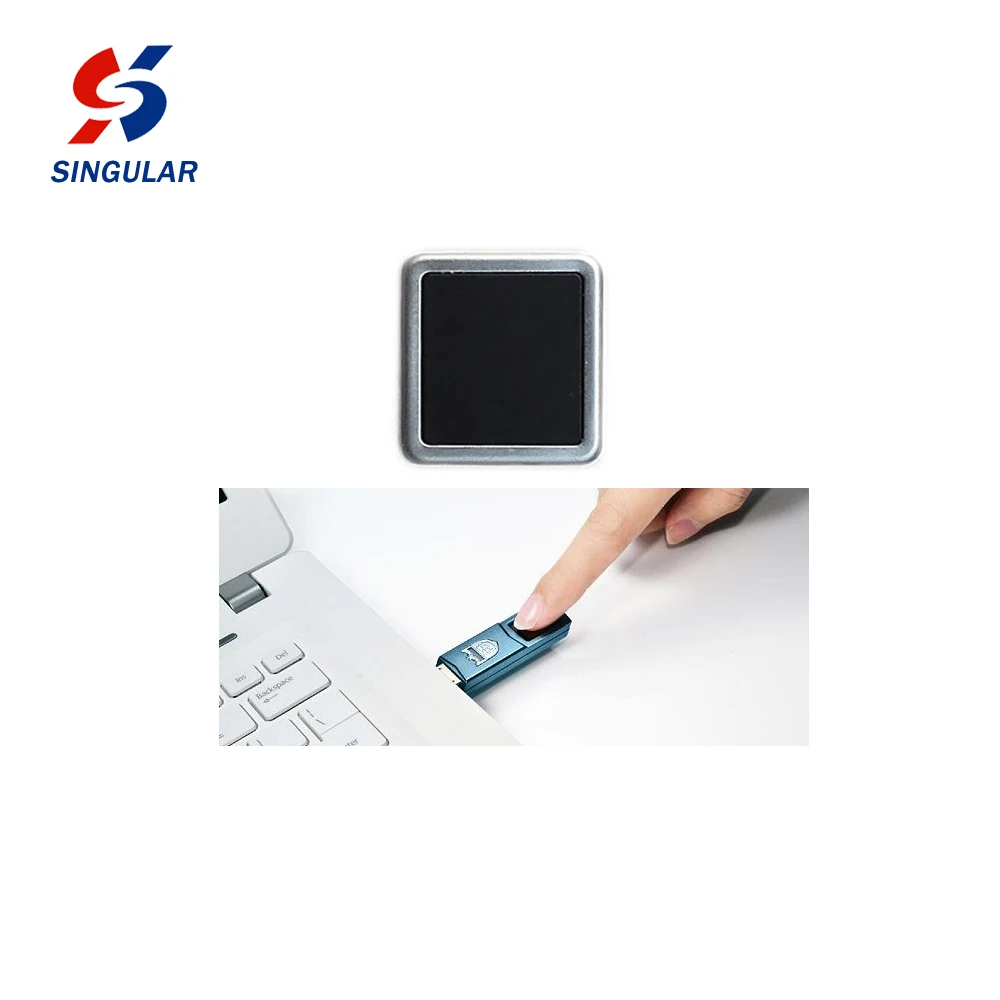

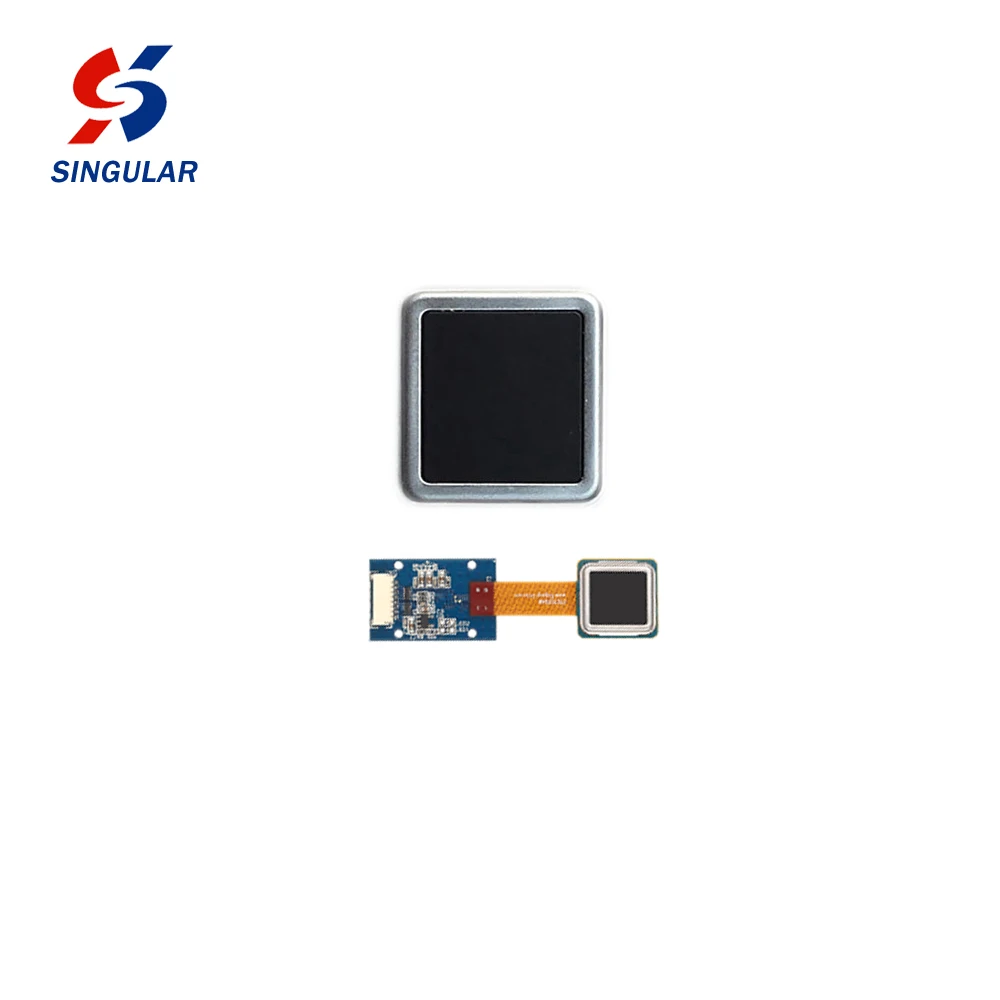

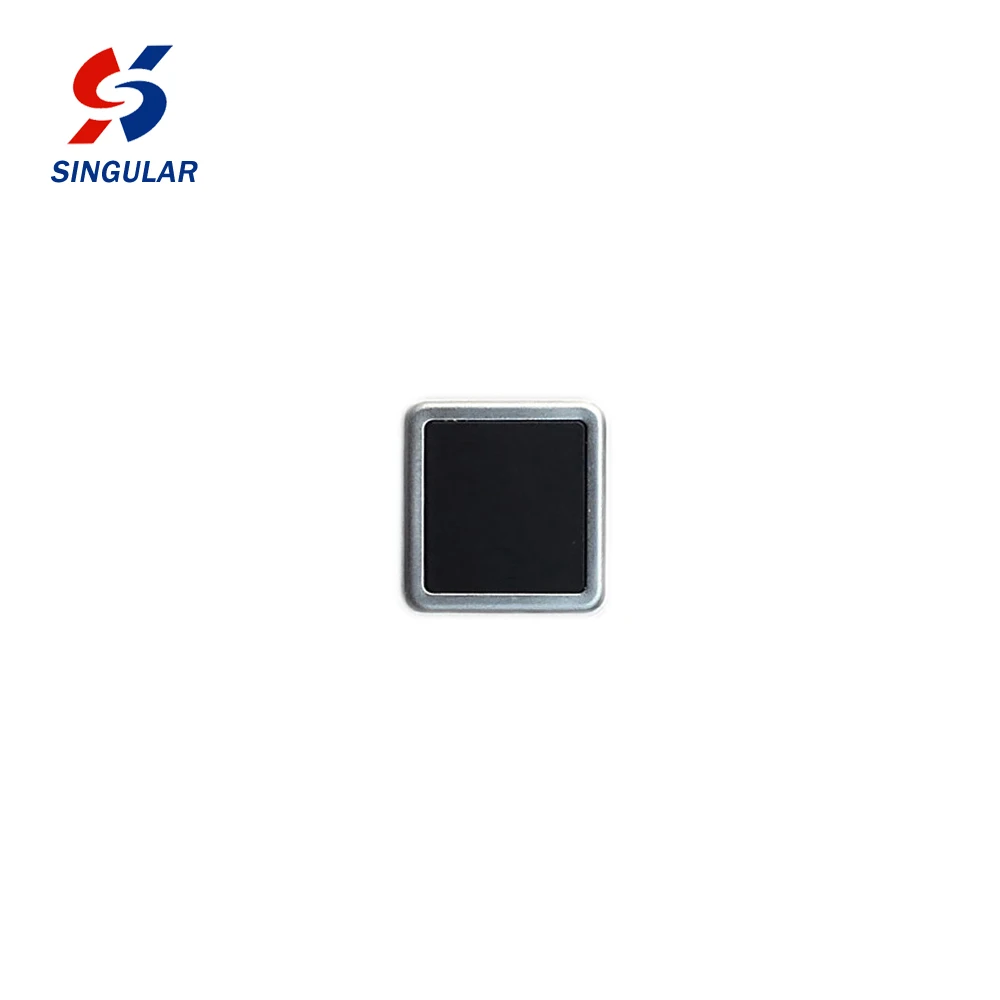

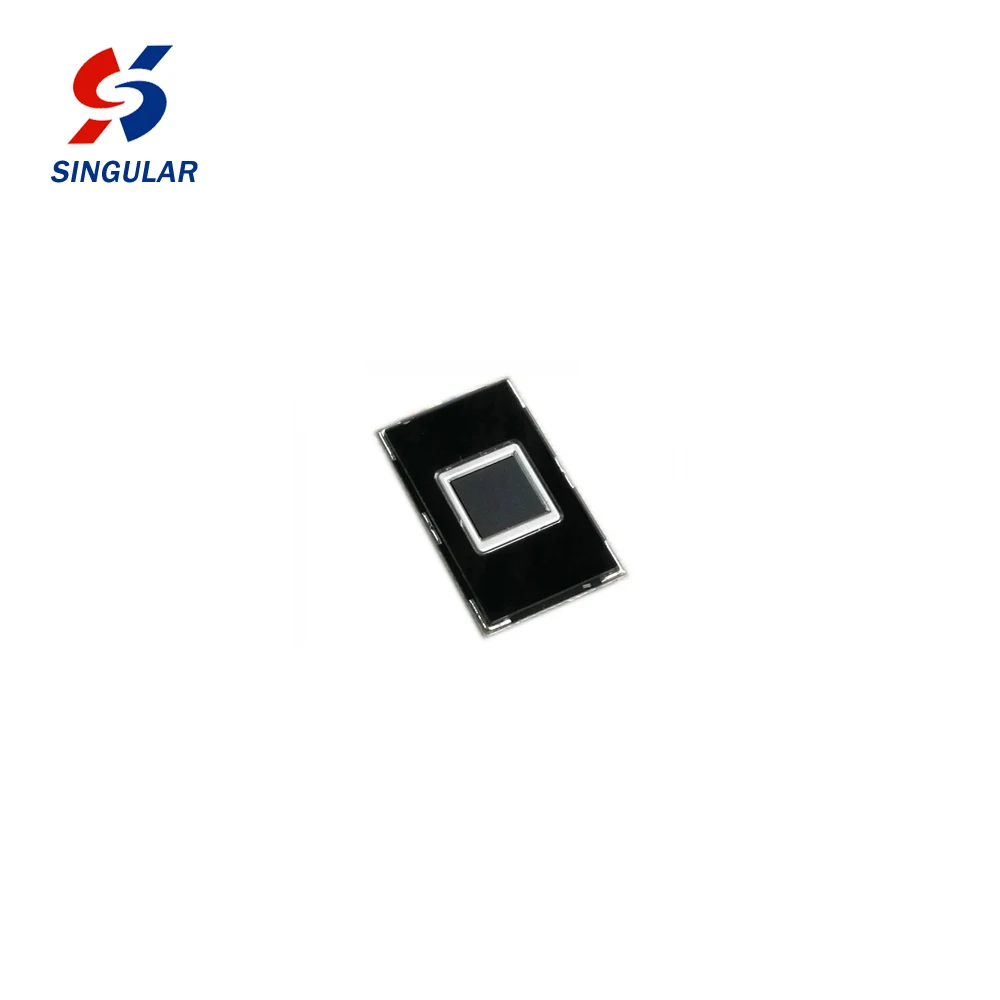

The A172-MR fingerprint module is a SMT, low profile fingerprint reading module. The sensor is based on capacitive-contact technology with hardened surface and enhanced ESD resistivity.

Features:

\t
1.
\t
2D capacitive fingerprint area sensor
\t
7.
\t
Image capture speed up to 2Mpixel/sec
\t
2.
\t
Sensor array of 176 x 176 (pixels)
\t
8.
\t
ESD protection: ±15KV (Air mode)
\t
3.
\t
508 DPI spatial resolution
\t
9.
\t
Low power: Normal and Standby modes
\t
4.
\t
8-bit gray levels
\t
10.
\t
FPC/FFC connection interface
\t
5.
\t
8.8mm x 8.8mm active sensing area
\t
11.
\t
SMD(SMT device) design
\t
6.
\t
High speed SPI interface
\t
12.
\t
Low profile (0.95mm including metal ring)
\t
Item
\t
Description
\t

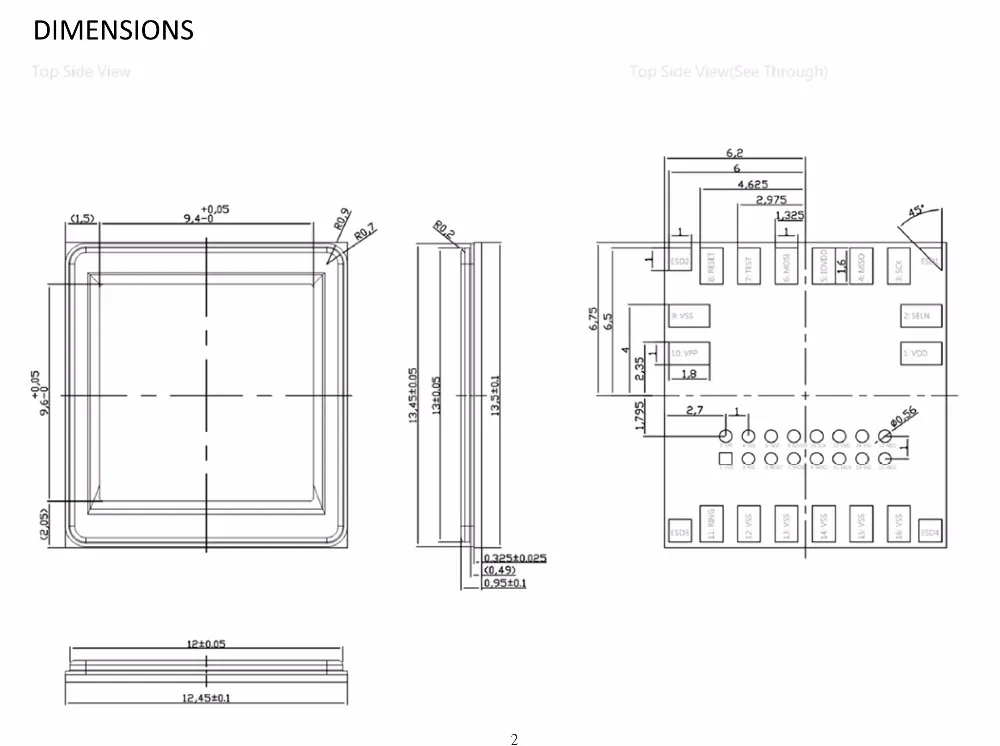

Dimensions
\t
13.45mm x 12.45mm x 0.95mm
\t
Sensor Dimensions
\t
10.20mm x 9.40mm x 0.25mm
\t
RCA (sensor)
\t
>350 cycles
\t
ESD
\t
±15 KV
\t
Operating temperature
\t
-20℃ ~ 80℃
\t
Extended humidity range
\t
<90%
\t
Operating voltage range
\t
2.7V ~3.3V
\t
Scratch hardness (sensor)
\t
8H
\t
Interface
\t
SPI
\t
Supply current
\t
Normal mode: 2 mA
Standby mode: 20 uA

INTERFACE: SMT contects(Optional)

\t
PIN NO.
\t
PIN Name
\t
Description
\t
1
\t
VDD
\t
3.3V power input
\t
2
\t
SELN
\t
Active low enable for SPI data exchange
\t
3
\t
SCK
\t
SPI CLOCK
\t
4
\t
MISO
\t
SPI MISO
\t
5
\t
IOVDD
\t
3.3V power input for I/O
\t
6
\t
MOSI
\t
SPI MOSI
\t
7
\t
TEST
\t
Enhance signal output
\t
8
\t
RESET
\t
Module reset
\t
9
\t
VSS
\t
Power Ground
\t
10
\t
VPP
\t
OTP data writing control
\t
11
\t
RING
\t
Metal ring
\t
12~16
\t
VSS
\t
Power Ground
\t
ESD1~4
\t
ESD
\t
ESD Pads
Detailed Images
Packing & Delivery

Shipping information :

For small quantity, we can arrange shipments via UPS, FedEx, DHL, TNT and EMS. Let us have your inquiries, we can do the best to save your cost and time.

Payment Term :

For our new client the payment term is T/T in advance. We will ship your order within 3-5 working days after receiving your payment. At this moment we accept the following payment methods:
1. Bank Transfer
2. PayPal

3. western Union

Please note: Customers are responsible for all local handling fees and Intermediary bank handling fees.
