Kitagawa B 204 3 jaw style power chuck World renowned standard Large through hole high speed power chuck for large diameter
- Category: >>>
- Supplier: TOSAMACHINE CO. LTD.
Share on (50043328006):
Product Overview
Description

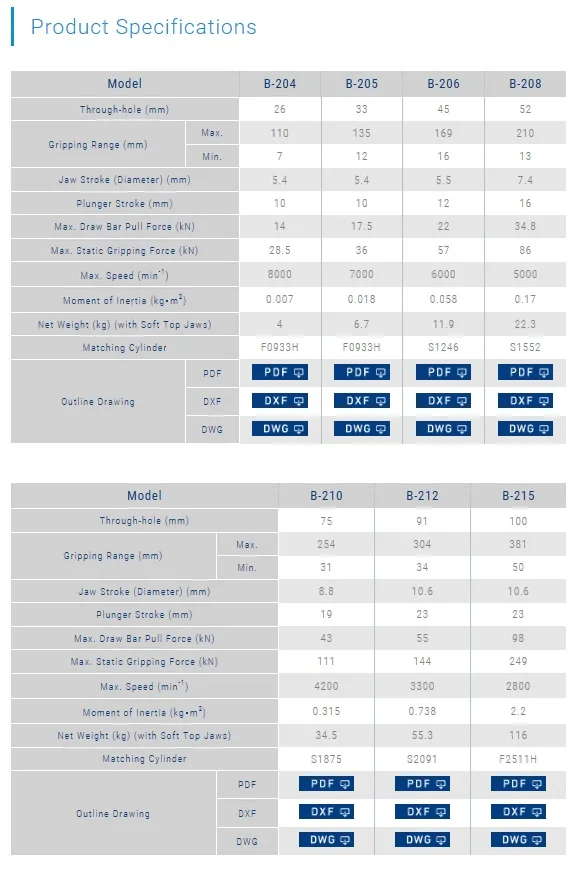

| Product Brand | Kitagawa Corporation |
| Model Number | b-200 |
| Material | Carbide |
| Place of Origin | Japan |
| Thru Hole mm | 26-100 |
| Gripping range mm | 7-381 |
| Jaw Stroke(diameter)mm | 5.4-106 |
| Plunger Stroke | 10-23 |
| Max. Draw Bar Pull Force | 14kn-98kn |
| Max. Gripping Force | 28.5kn-249kn |
| Max. Speed min-1 | 2800-800 |
| Net Weight with Soft top jaws | 4.0kg-116.0kg |
| Moment of inertia kg⋅m2 | 0.007-2.20 |

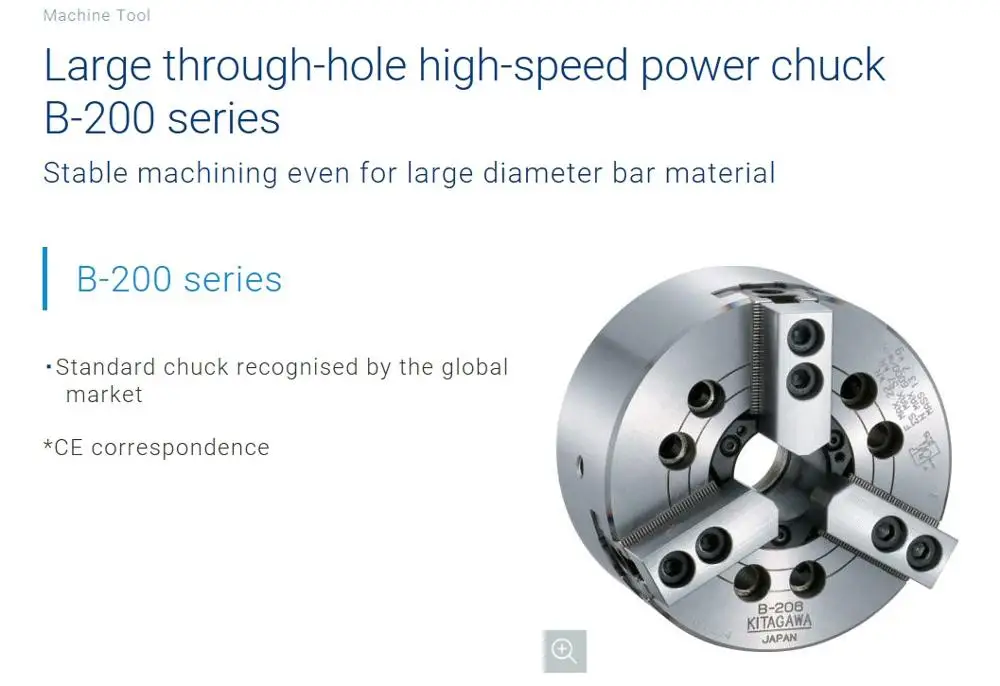

This product is Large Thru-Hole High Speed Power Chuck produced by Kitagawa Corporation.
This product is World Renowned Standard chuck.
Product feature
⋅Made in japan
⋅Long tool life
⋅Wedge type with large through hole
⋅Powerful grasp power
⋅Also supports high speed rotation
