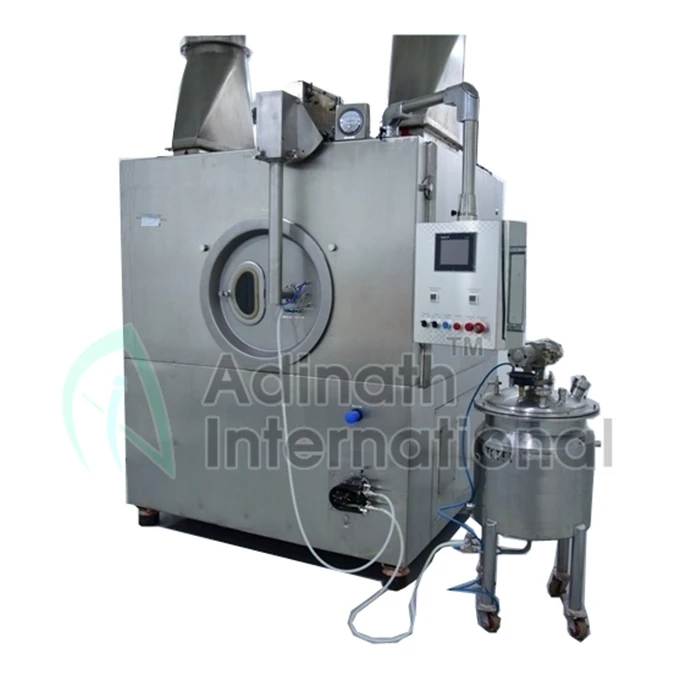

Tablet Coating System delivers completely controlled solution via spray guns to tablet surface. Machine designed to enable Manual or PLC based control system.The Inlet and Exhaust Air Handling Systems are integral part of Coatings Systems. As Tablet Coating becomes increasingly sophisticated, controlling air temperature, humidity and cleanliness within the Coating Machine is critical. As a result we have produced modular inlet and exhaust systems ranging from simple unit to a more advanced.
Coater is designed for the application of
Film coating with aqueous coating
Film coating with organic solvent (Needs FLP Construction)
Sugar coating

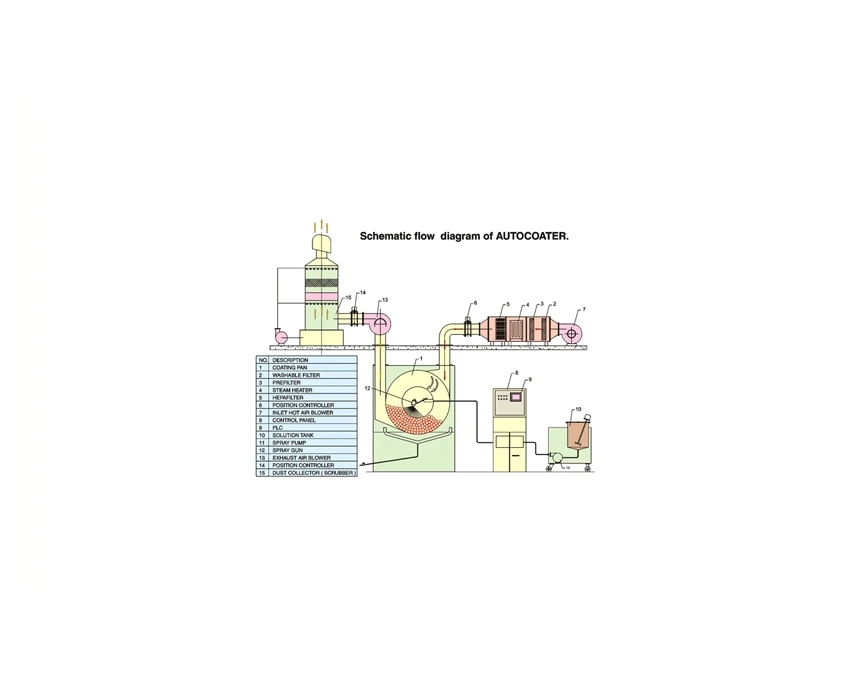

Schematic Diagram
Loading System
Special Features:-
Salient Features
Product contact parts are made from Stainless Steel corresponding to 316.
Variable Pan Speed.
Perforated pan with more than 55% opening for better quality finish.
4 nos. removable Rabbit-ear baffles provided.
Tablet discharging facility through special diverter assembly.
Stainless steel cover with a glass door for process visualization.
Stainless steel 304 sink at bottom of pan for collection of powder.
CIP System Including High Pressure Pump and Jet Nozzles.
PLC based control panel with colored touch screen HMI with Ethernet port for SCADA system (Optional)

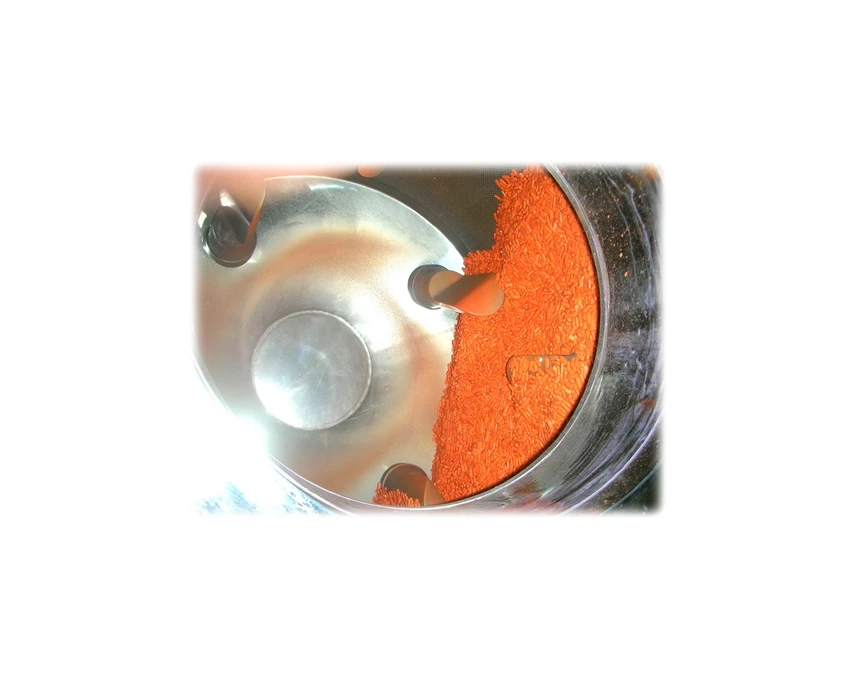

Pan

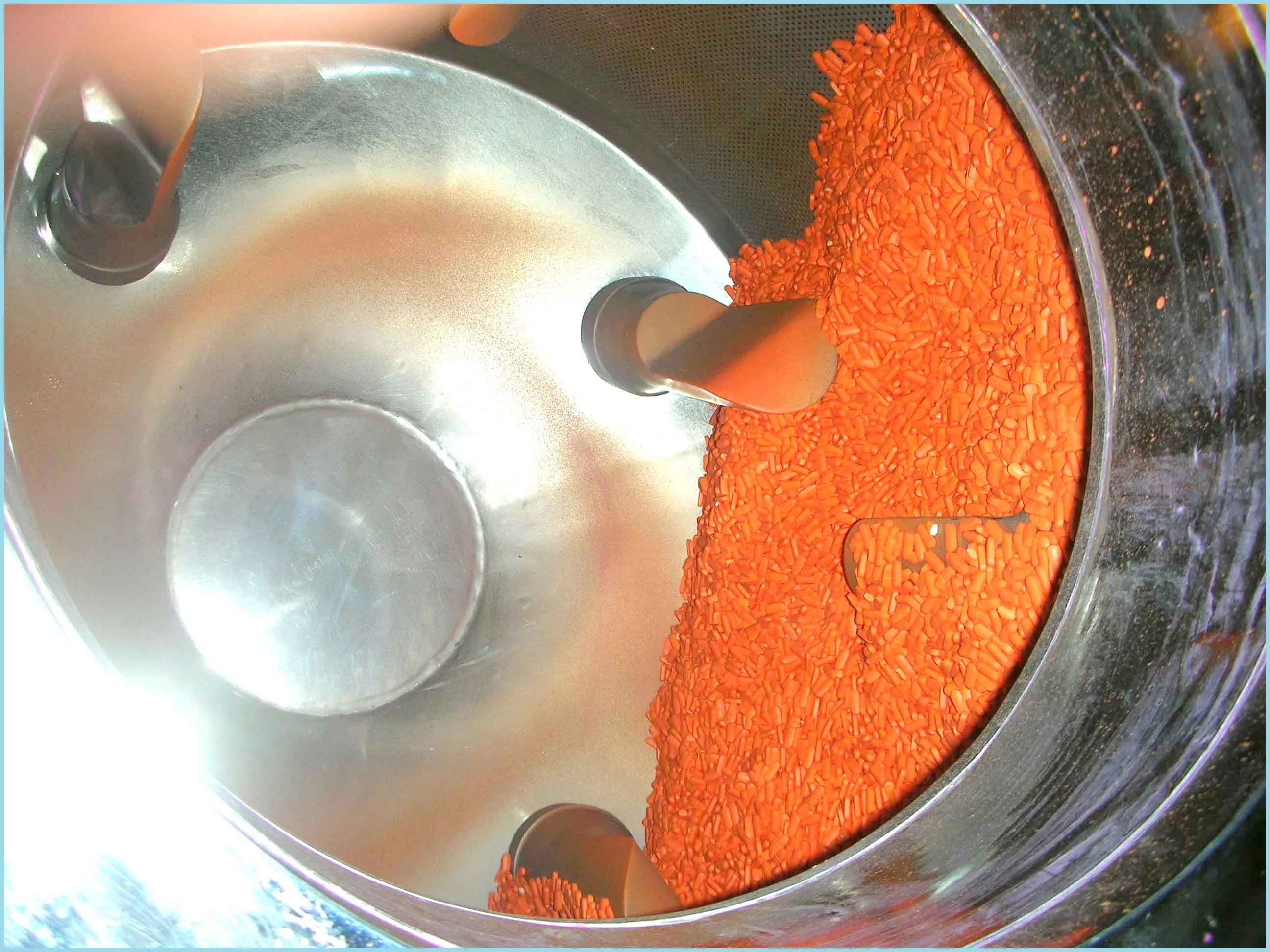

Perforated cylindrical pan with conical frustums at both ends. The front frustum is provided with a manhole sized mouth for loading/unloading of pan. The rear frustum is provided with a welded pad for mounting the drive shaft. The two conical frustums are also provided with 3 nos. each bolted, removable baffles.
Drive
The pan is provided with a mechanically variable speed drive arrangement through a motor, gear box and spur drive assembly. The variable speed is achieved through a cone pulley arrangement The pan is mounted on sturdy Plummer blocks at the back, in cantilever. Motors and electrical will be TEFC non ex proof construction (Ex proof can be offered as an option). suitable for 3 phase, 410 volts, 50 Hz. (Optionally other specification can be supplied)
Hot Air System
Hot Air System consists:
Inlet filter assembly, 2 stage with 5 & 15 microns, (3 Stage filtration including HEPA can be offered as an option)
Centrifugal Blower, suitable designed with 2800 RPM motor and dynamically balanced fan. Details of capacity as per table.
Heating assembly either through electrical heaters or steam coil. Heaters are controlled through sensors fixed in the duct line (inlet or outlet) or inside the tablet bed.
2 Dampers, one auto controlled for open & close positions, second manually controlled for varying the quantity of air.
Air plenum covering a part of the top right hand side of the pan, through which air is supplied to the pan.
Exhaust Air System
Exhaust Air System consist:
Outlet coarse filter. (2 stage with 5 & 15 microns, or 3 Stage filtration including Hepa can be offered as an option, scrubber option is also possible)
Centrifugal Blower, suitable designed with 2800 RPM motor and dynamically balanced fan. Details of capacity as per table.
2 Dampers, one auto controlled for open & close positions, second manually controlled for varying the quantity of air.
Air plenum covering the bottom left hand side of the pan, through which air is sucked out of the pan.

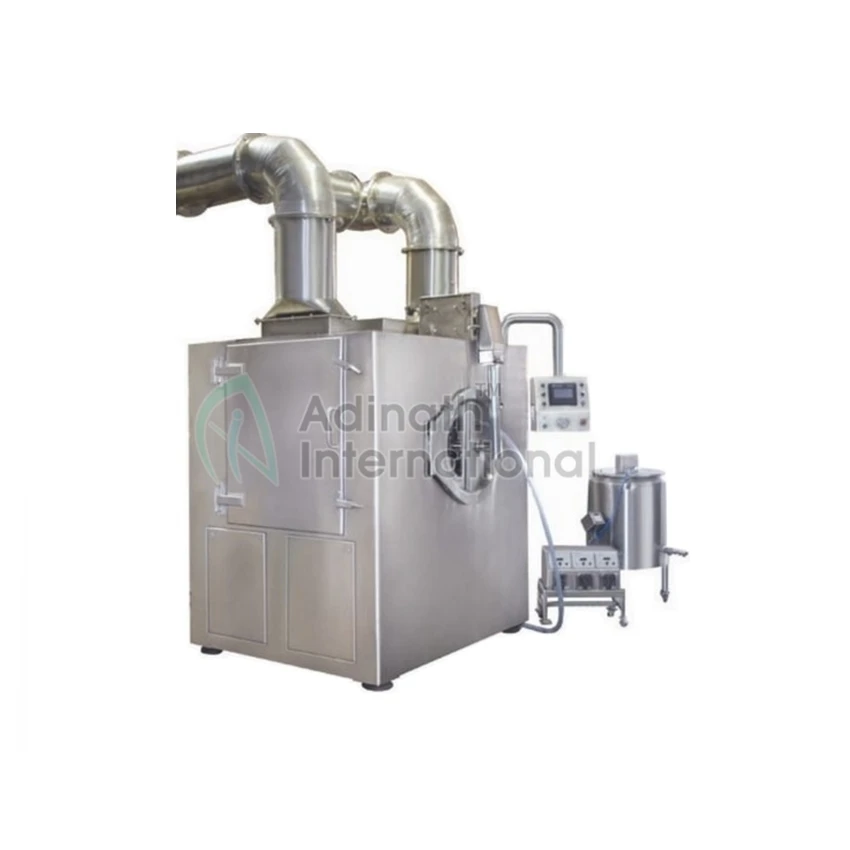

Spray System
Spray System consists of
Jacketed and pneumatically agitated solution holding vessel.
Peristaltic pump for solution transfer.
Spray gun for film coating.
Dosing system for sugar dosing.
Pneumatic system for spray control of solution
Interconnecting tubing for solution and air between the gun the solution tank and the pneumatic system
A retractable gun arm for mounting the guns inside the pan.

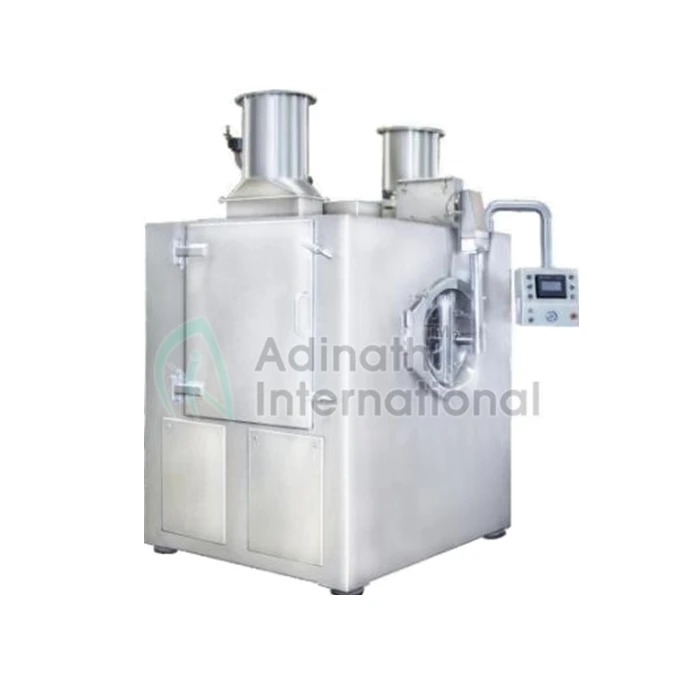

Mounting
The pan is mounted on a sturdy MS channel frame work. The mounting is buitt into two parts.
The lower part house the drive assembly.
The top is completely sealed and enclosed for negative air pressure.
The top is completed constructed in SS.
The top cabinet is provided with two side doors for access to the pan and plenums for cleaning.
The bottom of the pan is provided with a sink and drain for cleaning of the pan.
The front is provided with an air tight window for viewing the process.
Blowers are mounted inside the cabinet at the bottom or can be remotely mounted outside the room. Ducting between blowers and main unit to be in the client's scope.
Electrical Panel and peristaltic pump mounted separately by the side of the machine
Control System
The control system consists of
Electrical logic circuit for on/off of the motors, pneumatic controls, heater controls and logic control of the sequence
Pneumatic controls for the on/off spraying sequence.
PLC control, integrating the electrical and pneumatic circuit with timer and logic based sequence.
Interlocks for, 1) The three motor sequence 2) Air pressure interlock with spray system 3) Heater interlock with blower
Optional Automation Controls
We can provide wide range of Automation Controls for online process monitoring. We are providing here below details of available optional controls:
Steam Control Valve: Proportional Steam Control Valve consist of Electro-pneumatic transducer for Inlet Air Temperature Control Note: Valve does not include any accessories and mounting of valves
Chill Water Control Valve (De Humidification Valve): Proportional Chill Water Control Valve consist of Electro-pneumatic transducer for Inlet Air De Humidification control
Micro Vee Filter Maintenance Monitoring: Micro Vee Filter maintenance monitoring schedule via a differential pressure transmitter and log measurement via Graphical User Interface.
HEPA Filter Maintenance Monitoring: HEPA Filter maintenance monitoring schedule via a differential pressure transmitter and log measurement via Graphical User Interface.
Coating Pan Chamber Negative Pressure Monitoring: Coating Pan Chamber Negative Pressure monitoring schedule via a differential pressure transmitter and log measurement via Graphical User Interface
Silencer at Exhaust: We can also provide the silencer at exhaust
Air Velocity Measurement: Measurement of Air velocity via air velocity measurement sensor will be installed near the material processing chamber to achieve maximum process yield and to achieve maximum process accuracy, Air velocity sensor is capable of handling high temperature thermal drift.
Inlet Air Humidity Measurement: Measurement of Inlet Air Humidity via humidity measurement sensor will be installed near the material processing chamber to achieve maximum process yield and to achieve maximum process accuracy, Humidity sensor is capable of handling high temperature thermal drift.
Connectivity of SCADA System: Connectivity to SCADA System for third party interface or to connect the equipment on Central Supervisory Control and Data Acquisition System via RS 232 DF1 or Modbus or Ethernet connectivity. End user has to decide the connectivity option while ordering the Equipment.
Optional Accessories / Features
Dehumidification Coil
Wet Scrubber
DP Gauge for HEPA
RH Sensor
HEPA Filters
Sugar Dosing System
Air Handler bypass
Flameproof Constructions
Interchangeable Coating Pan
Control Valve with necessary Pipelines
WIP Spray Nozzles
Specification
Technical Specification
Models
AAC 12
AAC 24
AAC 36
AAC 48
Diameter of Pan
12”
24”
36”
48”
Pan Motor
0.5 H. P.
1 H. P.
2 H. P.
3 H. P.
Inlet Blower Motor
0.5 H. P.
1.5 H. P.
3 H. P.
5 H. P.
Exhaust Blower Motor
1 H. P.
2 H. P.
5 H. P.
7.5 H. P.
Peristaltic Pump Motor
0.5 H. P.
0.5 H. P.
0.5 H. P.
0.5 H. P.
Heaters K. W.
12 K. W.
12 K. W.
36 K. W.
60 K. W.
Inlet Air CFM
100 CFM
250 CFM
1200 CFM
2500 CFM
Exhaust Air CFM
150 CFM
450 CFM
1400 CFM
3000 CFM
No. of Nozzles
1 No.
1 No.
2 No.
3 No.
Solution Preparation Tank
15 Liters
25 Liters
50 Liters
100 Liters
Air @ 5kg/cm²
20 CFM
25 CFM
35 CFM
45 CFM
Overall Dimension
Length
1200mm
1200mm
1730mm
1975mm
Width
840mm
955mm
1480mm
1600mm
Height
1500mm
1535mm
1940mm
2120mm
Note: Power Voltage can be adjusted as per customer's domestic power voltage requirements.
* Rights of technical improvement & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
