VAuto Bi Level Machine BIPAP VPAP for Periodic Breathing Cheyne Stokes Respiration

Product Overview

Description

Title: VAuto Bi-Level Machine BIPAP VPAP for  Periodic Breathing  Cheyne-Stokes Respiration

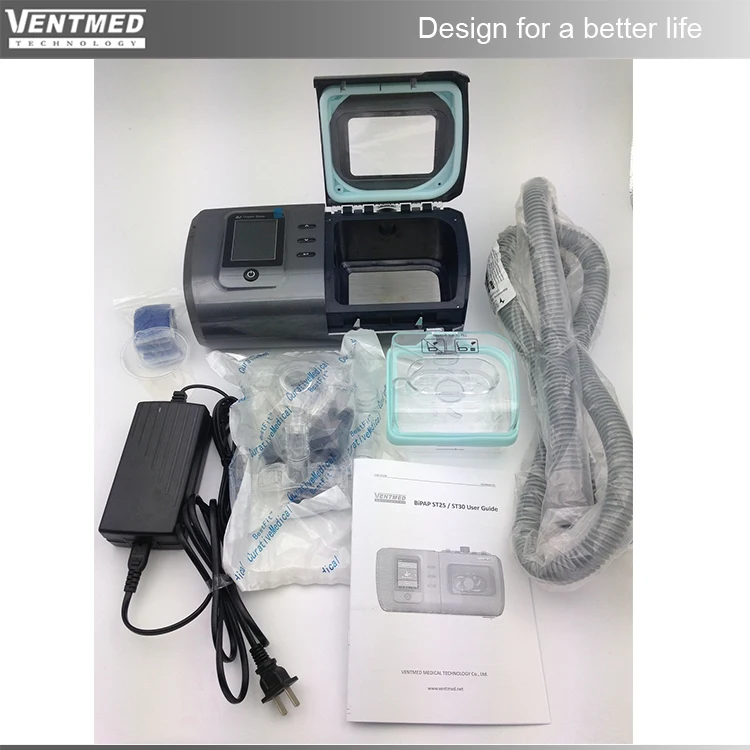

1.   The delivery parts for one set respirator includes:

(1). Respirator host

(2). Air tubing

(3). Mask

(4). Charger

(5). Water measuring cup

(6). 5 pieces of Filters for spare

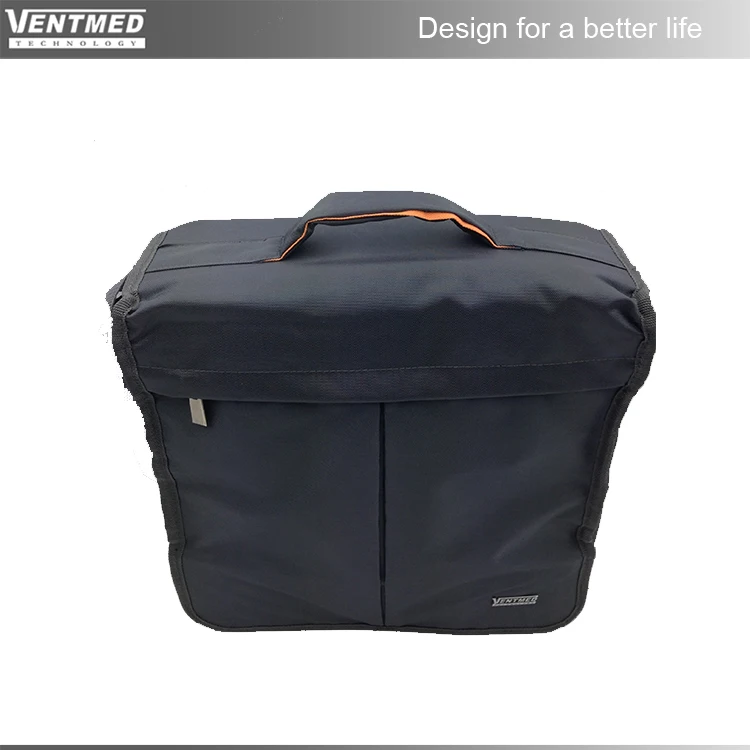

(7). Fabric travelling Bag for package

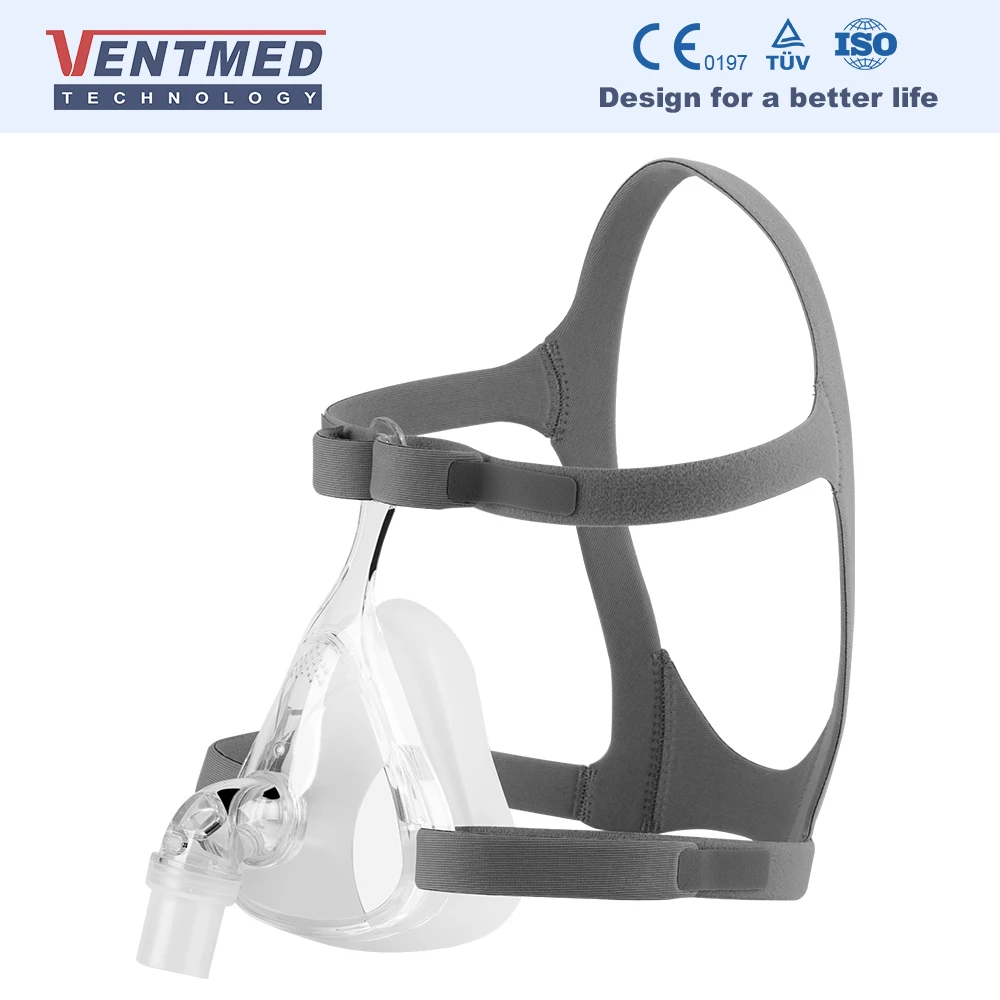

 Our standard mask of BiPAP is Full face mask, If you need to change mask type, please contact us!



2. Specifications:

BiPAP ST25 (Bi-Level Positive Airway Pressure) are designed for the treatment of adult Obstructive Sleep Apnea (OSA) /Central Sleep Apnea(CSA) / Hypopnea/ COPD(chronic obstructive pulmonary disease) /Snoring.



Screen:2.8 inch TFT, 320 x 240

Power Supply:  Input :100-240V, 50-60Hz, 2-1A        Output :+24V, 2.5A

IPAP: 4-25 cmH2O

EPAP:  4-20 cmH2O

Ramp Item:0-60min adjustable 1min/Step

Water Capacity:220ML max

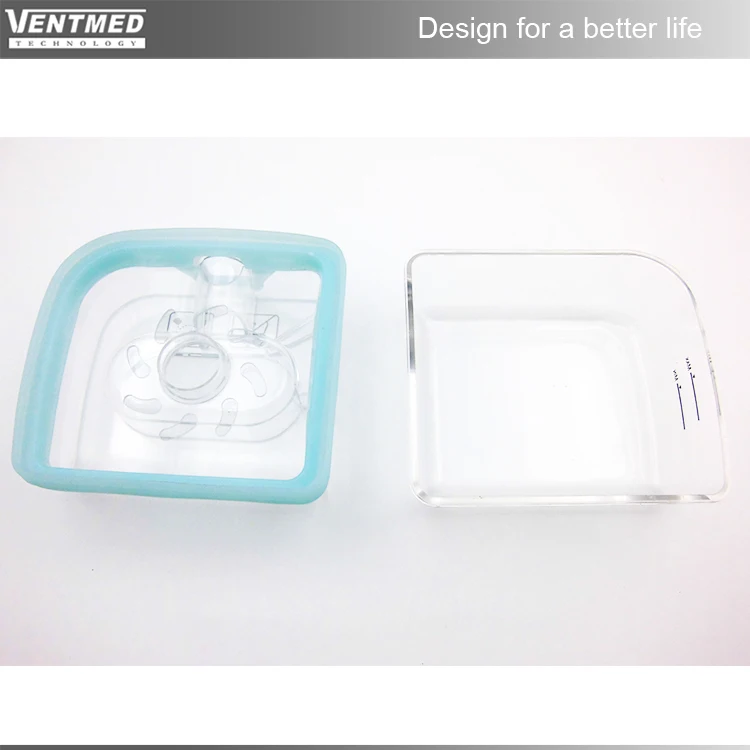

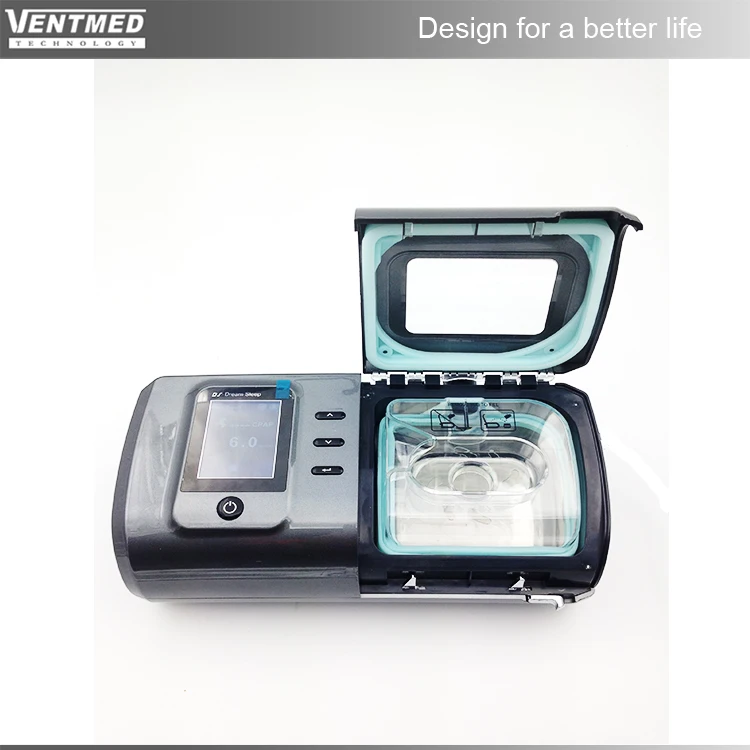

Humidifier: Integrated Heated Humidifier

Noise:  <28db

Mask Off Alarm:When mask is off, the machine will Beep till mask put on or power off.

Power Off Alarm:If power is off during the machine is working, the machine will make a warning sound over 30 seconds.



3.  Features

1. More than 20hr real time data and more than 1 year used records can be saved.

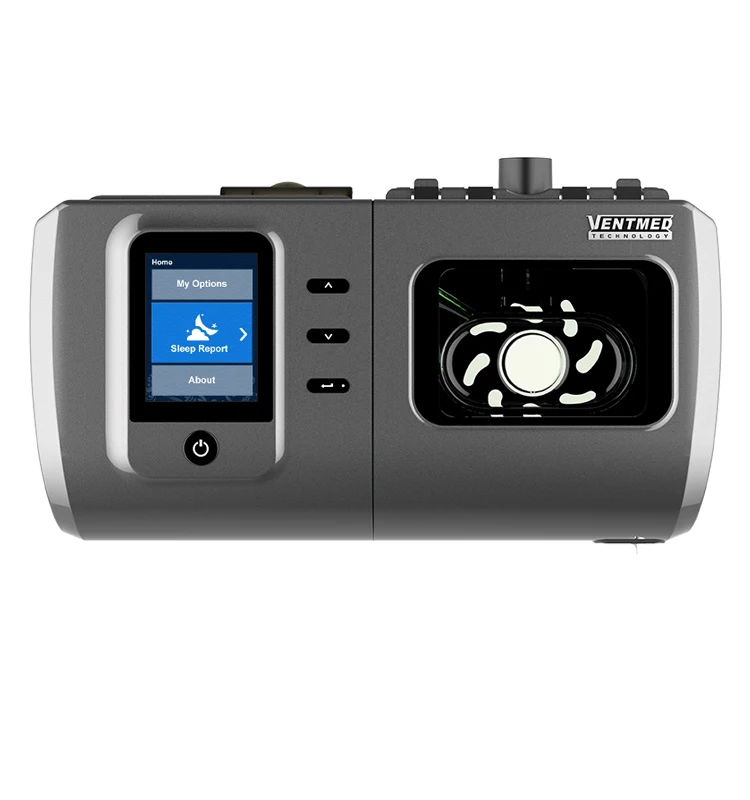

2. Huge display, 2.8” TFT Screen, show airflow and pressure on screen.

3. SD card for data communication.

4. With a unique algorithm, each pattern can be more intelligent.

5. The surface adopts high-end UV technology, dark grey appearance, fashionable and high-end style.

6. EPR(expiratory pressure relief).

7. Auto-Leak Compensation.

8. Auto-Altitude compensation.

9. Independent airflow channel.

10. Parameters lock: all the parameters cannot be changed after setting.

11. Multiple parameters can be set to make sleep more comfortable.



4.Why choose BiPAP mode?

Maybe some patients find the CPAP constant singular pressure difficult to exhale against. For patients with higher pressure strengths, exhaling against the incoming air can feel difficult, as if they're having to force their breathing out.



BiPAPs can also be set to include a breath timing feature that measures the amount of breaths per minute a person should be taking. If the time between breaths exceeds the set limit, the machine can force the person to breath by temporarily increasing the air pressure.



The main difference between BiPAP and CPAP machines is that BiPAP machines have two pressure settings: the prescribed pressure for inhalation (ipap), and a lower pressure for exhalation (epap). The dual settings allow the patient to get more air in and out of their lungs.



 Who Would Benefit from BiPAP Therapy?

• BiPAP machines are often prescribed to sleep apnea patients with high pressure settings or low oxygen levels.

• BiPAPs are often used after CPAP has failed to adequately treat certain patients.

• BiPAPs can be helpful for patients with cardiopulmonary disorders such as congestive heart failure.

• Often prescribed to people with lung disorders or certain neuromuscular disorders.
