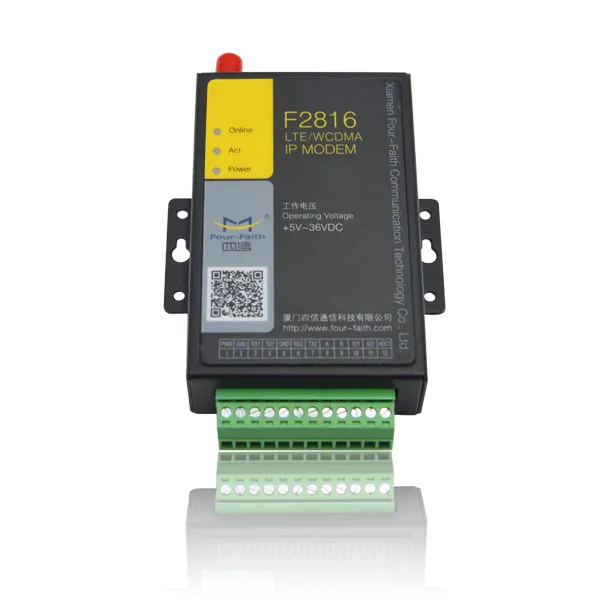

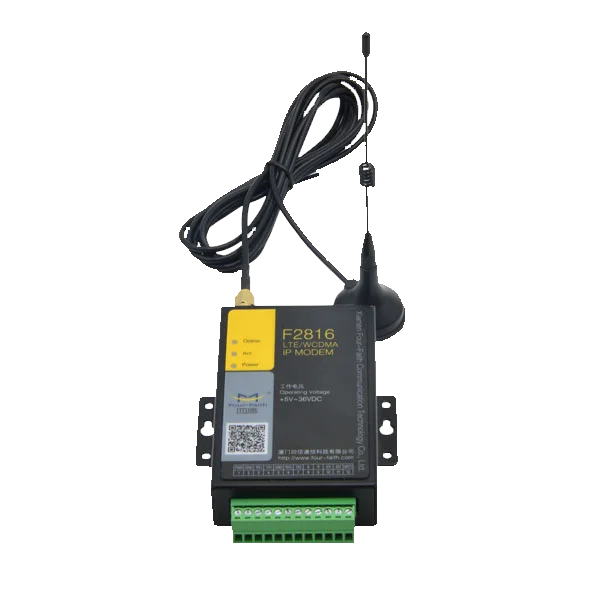

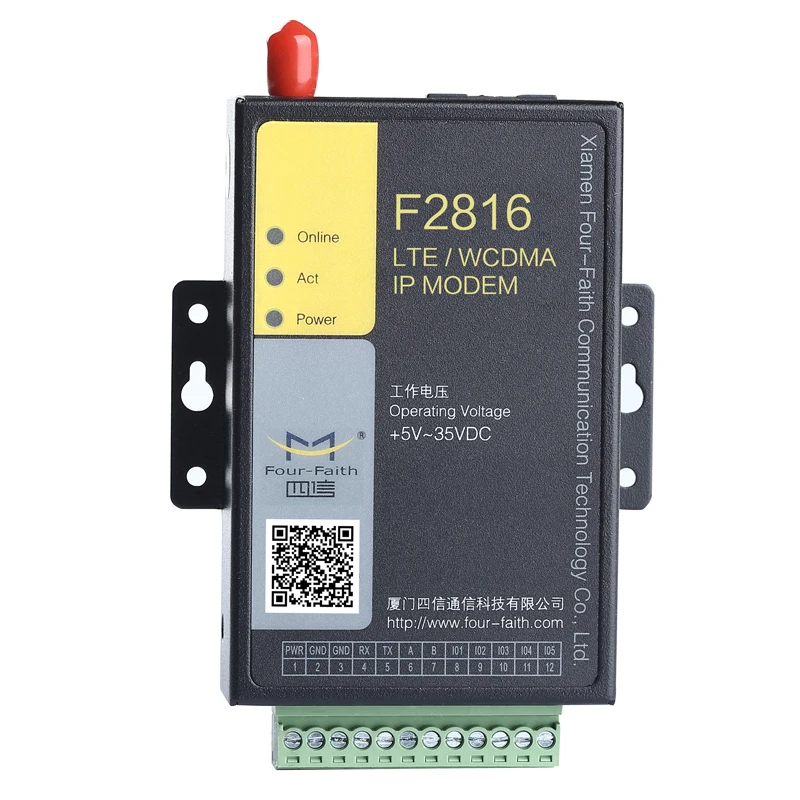

F2416 Electrical energy meter gprs gsm modem m2m 3g modbus i/o modem cellular gprs dtu modem
- Category: >>>
- Supplier: Xiamen Four-Faith Communication Technology Co. Ltd.
Share on (50043908483):
Product Overview
Description
F2416 Electrical energy meter gprs gsm modem m2m 3g modbus i/o modem cellular gprs dtu modem
Brief introduction:

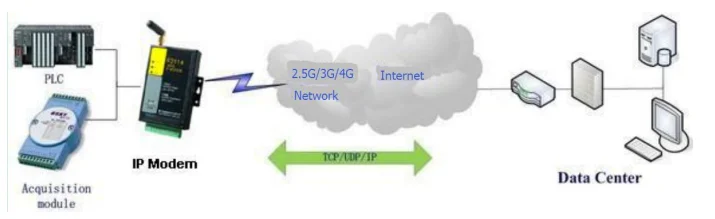

F2416 WCDMA IP MODEM is a kind of cellular terminal device that
provides data transfer function by public GPRS network.
It adopts high-powered industrial 32 bits CPU and embedded real time
operating system. It supports RS232 and RS485 (or RS422) port that can
conveniently and transparently connect one device to a cellular network,
allowing you to connect to your existing serial devices with only basic

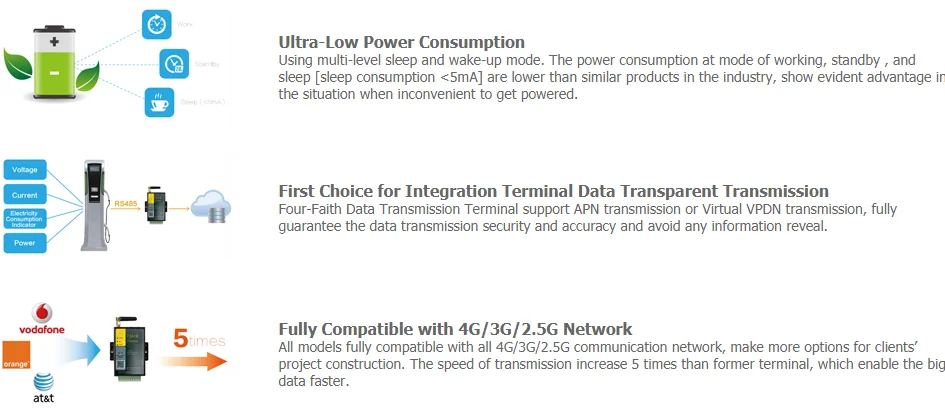

configuration. It has low power consumption states in which the power
consumption could be 1ower than 5mA@12VDC. It has compatible digital
I/O channel, ADC, input pulse counter and pulse wave output function.
It has been widely used on M2M fields, such as intelligent
transportation, smart grid, industrial automation, telemetry, finance, POS,
water supply, environment protection, post, weather, and so on.
Specification
Cellular Specification
| Item | Content |
| Cellular Module | Industrial cellular module |
| Standard and Band | UMTS/WCDMA/HSDPA/HSUPA 850/1900/2100MHz, 850/900/1900/2100MHz(optional) GSM850/900/1800/1900MHz WCDMA/HSDPA/HSUPA/EDGE CLASS 12 |
| Bandwidth | HSDPA:7.2Mbps(DL),HSUPA:5.76Mbps(UL) UMTS:384Kbps (DL), 384Kbps (UL) |
| TX power | <24dBm |
| RX sensitivity | <-109dBm |
Hardware System
| Item | Content |
| CPU | Industrial 32 bits CPU |
| FLASH | 512KB (Extendable) |
| SRAM | 256KB |
Interface Type
| Item | Content |
| Serial | 2 RS232 port and 1 RS485(orRS422) port, 15KV ESD protection Data bits: 5, 6 ,7, 8 Stop bits: 1, 1.5, 2 Parity: none, even, odd, space, mark Baud rate: 110~230400 bps |
| Indicator | "Power", "ACT", "Online" |

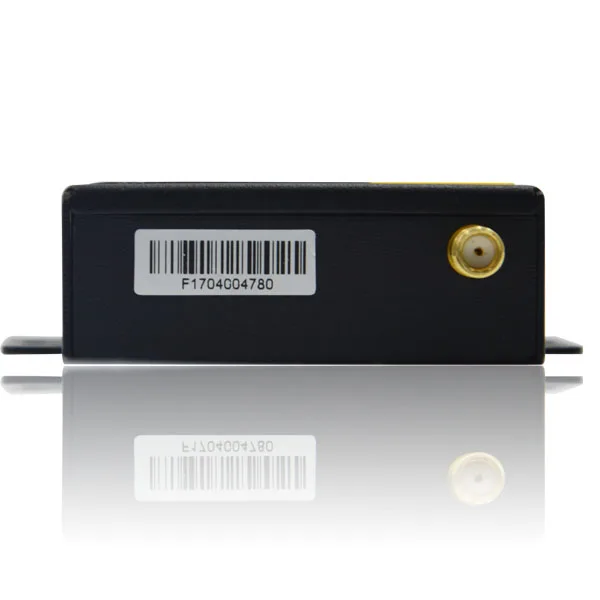

| Antenna | Standard SMA female interface, 50 ohm, lighting protection(optional) |
| SIM/UIM | Standard 3V/1.8V user card interface, 15KV ESD protection |
| Power | Terminal block interface, reverse-voltage and overvoltage protection |
Power Input
| Item | Content |
| Standard Power | DC 12V/0.5A |
| Power Range | DC 5~36V |
Power Consumption
| Working States | Power Consumption |
| Communication | 95~165mA@12VDC 205~365mA@5VDC |
| Standby | 40~50mA@12VDC 80~100mA@5VDC |
| Sleep | 5mA@12VDC 6mA@5VDC |
Physical Characteristics
| Item | Content |
| Housing | Iron, providing IP30 protection |
| Dimensions | 91x58.5x22 mm |
| Weight | 205g |
Environmental Limits
| Item | Content |
| Operating Temperature | -35~+75ºC (-22~+167℉) |
| Storage Temperature | -40~+85ºC (-40~+185℉) |
| Operating Humidity | 95% ( unfreezing) |
