Sand pumping equipment sea sand dredger for sale
- Category: >>>
- Supplier: Qingzhou Dingke Machinery Equipment Co. Ltd.
Share on (50044021291):
Product Overview
Description
Product Description

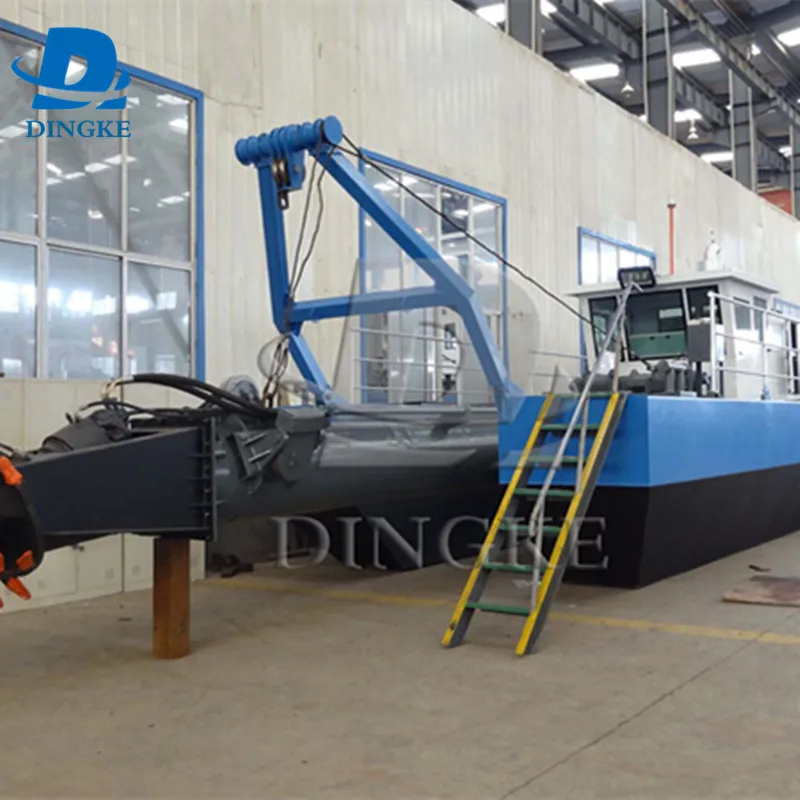

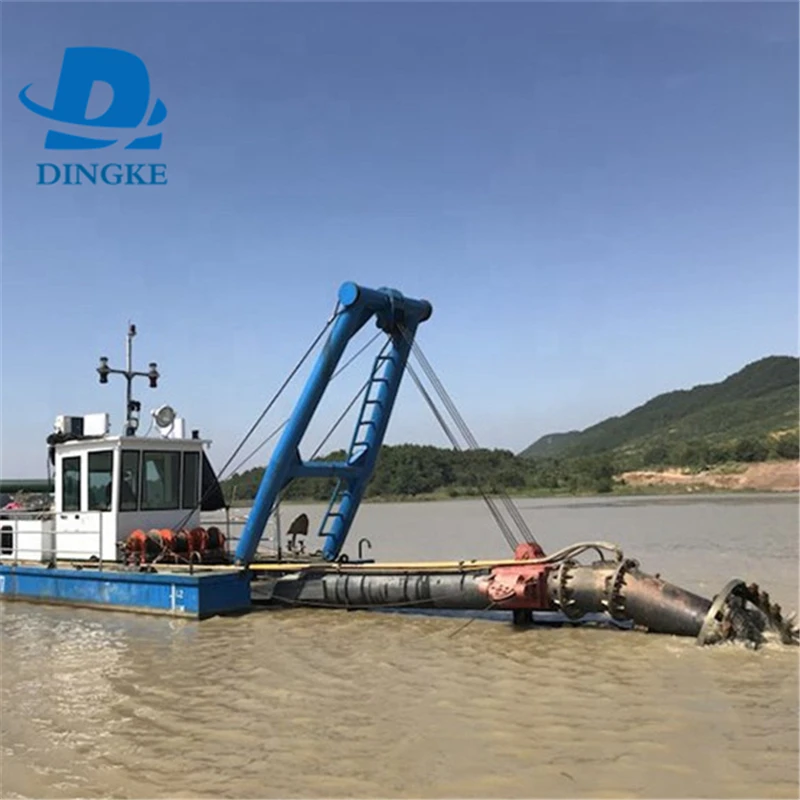

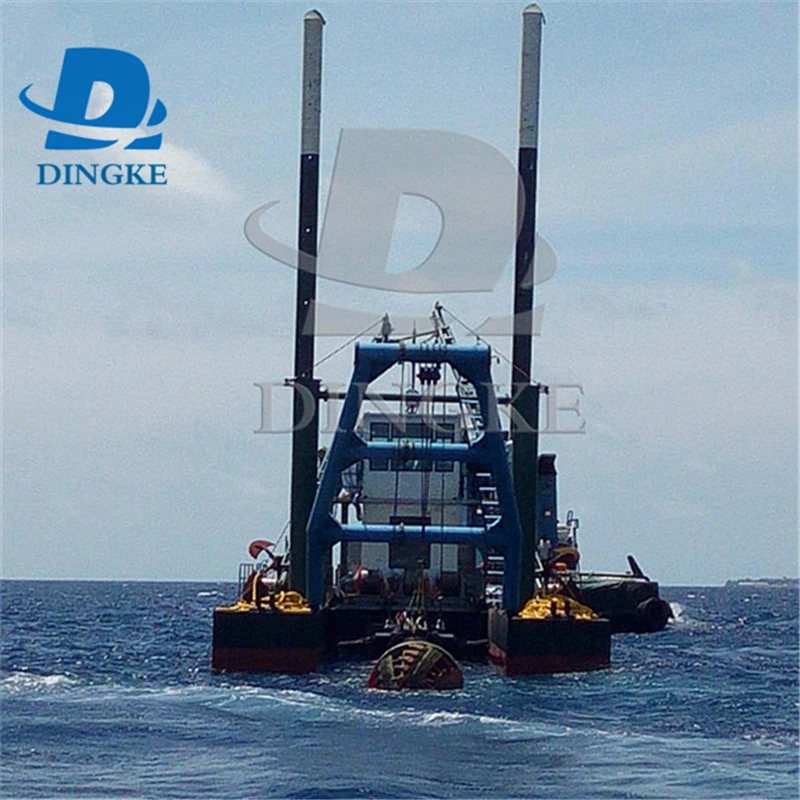

Sand pumping equipment sea sand dredger for sale
For over 10 years the company has been focusing its expertise on the design and manufacture of customized cutter suction dredges of all sizes and applications for the dredging markets. DKVT Dredge units are in use throughout the world in construction, environmental,mining,navigational,recreational,restoration and specialty applications.
Since every application has unique characteristics, DKVT Dredge has developed its specialization in customizing standard dredge platforms to meet the challenges of each customer.
Dredging Supply Company's DKVT Class Deep Mining dredge was designed to meet the needs of deep mining deposits as and efficient tool to excavate materials. With discharge sizes ranging from 8 inch to 24 inch, the DKVT offers an array of production ranges and flow conditions. Since each DKVT is designed specifically for particular deposit, the digging depths can range from 30 feet to 120 feet.
Detailed information
A.Main Parameters
1.Main Scales:
Overall length:23.50m
Hull length:16.00m
Hull width:6.10m
Hull depth:1.85m
Total weight:58T
Suction/discharge pipe dia:450/400mm
2.Main parts characters
2.1.Sand pump diesel engine(one set)
Model:Caterpillar 3412E
Power(Max):485kw(660HP)
Speed:1800r/min
(Also can use the Cummins KTA19,522KW,700hp,2100r/min)
( low power,high market share,excellent after-sale service)
KW | Motor | Speed | Fuel oil deplete L/hr g/hr | Power |
522 | 700 | 2100 | 132.8 35.1 | MCD |
2.2.Sand Pump (one set)
Model:14/14G-G
Maker:Shijiazhuang Pump Group
Clean Water flux(Q):1600m³/hr
Pump lift(H):52m
Speed(n):600-700r/min
2.3.Cutter Diesel Engine
Model:Cummins NT855
Power:145kw
Speed:1800r/min
KW | Motor | Speed | Fuel oil deplete L/hr g/hr | Power |
145 | 195 | 1800 | 40.6 10.7 | CON |

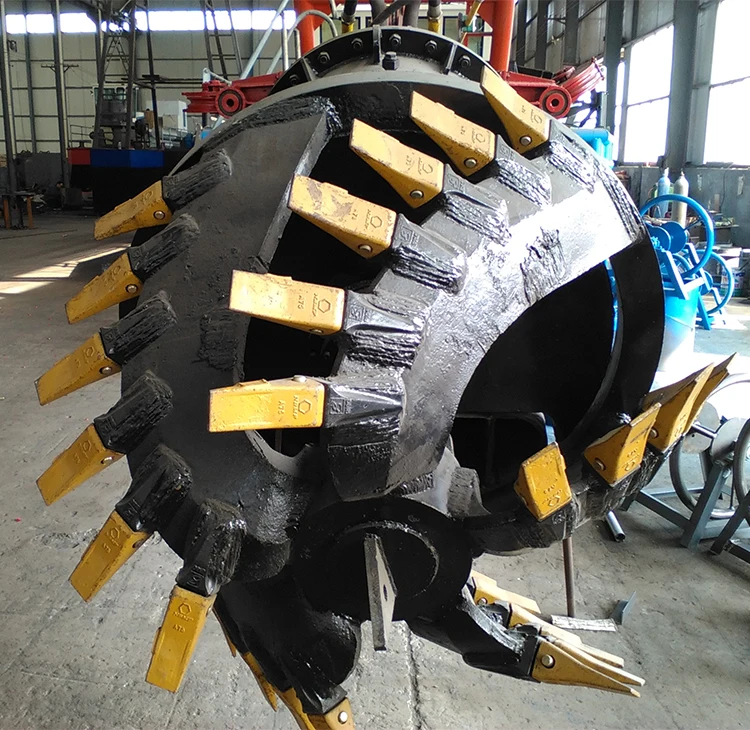

2.4.Cutter(one set)
Model:φ1000
Maker:Our factory
Diameter:1000mm
Power:75kw
Max speed: First speed about 11r/min
Second speed about 23r/min
Third speed about 33r/min
About us

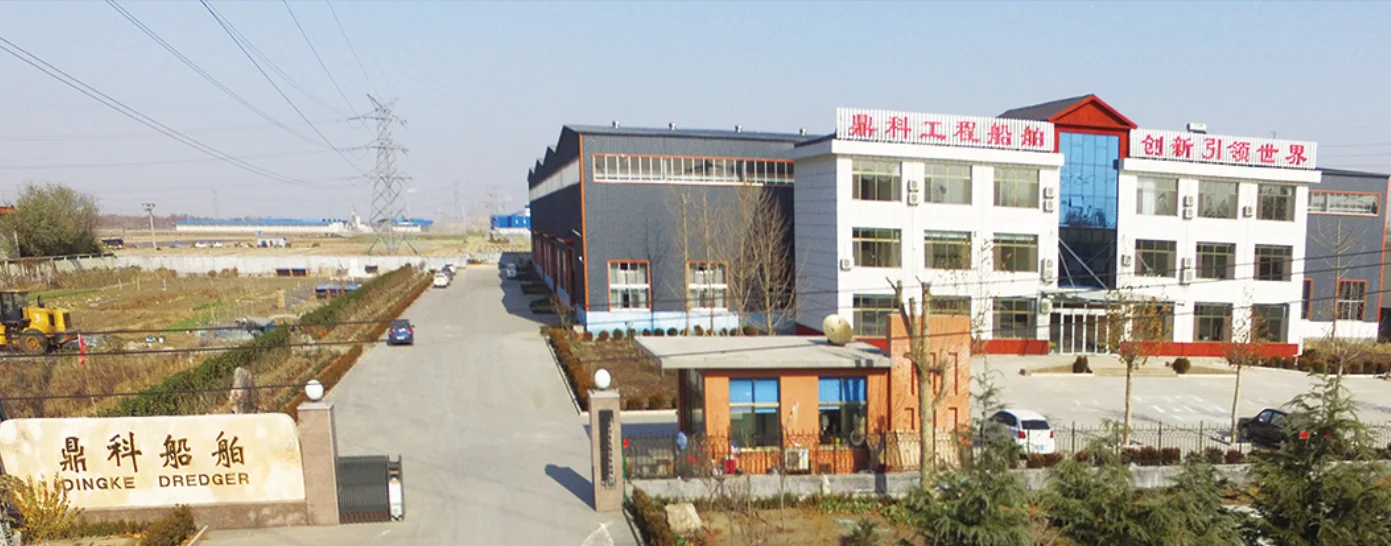

Qingzhou Dingke Machinery Equipment Co.,Ltd, was established in 2003, a leading manufacturer of cutter suction dredger in China, and has established long cooperation relationship with navigation bureau, ship design institutes.
Our main products: Cutter suction dredger, cube wheel dredger, gold mining machine, and all the sand or gold ming equipment. Our equipments are highly accepted by the clients from all over the world.
