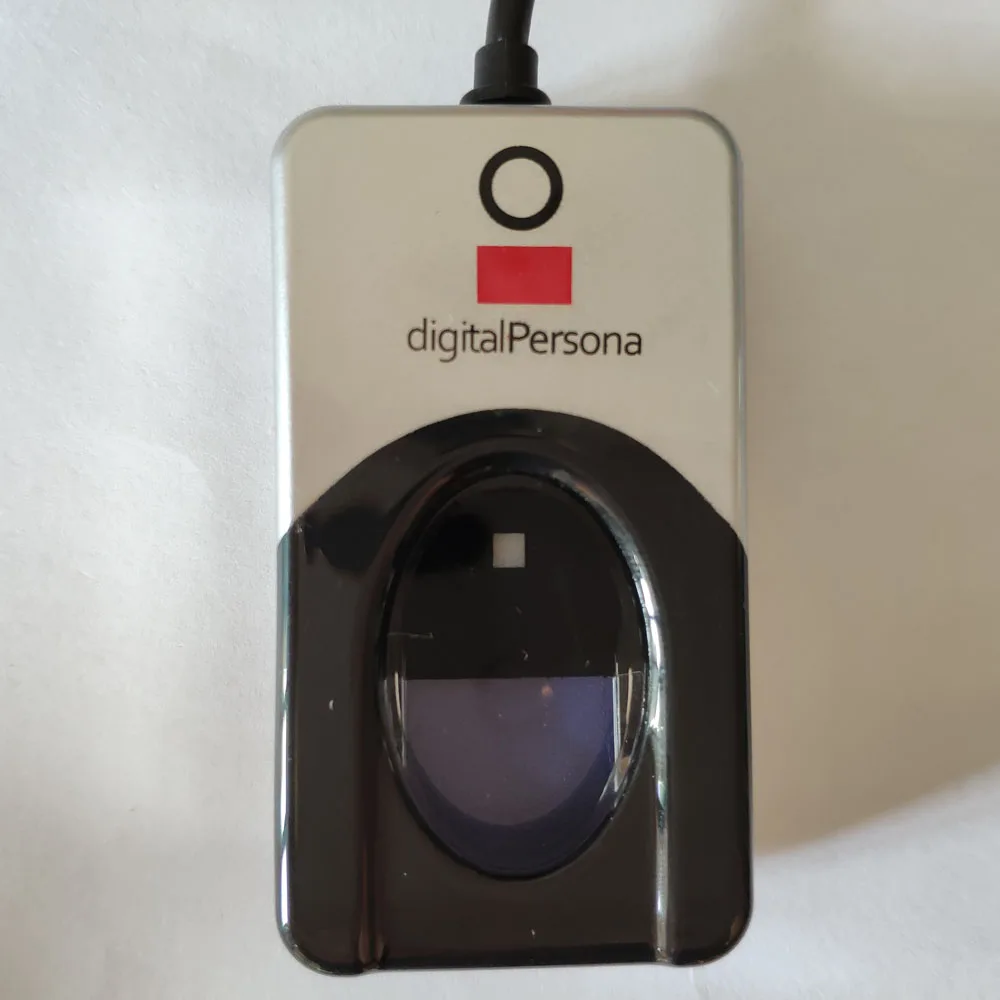

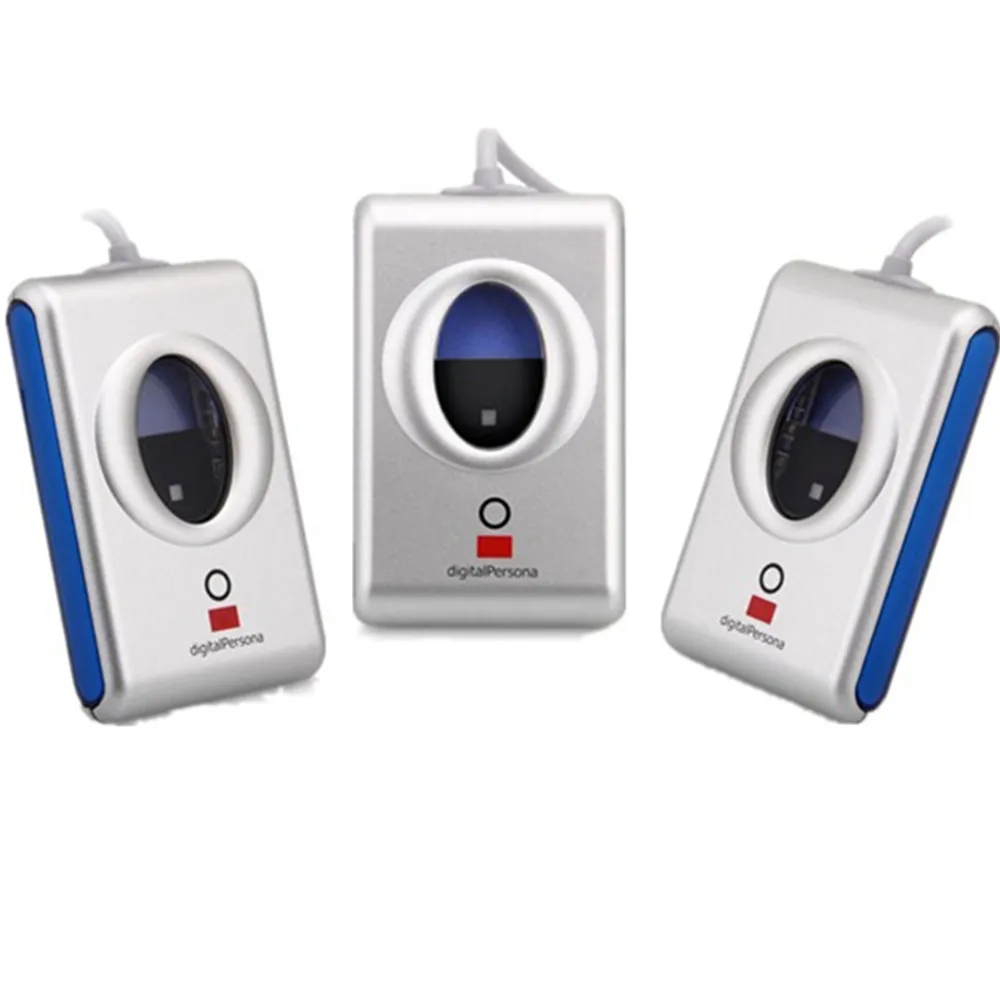

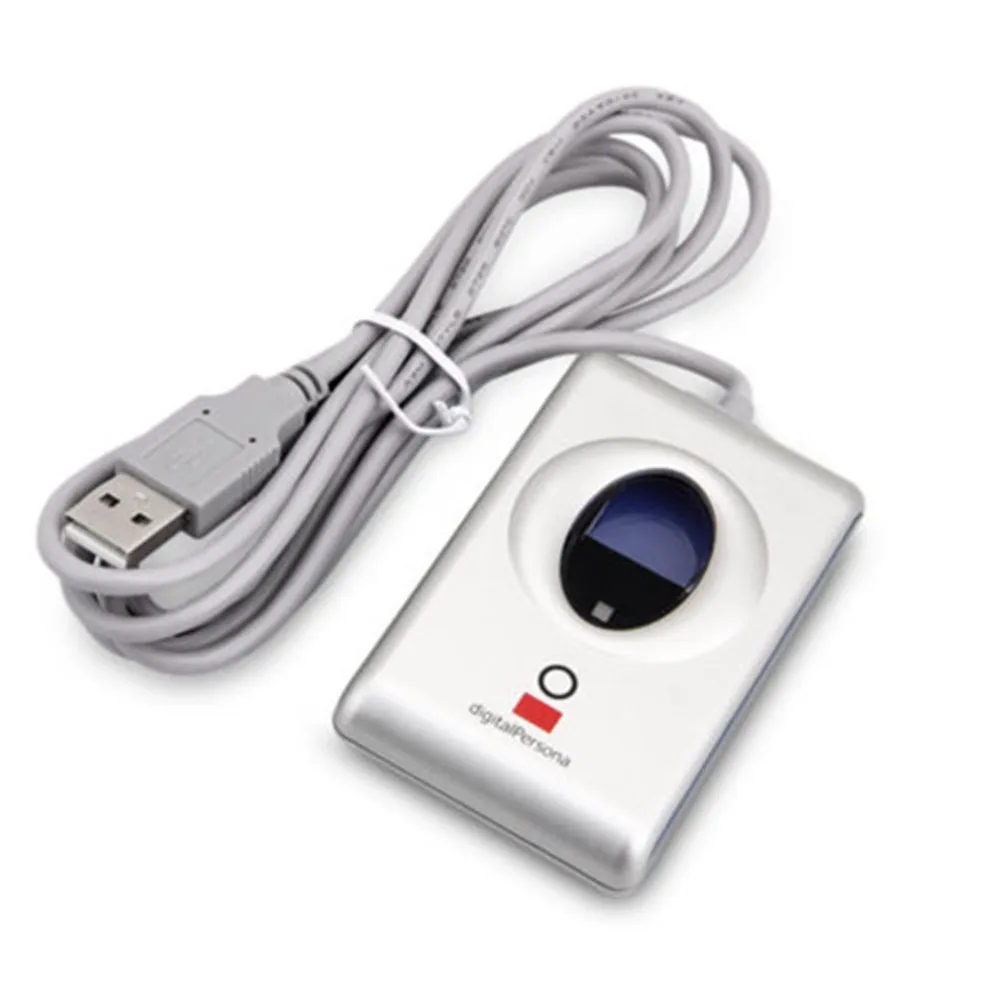

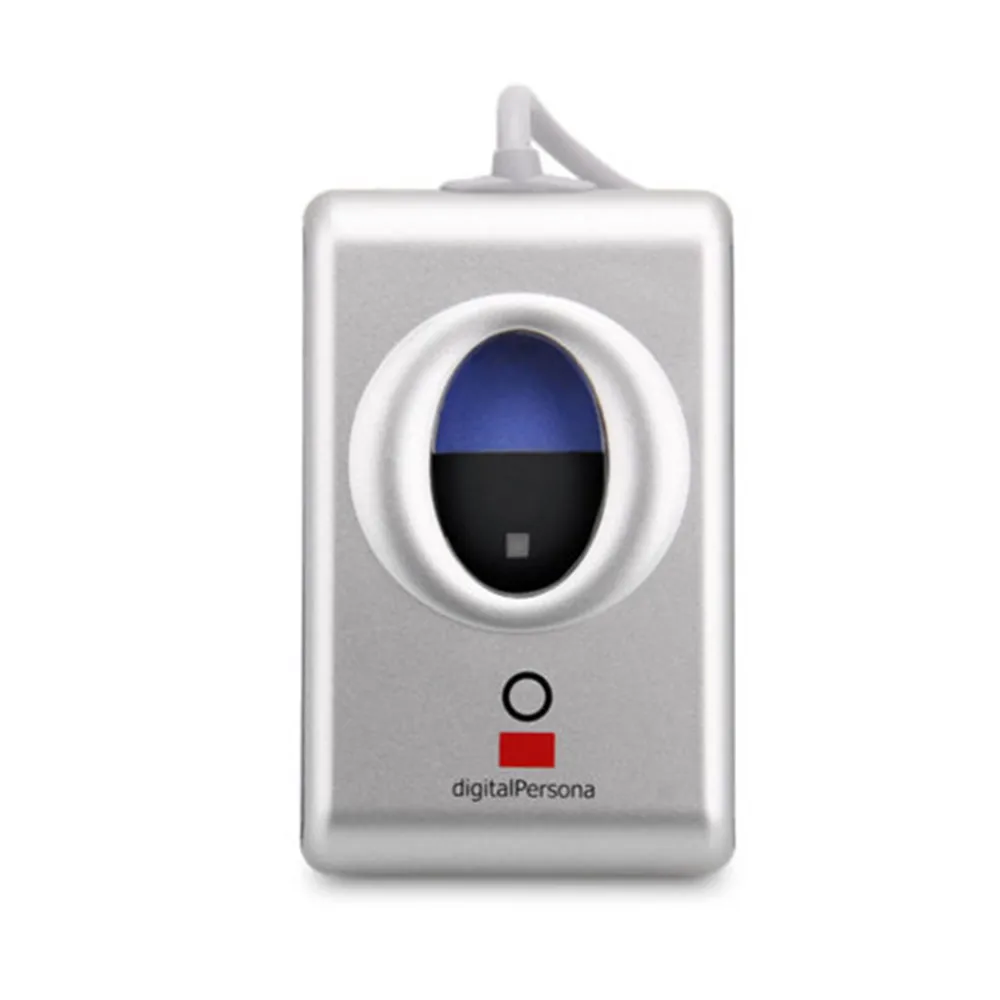

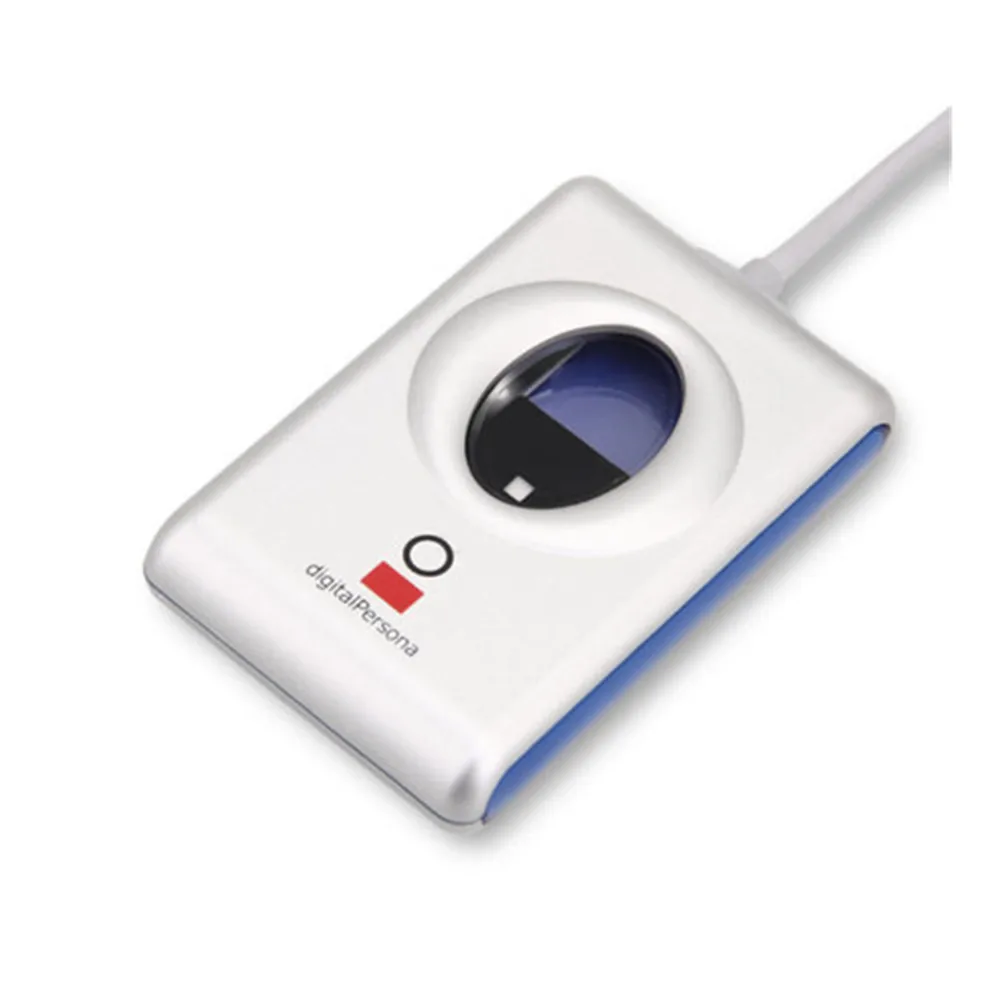

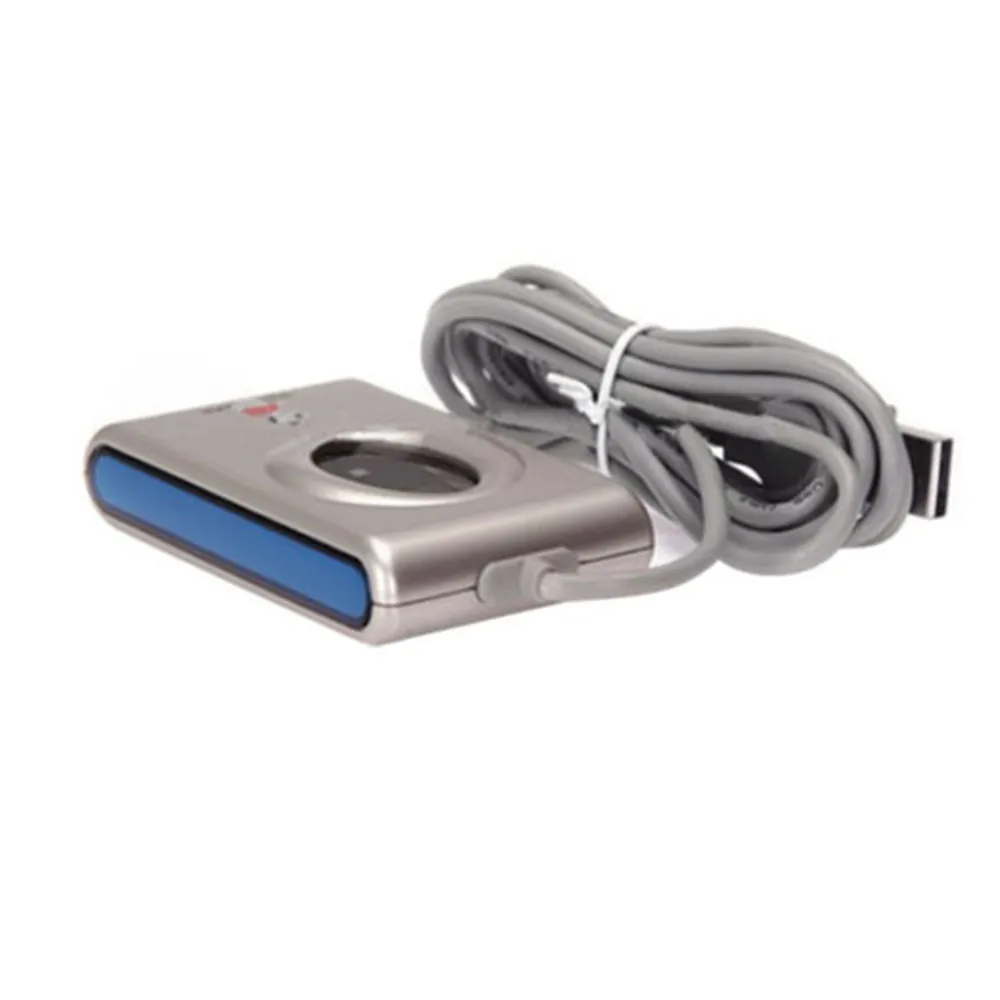

Digital Persona USB Biometric fingerprint scanner URU4000b with free SDK

The U.are.U 4000B is a USB fingerprint reader designed for use with Digital Persona, Inc.s enterprise software applications and developer tools.

The user simply places their finger on the glowing reader window, and the reader quickly and automatically scans the fingerprint. On-board electronics calibrate the reader and encrypt the scanned data before sending it over the USB interface.

Digital Persona readers utilize optical fingerprint scanning technology to get excellent image quality, a large capture area and superior reliability. The U.are.U 4000B Reader and Digital Persona® Fingerprint Recognition Engine have an unmatched ability to authenticate even the most difficult fingerprints accurately and rapidly regardless of placement angle.

The U.are.U 4000b Reader can be purchased with Digital Persona Pro Workstation, Digital Persona Pro Kiosk, Digital Persona Online or Digital Persona Integrator packages. Whether you are an enterprise customer or a system integrator, Digital Personas fingerprint authentication solutions can provide a natural extension to your security system and applications.

Interface\tUSB 2.0

Supported OS\tMicrosoft Windows(32-bit and 64-bit)

Resolution\t700 dpi

Image capture area(platen size)\t15x18 mm

Sensor type\tOptical

Illumination\tRed LED

Device size\t79x49x19mm

Device weight (with cable)\t80g

Supply voltage\t5.0V ±5% supplied by USB

Supply current scanning\t200 mA (Typical)

Supply current idle mode\t120 mA (Typical)

Supply current suspend mode\t2 mA (Maximum)

ESD susceptibility\t>15 kV, mounted in case

Operating temperature\t0 - 40°C

Operating humidity\t20% - 80% non-condensing

Storage temperature\t-10 - 60 °C

Storage humidity\t20% - 90% non-condensing

Scan data\t8-bit grayscale

Standards compliance\tFCC Class B, CE, ICES, BSMI, MIC, USB, WHQL
