JPMX 503ESK Hydraulic Copper Busbar Cutting Punching Bending Machine
- Category: Busbar Machine >>>
- Supplier: Jinan Jingpeng Cnc Machinery Co. Ltd.
Share on (50044086831):
Product Overview
Description
JPMX-503ESK Hydraulic Copper Busbar Cutting Bending Machine for Transformer
Product Description
This series JPMX-503ESK Hydraulic Copper Busbar Cutting Bending Machine for Transformer has three units:punching, shearing and bending.It is easily to adjust each unit to shorten the processing time and improve the production efficiency. It is used to process copper and aluminum busbars in different specification.
Processing material:
Brass/Copper and Alumimum Busbar.
Functions:

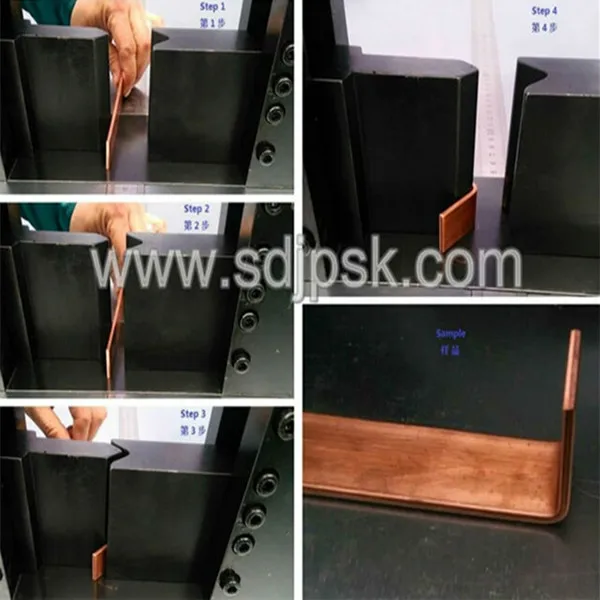

1. Bending at vertical and horizontal direction.
2. Punching for round and oblong hole.
3. Cutting busbar.

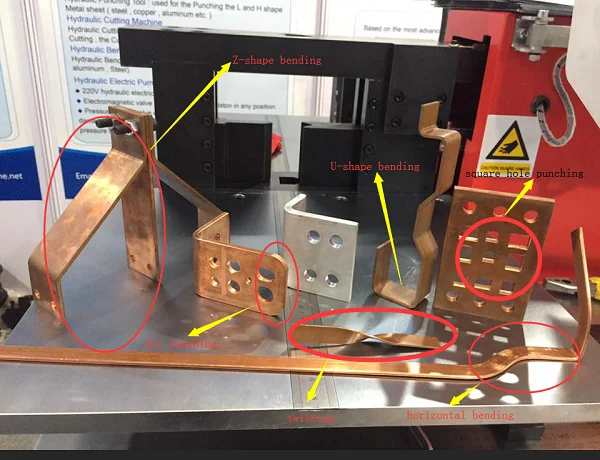

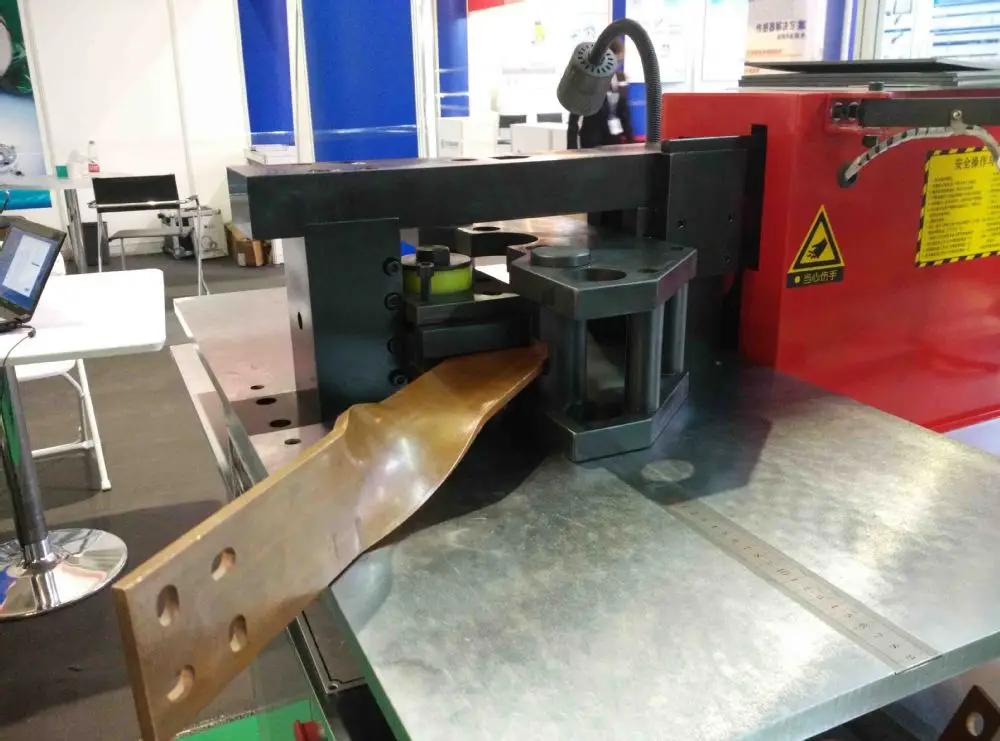

4. Special for embossing, knurling, twisting, cable joints pressing.
View Machine Video on YOUTUBE: https://www.youtube.com/watch?v=GBgzK5KbDuE
Detailed Images

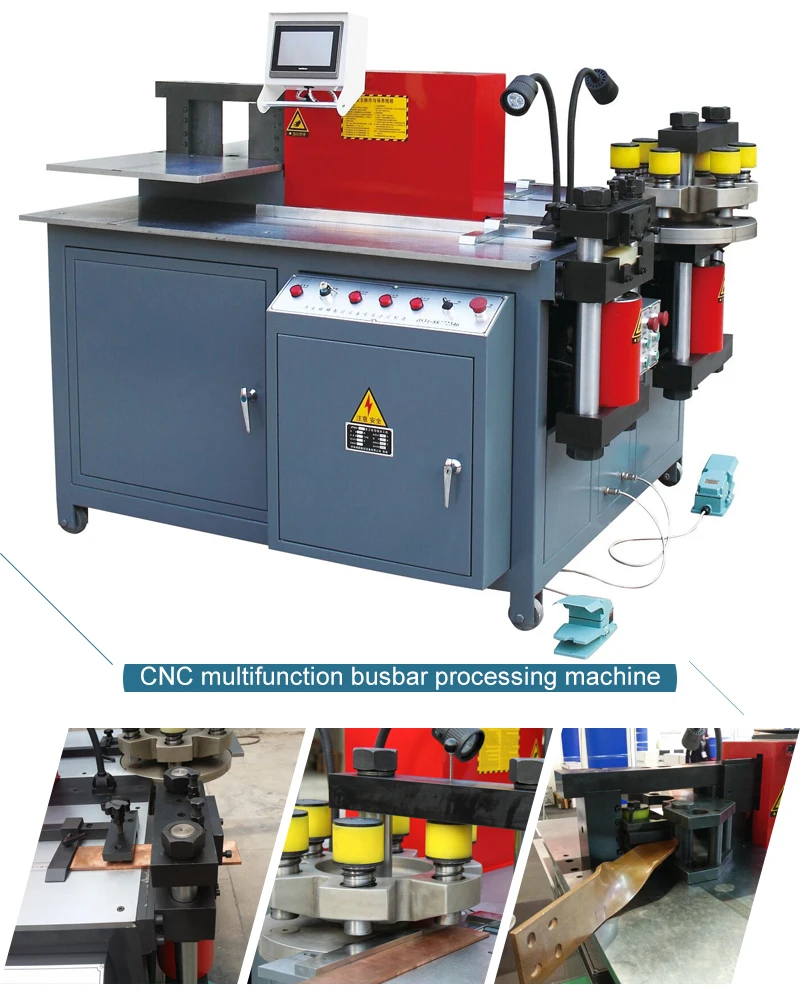

Three working units of JPMX-503ESK Hydraulic Copper Busbar Cutting Bending Machine for Transformer

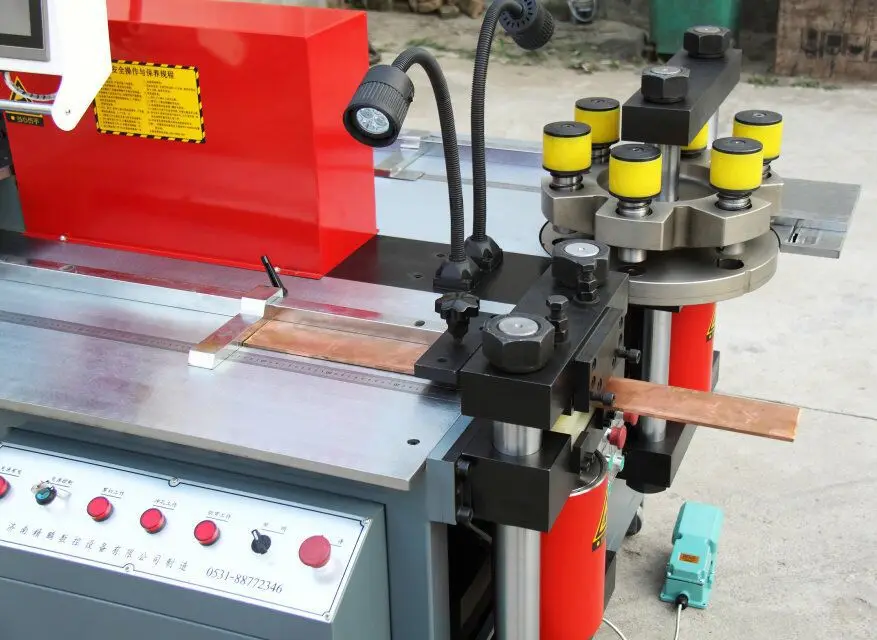

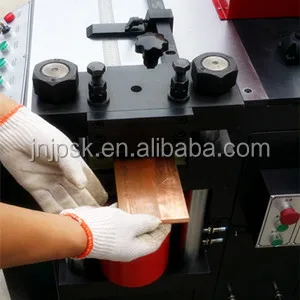

Cutting unit
Bending unit
Punching unit
Detailed Parameters
Function | Content | Unit | Parameter | |
JPMX-303ESK | JPMX-503ESK | |||
Punching | Max. force | KN | 300 | 500 |
Diameter range | mm | 4.3 ~ 25 | 4.3 ~ 34 | |
Max. thickness | mm | 12 | 16 | |
Max. width | mm | 150 | 250 | |
Mold No. | PCS | 6 | 6 | |
Shearing/Cutting/Slitting | Max. thickness | mm | 12 | 16 |
Max. width | mm | 150 | 250 | |
Horizontal bending | Max. strength | KN | 300 | 500 |
Max. width | mm | 150 | 250 | |
Max. thickness | mm | 12 | 16 | |
Bending accuracy | Degree | ±1 | ±1 | |
Relocation accuracy | Degree | ±0.3 | ±0.3 | |
Decker no. | PCS | 2 | 2 | |
Vertical bending | Max. thickness | mm | 10 | 10 |
Max. width | mm | 100 | 120 | |
Min. angle | Degree | 90 | 90 | |
Other | Machine size | mm | 1750*1350*1420 | 1850*1500*1600 |
Power motor | KW | 3 * 4 | 3 * 5.5 | |
Weight | KG | 1350 | 1950 | |
Trundle | PCS | 4 | 4 | |
Accessories of JPMX-503ESK Hydraulic Copper Busbar Cutting Bending Machine for Transformer:

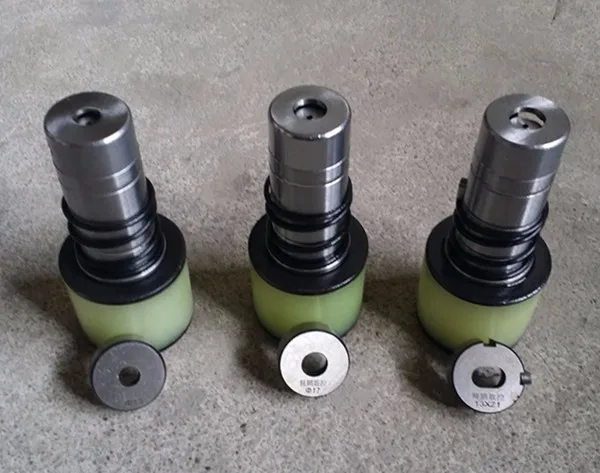

8 sets of punching die. (Ø7, Ø9, Ø11, Ø13, Ø15, Ø17, Ø13 * 18, Ø17 * 21 or as per customer's requirement)
1 set of shearing die
2 sets of horizontal bending die
2 sets of vertical bending die
1 set of embossing die
1 set of U bending die
1 set of oil filler
1 set of tool for die installing
3 sets of foot switches
1 set of hydraulic system sealing ring
2 pieces of Limit Switch
1 piece punching location pin.
Samples of JPMX-503ESK Hydraulic Copper Busbar Cutting Bending Machine for Transformer:
Applicable Industry

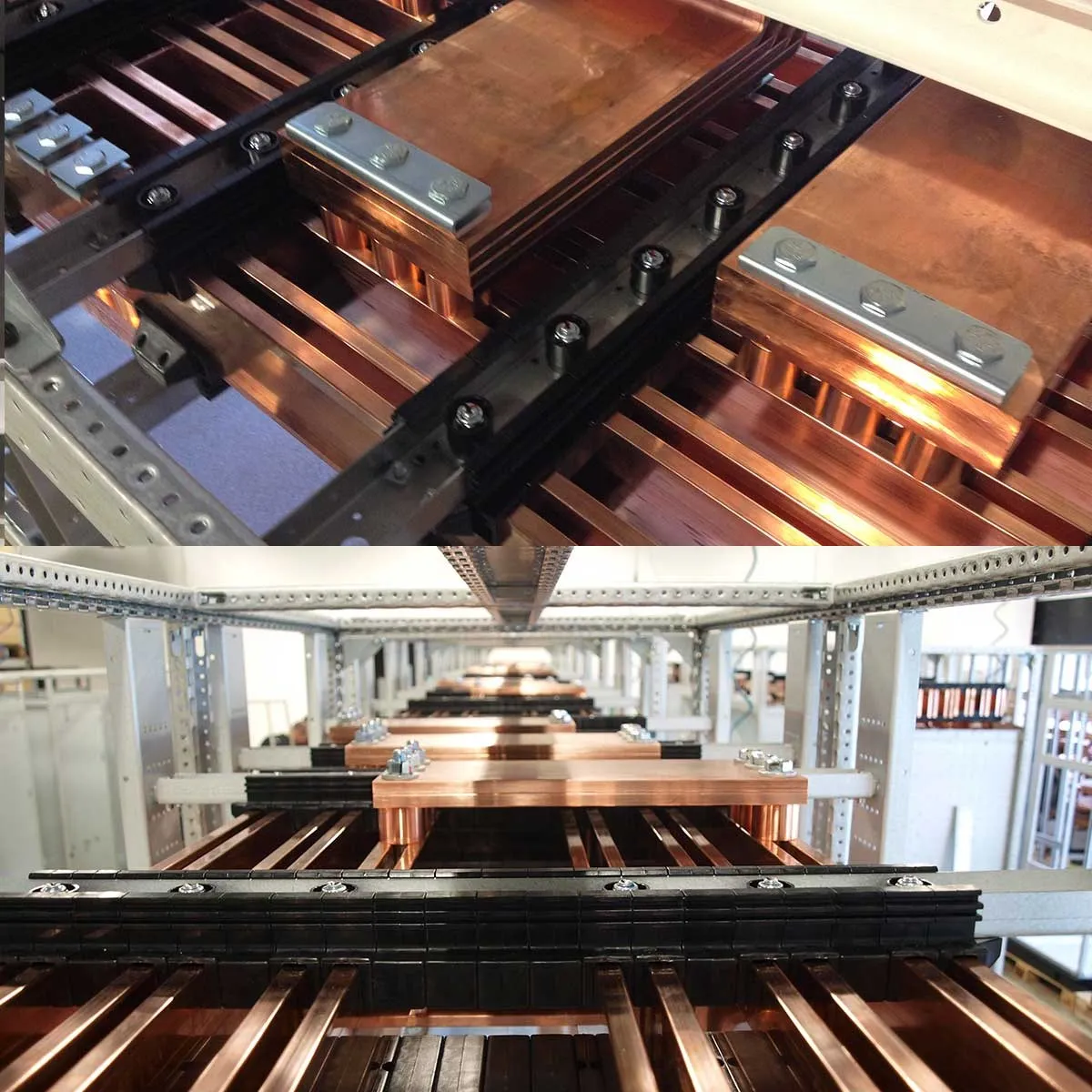

This JPMX-503ESK Hydraulic Copper Busbar Cutting Bending Machine for Transformer is widely used in Switch cabinet, electric control panel manufacturing , high low voltage switchgear, eletric transformer station,Electric panel ,voltage transformer,appliance swich, ship manufacturing,electric elevator manufacturing,electric cabinet manufacturing , Power distribution system product maufacturing.
Main Characteristics
1. The cut surface is smooth and neat, no droop, no burrs, no waste

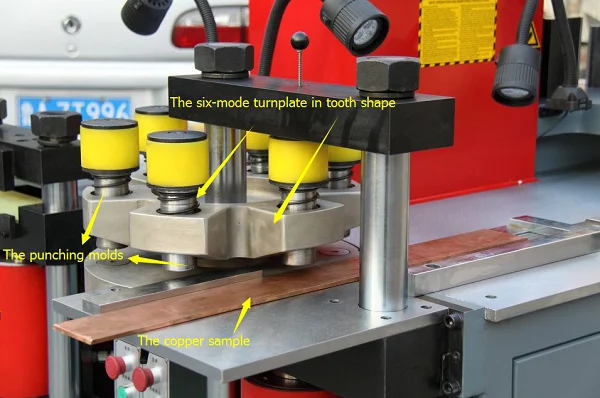

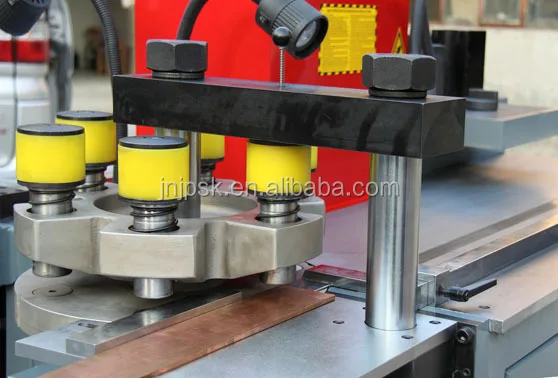

2. Rotary turret punch unit installed 6 dies, less replacing, high efficiency
3. More work space added by double work table, three work positions can be used at the same time.
4. Controlled by PLC, bending precision at ±1 degree and repeat degree at ±0.3 degree
5. Easily to be moved with four casters
6. Manual button and foot switch are optional
7. Adjustable working stroke
8. On users requirement, special mold for special shape
Advantages
1. We are factory. we can do OEM as per clients request.

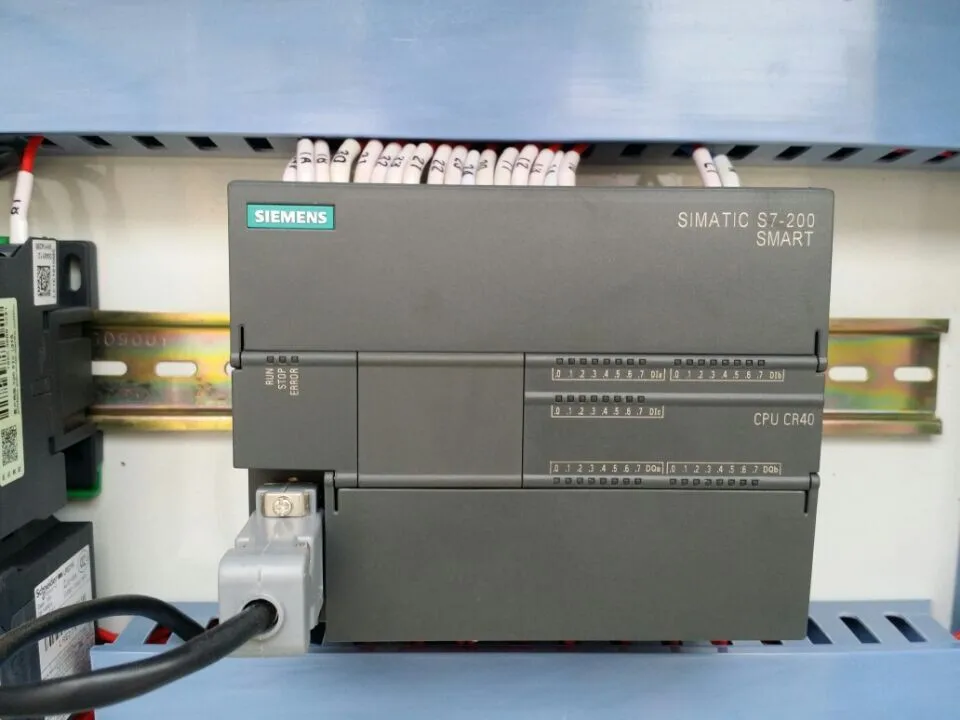

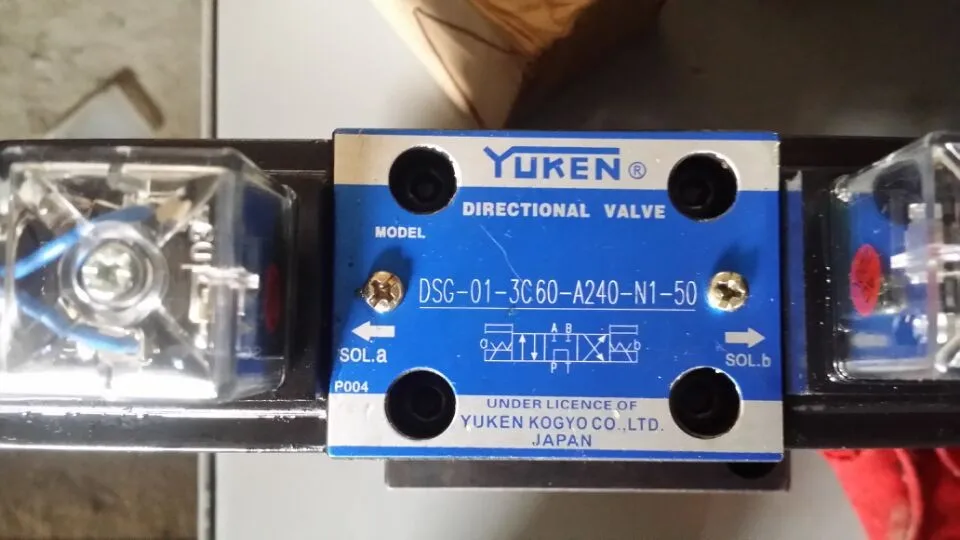

2. Our PLC are from Siemens. Our thermal relays, AC contactors, circuit breakers are from Schneider.
3. We have strong after-sales services team and professional technicians who can gurantee professional guidance after sales.
4. With Certification of CE&ISO 9001.

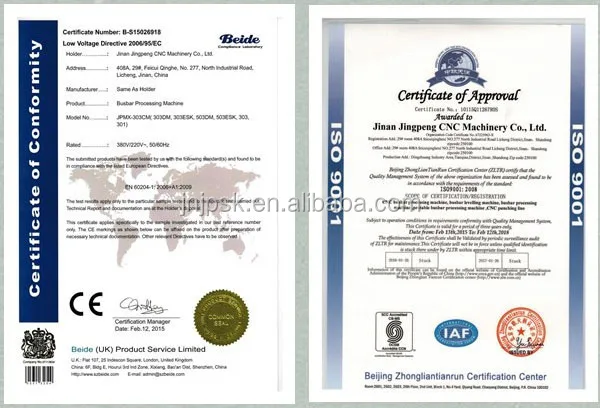

Certificate : CE & ISO 9001

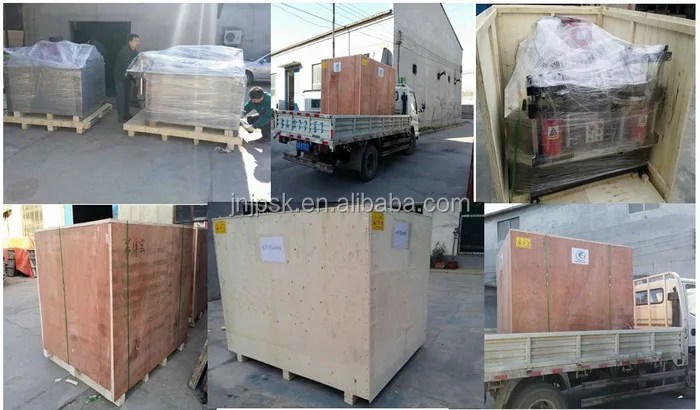

Packaging & Shipping
