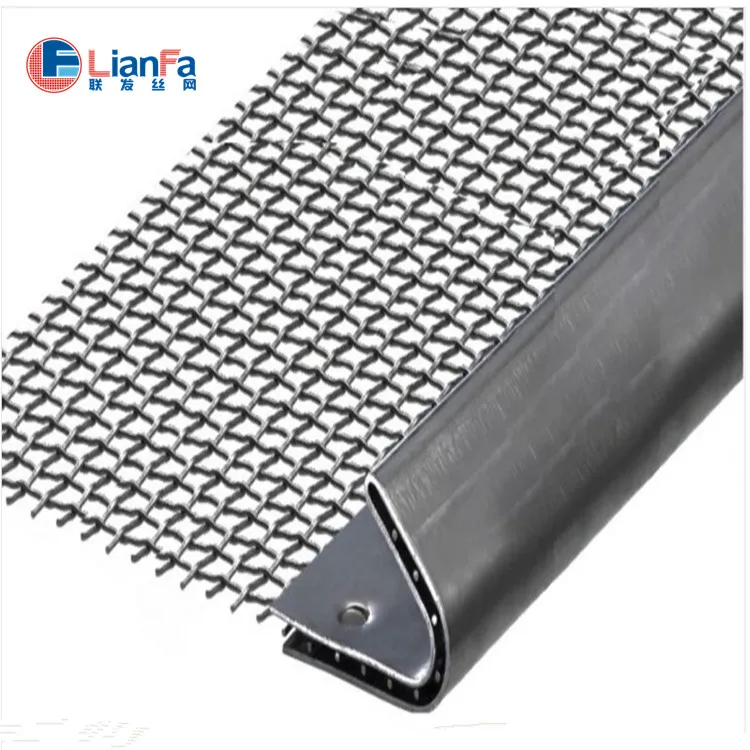

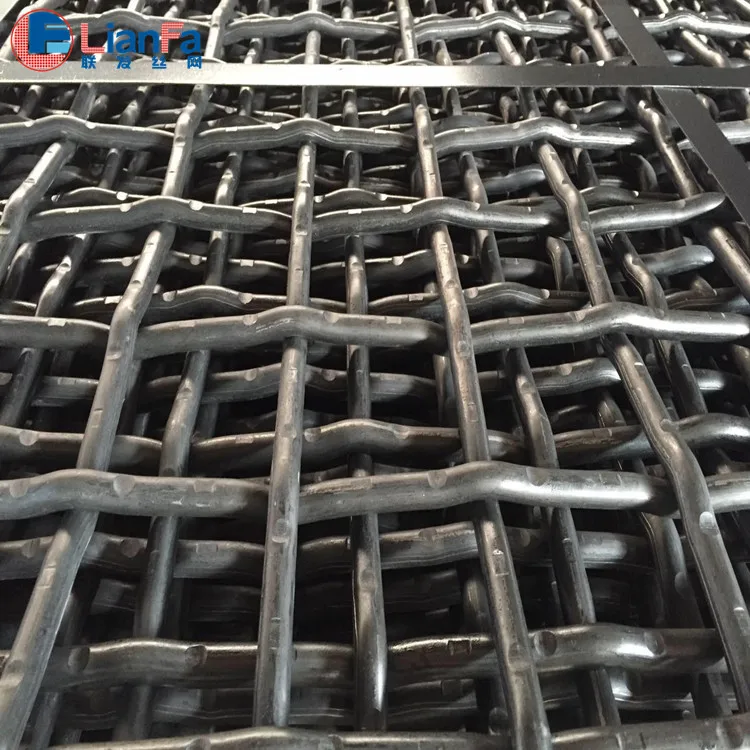

vibrating screen mesh China factory crimped wire mesh mining sieving screen mesh

vibrating screen mesh China factory crimped wire mesh mining sieving screen mesh

                                                                                              >>>Factory provides samples, click for more details

More weave selection means better designs for special needs.

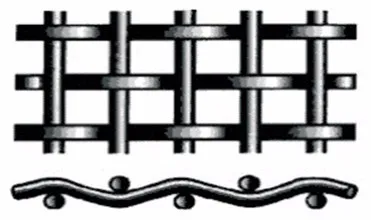

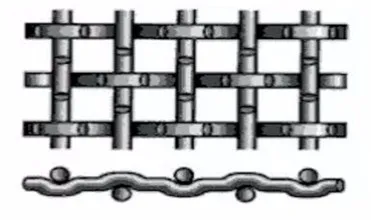

Double-Crimp

This specification is also referred to as "Vibro Type Weave". Efficient and long wearing in a variety of applications Providing a level, smooth surface, the Smooth weave employs a type of rigidity interlocked crimp that insures maintenance of accurate, uniform openings. When used in the correct application, because of the level weave, there is considerable reduction of friction from material passing over the screen and, in many cases, far less wear from abrasion than in screens made with surface crimps.

Lock-Crimp

For light to medium wire in relation to screen opening size. Wire is locked in place for long wear and accurate screen openings for the life of the screen. This specification is also referred to as "Scalping Weave". Generally used in extremely heavy screen cloths and those with relatively small openings.

Flat-Top

Improves material flow with flatter surface than other weaves. Lock



weave maintains accurate openings. Also called "Smooth-Top". Most



efficient weave for heavy-duty screens when ratio between width and wire diameter permits its use. As a general rule, opening width should be at least 5 times the wire diameter. It is extremely durable because each wire is locked in place to maintain accuracy of openings for the life of the screen.

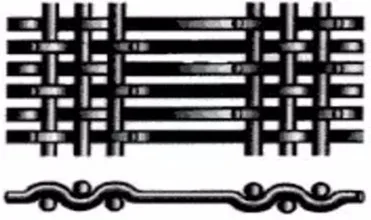

Tri-Loc

Long openings will keep sticky or wet material flowing freely. Weave holds wires securely yet permits slight vibration to keep openings clear. This specification is often called "Triple Shoot".

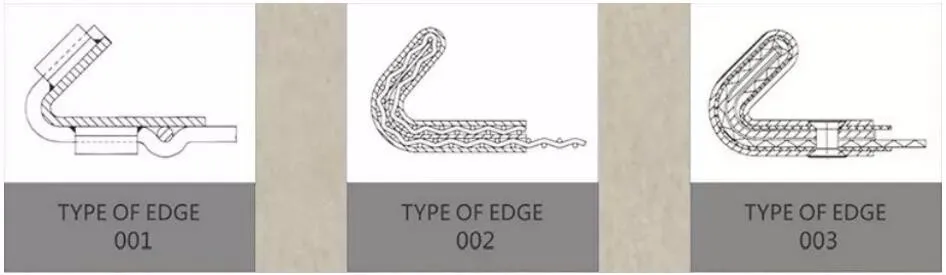

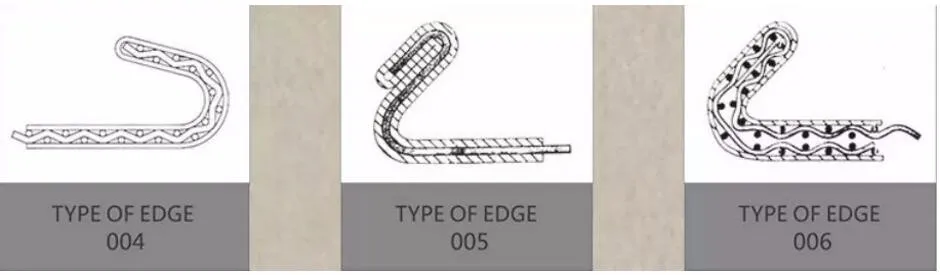

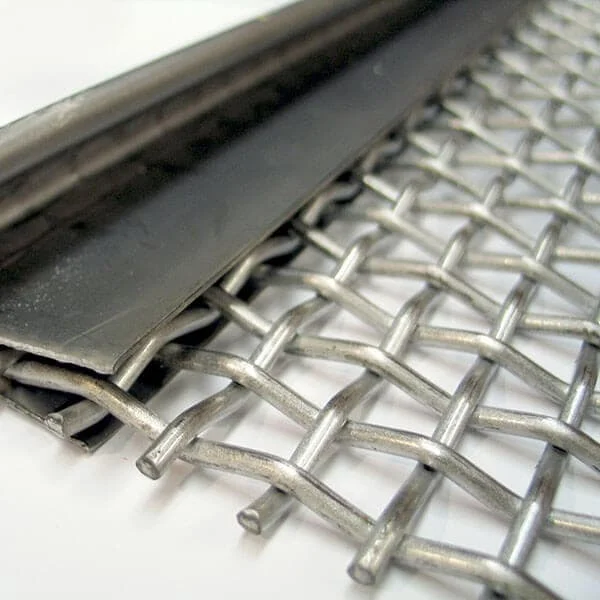

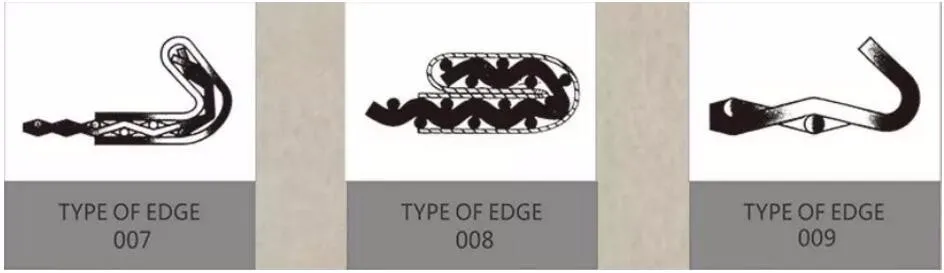

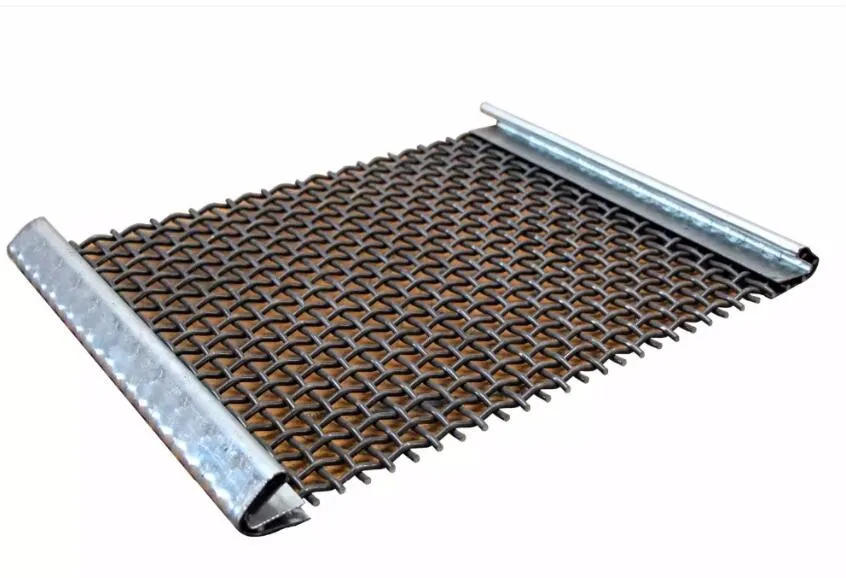

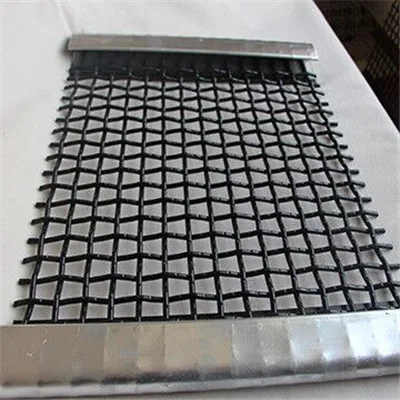

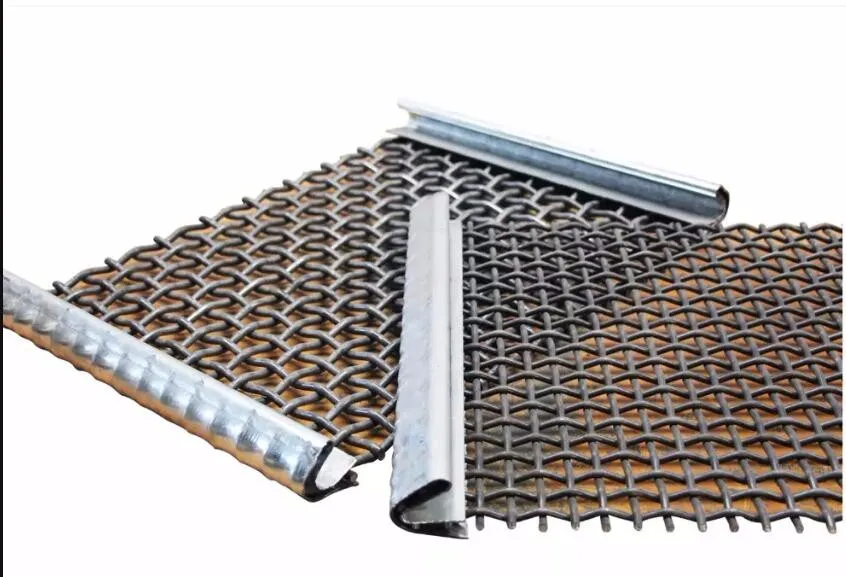

Types of Various Edge Preparations:

                                                                                 >>>Factory provides samples, click for more details

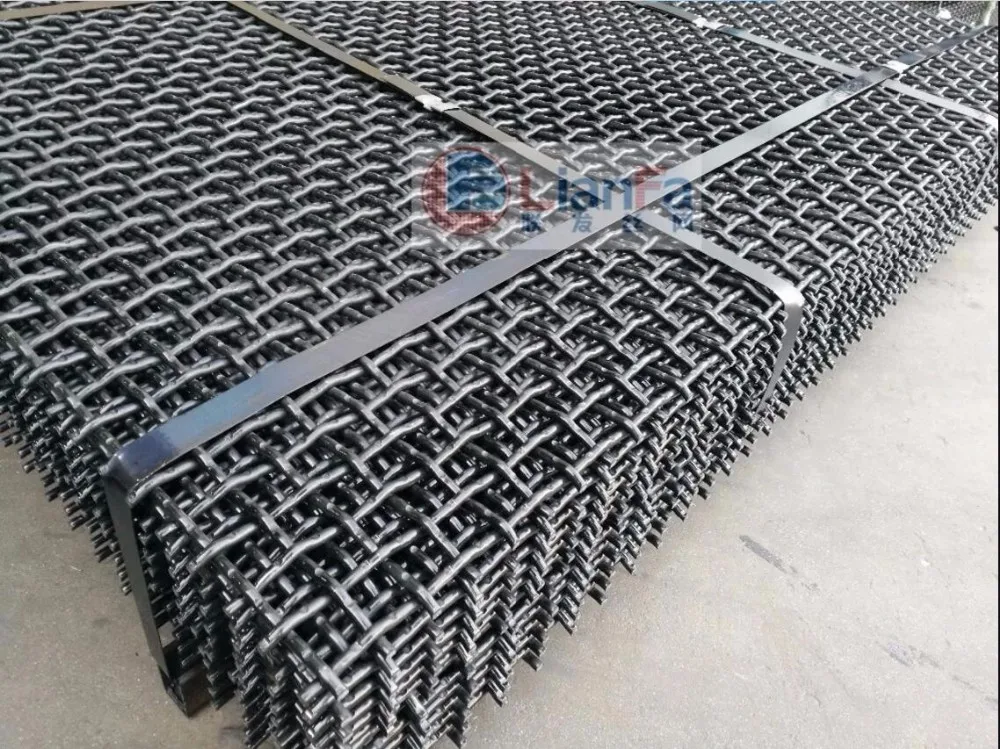

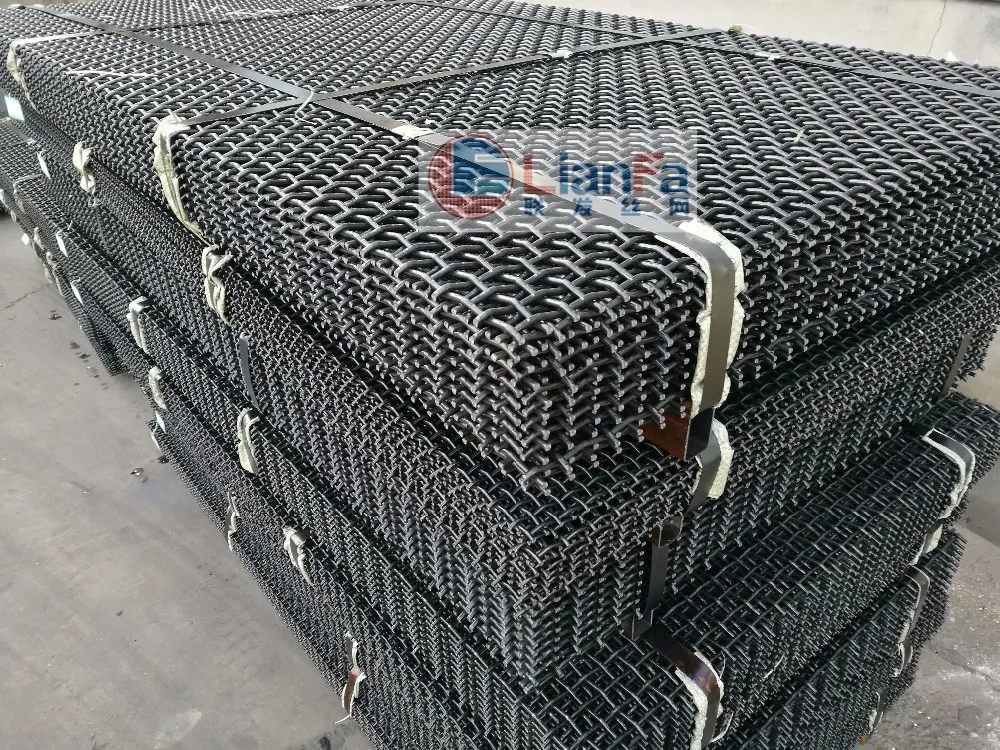

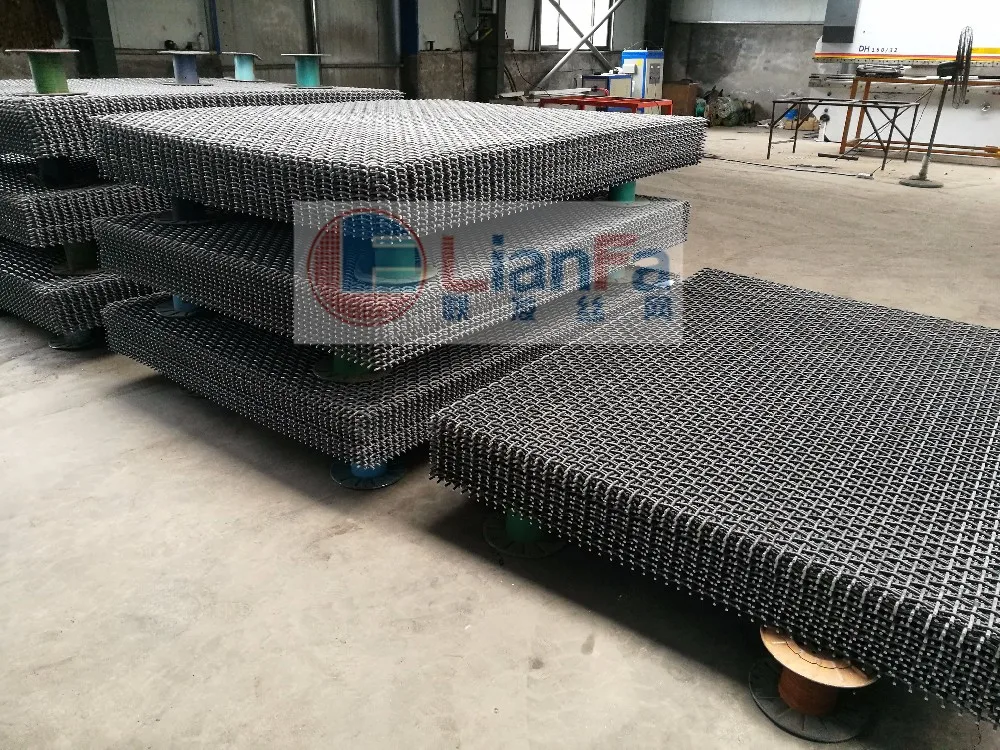

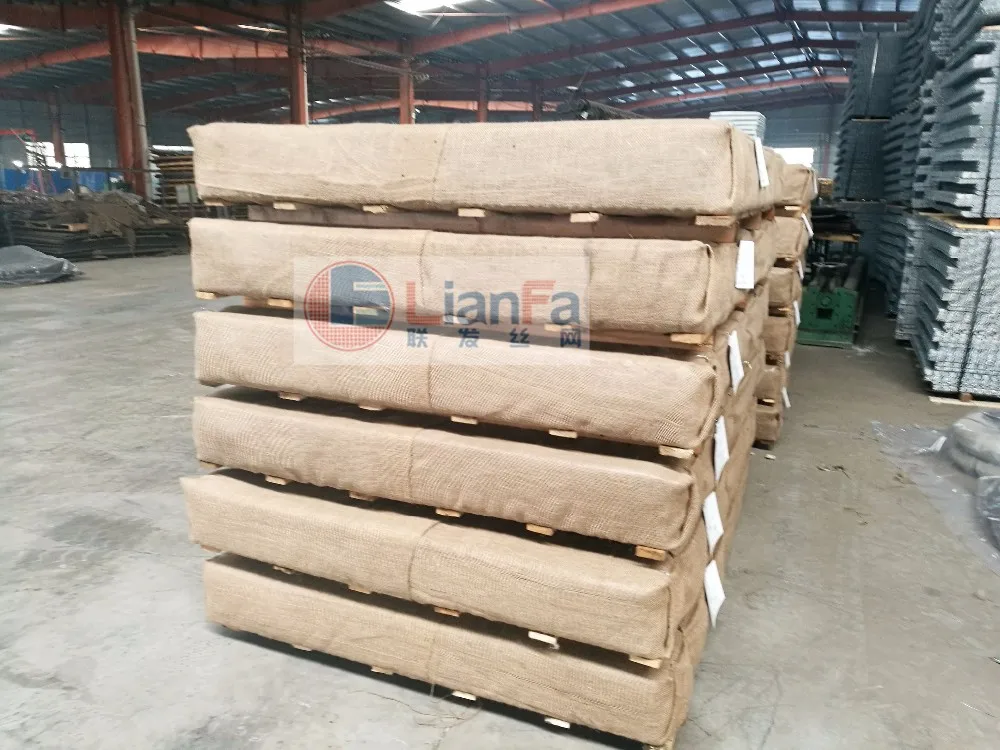

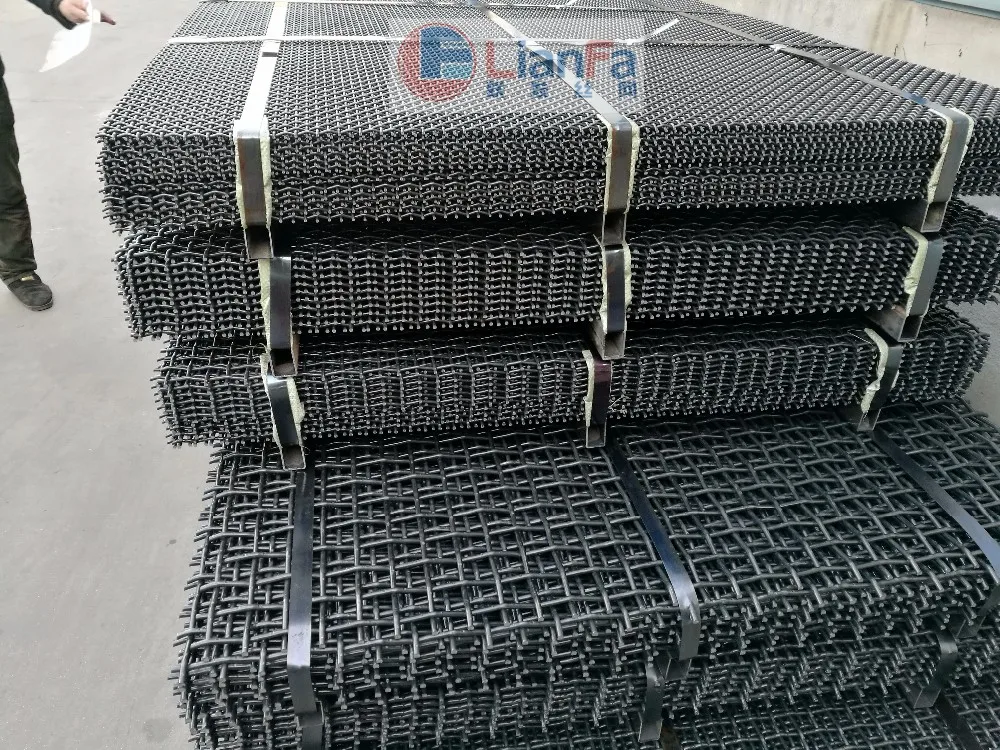

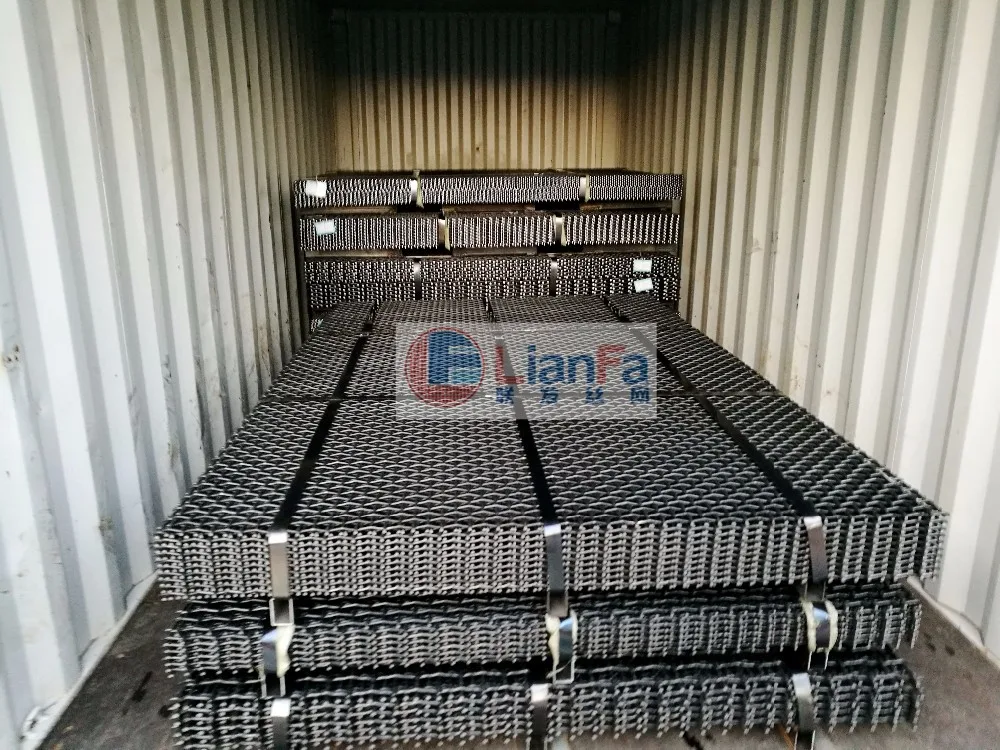

We can meet with the bulk orders demands on time.

Features:

The screens are designed to bear heavy loads

Highly resistant to vibrations and shocks

These are highly damage resistant

Coated for long term protection against corrosion

Durable in quality, these screens have excellent dimensional tolerance

Stringently tested for their finishing and strength

Acclaimed among clients for their excellent abrasion resistance

If you are not quite sure how to choose the products that match yours, we can provide more suggestions for you:

IMPORTANT FACTS TO CONSIDER WHEN ORDERING SCREENS:

When screens form part of the manufacturing process, the profits will depend on the specification of the screens which must be chosen to give optimum performance. The specification of the screen best suited to the screening operation depends on:

The screen selected must achieve a compromise amongst these factors.

When ordering screens the following technical aspects should be taken into account :

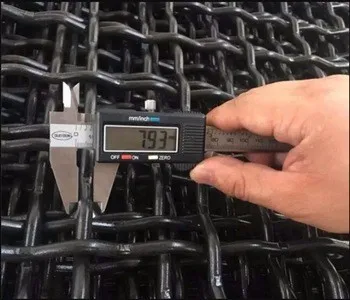

Thickness of wire

Thick wire will last longer than thin wire, but will give a smaller open area and will therefore pass less material per unit area.

Open Area

This is the most important factor in obtaining maximum output. The larger the open area the less screen is wasted and the faster the speed of screening. This open area factor must balanced against the wire diameter to give adequate life

Mesh

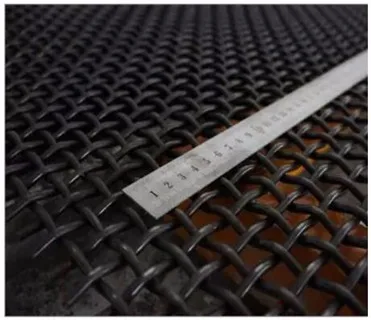

The mesh refers to the number of openings per inch. The mesh is counted by starting from the centre of one wire and counting the number of opening to a point one inch away.

                                                                           >>>Factory provides samples, click for more details

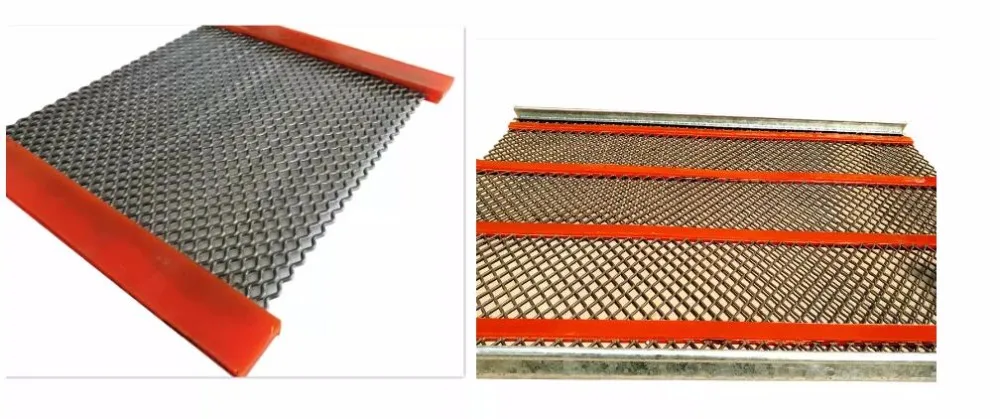

OEM/ODM Accept the following types of customization with Polyurethane collocation
