This Non standard PoE injector is a simple and convenient power supply equipment for PoE or Non PoE devices via only an Ethernet cable, which will save your trouble about power line cabling and save cost.
Power remote equipment through CAT 5 Ethernet cable up to 100M
Autoranging switching power supply 100~240V AC
Short circuit, over-current, and over-voltage protection
Reliable 24W passive POE output
Compact, portable size with convenient wall plug design

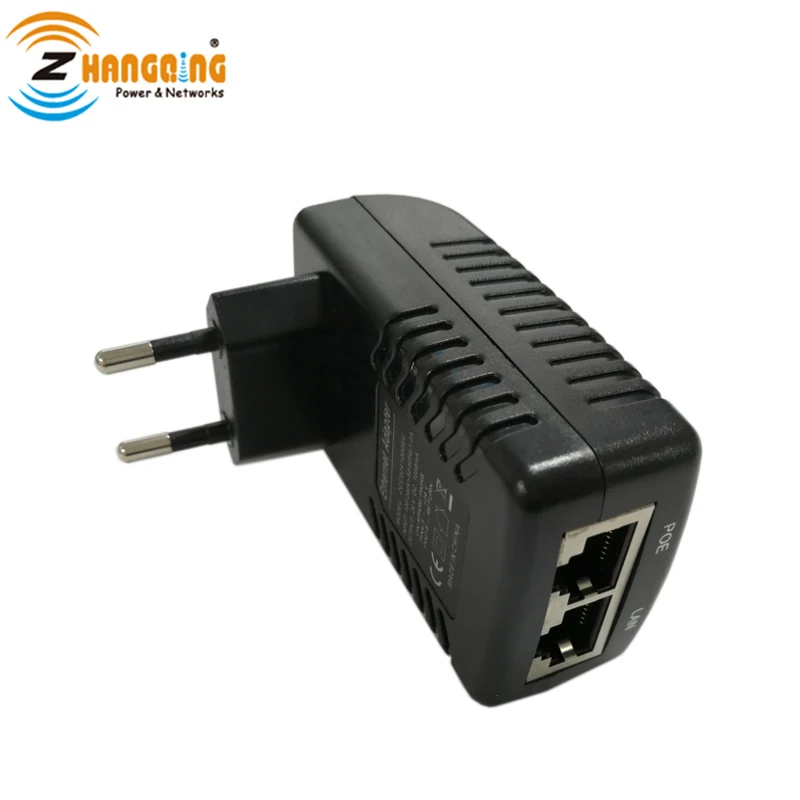

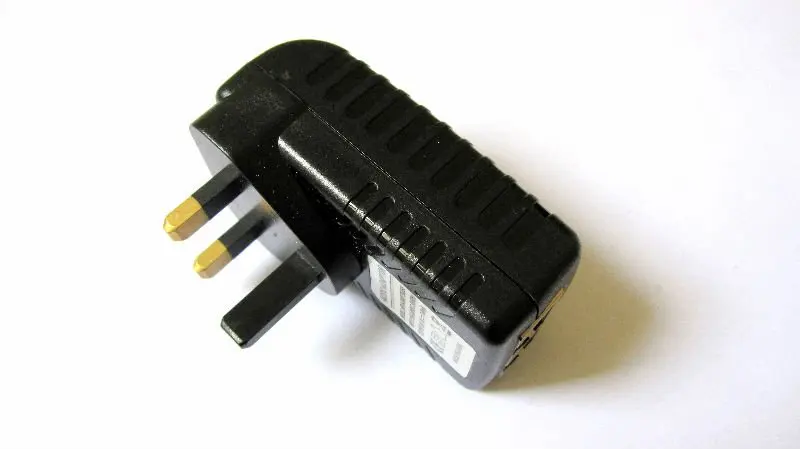

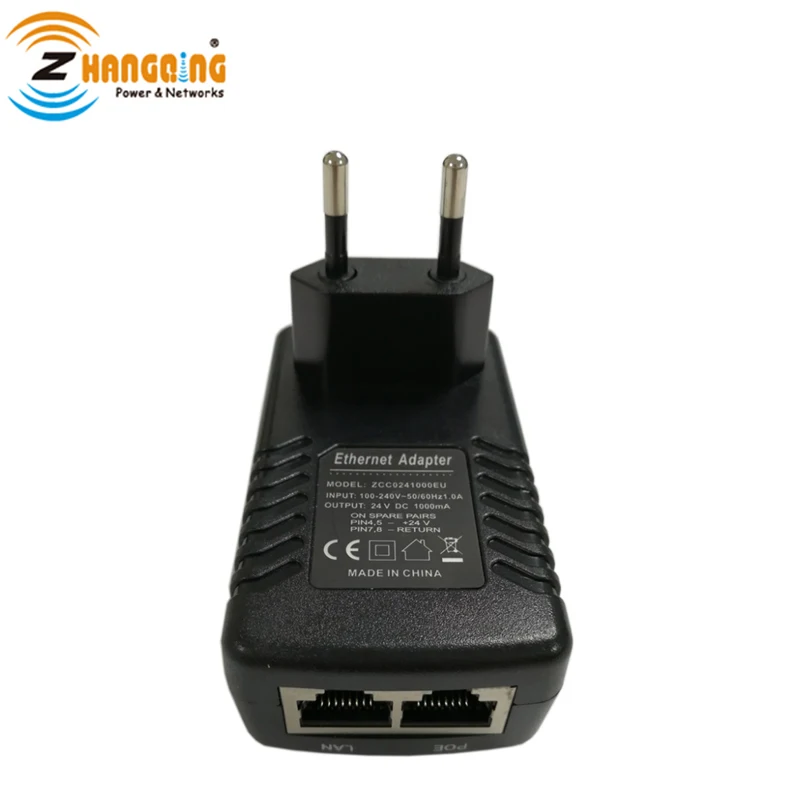

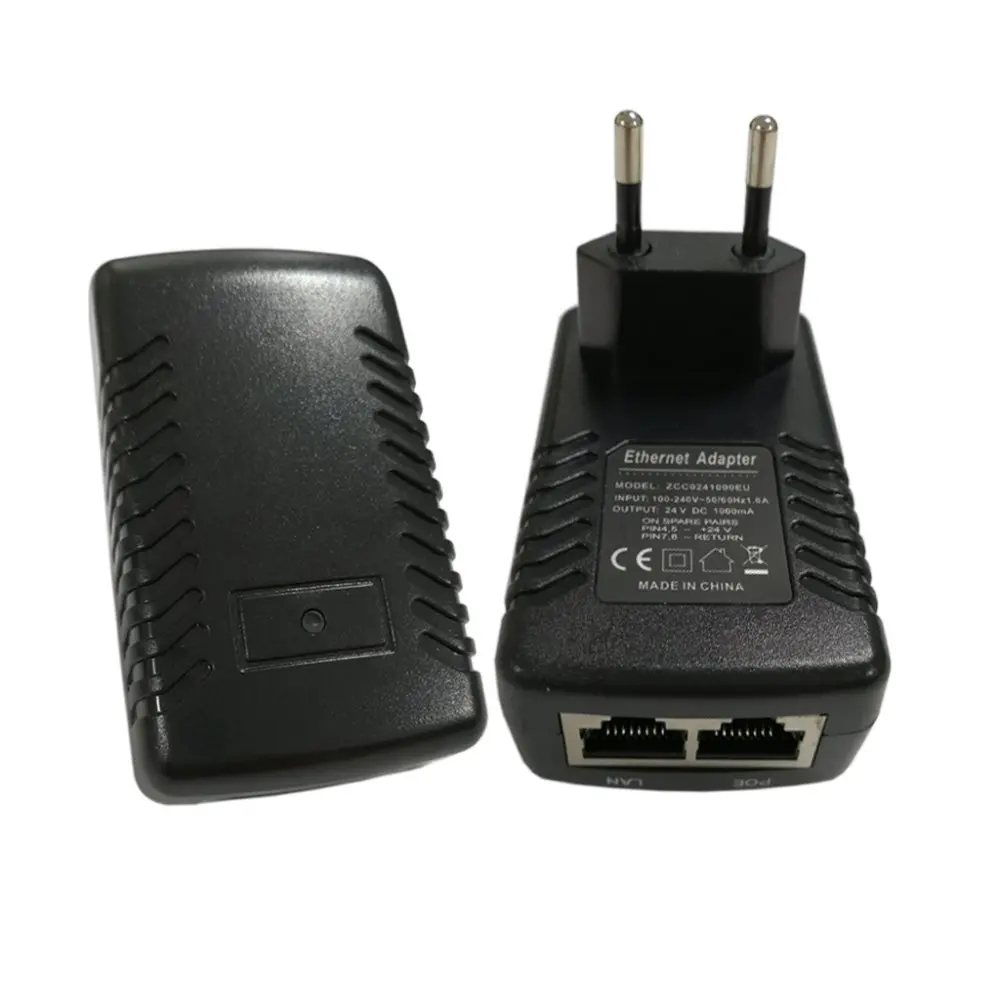

24V-1A Wall Plug POE Injector Ethernet Adapter IP Phone/Camera Power Supply

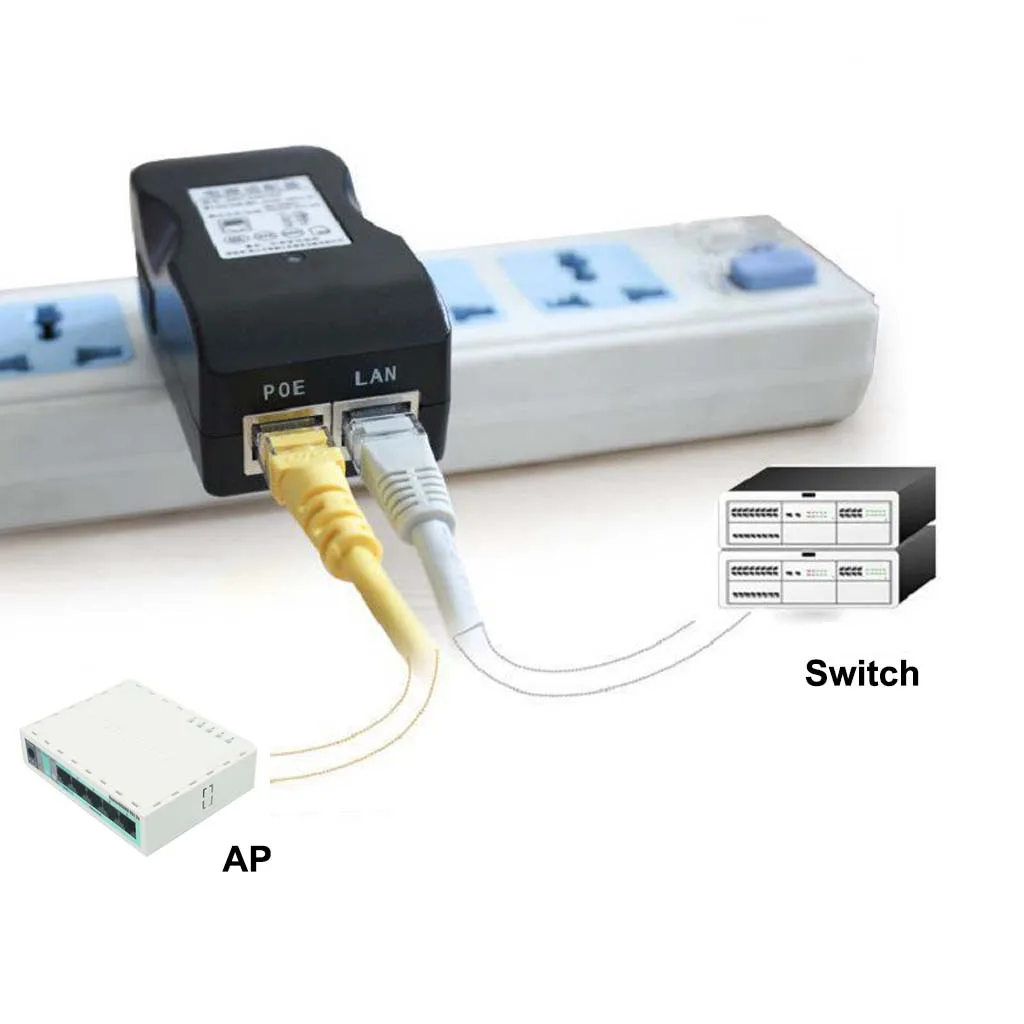

* The compact, wall-mountable design makes it easy to install the adapter into areas where space is limited, and can be installed in seconds with no configuration required.
Welcome to contact us on WhatsApp: +86 15012557721 /Skype: Karo thnia
For cables and power supply - see our web.
Specifications
POE Type--Passive POE ( Pins 4,5 V+, Pins 7,8 V-)
Network Connector Type--RJ45 Shielded
Efficiency--80% Min
Line / Load Regulation--3% / 5%
Ethernet Cable: TIA/EIA 568 Cat. 5/5e/6/6e
Turn-On Delay--2 Seconds Max
Rise Time--40 mS Max
Protections--Auto Recover Over-Voltage, Short Circuit, Over-Current
Operating Temperature---10 to +40°C (14 to +104°F)
