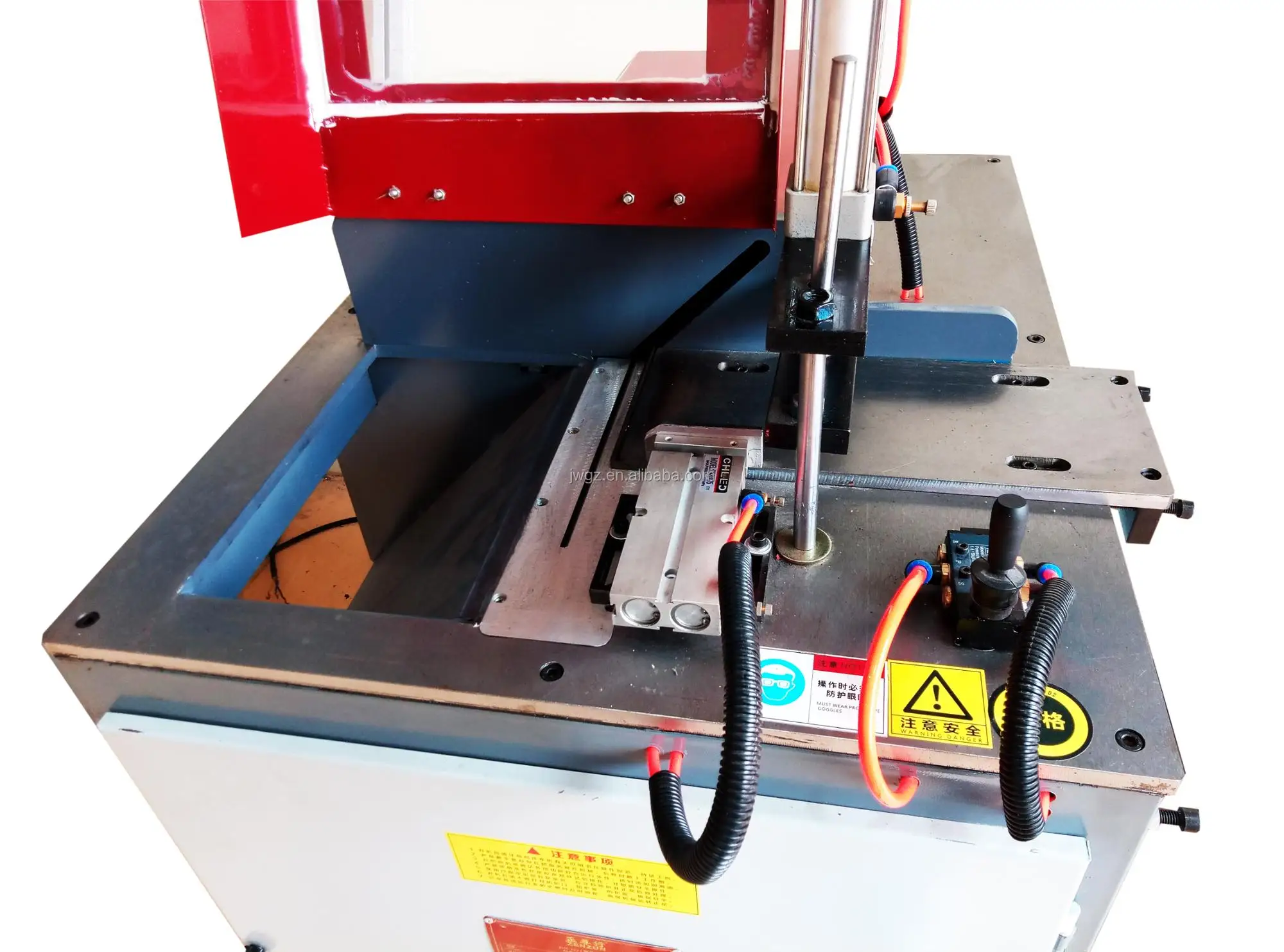

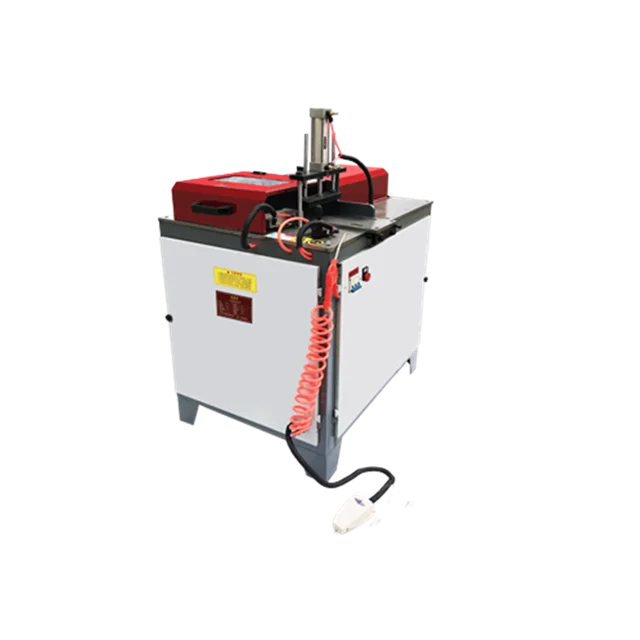

ZHJ-355 Angle Chamfering Cutter is controlled by imported pneumatic system with a great processing efficacy. Its blade-entry speed is stable and smooth. The current machine is specialized for cutting 45° in Aluminium cabinet for bathroom, Aluminium alloy frame , edge sealing, photo frame, window, door, lighting material, and Aluminium profile. It also has an unique function of reserving an extra space to install soft corner brace while cutting 45°. This is essential for making Aluminium furniture since this avoid forming a sharp metal edge on the furniture.
Product Structure and Characteristics:
Possesses a measuring ruler with accurate positioning
The clamping and positioning mechanism is controlled by foot pedal
The operation platform adopts an imported steel plated, the platform is 140mm thick with a smooth surface, ensuring cutting to be more accurate and durable
Despite the number indicated on the model name, it can be installed with saw blade from 10 to 16 inch (255mm to 405mm) with an axis diameter of 25.4mm
Can opt to spare a space on the material for installing angle bead during the cutting
MAIN TECHNICAL PARAMETER
WORKING VOLTAGE
220V or 380V.
FREQUENCY
50Hz.
MOTOR POWER
2.2Kw.

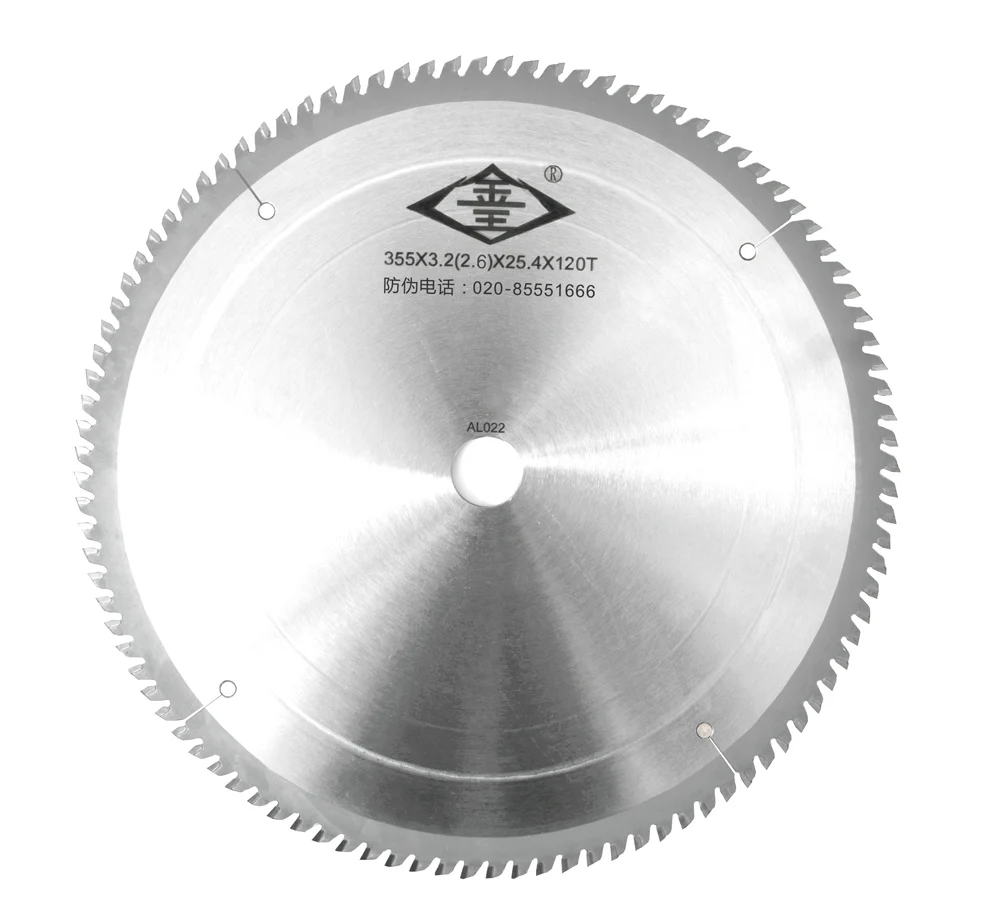

SAW SPECIFICATION
Ø255mm(305,355,405)×Ø25.4mmx4mm.
MAXIMUM CUTTING DISTANCE
250mm.
MAXIMUM CUTTING HEIGHT
70mm.
SAW ROTARY SPEED
3000r/min.
REQUIRED AIR PRESSURE
4-8Kg/m²
OVERALL DIMENSION
800 x 630 x 1100mm.
WEIGHT
270Kg.
