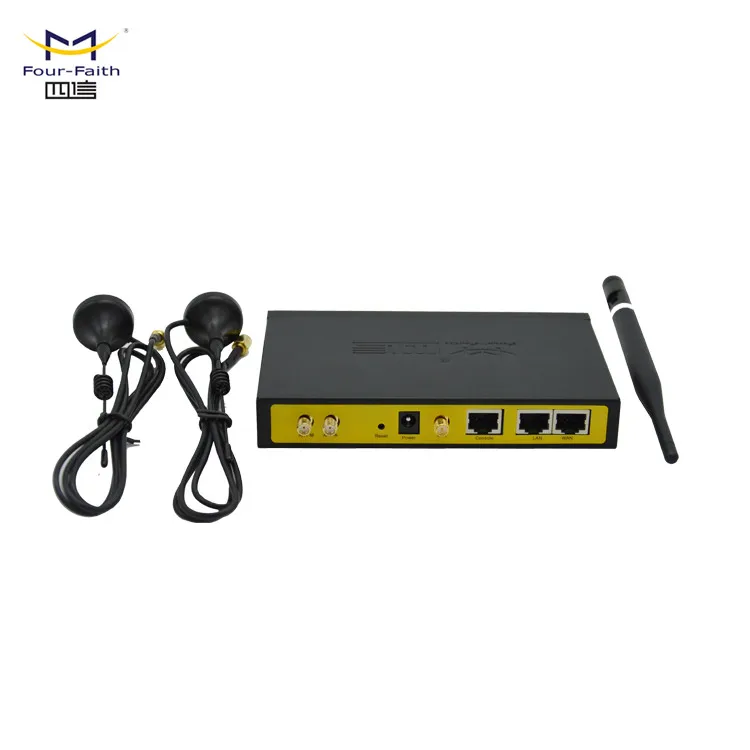

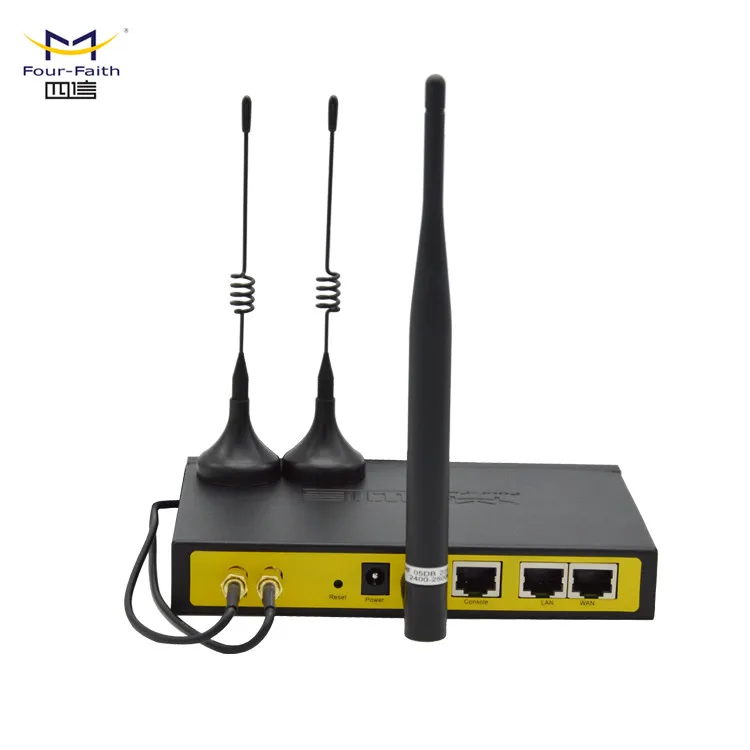

F7826 GPS RJ45 WIFI ROUTER GPS TRACKER with RS232 FOR MONITORING AND TRANSPARENT TRANSMISSION
Product Description
F7826 GPS+LTE/WCDMA WIFI ROUTER is a kind of cellular terminal device that provides large data transfer function by public LTE/WCDMA network and GPS function. It adopts high-powered industrial 32-bits CPU and embedded real time operating system. It supports RS232 (or RS485/RS422), Ethernet and WIFI port that can conveniently and transparently connect one device to a cellular network, allowing you to connect to your existing serial, Ethernet and WIFI devices with only basic configuration. Also, it supports GPS function. It has been widely used on M2M fields, such as self-service terminal industry, intelligent transportation, smart grid, industrial automation, telemetry, finance, POS, water supply, environment protection, post, weather, and so on. |
ProductSpecification
GPS Specification
Item | Content |
GPS Module | Industrial GPS module |
Receiver Type | 50-channel GPS L1(1575.42MHz)C/A code SBAS: WAAS,EGNOS,MSAS,GAGAN Support GALILEO |
Max. update rate | 4 Hz |
Accuracy | Position: 2.5m CPE SBAS: 2.0m CPE |
Acquisition | Cold starts: 29S Warm starts: 29S Aided starts: <1S Hot starts: <1S |
Sensitivity | Tracking: -160dBm Reacquisition: -160dBm Cold starts: -144dBm |
Timing accuracy | RMS: 30ns 99%: <60ns Granularity: 21ns |
Time pulse | Configurable, 0.25 to 1000Hz |
Cellular Specification
Cellular Module | Industrial cellular module |
Standard and Band | UMTS/WCDMA/HSDPA/HSUPA/HSPA+ 850/1900/2100MHz, 850/900/1900/2100MHz(optional) GSM850/900/1800/1900MHz GPRS/EDGE CLASS 12 |
Bandwidth | HSUPA:5.76Mbps(Upload speed)/ HSDPA:7.2Mbps(Download speed)/UMTS:384Kbps (DL/UL)/ HSPA+: 21Mbps(Download speed) |
TX power | <24dBm |
RX sensitivity | <-109dBm |
WIFI Specification
Item | Content |
Standard | IEEE802.11b/g/n |
Bandwidth | IEEE802.11b/g: 54Mbps (max) IEEE802.11n: 150Mbps (max) |
Security | WEP, WPA, WPA2, etc. WPS (optional) |
TX power | 21.5dBm(11g),26dBm(11b) |
RX sensitivity | <-72dBm@54Mpbs |
Hardware System
Item | Content |
CPU | Industrial 32bits CPU |
FLASH | 8MB(Extendable to 64MB) |
RAM | 64MB |

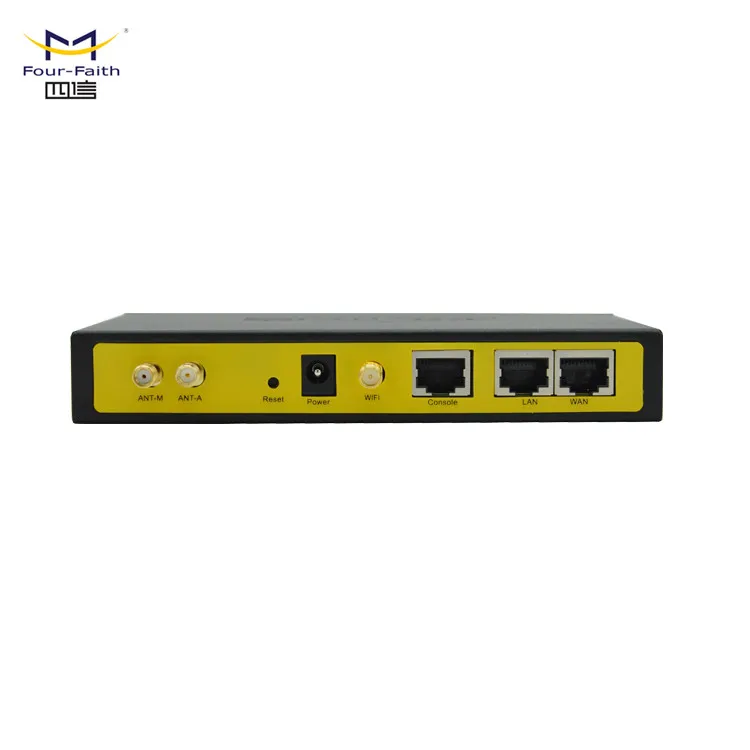

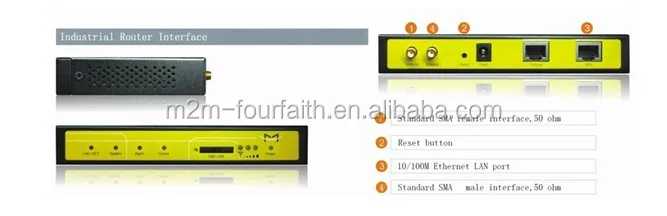

Interface type
Item | Content |
Ethernet | 1 10/100 Mbps Ethernet port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
Serial | 1 RS232(or RS485/RS422) port, 15KV ESD protection Data bits: 5, 6 ,7, 8 Stop bits: 1, 1.5, 2 Parity: none, even, odd, space, mark Baud rate: 110~230400 bps |

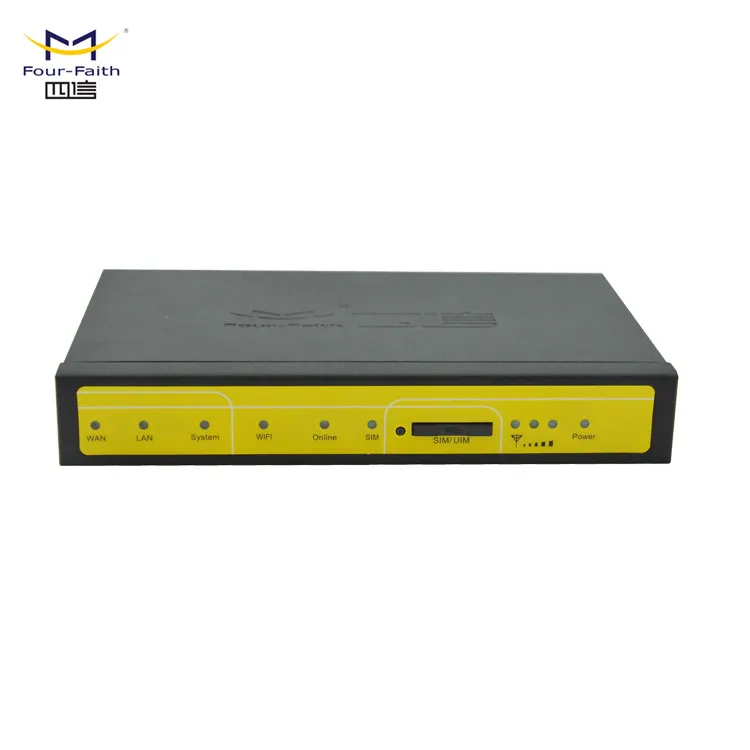

Indicator | "Power", "System", "Online", "Link/ACT", "WIFI", “Signal Strength” |
Antenna | Cellular: Standard SMA female interface, 50 ohm, lighting protection(optional) WIFI: Standard SMA male interface, 50 ohm, lighting protection(optional) |
SIM/UIM | Standard 3V/1.8V user card interface, 15KV ESD protection |
Power | Standard 3-PIN power jack, reverse-voltage and overvoltage protection |
Reset | Restore the router to its original factory default settings |
Power supply
Item | Content |
Standard Power | DC 12V/1.5A |
Power range | DC 5~35V |
Consumption | <450mA (12V) |
Physical Characteristics
Item | Content |
Housing | Iron, providing IP30 protection |
Dimensions | 157x97x25 mm |
Weight | 440g |
Environmental Limits
Item | Content |
Operating Temperature | -35~+75ºC(-31~+167℉) |
Storage Temperature | -40~+85ºC (-40~+185℉) |
Operating Humidity | 95% ( unfreezing) |

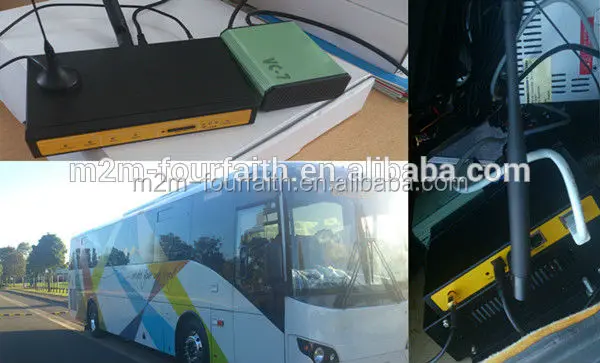

Products Application
