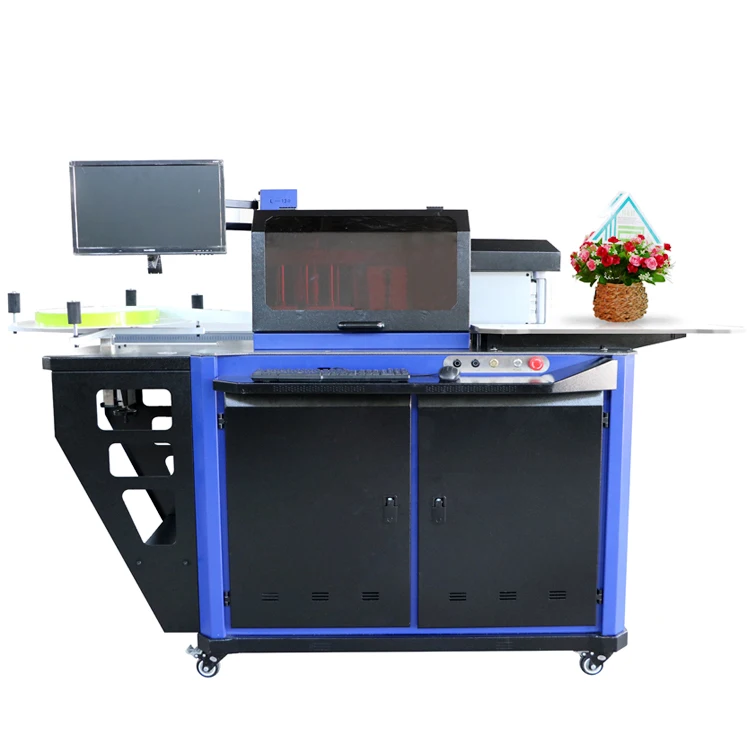

Automatic channel letter making machine NL130 Updated automatic aluminum letter bender machine for Signage
- Category: Channel Letter Bending Machine >>>
- Supplier: WEIFANG NEW HH EBIZ TECH CORP
Share on (50044536479):
Product Overview
Description
Automatic channel letter making machine NL130 Updated automatic aluminum letter bender machine for Signage
Characteristics
HH-NL130 Channel Letter Bending Machine:

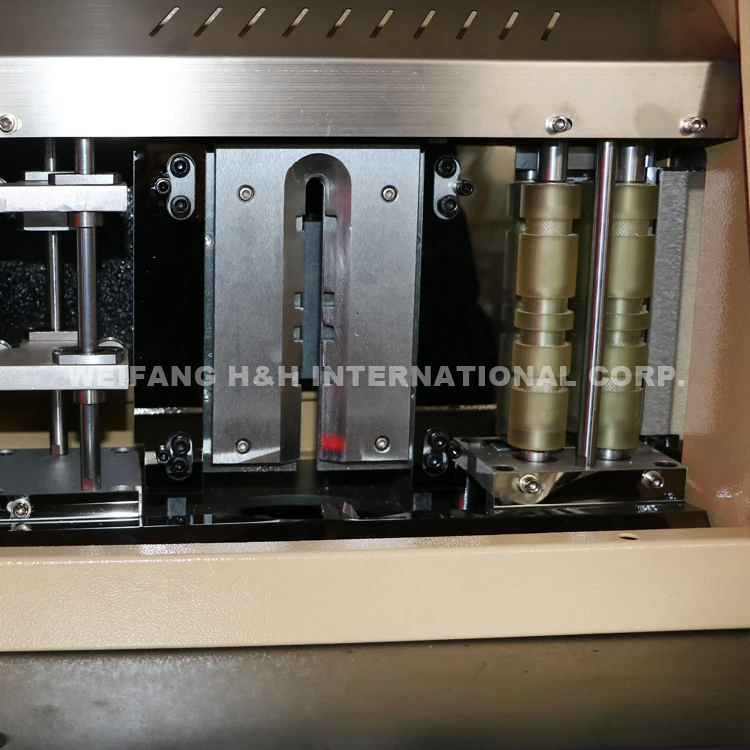

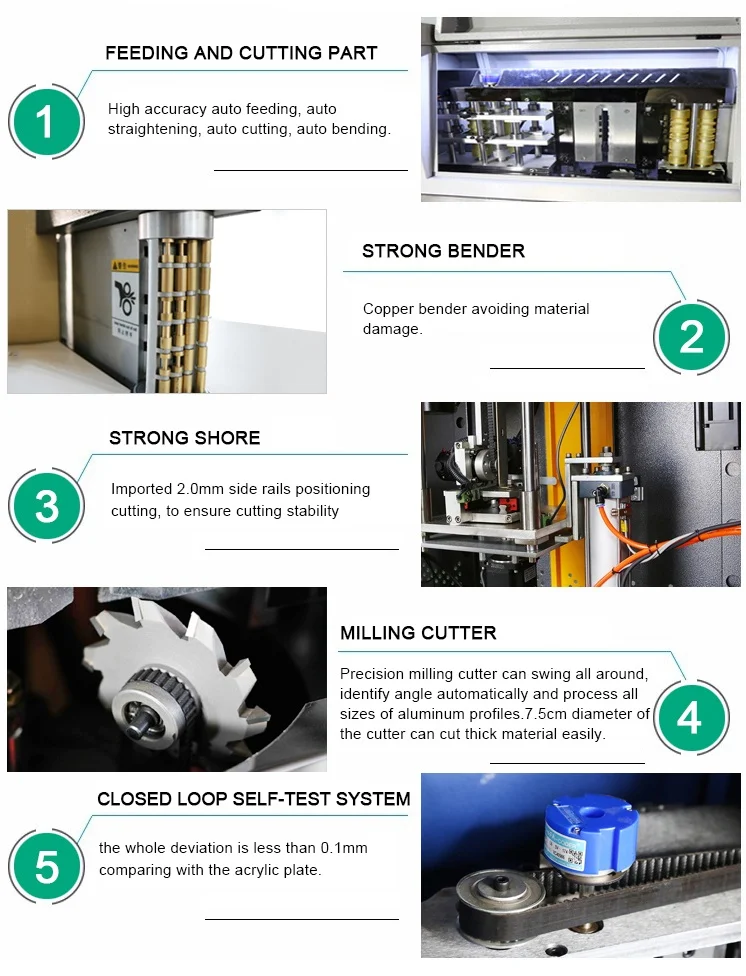

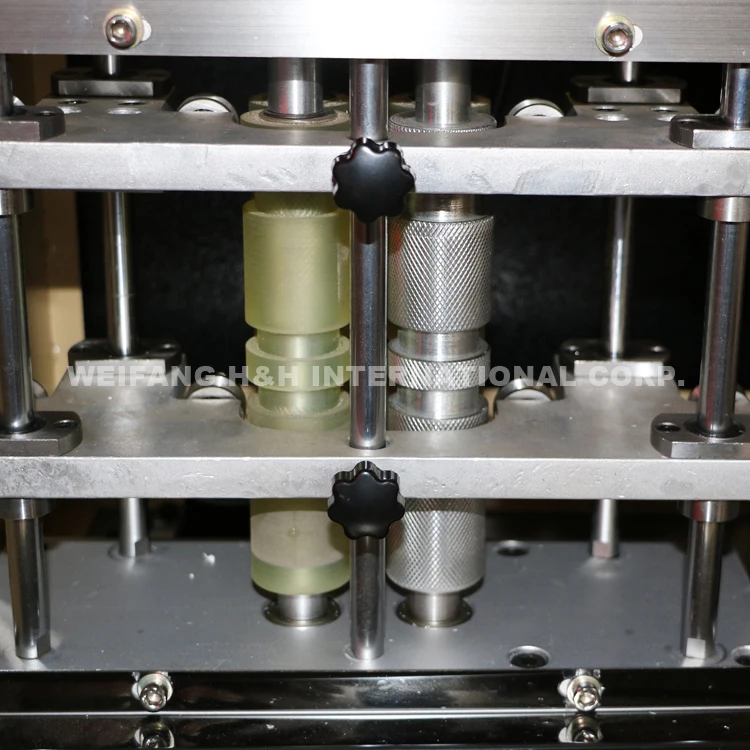

1. Automatic Feeding,Automatic Slotting, Automatic Bending.
2.Five-axis coordinated control, designed for feeding, lifting, cutting, and bending, one- time forming to ensure accurate and stable cutting and bending .

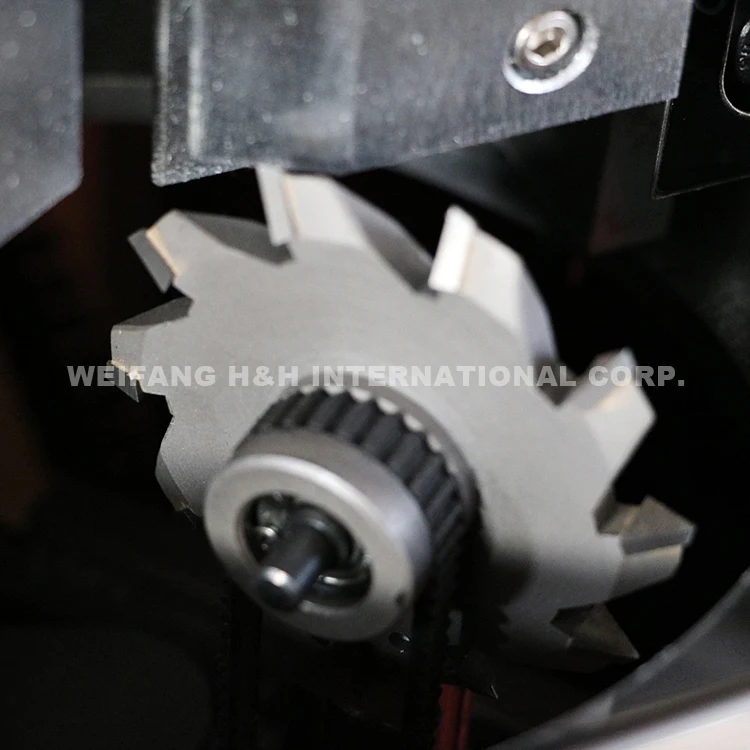

3. With brushless DC cutting motor, adjustable speed, suitable for various materials.
4. Encoder self-test system, the whole deviation is less than 0.1mm comparing with the acrylic plate.
5. Imported side rails for stable cutting
6. Rebound coefficient of Arc Bender has intelligent compensation, to ensure the accuracy of various material forming.
7. One-button operation, very easy to use.
8. Cost-effective, stable cutting, low noises
9. Self-innovated Software, easy operation
10. Fast speed, can meet 6-8 persons to make lettes at the same time

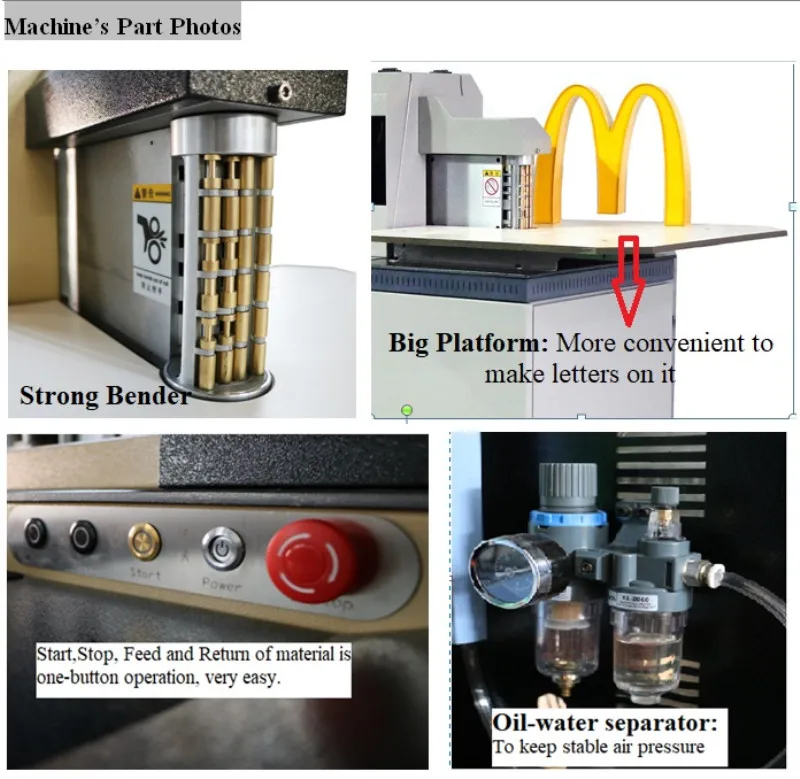

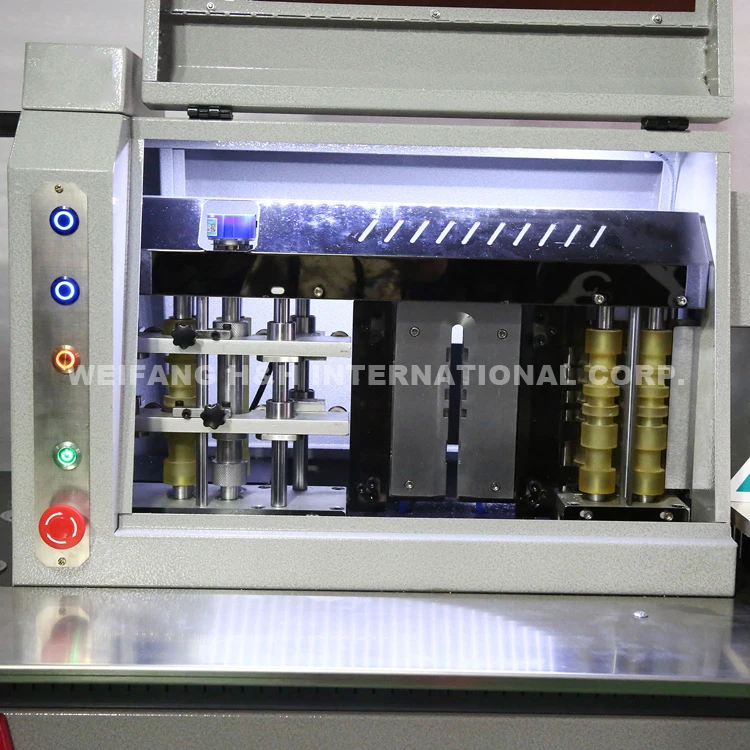

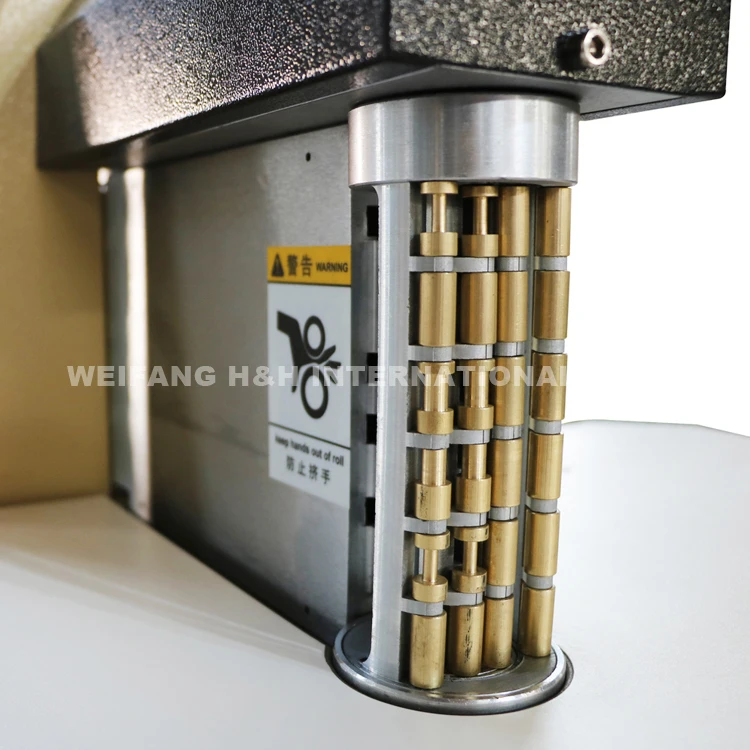

More Machine Photos
Technical data:
HH-NL130 Letter Bending Machine:
| Working Principle | Auto Feeding, Auto Slotting, Auto Bending |
| Application Material | Aluminum profile, flat aluminum, Channelume |
| Slot Degree | 45°-135°(No limit for flat materials) |
| Material Width | ≤130mm |
| Bending Radius | ≥3.5mm |
| Material Thickness | 0.3-1.2mm |
| Total Power | 1000W |
| File Format | dxf,ai,plt |
| Machine Size | 2000mm*900mm*1550mm |
| Weight | 300KG |
| Voltage | 220V |
| Air Pressure | 0.3-0.8MPa |

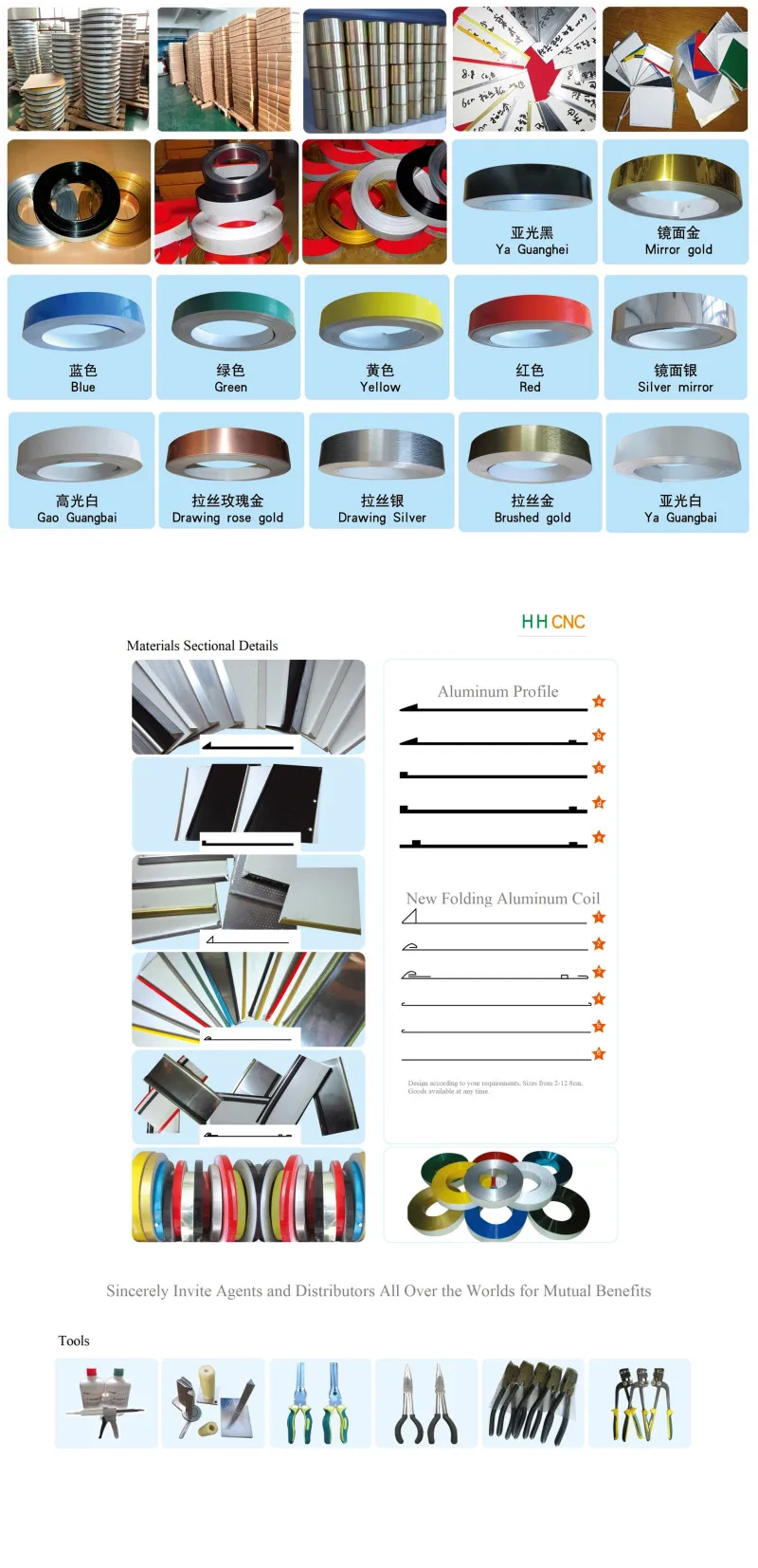

Available Materials
HH-NL130 CNC Letter Bending Machine
Flat Aluminum,Aluminum Profile,Aluminum Sheet,Aluminum Coils,Aluminum Plate,Alloy Aluminum,Aluminum Channel with Sponge,Aluminum with Waterproof Sideband,Aluminum with Edge
Application Industry
HH-NL130 Letter Bending Machine:
Advertising Letters Making,3D Metal Letters,Channel Letters,Signs,Neon Signs,Billboards,LED Logos,Light Boxes Production,Outdoor Advertising and Other Advertising production.
FAQ
FAQ
1.What's the package?
We use seaworthy packing,inside is a foam and PE film,outside is wooden case to protect it.
2.What's the warranty?
12months for all machines and 36months for motors.
3.How to install and run the machine?
we will send the installation video and user's manual with the machine, most customers can learn by themselves. we also provide romote machine or overseas training sevice.
4.Do you have the any materials for sale?
Yes,We Have Many Kinds of Materials for Aluminum Letter Making.
We use seaworthy packing,inside is a foam and PE film,outside is wooden case to protect it.
2.What's the warranty?
12months for all machines and 36months for motors.
3.How to install and run the machine?
we will send the installation video and user's manual with the machine, most customers can learn by themselves. we also provide romote machine or overseas training sevice.
4.Do you have the any materials for sale?
Yes,We Have Many Kinds of Materials for Aluminum Letter Making.
5.MOQ ?
Our MOQ is 1 set machine.
6.Delivery
We could send machine to your country port or your factory directly,
please tell us your port name or your detailed address. There will be best shipping freight and machine price send to you.
