Инжектор PoE Детектор новый маленький дешевле PoE Тестер используется для пассивного/802.3af/на Инжектор PoE коммутатор питания через ethernet

Product Overview

Description

Product Description

PoE Detector Tester  Used For Passive /802.3af/at PoE Injector PoE Switch

Overview

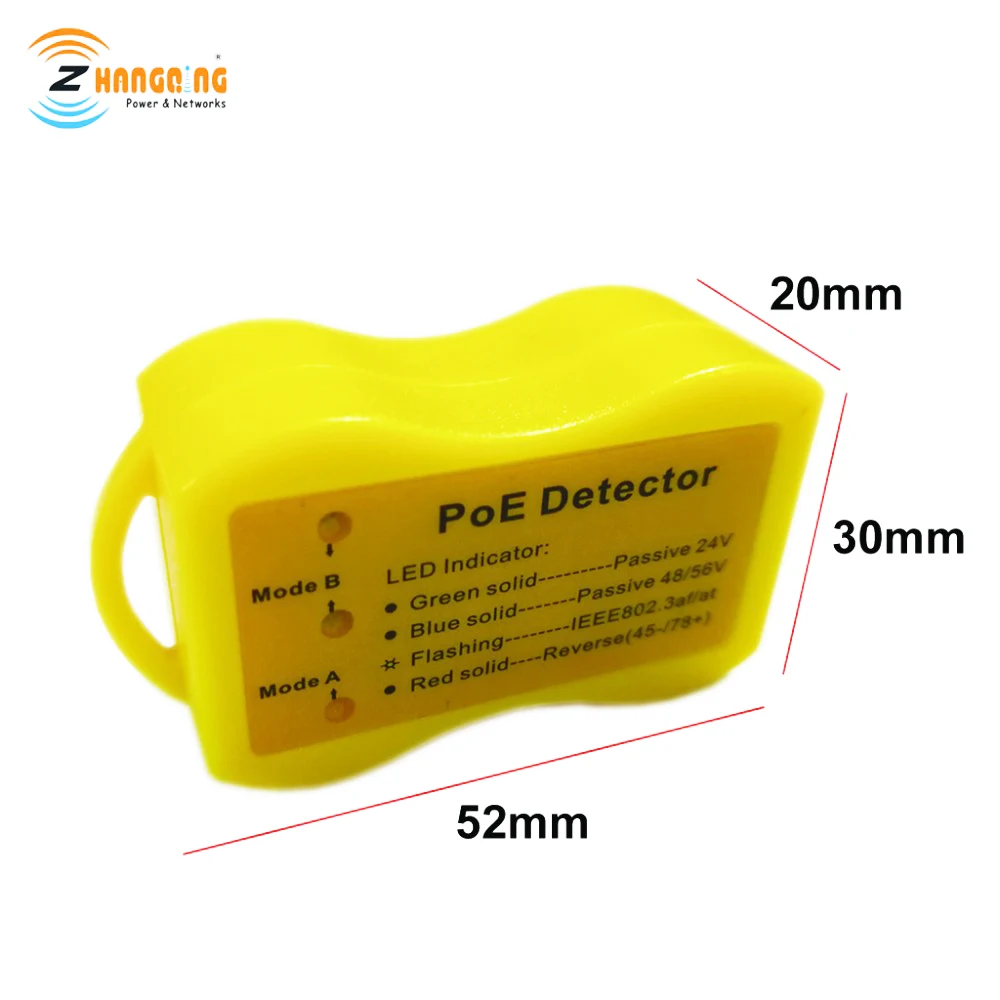

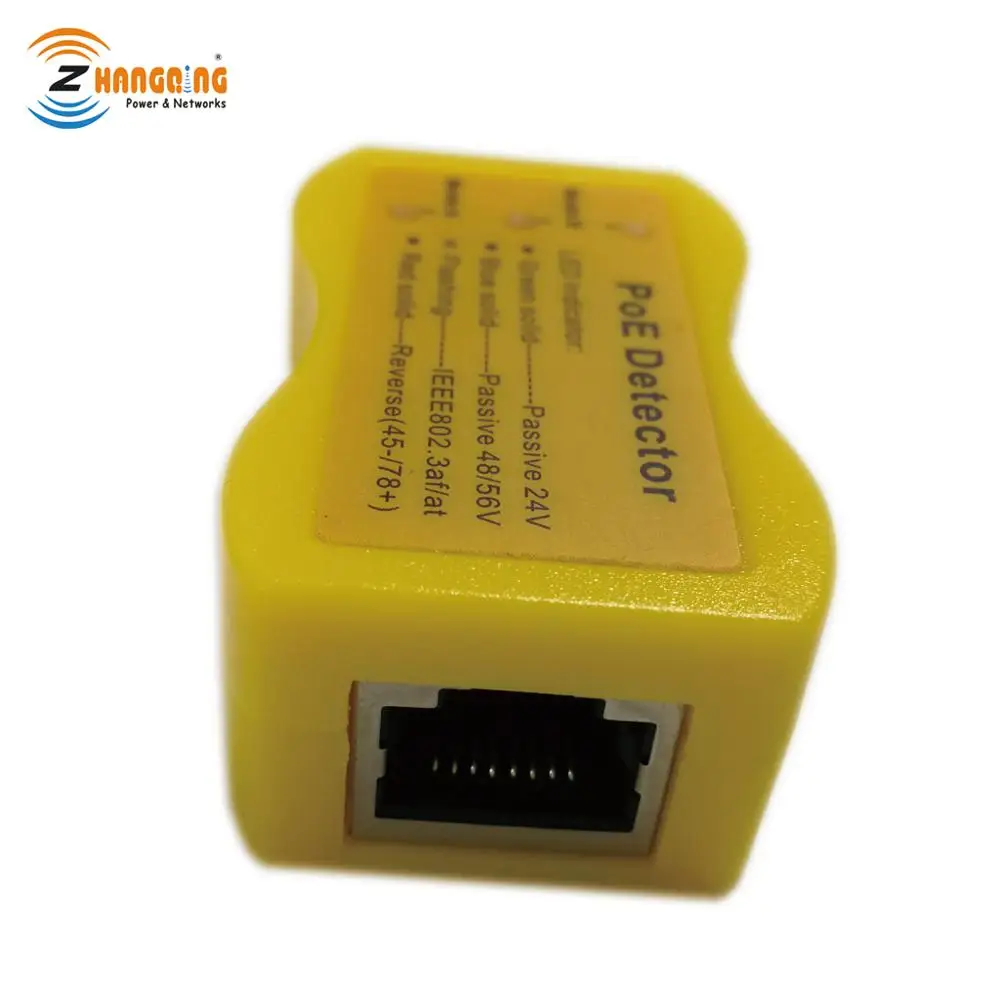

This device reports via LED lights, the type of PoE that is on the Ethenet cable. With this keychain device, you can quickly find out what PoE method is available, the approximate voltage, and pinout and polarity.

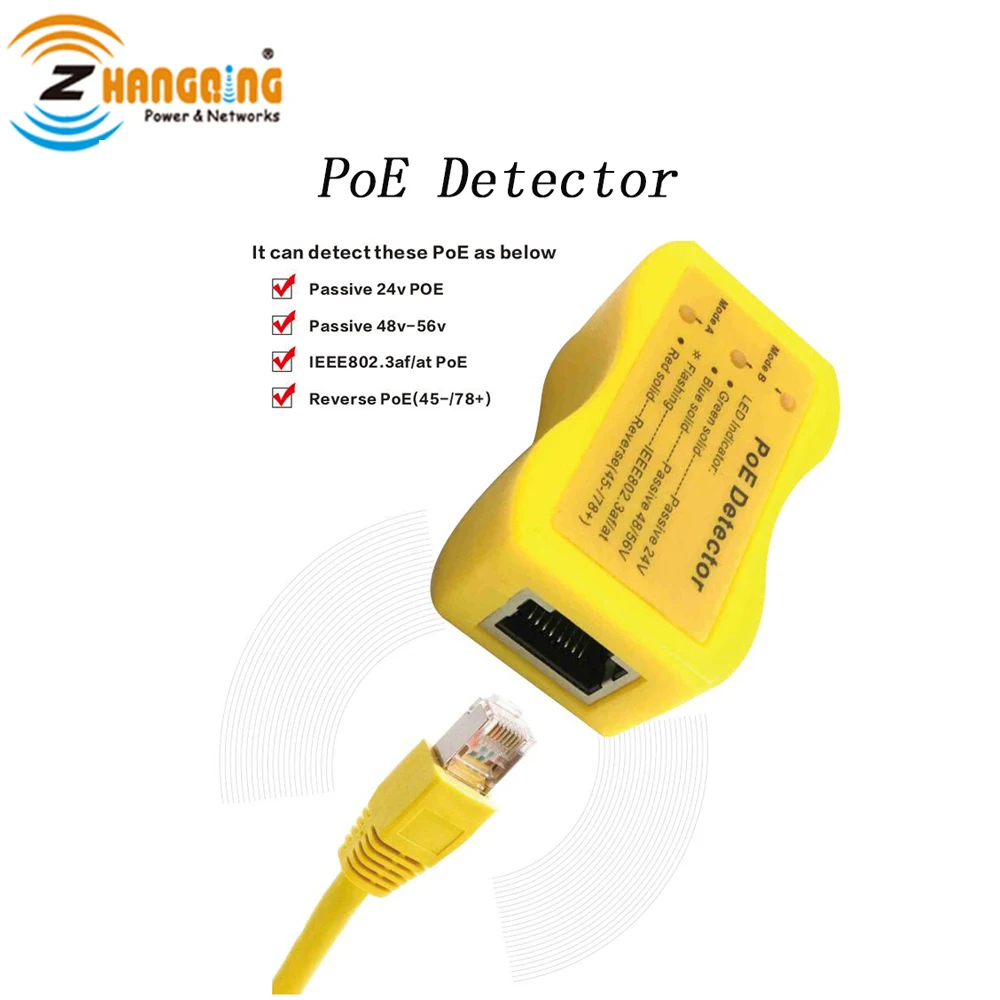

You can use it with passive injectors, 802.3af , 802.3at, 802.3bt with 568A, 568B or reverse PoE polarity. Mode A and Mode B PoE is supported. If you are far from the PoE switch or injector – this device will show if a port has power.

If you insert the device at the remote end of an Ethernet cable, then go back to the data closet with the PoE switch - your PoE switch will show a pulse indicating that the detector is plugged into a port - up to 100 mtr away.

Welcome to contact us on WhatsApp: +86 15012557721 / Skype: Karo thnia

For cables and power supply - see our web.







Features





Mode A	GREEN Flashing	802.3af or 802.3at	Pin 1/2 and 3/6
	Green on Solid	Passive 24v	Pin 1/2 and 3/6
	Blue on solid	Passvie 48v or 56v	Pin 1/2 and 3/6
Mode B	Green Flashing	802.3af, 802.3at or 802.3bt	Pins 4&5 + and 7&8 -
	Green on solid	Passive 24v	Pins 4&5 + and 7&8 -
	Blue on solid	Passive 48v or 56v	Pins 4&5 + and 7&8 -
	RED	Reverse polarity	Pins 4&5 - and 7&8 +

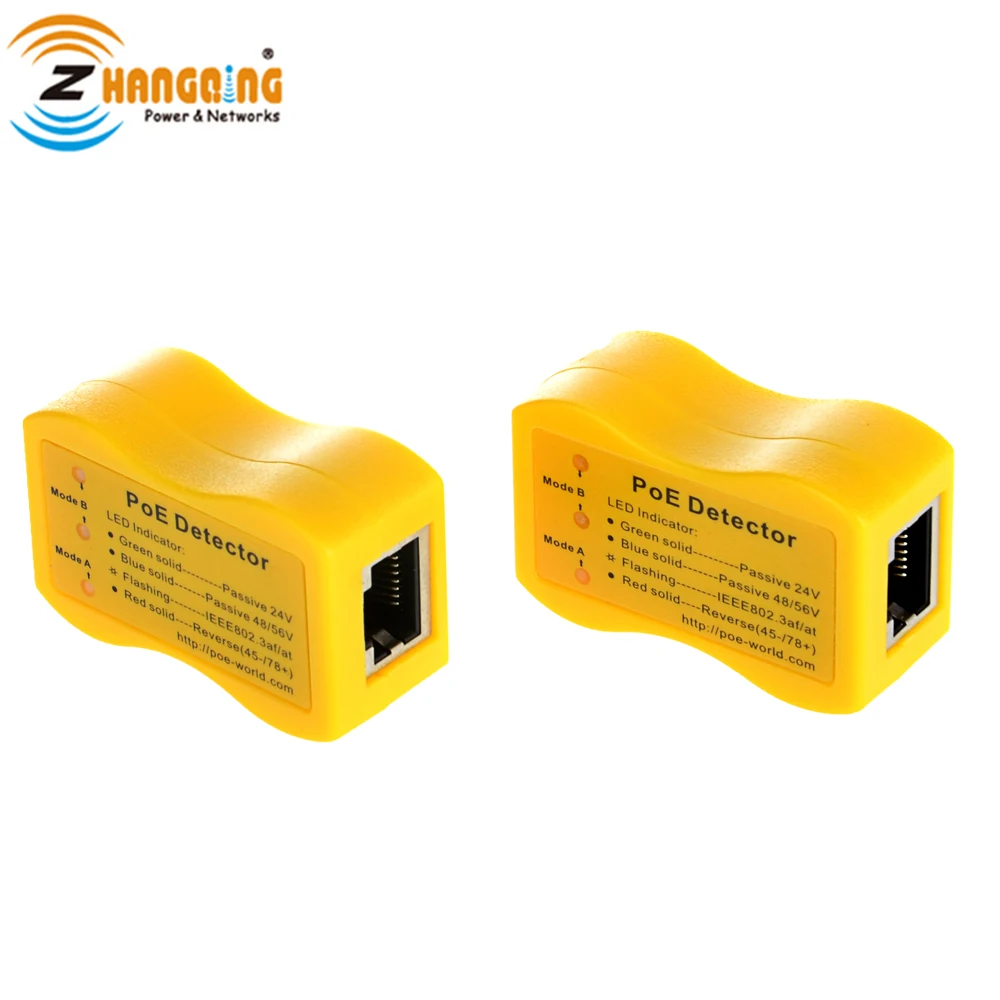

Detailed Images
