Programmable Temperature Humidity Chamber/Climatic Chamber/Environment Test Chamber Price
- Category: >>>
- Supplier: Dongguan Lonroy Equipment Co. Ltd.
Share on (50044772669):
Product Overview
Description

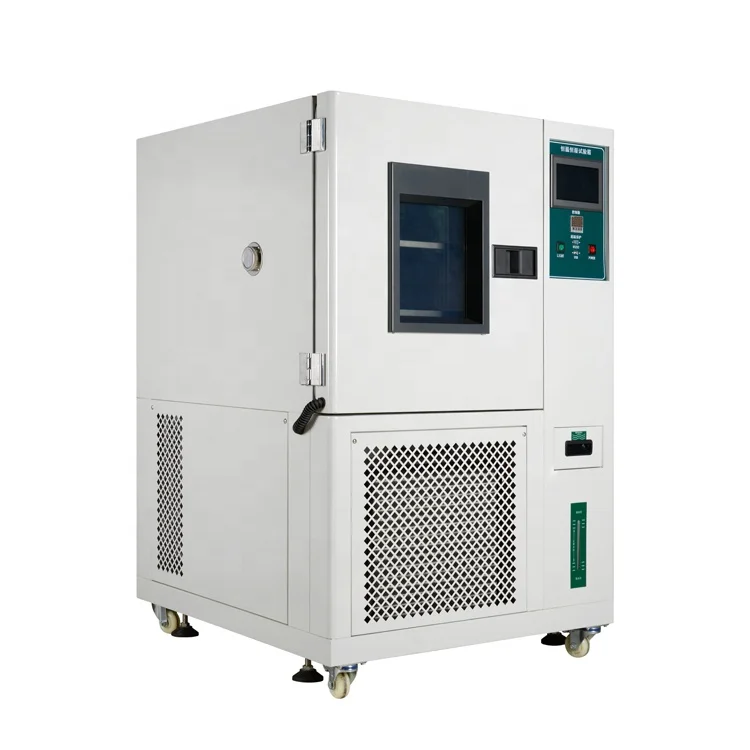

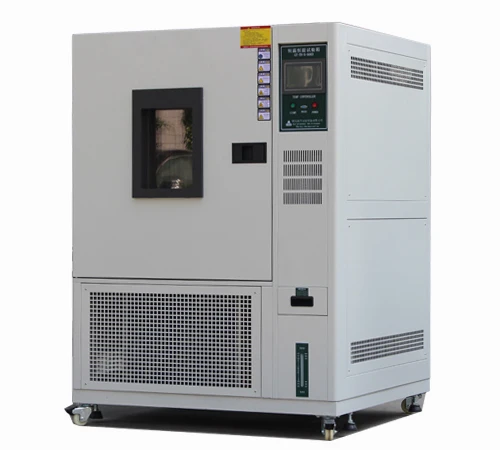

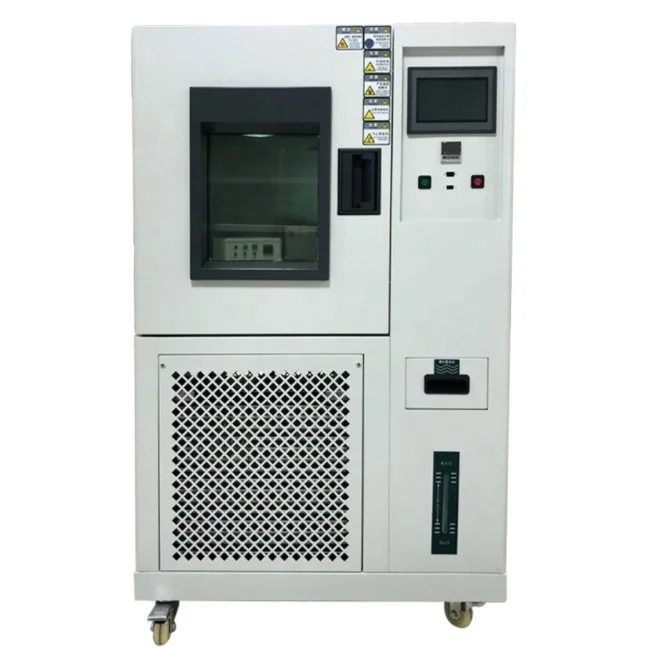

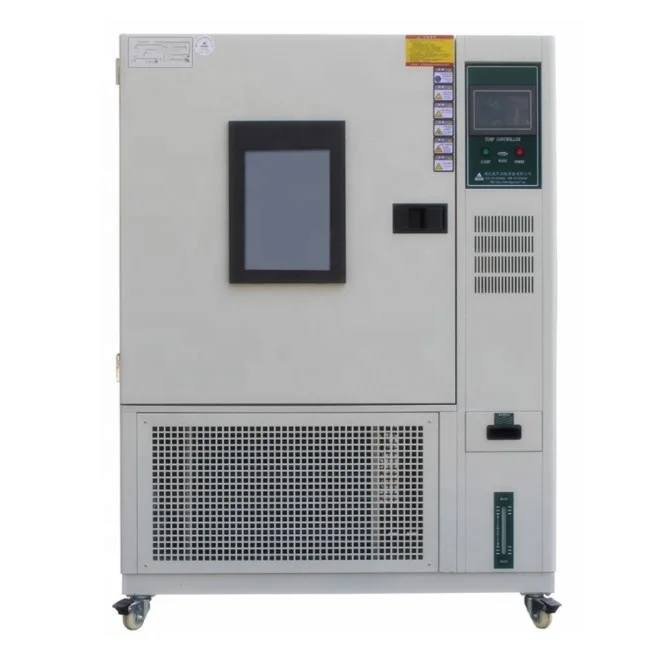

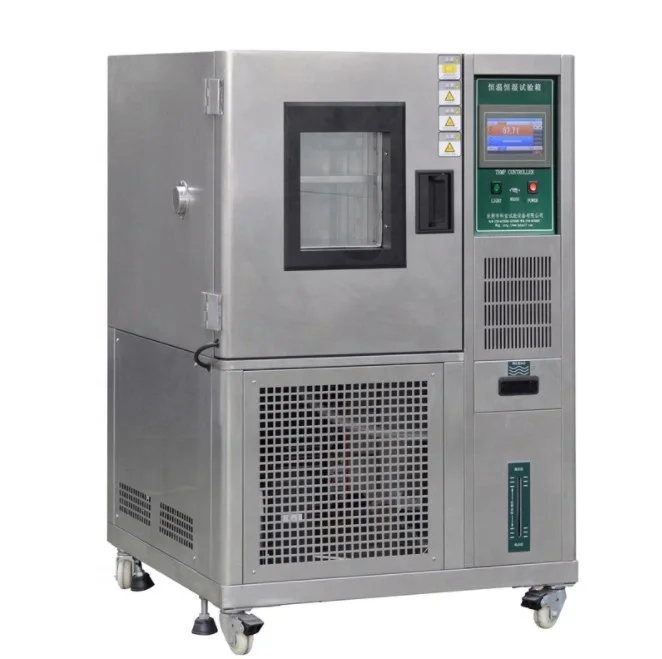

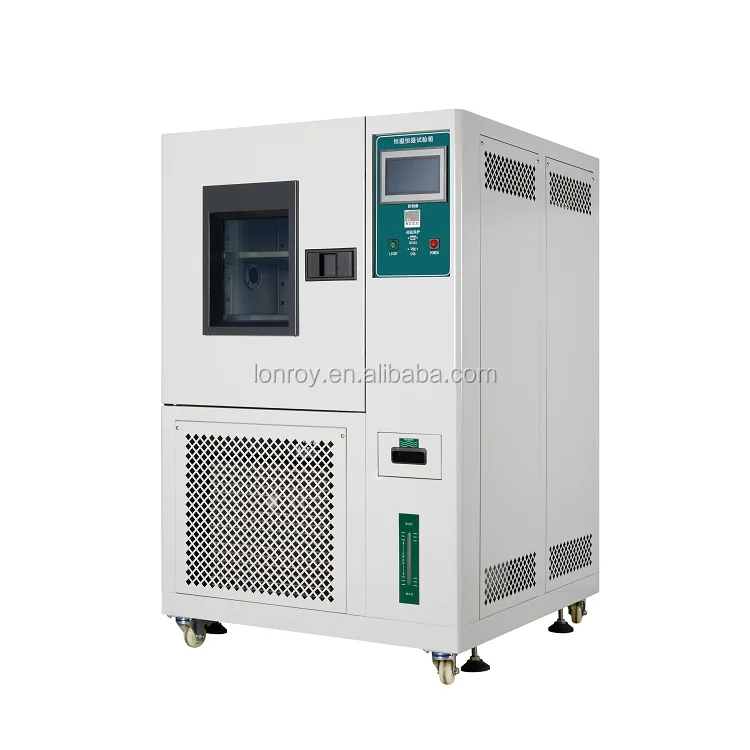

Programmable Temperature Humidity Chamber/Climatic Chamber/Environment Test Chamber Price
Uses:
This equipment can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry,resist humidity and resist cold. That can define performance of material.
Programmable Temperature Humidity Chamber/Climatic Chamber/Environment Test Chamber Price
Design Standard:
GB11158 | High Temperature Test Chamber Technical Condition |
GB10589-89 | Low Temperature Test Chamber Technical Condition |
GB10592-89 | High-low Temperature Test Chamber Technical Condition |
GB/T10586-89 | Damp Heat Test Chamber Technical Condition |
GB/T2423.1-2001 | Low Temperature Test Chamber Test Methods |
GB/T2423.2-2001 | High Temperature Test Chamber Test Methods |
GB/T2423.3-93 | Damp Heat Test Chamber Test Methods |
GB/T2423.4-93 | Alternating Damp-Heat Test Methods |
GB/T2423.22-2001 | Temperature Changing Test Methods |
IEC60068-2-1.1990 | Low Temperature Test Chamber Test Methods |
IEC60068-2-2.1974 | High Temperature Test Chamber Test Methods |
GJB150.3 | High Temperature Test Methods |
GJB150.4 | Low Temperature Test Methods |
GJB150.9 | Damp Heat Test Methods |
60068-2-1
Programmable Temperature Humidity Chamber/Climatic Chamber/Environment Test Chamber Price
Specification
Model | LR-B001-80 | LR-B001-150L | LR-B001-225L | LR-B001-408L | LR-B001-800L | LR-B001-1000L |
Inner size: WHD(cm) | 40*50*40 | 50*60*50 | 60*75*50 | 60*85*80 | 100*100*80 | 100*100*100 |
External size: WHD(cm) | 105*165*98 | 105*175*108 | 115*190*108 | 135*200*115 | 155*215*135 | 155*215*155 |
Temperature range | (Low temp.:A:+25℃; B:0℃;C:-20℃; D:-40℃; E:-60℃; F:-70℃) (High temp.: + 150℃) | |||||
Humidity range | 20%~98% R.H | |||||
Temp analytic accuracy/ | 0.1℃/±2.0℃ | |||||
Temperature Fluctuation | ±0.5℃ | |||||
Humidity control accuracy | ±0.1%;±2.5% | |||||
Heat, cooling time | Heat up about 4.0°C/min ; Cooling about 1.0°C/min | |||||
Inner and outer materials | SUS#304 Stainless steel for inner chamber ; Carton Advanced cold plate nano paint for outer | |||||
Insulation materials | Resistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation materials | |||||
Cooling system | Air cooling/single segment compressor(-40°C) ,air and water double segment compressor (-50°C~-70°C) | |||||
Protection devices | Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch, super humidity over-temperature protection switch, fuse, failure warning system | |||||
Parts | Watching window , 50mm testing hole , PL internal bulbs , Wet and dry bulb gauze , partition plate , castorx4, Foot Cupx4 | |||||
Compressor | Original France“Tecumseh”brand | |||||
Controller | Taiwan, Independent R&D software | |||||
Power | AC220V 50/60Hz & 1 , AC380V 50/60Hz 3 | |||||
Weight (kg) | 170 | 220 | 270 | 320 | 450 | 580 |
