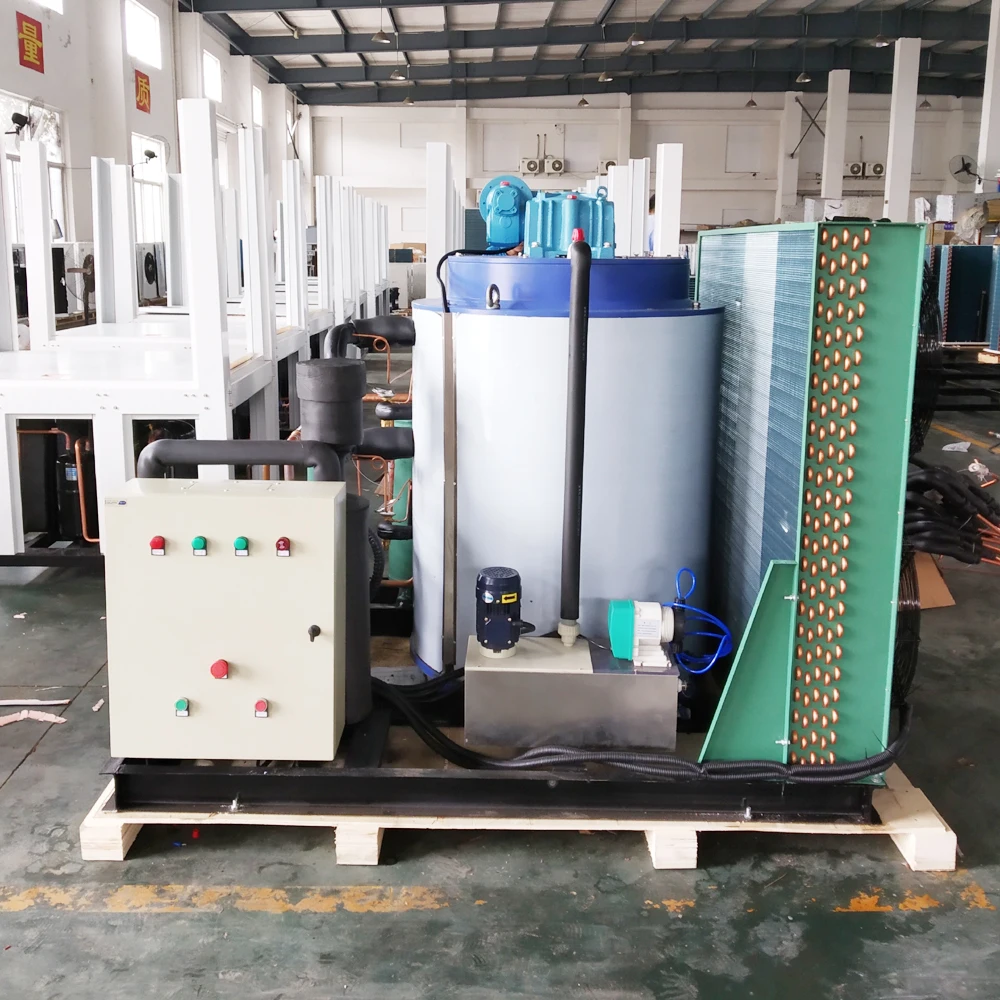

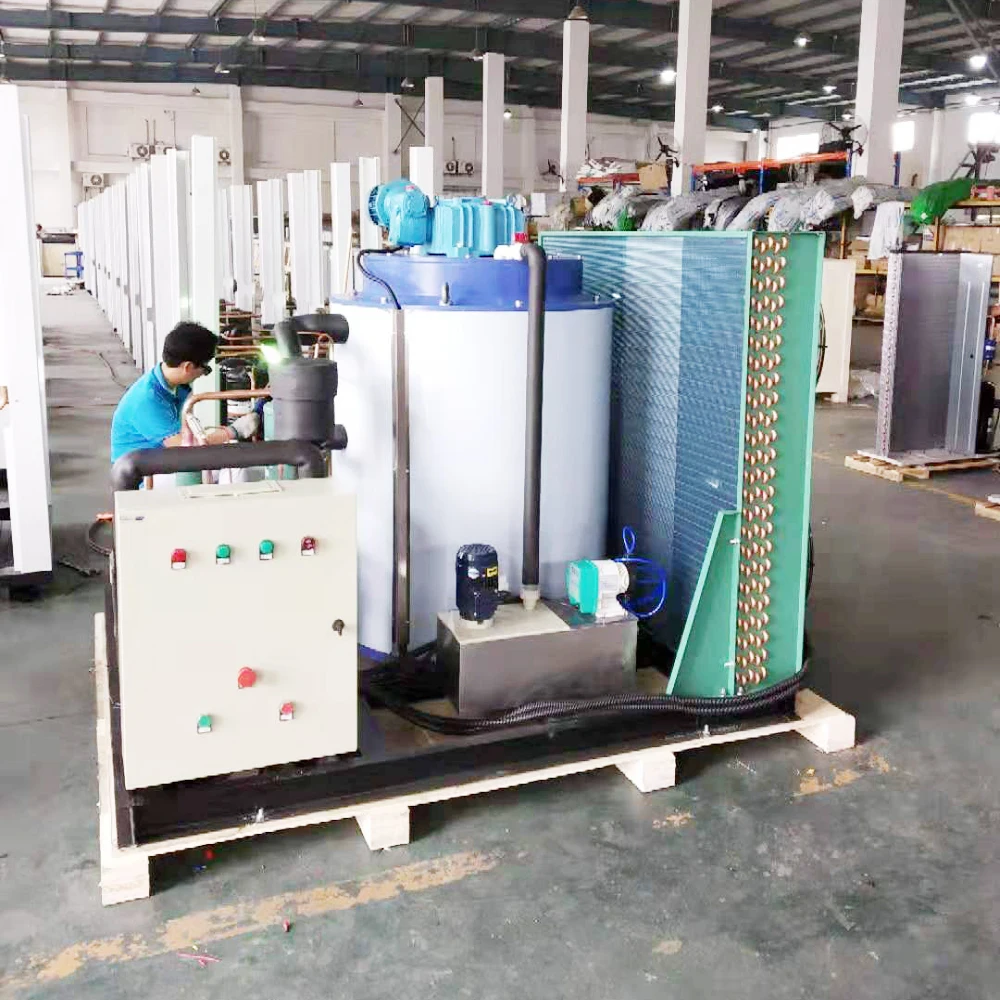

BTK series 10 tons commercial flake ice making machine

Product Overview

Description

BTK series 10 tons commercial flake ice making machine









SUMMARY of BTK series 10 tons commercial flake ice making machine

1.  World famous brand compressors ,Bitzer, Refcomp, Hanbell

2.  Stainless steel evaporator drum

3.  Working condition: ambient temperature around 45 ℃

4.   Evaporating temperature -20 ℃





Components of 10 tons commercial flake ice making machine

1.Copeland scroll or Bitzer compressor

2. Evaporator

3. Condenser

4. Speed reducer

5. Electrical box

6. Inlet water pump

7. Brine water pump

8. Danfoss pressure controller KP15

9. Danfoss Expansion valve

10. Castel Solenoid valve

11. Danfoss drier filter

12. Oil separator

13. Suction Accumulator

14. Ice full switch

15. Steel base frame

16. Vibration absorber for machines with Bitzer compressor





Technical Data of 10 tons commercial flake ice making machine

Model	Compressor	Power supply (v/p/hz)	Refrigerant	Cooling Capacity @ Cond. temp. 45°C, Evap. Temp. -20°C	Daily Capacity kg/day	Total  Power ( KW)	Ice degree ( °C)	Size (mm)			Weight (kg)
								L	W	H
BTK-10.0	Bitzer 40HP	380/3/50	R404	55120W	10000	35	-8	2180	1850	1800	1670

 Test condition: Ambient Temperature: around 45°C, water Inlet Temperature: 10°C

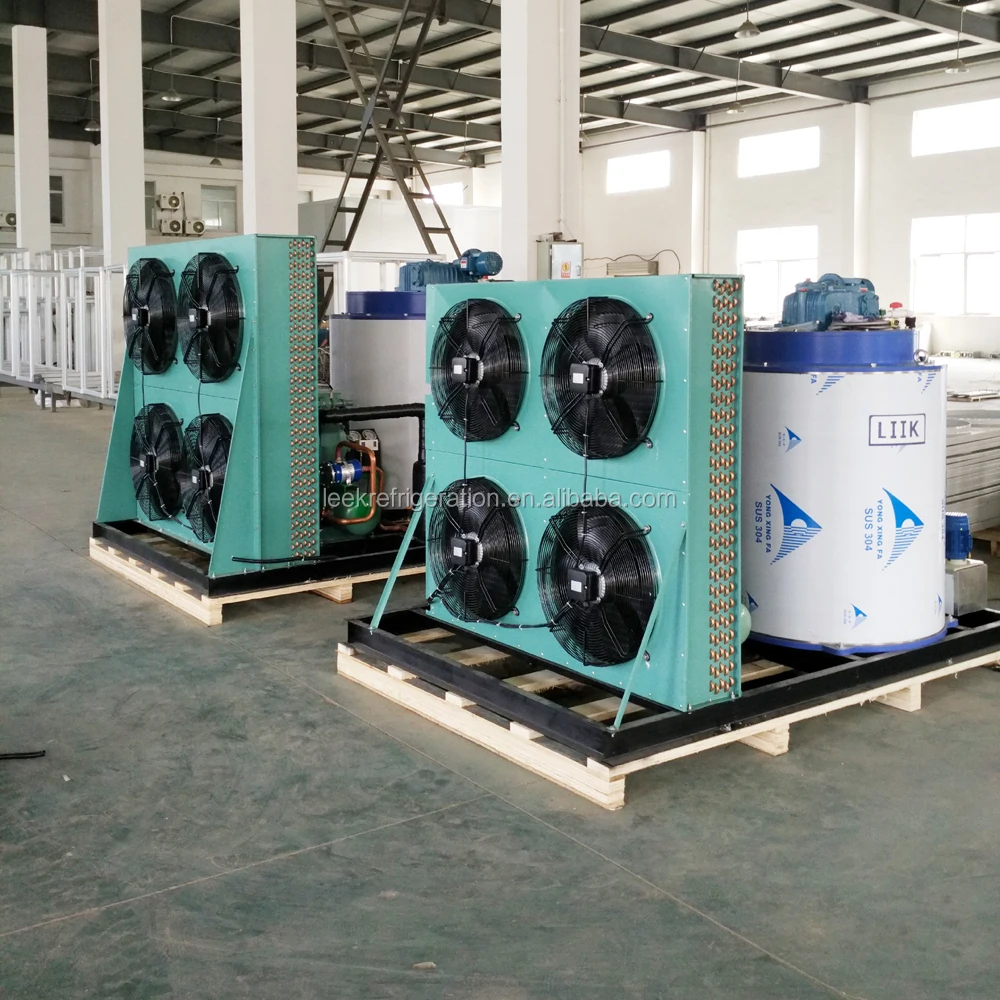

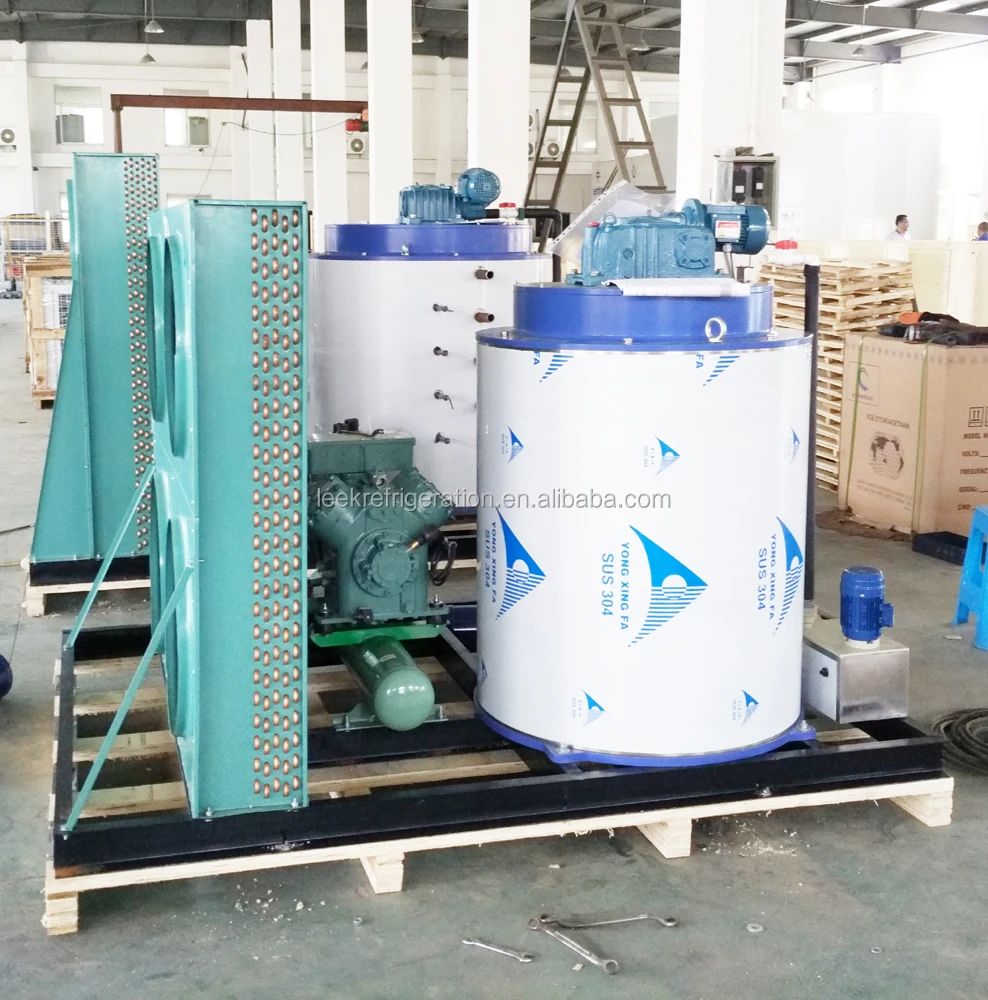

PICTURES ON SITE OF  BTK series 10 tons commercial flake ice making machine







Container loading and transportation of 10 tons commercial flake ice making machine







COMPANY IMAGES of 10 tons commercial flake ice making machine
