MODEL	CODE	POWER		m3/min		RPM	DIMENSION	WEIGHT
		HP	KW	7barg	8.6barg	R/min	mm	kg
7.0-8.6barg STANDARD
OL5C5	15830359	5.5	4.1	0.51	0.47	929	1700×905×1150	335
OL5C7	15833718	7.5	5.6	0.61	0.59	1,200	1700×905×1150	340
OL10D10	15831563	10	7.5	0.81	0.77	1,067	1870×960×1210	430
OL15E15	15831209	15	11	1.32	1.24	936	1910×970×1550	635
OL15E15-FF	15831530	15	11	1.32	1.24	936	1910×1000×1550	650
7.0-8.6barg STANDARD PLATE
OL5XB7	15839533	7.5	5.6	0.61	0.59	1,200	1100×580×645	190
OL10XB10	15839541	10	7.5	0.81	0.77	1,067	1235×630×700	220
OL15XB15	15839558	15	11	1.3	1.24	936	1250×770×895	395
OL15XB15-FF	15839566	15	11	1.3	1.24	936	1250×800×895	410
OL25XB25	15831977	25	18.5	2.54	2.49	1,051	1995×1250×1275	725

Reciprocating Air Compressors

Ingersoll Rand has maintained a delicate balance between known performance and new technology developments to manufacture world class reciprocating air compressors. With a proven design and stellar track record, the Ingersoll Rand reciprocating compressor family has earned worldwide recognition for reliable, trustworthy performance that saves money and enhances business success through: Lower life cycle costs; An ability to thrive in punishing applications; Configurations that meet varying needs; Optimum solutions for greater efficiency; Our cumulative experience with how different users prefer, need and operate their compressors has taught us what is most important to compressor users.

• Non-Lubricated
• Single-Stage
• Two-Stage
• High-Pressure
• Oil-Lubricated
• Vacuum Pumps



Electric-Driven Two-Stage Air Compressors

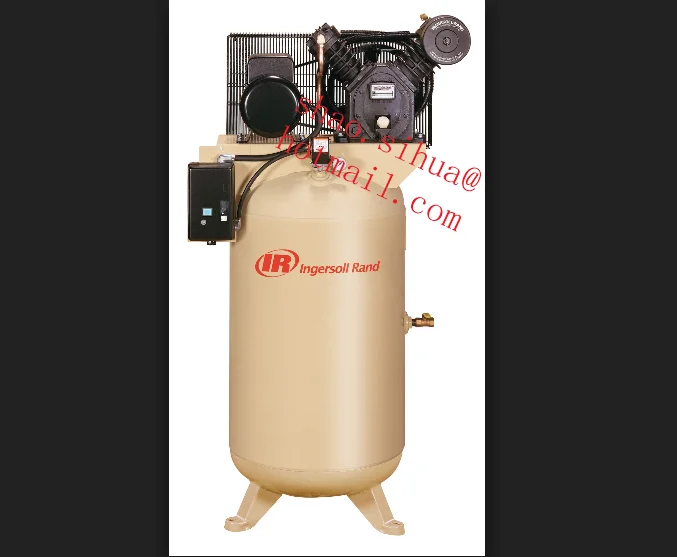

T30 Two Stage Reciprocating Compressor

The Ingersoll-Rand T30 has been the leader in its class since it was introduced in 1929. Whether this is measured by reliability, efficiency, rugged flexibility or maintainability, it has no equal.
Designed for heavy industrial applications, the two stage reciprocating air compressors provide the quality and performance that exceed customer requirements.
Others may claim to handle heavy duty applications, but the T30 defines the concept. Run it in the most demanding intermediate duty application imaginable.
It won’t make any difference because this compressor performs with total dependability in the most demanding, heavy-duty industrial applications.
Throughout this brochure we try to show you some of the features which make the T30 unique and ideal to meet your demands of a compressor package in the 2-30 HP range.
Many compressor applications need care and experience to ensure that the correct machine and configuration is selected to provide the level of efficiency and reliability which you expect.
Our Sales offices and Distributors are ideally qualified and experienced to assist you in this task. If you are seeking information about a new compressor, advice about an existing installation or ancillary equipment or spare parts, you will find knowledge available to assist you.

Designed for heavy shop or industrial use, Ingersoll Rand Electric-driven Two-stage air compressors provide the reliability and performance that are ideal for most applications and users including automotive service and body shops, fleet maintenance, machine shops, production and manufacturing lines, wood working shops, dry cleaners, car washes, general maintenance/repair shops and farms.

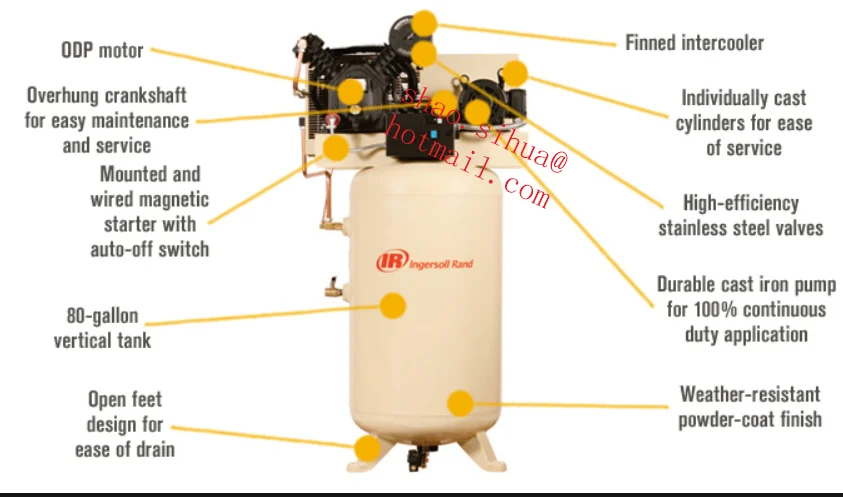

FEATURES:

• Durable cast iron design for 100% continuous duty application

• Precision engineered components for high reliability

• Individually cast cylinders, overhung crankshaft and one piece connecting rod for ease of maintenance and service

• High efficiency finger valves

• 175 psig maximum operating pressure for applications requiring high air capacity and pressure

• Extended 2 year warranty when used with Ingersoll Rand’s All Season Select synthetic lubricant

• Choice of Value, Value Plus and Premium packages to suit diversified customer needs





 SPECIFICATION:

	POWER		SPEED	PRESSURE	CAPACITY m3/min
Model	HP	kW	r/min	BarG/max.	@7barg	@8.6barg
OL5C5	5.5	4.1	929	7.0 - 8.6	0.51	0.48
OL5C7	7.5	5.6	1,200	7.0 - 8.6	0.61	0.59
OL10D10	10	7.5	1,067	7.0 - 8.6	0.81	0.77
OL15E15	15	11.0	936	7.0 - 8.6	1.32	1.25
OL15E15-FF	15	11.0	936	7.0 - 8.6	1.32	1.25
OL5XB7	7.5	5.6	1,200	7.0 - 8.6	0.61	0.59
OL10XB10	10	7.5	1,067	7.0 - 8.6	0.81	0.77
OL15XB15	15	11.0	936	7.0 - 8.6	1.30	1.24
OL15XB15-FF	15	11.0	936	7.0 - 8.6	1.30	1.24
OL25XB25	25	18.5	1,051	7.0 - 8.6	2.54	2.52
